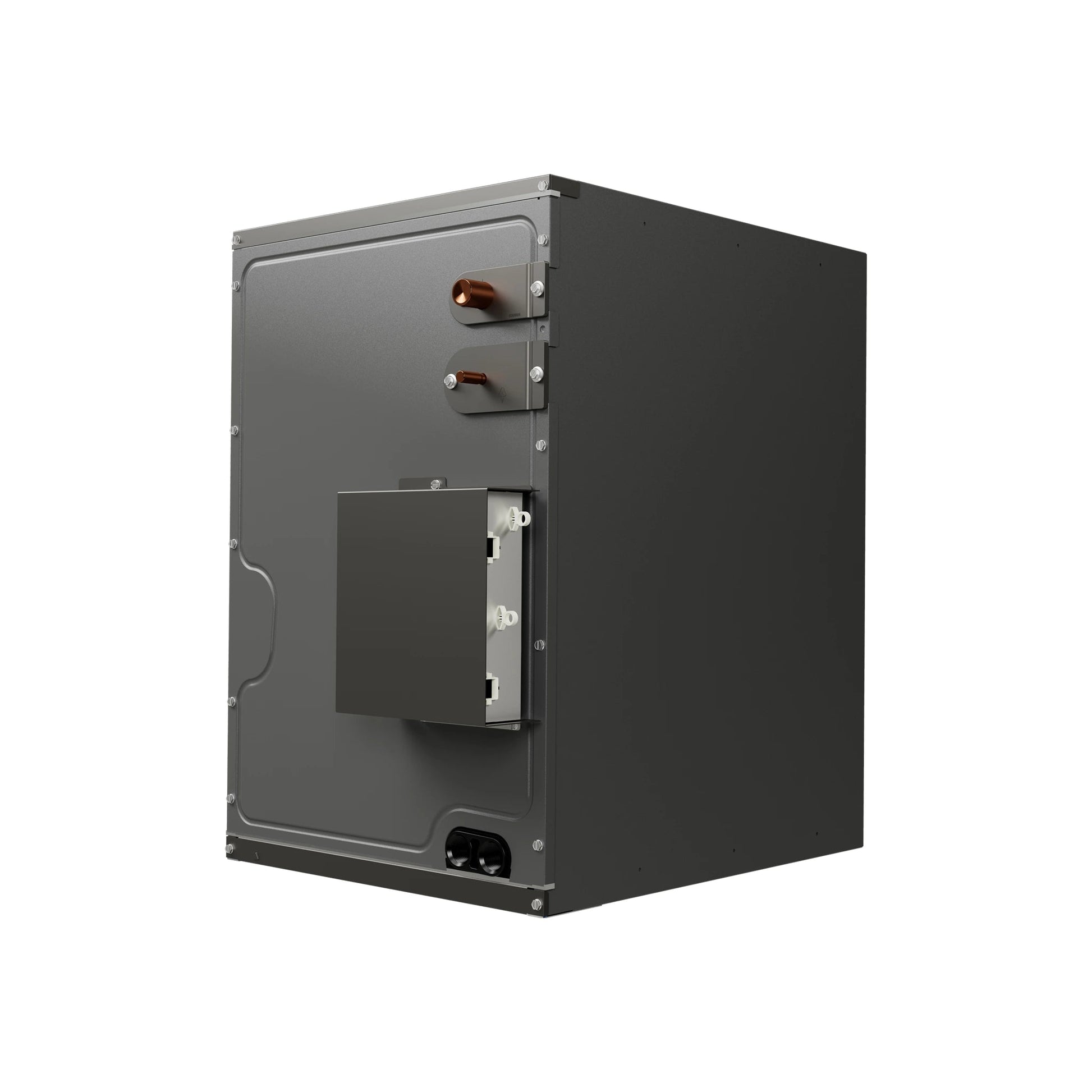

Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA6030D3
The Goodman CAPEA6030D3 is a 5-ton evaporator coil designed specifically for horizontal applications in split system air conditioners and heat pumps. Engineered with an all-aluminum A coil, this unit ensures long-lasting durability and efficient heat transfer. It comes factory-equipped with a thermal expansion valve (TXV) to provide accurate refrigerant control for R-32 systems. Additional features include foil-faced cabinet insulation to manage condensation and a DecaBDE-free thermoplastic drain pan for added environmental compliance. Ideal for residential installations between 2,400 and 3,000 square feet, this coil supports both cooling and heating operations.
Key Features
- 5 Ton Cooling Capacity (60,000 BTU)
- Horizontal Configuration for Low-Clearance Installations
- All-Aluminum Coil for Enhanced Durability and Corrosion Resistance
- Factory-Installed TXV for Accurate Refrigerant Metering
- Compatible with R-32 Refrigerant
- Foil-Faced Insulation Minimizes Internal Cabinet Moisture
- DecaBDE-Free Thermoplastic Drain Pan for Safe Condensation Control
- Single Front Access Panel for Easy Servicing
- Galvanized Cabinet with Leather Grain-Embossed Finish
- Suitable for Homes from 2,400 to 3,000 Sq. Ft.
- AHRI Certified, ETL Listed, and ISO Certified
Designed for energy-efficient performance in cooling and heat pump systems, this horizontal evaporator coil is a reliable choice for modern HVAC applications requiring R-32 refrigerant compatibility.
Goodman 5 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA6030D3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Benefits
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA6030D3
| sku | CAPEA6030D3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| short description | CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32 |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| product description | 5.0T Cased Upflow/Downflow R-32 Coil with EEV |
| cooling btu | 60,000 |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 1-1/8 in |
| height | 30 in |
| width | 26 in |
| depth | 21 in |
| weight | 72 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 17 |
| product class pim | Coil |
| model efficiency | 17 SEER |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731523 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 60000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 30 in |
| dimensions unit width | 26 in |
| expansion device | EEV |
| indoor orifice size | 0.172 in |
| weight unit | 72 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 1-1/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.75 in |
| dimensions case height | 32.25 in |
| dimensions case width | 26.00 in |
| dimensions distribution unit depth | 26.75 in |
| dimensions distribution unit height | 32.25 in |
| dimensions distribution unit width | 26 in |
| dimensions pallet depth | 55.00 in |
| dimensions pallet height | 69.00 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 26.75 in |
| dimensions shipping unit height | 32.25 in |
| dimensions shipping unit width | 26.00 in |
| distribution shipping volume unit | 22429.875 in³ |
| shipping volume unit | 22429.875 in³ |
| truck factor | 0.0000 |
| volume case | 22429.875 in³ |
| volume distribution shipping unit | 22429.875 in³ |
| weight case | 75.000 lb |
| weight distribution shipping unit | 75 lb |
| weight shipping unit | 75.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
