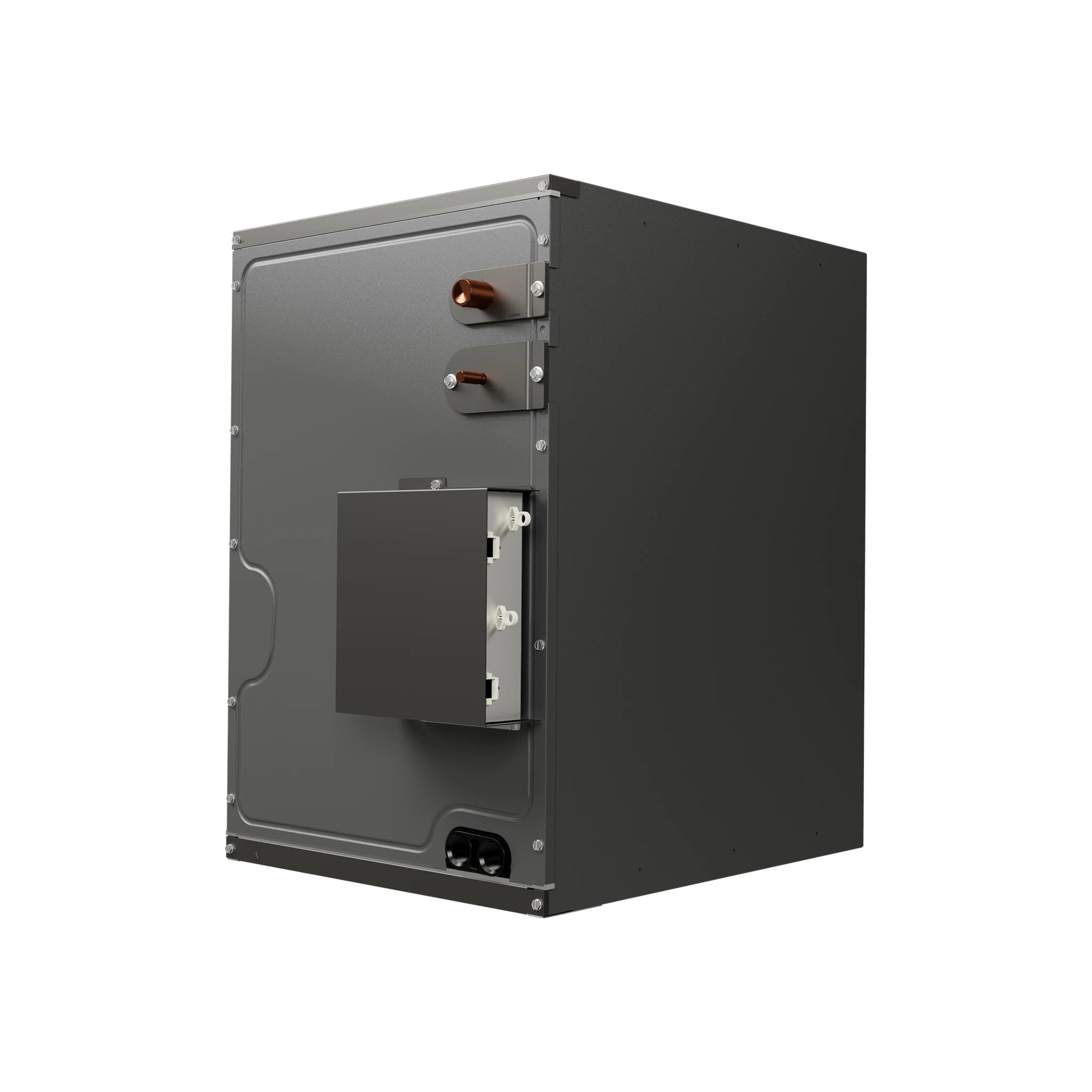

Goodman 3 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA3022B3
The Goodman CAPEA3022B3 is a versatile cased evaporator coil engineered for both upflow and downflow installations. Designed for modern R-32 refrigerant systems, this indoor coil features a factory-installed Electronic Expansion Valve (EEV) for enhanced refrigerant control and compatibility with advanced communicating HVAC systems. With a compact 21" depth, it's ideal for tight attic spaces and applications requiring flexible installation without sacrificing performance or efficiency.
Product Features:
- All-Aluminum Evaporator Coil – Built for durability and optimal heat transfer, reducing corrosion and increasing coil longevity.
- R-32 Refrigerant Optimization – Engineered with specialized circuits and manifolds to maximize performance with environmentally friendly R-32 refrigerant.
- Integrated R-32 Sensor – Designed to last the life of the coil and ensure optimal refrigerant management throughout system operation.
- Factory-Installed Electronic Expansion Valve (EEV) – Provides precision refrigerant control and supports compatibility with Daikin One+ smart thermostats and Daikin communicating equipment.
- Upflow & Downflow Configuration – Offers flexible installation options in a wide range of home HVAC setups.
- Seven-Millimeter Coil Tubing – Improves overall system efficiency and performance in both cooling and heat pump applications.
- Fault Recall Memory – Stores the six most recent system faults for simplified diagnostics and service.
- Standardized Copper Suction Tube Stub Length – Ensures easier installation across different system configurations.
- 21-Inch Depth – Compact design allows for easier access during attic or tight-space installations.
- Foil-Faced Internal Insulation – Helps reduce cabinet condensation, improves efficiency, and protects internal components.
- Galvanized, Leather Grain-Embossed Finish – Rugged exterior provides lasting protection and resists wear and corrosion.
- Rust-Resistant Thermoplastic Drain Pan – Low water-retention design helps prevent microbial growth and corrosion over time.
- DecaBDE-Free, UV-Resistant Drain Pan – Environmentally conscious and built for long-term UV exposure without degradation.
- Drain Pan Rails – Allow for easy removal and repositioning of the coil without compromising structural integrity.
- AHRI Certified & ETL Listed – Meets strict efficiency and safety standards for trusted performance and compliance.
Advanced Control & Compatibility:
With its built-in electronic expansion valve (EEV), the CAPEA3022B3 supports advanced system communication and control, making it an ideal match for Daikin One+ smart thermostats and other Daikin communicating HVAC equipment. This advanced compatibility ensures better system performance, precision diagnostics, and maximum energy efficiency.
Goodman 3 Ton Evaporator Coil 17.5" Cabinet EEV Expansion Upflow/Downflow CAPEA3022B3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Benefits
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA3022B3
| sku | CAPEA3022B3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| short description | CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32 |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| product description | 2.5T Cased Upflow/Downflow R-32 Coil with EEV |
| cooling btu | 30,000 |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| height | 21 in |
| width | 20 in |
| depth | 21 in |
| weight | 50 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 17 |
| product class pim | Coil |
| model efficiency | 17 SEER |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731448 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 30000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 21 in |
| dimensions unit width | 20 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 50 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 24.50 in |
| dimensions case width | 20.00 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 24.5 in |
| dimensions distribution unit width | 20 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 78.00 in |
| dimensions pallet width | 41.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 24.50 in |
| dimensions shipping unit width | 20.00 in |
| distribution shipping volume unit | 12740 in³ |
| shipping volume unit | 12740.000 in³ |
| truck factor | 0.0000 |
| volume case | 12740.000 in³ |
| volume distribution shipping unit | 12740 in³ |
| weight case | 52.000 lb |
| weight distribution shipping unit | 42.09 lb |
| weight shipping unit | 52.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
