Product Overview

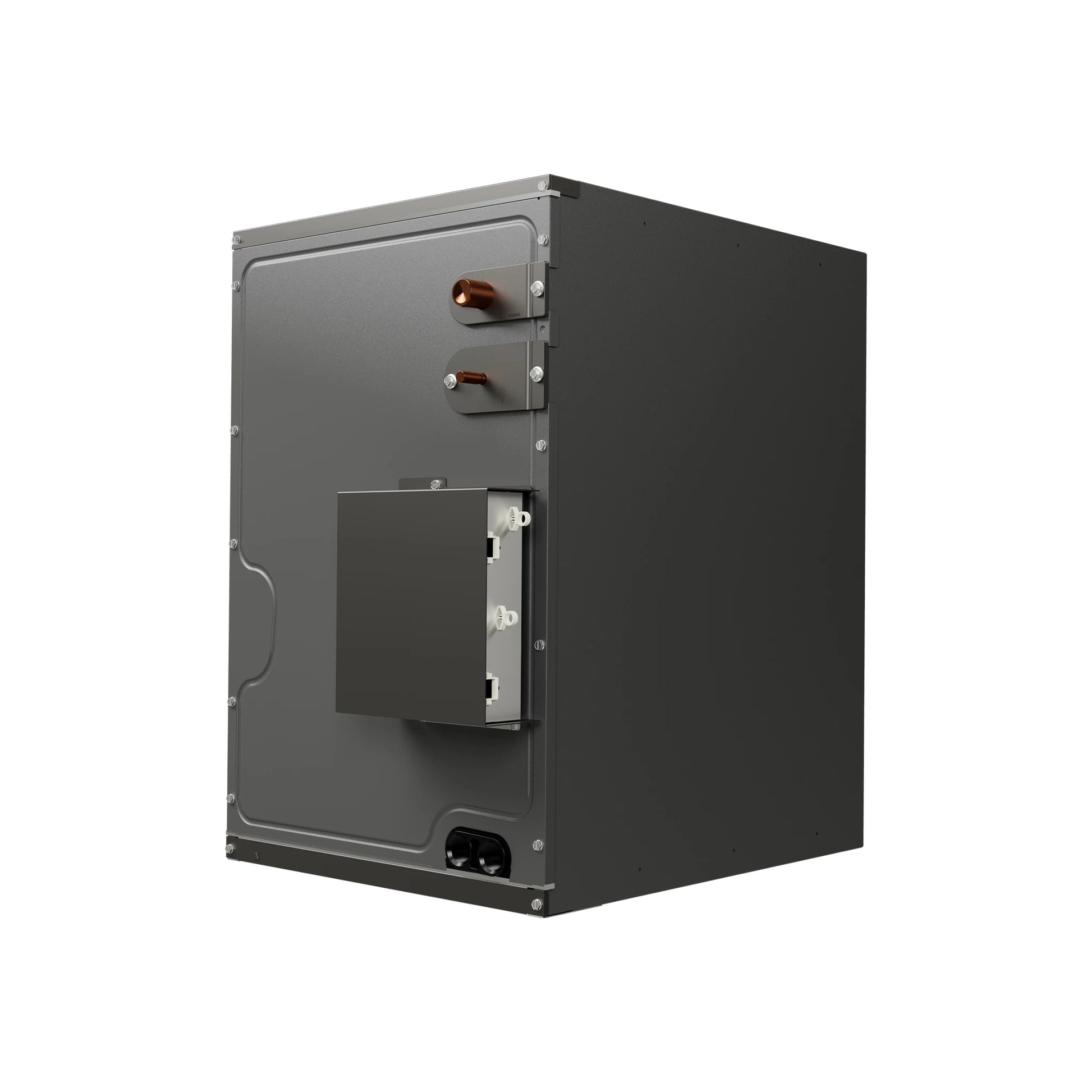

Goodman 3 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA3626D3
The Goodman CAPEA3626D3 is a 3-ton cased A coil engineered for upflow and downflow HVAC installations. Built with all-aluminum construction, it offers enhanced corrosion resistance and efficient heat transfer. This evaporator coil includes a factory-installed electronic expansion valve (EEV) that delivers accurate refrigerant metering, supporting optimal performance with R-32 refrigerant systems. Designed for reliability, the unit meets AHRI, ETL, and ISO standards and includes cabinet insulation features for improved moisture control and maintenance access.
Key Features
- 3 Ton Cooling Capacity (36,000 BTU)
- All-Aluminum Coil for Enhanced Heat Transfer and Durability
- Factory-Installed Electronic Expansion Valve (EEV) Ensures Precise Refrigerant Flow
- Compatible with R-32 Refrigerant Systems
- Upflow and Downflow Installation Flexibility
- Foil-Faced Insulation Reduces Cabinet Condensation
- Galvanized Cabinet with Leather Grain-Embossed Finish
- Single Front Access Panel for Easy Service
- AHRI Certified, ETL Listed, and ISO Certified
- Made in the USA
This indoor coil is ideal for homeowners and HVAC professionals seeking a reliable, high-efficiency coil that integrates easily into modern residential systems using R-32 refrigerant.
Goodman 3 Ton Evaporator Coil EEV Expansion 24.5" Cabinet Upflow/Downflow CAPEA3626D3
| Warranty Type | Parts Warranty |
| Standard Coverage | 12-Year Limited Parts Warranty |
Product Benefits
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features
- Single front access panelFoil-faced insulation covers the internal casing to reduce cabinet condensationGalvanized, leather grain-embossed finish
Technical Specifications - CAPEA3626D3
| sku | CAPEA3626D3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPEA_32 |
| series name | CAPEA |
| short description | CAPEA Evaporator Coil, Upflow/Downflow, Ton, R-32 |
| family description | CAPEA AlumaFin7™ Evaporator Coil |
| product description | 3.0T Cased Upflow/Downflow R-32 Coil with EEV |
| cooling btu | 36,000 |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| height | 26 in |
| width | 26.5 in |
| depth | 21 in |
| weight | 61 lb |
| safety information | Proposition 65 Label: Yes |
| seer2 | 17 |
| product class pim | Coil |
| model efficiency | 17 SEER |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051731486 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 36000 Btu/H |
| produced in us | Yes |
| cabinet finish | Painted |
| dimensions unit depth | 21 in |
| dimensions unit height | 26 in |
| dimensions unit width | 26.5 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 61 lb |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.75 in |
| dimensions case height | 28.50 in |
| dimensions case width | 26.50 in |
| dimensions distribution unit depth | 26.75 in |
| dimensions distribution unit height | 28.5 in |
| dimensions distribution unit width | 26.5 in |
| dimensions pallet depth | 55.00 in |
| dimensions pallet height | 61.50 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 26.75 in |
| dimensions shipping unit height | 28.50 in |
| dimensions shipping unit width | 26.50 in |
| distribution shipping volume unit | 20202.9375 in³ |
| shipping volume unit | 20202.937 in³ |
| truck factor | 0.0000 |
| volume case | 20202.937 in³ |
| volume distribution shipping unit | 20202.9375 in³ |
| weight case | 64.000 lb |
| weight distribution shipping unit | 68.09 lb |
| weight shipping unit | 64.000 lb |
