A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

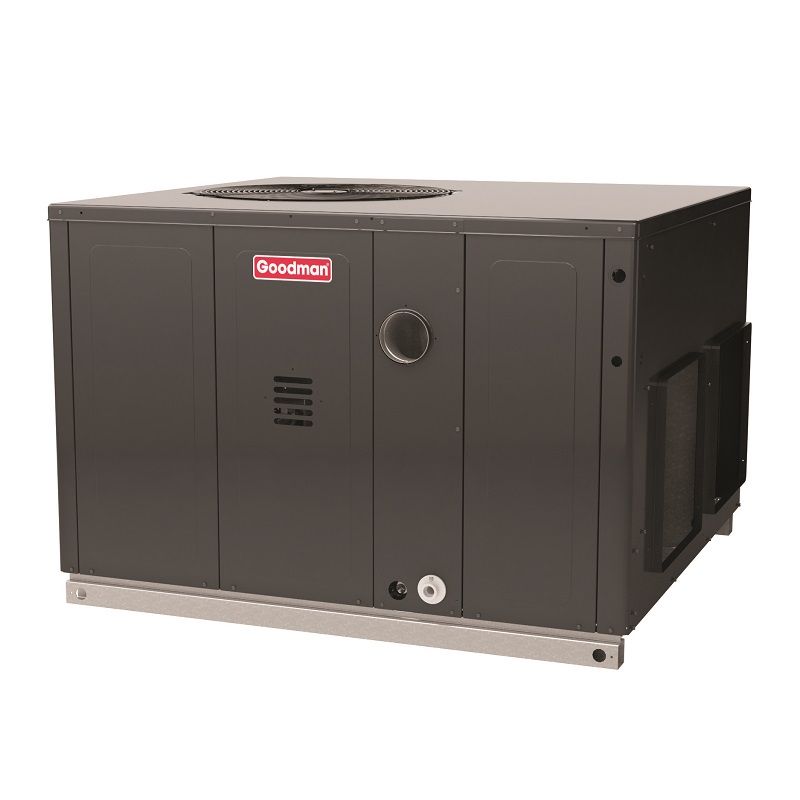

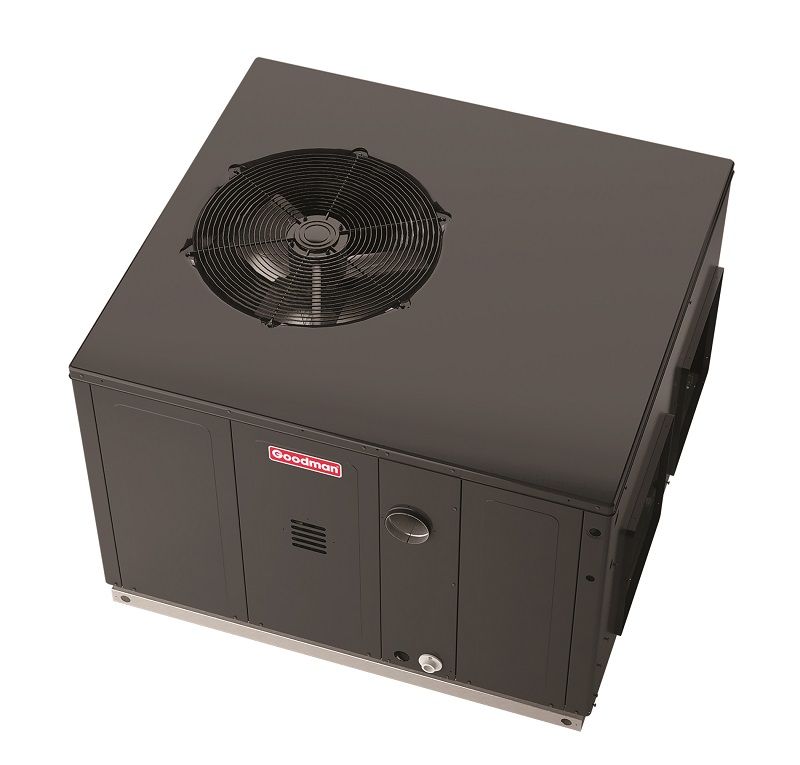

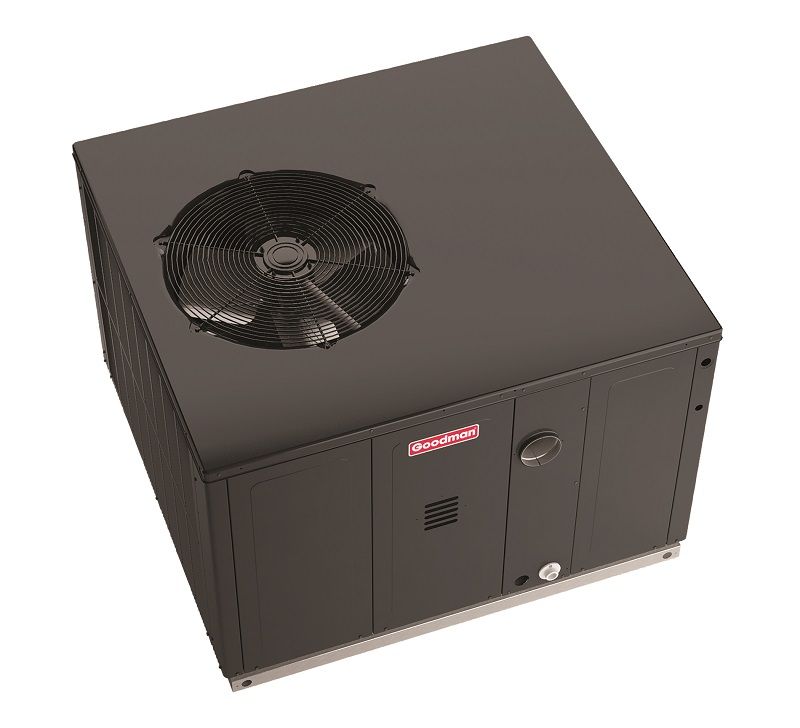

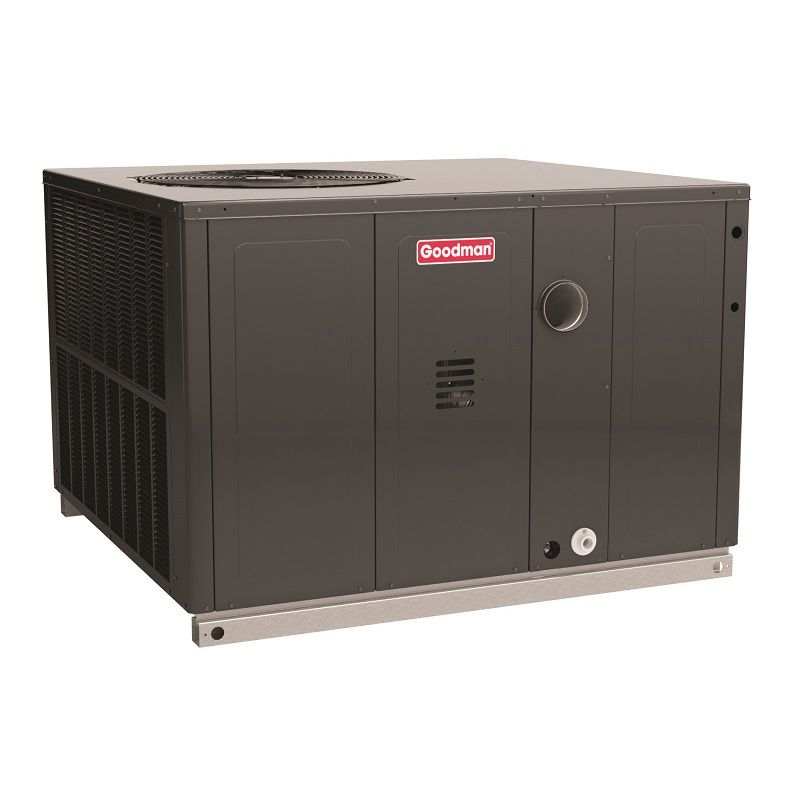

The Goodman GPUM34808031 is a gas heat and electric AC packaged unit, ready for any application where it is not convenient to have an indoor furnace or air handler. At 13.4 SEER2 and 81% AFUE, the GPUM34808031 is an inexpensive option with a standard efficiency designed for rooftop and next-to-building applications.
The Goodman GPUM34808031 provides 4 tons of electric air conditioning as well as 80,000 BTU of natural gas heating to your home, providing comfort to your home year-round. While it comes from the factory with a natural gas valve setup, a propane conversion kit is available at an additional cost to be field-installed.
On the air conditioning side, the GPUM34808031 packaged unit is 13.4 SEER2, or the national standard efficiency for AC units. The heating side of the unit is 81% efficient, meaning that 81 cents on every dollar that you spend on your home’s heating gas bill will be used to heat your home, and the remaining 19 cents is lost to normal heating operations and is lost out of the flue venting. Both of these efficiency ratings make the GPUM34808031 packaged unit a universal option, as it is acceptable to install nationwide.
Ultra-low NOx gas packaged units are only available in natural gas configurations. If you need a propane gas packaged unit, you will need to order the regular version of this packaged unit and add a propane conversion kit to it. You can find the regular version here:
Goodman provides a 10 year parts warranty and a whopping 20 year heat exchanger warranty. Please note that the unit must be installed following your state and local codes and the unit must be registered online through the manufacturer for the warranty to be upheld.
The exterior of the Goodman GPUM34808031 is durable with its heavy-gauge steel design and superior noise isolation insulation. The unit also meets Florida building code unit integrity requirements for hurricane-type weather when properly anchored. For reliability, the unit’s blower motor is completely sealed and permanently lubricated. The evaporator coil is also all-aluminum and the redundant gas valve is accompanied by a power-assisted combustion, all increasing reliability and durability and providing a peace of mind that your unit will work whenever you need it.
The Goodman GPUM34808031 packaged unit uses natural gas out of the box, but a propane conversion kit can be purchased separately and field-installed if required. For ease of installation, the GPUM34808031 is precharged from the factory with all required refrigerant, decreasing materials costs. The unit can be installed in a horizontal or downflow configuration for whether you need it to be on the roof or next to the building.
The Goodman brand has always been focused on bringing an inexpensive yet superior comfort and efficiency to your home. The GPUM34808031 balances this perfectly, with its exceptional soundproofing and self-contained nature bringing you comfort and efficiency to an easy-to-install design.


Packaged Unit Buyers Guide
| sku | GPUM34808031 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Packaged Gas/Electric/Dual |
| system family | Unitary Packaged System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GPUM3_32 |
| short description | Goodman Packaged Gas/Electric/Dual 13.4 SEER2, Single Stage, Downflow/Horizontal, 4 Ton |
| family description | Packaged Gas/Electric Ultra-Low NOx, 13.4 SEER2 / 81% AFUE,2 to 5 Tons |
| product description | 4t pkguln 13.4seer2 80k 1p-r32 R-32 |
| cooling btu | 46,000 |
| heating btu | 80,000 |
| seer2 | 13.4 |
| decibel level (dba) | 79 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 1/2 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 50 A |
| min. breaker size | 31.6 A |
| tonnage | 4 |
| btu/tonnage | 46,000 BTU/4 Ton |
| height | 42-1/2 in |
| width | 47 in |
| depth | 51 in |
| weight | 450 lb |
| warranty | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 216574813 |
| product class pim | Packaged Gas/Electric/Dual |
| model efficiency | 13.4 SEER2 |
| installation type | Ducted Multi-position |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051707863 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| afue | 0.81 % |
| cooling capacity nominal | 46000 Btu/H |
| eer hsvtc | 10.6 |
| eer2 hsvtc | 10.6 |
| energy star certified | No |
| heating capacity nominal | 80000 Btu/H |
| seer hsvtc | 13.4 |
| seer 2 hsvtc | 13.4 |
| installation configuration | Downflow/Horizontal |
| produced in us | No |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated cooling condition room db | 80 °F |
| rated cooling condition room wb | 67 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| rated heating condition room db | 70 °F |
| rated heating condition room wb | 60 °F |
| compressor lra | 128 A |
| compressor rla | 19.4 A |
| control voltage conduit size | 1.25 in |
| evap motor rla | 5.4 A |
| indoor blower fla | 5.4 A |
| indoor blower lra | 0.2 A |
| max overcurrent protection | 50 A |
| max voltage | 253 V |
| min circuit amps | 31.6 A |
| min voltage | 197 V |
| outdoor fan fla | 2 A |
| outdoor fan lra | 4.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power supply conduit size | 0.875 in |
| power voltage | 208-230 V |
| total unit amps | 26.799999999999997 A |
| air flow rate high cooling | 1525 ft³/min |
| air flow rate high heating | 1525 ft³/min |
| compressor quantitiy | 1 |
| compressor stages | Single Stage |
| condenser coil metal type | Copper |
| condenser coil rows | 2 |
| condenser fan blade count | 3 |
| condenser fan diameter | 22 in |
| condenser fan rpm | 1122 r/min |
| condenser fin density fins per inch | 27 |
| dimensions blower diameter | 11 in |
| dimensions blower width | 10 in |
| dimensions evap wheel diameter | 11 in |
| dimensions evap wheel width | 10 in |
| dimensions unit depth | 51 in |
| dimensions unit height | 42-1/2 in |
| dimensions unit width | 47 in |
| evap coil face area ft | 5.68 |
| evap coil metal type | Aluminum |
| evap coil rows | 4 |
| evap fin density fins per inch | 14 |
| evap motor rpm | 1050 r/min |
| expansion device | Orifice |
| external static pressure rated | 0.8 |
| heat exchanger type | Gas |
| motor speed tap | 5 taps |
| motor speed type | Multi Speed ECM |
| number of burners | 4 |
| number of speeds | 5 |
| orifice size natural | 0.082 in |
| orifice size propane | 1.25 mm |
| sound pressure high cooling | 79 dBA |
| weight unit | 450 lb |
| condenser fan horsepower | 1/3 metric hp |
| cooling capacity rated | 46000 Btu/H |
| cooling capacity sensible | 35696 Btu/H |
| evap motor horsepower | 3/4 metric hp |
| heating capacity rated | 80000 Btu/H |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 64800 Btu/H |
| low fire input capacity | 80000 Btu/H |
| low fire output capacity | 64800 Btu/H |
| factory std refrigerant charge | 89 oz |
| gas valve type | Single Stage |
| pipe size gas | 1/2 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 52.00 in |
| dimensions case height | 44.00 in |
| dimensions case width | 48.00 in |
| dimensions distribution unit depth | 52 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 48 in |
| dimensions pallet depth | 52.00 in |
| dimensions pallet height | 44.00 in |
| dimensions pallet width | 48.00 in |
| dimensions shipping unit depth | 52.00 in |
| dimensions shipping unit height | 44.00 in |
| dimensions shipping unit width | 48.00 in |
| distribution shipping volume unit | 109824 in³ |
| shipping volume unit | 109824.000 in³ |
| truck factor | 0.0000 |
| volume case | 109824.000 in³ |
| volume distribution shipping unit | 109824 in³ |
| weight case | 489.000 lb |
| weight distribution shipping unit | 489 lb |
| weight shipping unit | 489.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Technical Data
Loading technical data…
Product FAQs
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
