Home 36,000 BTU Goodman

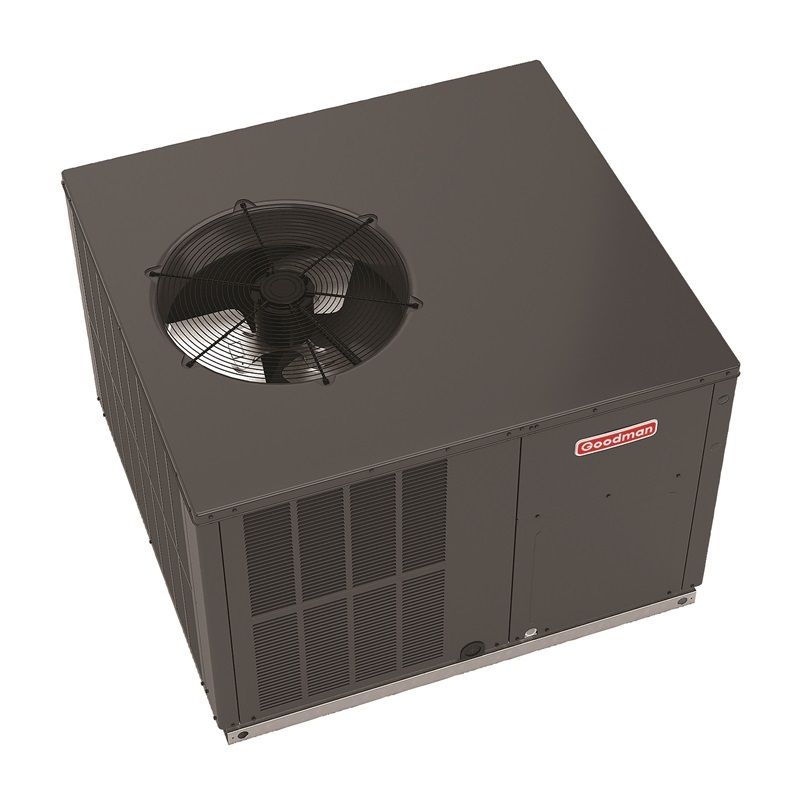

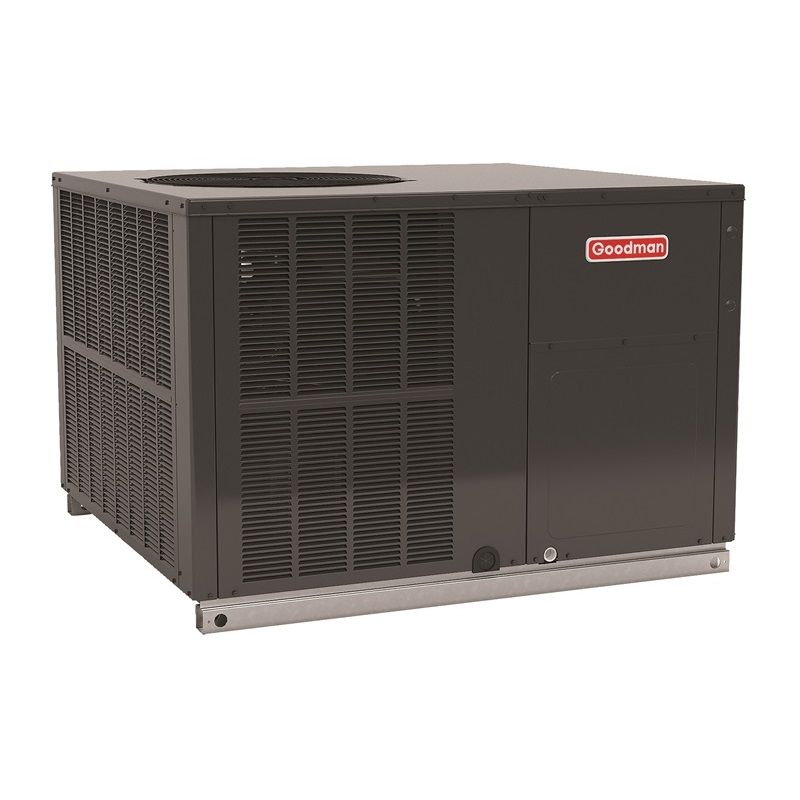

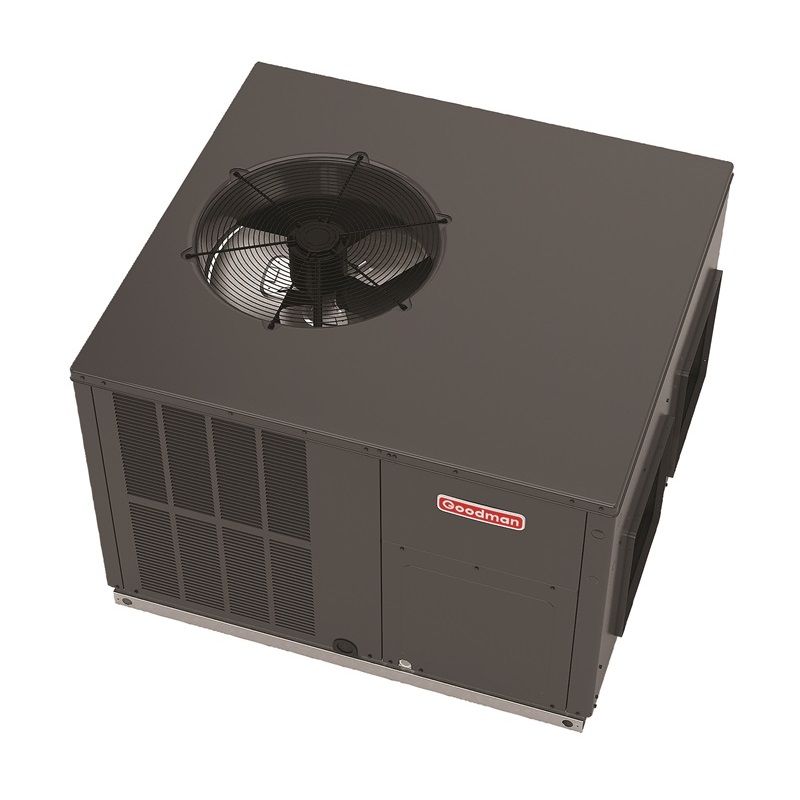

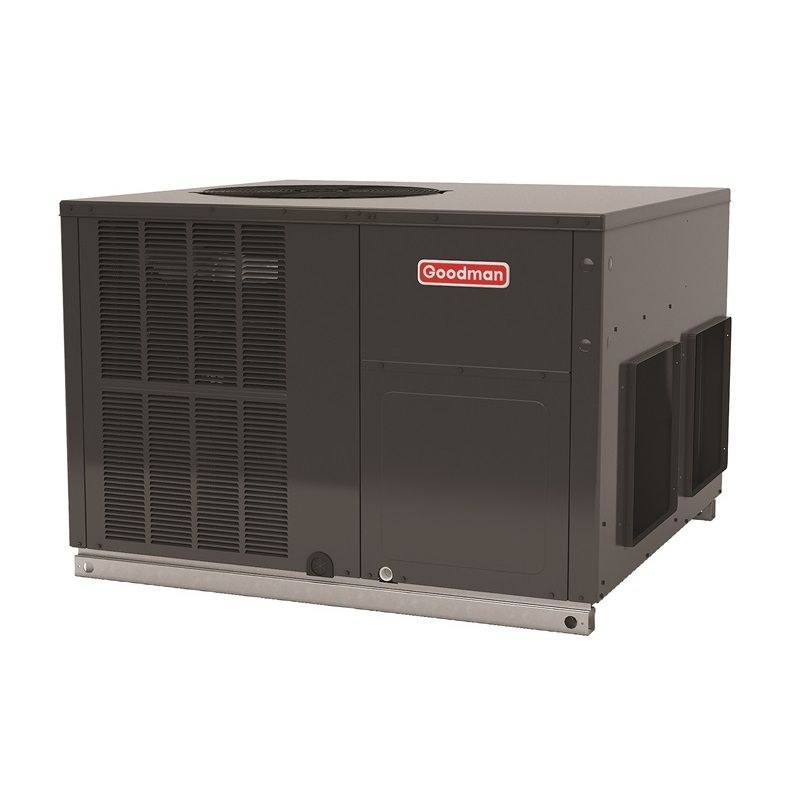

Goodman 3 Ton 15.2 SEER2 Package Heat Pump Unit - R32 Multi-Positional

SKU GPHM53631 Packaged Units15.2 SEER2208-230V
$6,167.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 36K room setups:
  • Open floor plans
  • Large garages
  • Light commercial
  • Multi-room areas
36,000 BTU
Cooling
36,000 BTU
Heating
See specs
Quiet Inside
Rated
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 3 Ton 15.2 SEER2 Package Heat Pump Unit - R32 Multi-Positional

Product Overview

OVERVIEW

The Goodman GPHM53631 is an all-in-one outdoor heat pump packaged unit using R-32 refrigerant. With a durable heavy-gauge galvanized-steel cabinet and high-efficiency two-stage design, it provides superior year-round comfort at a 15.2 SEER2 rating to save on electrical bills.

Advanced technology enables efficient heat transfer for heating and cooling, with convertible airflow and factory-charged operation for straightforward, cost-effective installation.

QUICK FACTS

  • Ideal size to cover a medium-sized house in ideal climates
  • 3 ton, 15.2 SEER2 heat pump packaged unit
  • Multi-Positional (upflow, downflow or horizontal discharge) installation options
  • Certified for use with R32 refrigerant
  • Low sound output

3 Ton

With a 36,000 BTU/h nominal cooling capacity, the Goodman GPHM53631 suits small houses in average climates. Heat pumps function down to around 30°F, requiring a field-installed backup electric heat kit for lower temperatures. An electric heating kit can be purchased separately to provide straight electric heating to your home when field-installed.

15.2 SEER2

At 15.2 SEER2, the Goodman GPHM53631 heat pump packaged unit is higher than the industry standard efficiency. This 15.2 SEER2 unit is around 12% more efficient than its 13.4 SEER2 counterpart, saving you money over time in electric bills.

Warranty

Goodman heat pump system offers a 10 year parts warranty on the GPHM53631 when its installation follows state and local codes of the installation address and when the unit is registered online through the manufacturer.

Durability and Reliability

The GPHM53631 features a heavy-gauge galvanized-steel cabinet with Architectural Gray powder-paint and louvered coil protection for sturdiness. Reliability comes from a multi-speed ECM blower motor, copper tube/aluminum fin condenser coil, and all-aluminum evaporator coil.

Installation and Maintenance

Fully charged and tested at the factory, the GPHM53631 eliminates refrigerant needs, reducing costs. Convertible to horizontal or downflow with fully insulated blower compartment and access panels for easy maintenance in spaces without indoor handlers.

Comfort in Mind

Goodman prioritizes quiet, efficient, dependable comfort at affordable prices, with the GPHM53631's cabinet insulation minimizing sound while maintaining high performance.

Product Benefits

  • Meets the 2023 M1 Test Standards

Product Features

  • Energy-efficient compressor with internal relief valve
  • Two-stage heating and cooling
  • Multi-Speed EEM indoor blower motor
  • Liquid-line filter drier
  • Convertible airflow: horizontal or downflow
  • Copper tube/aluminum fin condenser coils
  • All-aluminum evaporator coil on 2- to 4-ton units
  • Aluminum-copper evaporator coil on 5-ton units
  • Totally enclosed, permanently lubricated condenser fan motor
  • Electric heat kit available as a field-installed option

Cabinet Features

  • Fully insulated heavy-gauge, zinc-coated steel cabinet with UV-resistant grey powder-paint finish (Sandstone Beige for the 5-ton model)
  • Horizontal or downflow application
  • Aluminum foil-facing internal insulation reinforced with fiberglass scrim
  • Compressor sound blanket
  • Compressor grommets for vibration isolation
  • Louvered condenser coil protection
  • Convenient access panels
  • Bottom, 2-inch high base rails for easier handling
  • When properly anchored, meets the 2020 FloridaBuilding Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GPHM53631

sku GPHM53631
manufacturer Goodman
product category Unitary
product class Packaged Heat Pump
system family Unitary Packaged System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GPHM5_32
series name GPHM5
short description Goodman Packaged Heat Pump 15.2 SEER2, Two Stage, Downflow/Horizontal, 3 Ton
family description Packaged Heat Pump Up to 15.2 SEER2 / 6.7 HSPF2 2 to 5 Tons
product description 3.0t m-pkgd 15.2 seer2 hp
cooling btu 36,000
heating btu 35,500
seer2 15.2
decibel level (dba) 76 dBA
refrigerant R-32
compressor type Scroll
liquid line 3/8 in
suction line 3/4 in
electrical 208-230 V | 60 Hz | 1 Ph
max breaker size 35 A
min. breaker size 22.8 A
tonnage 3
btu/tonnage 36,000 BTU/3 Ton
height 42-3/4 in
width 47 in
weight 492 lb
warranty ALL PARTS - 10 YEARS PARTS
safety information Proposition 65 Label: Yes
product class pim Packaged Heat Pump
model efficiency 15.2 SEER2
installation type Ducted Multi-position
communication feature No
doe regional compliance Southwest;Southeast;North
export control classification number eccn EAR99
universal product code upc 663051741171
item stocking unit of measure uom EA
pallet qty 1
cooling capacity nominal 36000 Btu/H
cop17 hsvtc 2.38
cop47 hsvtc 3.66
eer hsvtc 11.4
eer2 hsvtc 11.4
energy star certified No
heating capacity nominal 35500 Btu/H
hspf hsvtc 6.7
hspf 2 hsvtc 6.7
seer hsvtc 15.2
seer 2 hsvtc 15.2
installation configuration Downflow/Horizontal
produced in us No
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated cooling condition room wb 67 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
rated heating condition room wb 60 °F
compressor lra 126 A
compressor rla 18.37 A
electric heat range 14.25 kW
evap motor rla 5.4 A
indoor blower fla 3.8 A
max overcurrent protection 35 A
max voltage 253 V
min circuit amps 22.8 A
min voltage 197 V
outdoor fan fla 1.4 A
outdoor fan lra 3.2 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208-230 V
total unit amps 23.57 A
air flow rate high cooling 1200 ft³/min
air flow rate high heating 1200 ft³/min
compressor stages Two Stage
condenser coil metal type Copper
condenser coil rows 2
condenser fan blade count 3
condenser fan diameter 22 in
condenser fan rpm 1075 r/min
condenser fin density fins per inch 16
dimensions blower diameter 10 in
dimensions blower width 9 in
dimensions evap wheel diameter 10 in
dimensions evap wheel width 9 in
dimensions unit height 42-3/4 in
dimensions unit width 47 in
energy source Electric
etl listed Yes
evap coil metal type Aluminum
evap coil rows 4
evap fin density fins per inch 14
evap motor rpm 1050 r/min
expansion device TXV
external static pressure rated 0.8
heat exchanger type Air Cooled
motor speed type Multi Speed ECM
number of speeds 5
sound pressure high cooling 76 dBA
weight unit 492 lb
blower motor horsepower 3/4 metric hp
condenser fan horsepower 1/4 metric hp
cooling capacity rated 36000 Btu/H
cooling capacity sensible 26640 Btu/H
evap motor horsepower 3/4 metric hp
heating capacity rated 35500 Btu/H
sensible heat ratio s t 0.74
factory std refrigerant charge 144 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 52.00 in
dimensions case height 44.00 in
dimensions case width 48.00 in
dimensions distribution unit depth 1 in
dimensions distribution unit height 1 in
dimensions distribution unit width 1 in
dimensions pallet depth 52.00 in
dimensions pallet height 44.00 in
dimensions pallet width 48.00 in
dimensions shipping unit depth 52.00 in
dimensions shipping unit height 44.00 in
dimensions shipping unit width 48.00 in
distribution shipping volume unit 1 in³
shipping volume unit 109824.000 in³
truck factor 0.0000
volume case 109824.000 in³
volume distribution shipping unit 1 in³
weight case 483.000 lb
weight distribution shipping unit 1 lb
weight shipping unit 483.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
