Product Overview

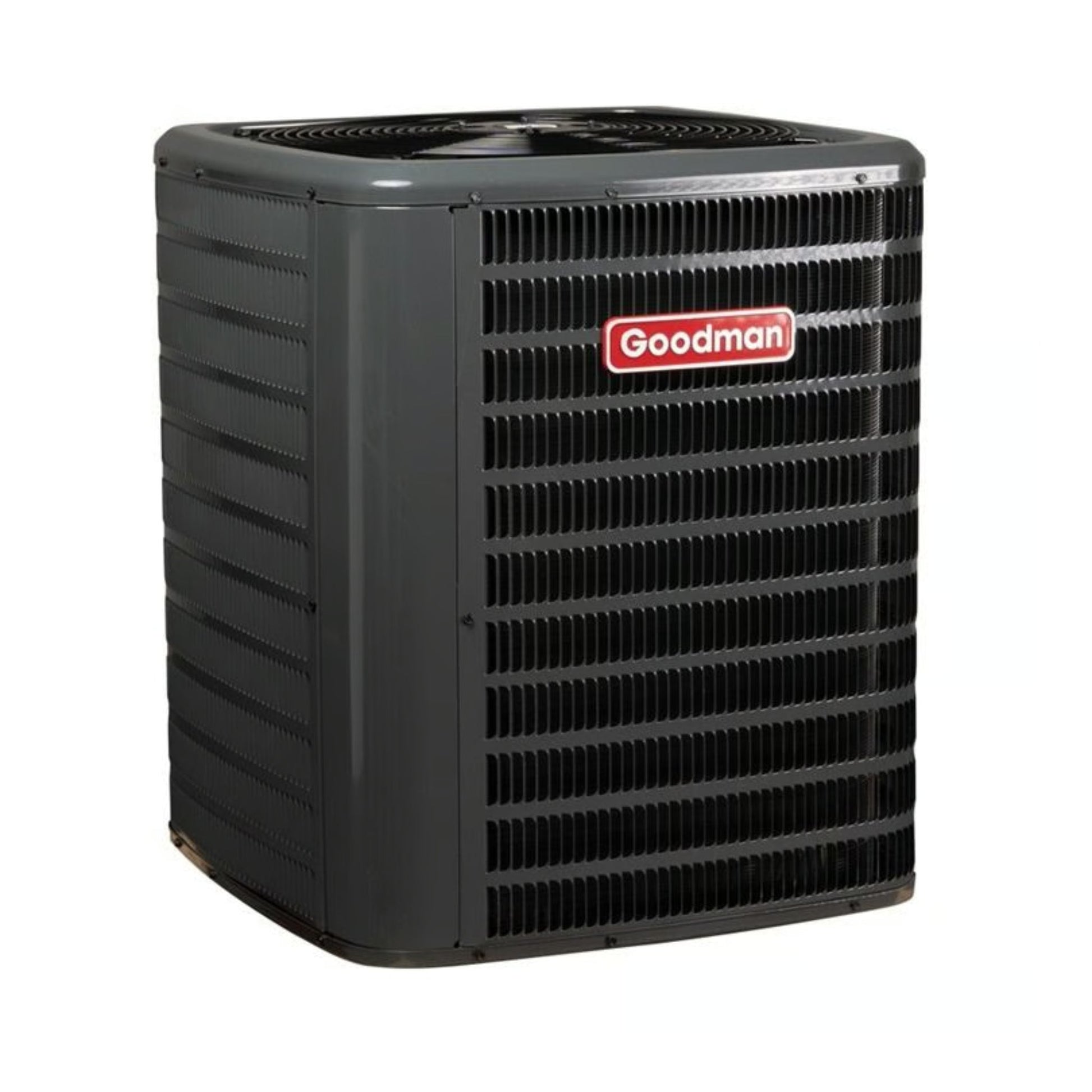

Goodman 3 Ton 14.3 SEER2 Multi-Family Air Conditioner Condenser R32 GLXS4MA3610
The air conditioning unit features a high-efficiency scroll compressor and a factory-installed filter drier. It is fully charged for 15 feet of tubing length and includes a 5mm diameter copper tube with an enhanced aluminum fin coil. The unit is equipped with service valves that have sweat connections and easy-to-access gauge ports, an enclosed contactor, a ground lug connection, and capacitors designed for extended life. It also includes a high-pressure switch and is both AHRI Certified and ETL Listed.
The cabinet is designed with a removable grille-style top that complies with UL 60335-2-40. It is constructed from heavy-gauge galvanized steel and features a venturi to increase airflow velocity. The attractive Architectural Gray powder-paint finish is approved for 500-hour salt-spray exposure. Additional features include a steel louver coil guard, single-panel access to controls with space for field-installed accessories, and compliance with the 2020 Florida Building Code for hurricane-type winds when properly anchored.
Key Features
- New R32 Freon – Meets 2025 refrigerant change guidelines for eco-friendly and energy-efficient performance
- High-Efficiency Scroll Compressor – Enhanced cooling efficiency for reduced energy consumption and optimal performance
- Factory-Installed Filter Drier – Ensures clean and reliable refrigerant flow, reducing the need for extra maintenance
- Enclosed Contactor with Lug Connection – Reliable and secure electrical connections for long-lasting performance
- Ground Lug Connection – Ensures safe and secure grounding for operational safety
- High-Pressure Switch – Protection against system overloads and optimal performance in high-pressure conditions
- Removable Grille-Style Top Design – Easy maintenance and UL 60335-2-40 compliant for enhanced safety and durability
- Venturi to Increase Airflow Velocity – Optimized airflow for improved cooling performance and system efficiency
- Architectural Gray Powder-Coat Finish – Durable finish with 500-hour salt-spray approval, perfect for outdoor conditions
- Wire Fan Discharge Grille – Provides added protection for the fan and helps maintain smooth airflow
- Steel Louver Coil Guard – Increased protection for the coil, extending the unit's lifespan and improving reliability
- Top and Side Maintenance Access – Convenient access points for easy servicing and component checks
Goodman 3 Ton 14.3 SEER2 Multi-Family Air Conditioner Condenser R32 GLXS4MA3610
| Warranty Type | Residential | Multi-Family | Commercial |
| Standard Warranty | 5 year parts | 5 year parts | 5 year parts |
| Registered Warranty | 10 year parts | 10 year parts | 5 year parts |
Product Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Cabinet Features
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- 5mm diameter copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
- AHRI Certified
- ETL Listed
Technical Specifications - GLXS4MA3610
| sku | GLXS4MA3610 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS4M |
| series name | GLXS4M |
| short description | Goodman Split Air Conditioner 14.3 SEER2, Single Stage |
| family description | ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons |
| product description | 14.3 SEER2 R-32 AC, 3.0T |
| cooling btu | 34,600 |
| seer2 | 14.3 |
| decibel level (dba) | 67 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| electrical | 208/240 V | 60 Hz | 1 Ph |
| max breaker size | 30 A |
| min. breaker size | 17.75 A |
| tonnage | 3 |
| btu/tonnage | 34,600 BTU/3 Ton |
| min/max outdoor temp for cooling | 55 °F to 125 °F |
| height | 29 in |
| width | 39-1/2 in |
| depth | 29 in |
| weight | 67 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Air Conditioner |
| model efficiency | 14.3 SEER2 |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051692121 |
| item stocking unit of measure uom | EA |
| pallet qty | 2 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 36000 Btu/H |
| eer2 hsvtc | 11.7 |
| energy star certified | No |
| seer 2 hsvtc | 14.3 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| max overcurrent protection | 30 A |
| min circuit amps | 17.75 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 13.44 A |
| compressor stages | Single Stage |
| dimensions unit depth | 29 in |
| dimensions unit height | 29 in |
| dimensions unit width | 39-1/2 in |
| sound pressure high cooling | 67 dBA |
| weight unit | 67 lb |
| cooling capacity rated | 34600 Btu/H |
| additional refrigerant charge oz ft | 0.58 lb |
| factory std refrigerant charge | 69 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.50 in |
| dimensions case height | 42.00 in |
| dimensions case width | 30.00 in |
| dimensions distribution unit depth | 30.5 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 30 in |
| dimensions pallet depth | 30.50 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 60.00 in |
| dimensions shipping unit depth | 30.50 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 30.00 in |
| distribution shipping volume unit | 38430 in³ |
| shipping volume unit | 38430.000 in³ |
| truck factor | 0.0000 |
| volume case | 38430.000 in³ |
| volume distribution shipping unit | 38430 in³ |
| weight case | 185.000 lb |
| weight distribution shipping unit | 185 lb |
| weight shipping unit | 185.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
