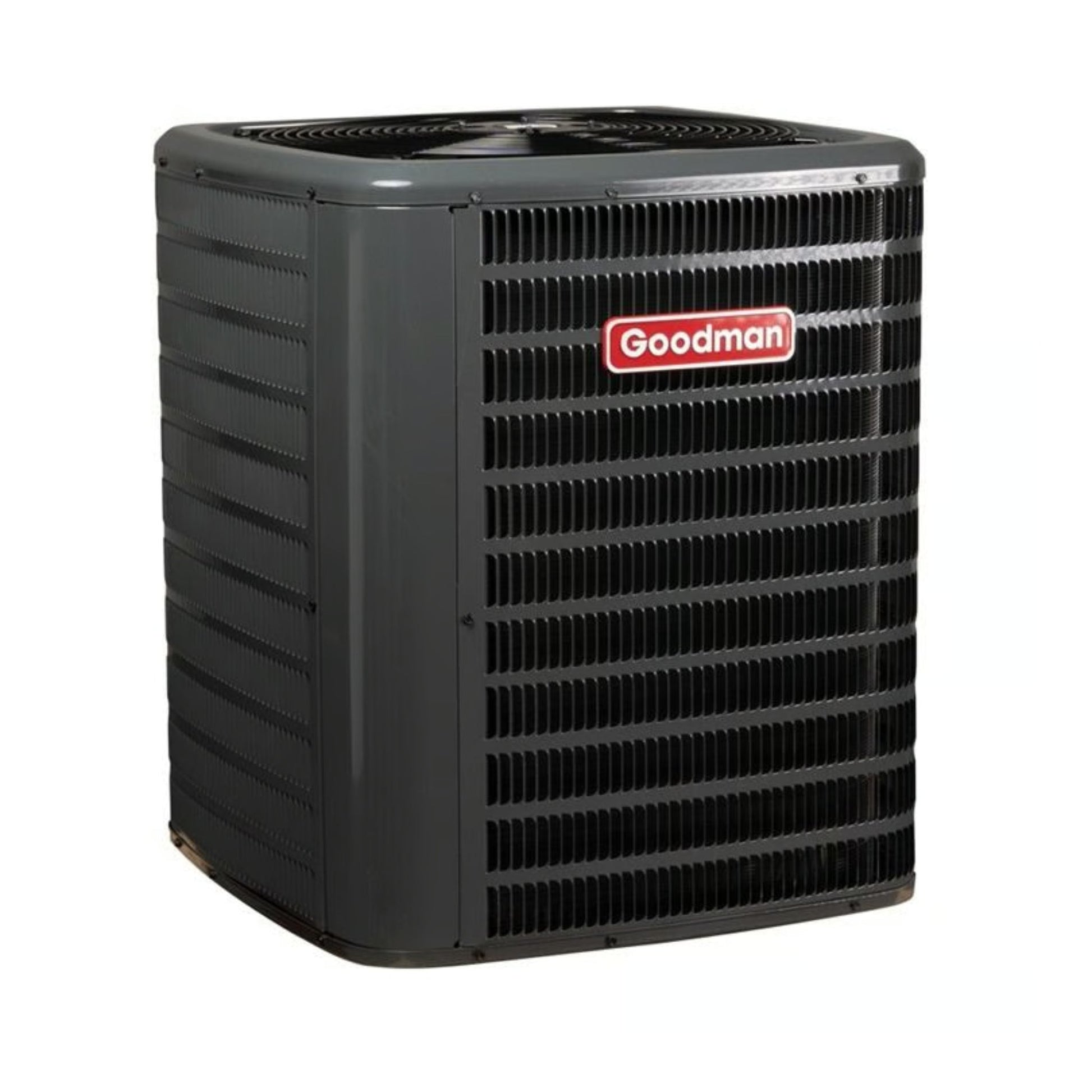

Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410
The Goodman GLXS4MA2410 2 Ton Air Conditioner Condenser is engineered for durability, energy efficiency, and compliance with the latest refrigerant standards. Designed for multi-family applications, this outdoor condensing unit utilizes environmentally friendly R32 refrigerant and a high-efficiency scroll compressor to deliver reliable cooling performance while meeting 2025 refrigerant guidelines.
Built with heavy-gauge galvanized steel and a powder-coated finish tested for 500-hour salt-spray durability, this unit is AHRI Certified, ETL Listed, and compliant with Florida Building Code wind-load requirements when properly installed. Ideal for residential and light commercial installations, the GLXS4MA2410 is a smart solution for energy-conscious builders and property owners.
Key Features
- 2 Ton Cooling Capacity – Designed for optimal performance in small to medium-sized multi-family dwellings
- 14.3 SEER2 Efficiency Rating – Offers improved seasonal energy efficiency and lower utility costs
- R32 Refrigerant – Environmentally friendly refrigerant compliant with 2025 EPA regulations for reduced global warming potential
- High-Efficiency Scroll Compressor – Delivers reliable, quiet performance with improved energy savings
- Factory-Installed Filter Drier – Protects the refrigeration system from moisture and contaminants
- Fully Charged for 15’ Line Set – Pre-charged with R32 refrigerant to simplify installation and reduce labor time
- 5mm Copper Tube / Enhanced Aluminum Fin Coil – Promotes superior heat transfer and long-term system durability
- Service Valves with Sweat Connections – Easy-access gauge ports simplify maintenance and service tasks
- High-Pressure Switch – Enhances safety by protecting against abnormal system pressure levels
- Ground Lug Connection – Simplifies grounding during installation for added safety compliance
- Enclosed Contactor – Helps prevent debris and moisture exposure for longer component life
- Removable Grille-Style Top – Allows easy access for coil cleaning and is UL 60335-2-40 compliant
- Venturi-Enhanced Airflow – Designed to increase airflow velocity and improve system efficiency
- Architectural Gray Powder-Coated Finish – Weather-resistant finish tested for 500-hour salt spray exposure
- Steel Louver Coil Guard – Protects the coil from debris and physical damage
- Top and Side Maintenance Access – Simplifies service and diagnostics
- Single-Panel Control Access – Includes space for field-installed accessories for flexible setup
- Florida Building Code Compliant (2023) – Meets requirements for hurricane-type winds when properly anchored
- AHRI Certified & ETL Listed – Verifies quality, performance, and regulatory compliance
Goodman 2 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA2410
| Warranty Type | Residential | Multi-Family | Commercial |
| Standard Warranty | 5 year parts | 5 year parts | 5 year parts |
| Registered Warranty | 10 year parts | 10 year parts | 5 year parts |
Product Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Wire fan discharge grille
- Steel louver coil guard
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Cabinet Features
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- 5mm diameter copper tube/enhanced aluminum fin coil
- Service valves with sweat connections and easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
- AHRI Certified
- ETL Listed
Technical Specifications - GLXS4MA2410
| sku | GLXS4MA2410 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS4M |
| series name | GLXS4M |
| short description | Goodman Split Air Conditioner 14.3 SEER2, Single Stage |
| family description | ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons |
| product description | 14.3 SEER2 R-32 AC, 2.0T |
| cooling btu | 23,600 |
| seer2 | 14.3 |
| decibel level (dba) | 69 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| electrical | 208/240 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 13.5 A |
| tonnage | 2 |
| btu/tonnage | 23,600 BTU/2 Ton |
| min/max outdoor temp for cooling | 55 °F to 125 °F |
| height | 26 in |
| width | 32-1/2 in |
| depth | 26 in |
| weight | 69 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Air Conditioner |
| model efficiency | 14.3 SEER2 |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051692107 |
| item stocking unit of measure uom | EA |
| pallet qty | 2 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 24000 Btu/H |
| eer2 hsvtc | 11.7 |
| energy star certified | No |
| seer 2 hsvtc | 14.3 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 13.5 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 10.24 A |
| compressor stages | Single Stage |
| dimensions unit depth | 26 in |
| dimensions unit height | 26 in |
| dimensions unit width | 32-1/2 in |
| sound pressure high cooling | 69 dBA |
| weight unit | 69 lb |
| cooling capacity rated | 23600 Btu/H |
| additional refrigerant charge oz ft | 0.55 lb |
| factory std refrigerant charge | 58 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 27.50 in |
| dimensions case height | 34.50 in |
| dimensions case width | 27.50 in |
| dimensions distribution unit depth | 27.5 in |
| dimensions distribution unit height | 34.5 in |
| dimensions distribution unit width | 27.5 in |
| dimensions pallet depth | 27.50 in |
| dimensions pallet height | 34.50 in |
| dimensions pallet width | 55.00 in |
| dimensions shipping unit depth | 27.50 in |
| dimensions shipping unit height | 34.50 in |
| dimensions shipping unit width | 27.50 in |
| distribution shipping volume unit | 26090.625 in³ |
| shipping volume unit | 26090.625 in³ |
| truck factor | 0.0000 |
| volume case | 26090.625 in³ |
| volume distribution shipping unit | 26090.625 in³ |
| weight case | 145.000 lb |
| weight distribution shipping unit | 145 lb |
| weight shipping unit | 145.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
