Product Overview

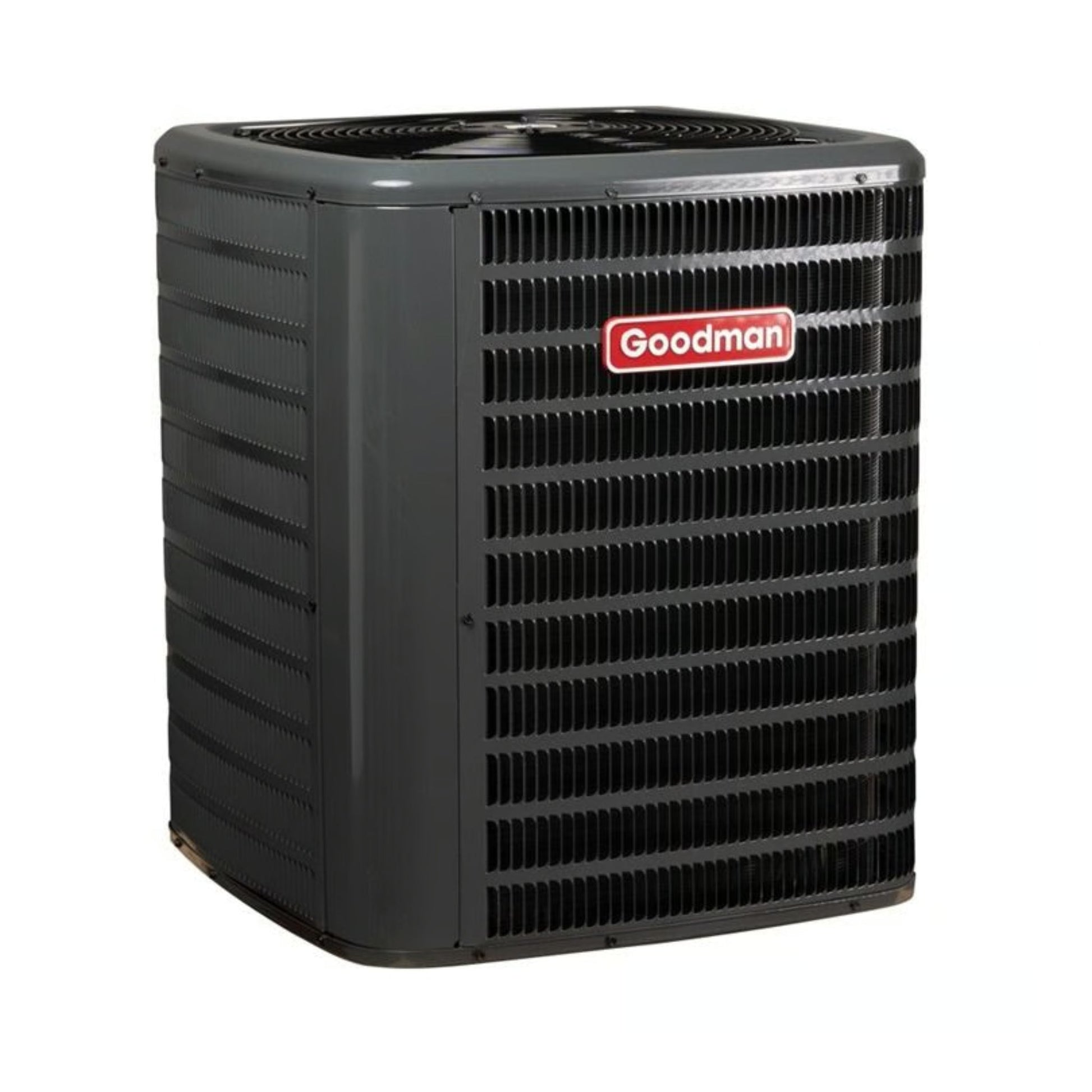

Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810
The Goodman 1.5 Ton AC Condenser GLXS4MA1810 is designed for multi-family applications, offering reliable cooling performance with an efficiency rating of 14.3 SEER2. With a cooling capacity of 18,000 BTUs, this single-stage unit operates on R32 refrigerant, making it environmentally friendly and energy-efficient. It is built for 208/230V, 1-phase power supply, ensuring compatibility with various residential settings. Durable construction and advanced technology make this condenser an excellent choice for keeping indoor spaces comfortable and cool all summer long.
Key Features
- High-Efficiency Scroll Compressor – Delivers reliable cooling performance and energy savings
- Factory-Installed Filter Drier – Helps protect the refrigeration system from moisture and debris
- Fully Charged for 15’ of Tubing Length – Simplifies installation with pre-charged refrigerant
- 5mm Diameter Copper Tube / Enhanced Aluminum Fin Coil – Maximizes heat transfer and durability
- Service Valves with Sweat Connections – Easy-to-access gauge ports simplify servicing and diagnostics
- Enclosed Contactor with Lug Connection – Safeguards internal electrical components for longer system life
- Ground Lug Connection – Simplifies safe system grounding during installation
- High-Pressure Switch – Enhances safety by monitoring abnormal system pressures
- AHRI Certified – Verified for performance and efficiency by the Air-Conditioning, Heating, and Refrigeration Institute
- ETL Listed – Tested and certified for safety by Intertek (ETL)
Cabinet Features
- Removable Grille-Style Top Design – Complies with UL 60335-2-40 and allows easier access for coil maintenance
- Heavy-Gauge Galvanized-Steel Cabinet – Built to withstand weather and wear over time
- Architectural Gray Powder-Paint Finish – Durable finish tested with 500-hour salt-spray for corrosion resistance
- Steel Louver Coil Guard – Provides physical protection for the coil without restricting airflow
- Single-Panel Access to Controls – Designed with room for field-installed accessories
- Florida Building Code Compliant – Meets 2023 wind integrity standards for hurricane zones when properly anchored (anchor bracket kits available)
Goodman 1.5 Ton 14.3 SEER2 Air Conditioner Condenser Single Stage R32 GLXS4MA1810
| Warranty Type | Residential | Multi-Family | Commercial |
| Standard Warranty | 5 year parts | 5 year parts | 5 year parts |
| Registered Warranty | 10 year parts | 10 year parts | 5 year parts |
Product Features
- High-Efficiency Scroll Compressor
- Factory-installed filter drier
- Fully charged for 15’ of tubing length
- 5mm diameter copper tube/enhanced aluminum fin coil
- Service valves with sweat connectionsand easy-to-access gauge ports
- Enclosed contactor with lug connection
- Ground lug connection
- High-pressure switch
- AHRI Certified
- ETL Listed
Cabinet Features
- Removable grille style top style grilldesign compatible with UL 60335-2-40
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paintfinish with 500-hour salt-spray approva
- Steel louver coil guard
- Single-panel access to controls with spaceprovided for field-installed accessories
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GLXS4MA1810
| sku | GLXS4MA1810 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXS4M |
| series name | GLXS4M |
| short description | Goodman Split Air Conditioner 14.3 SEER2, Single Stage |
| family description | ENERGY-Efficienct Multi-Family R-32 Split System Air Conditioner, Up to 15.2 SEER2, 1½ To 3 Tons |
| product description | 14.3 SEER2 R-32 AC, 1.5T |
| cooling btu | 17,600 |
| seer2 | 14.3 |
| decibel level (dba) | 73 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| electrical | 208/240 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 11.1 A |
| tonnage | 1.5 |
| btu/tonnage | 17,600 BTU/1.5 Ton |
| min/max outdoor temp for cooling | 55 °F to 125 °F |
| height | 26 in |
| width | 27 in |
| depth | 26 in |
| weight | 73 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Air Conditioner |
| model efficiency | 14.3 SEER2 |
| communication feature | No |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051692091 |
| item stocking unit of measure uom | EA |
| pallet qty | 2 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 18000 Btu/H |
| eer2 hsvtc | 11.7 |
| energy star certified | No |
| seer 2 hsvtc | 14.3 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 11.1 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 8.32 A |
| compressor stages | Single Stage |
| dimensions unit depth | 26 in |
| dimensions unit height | 26 in |
| dimensions unit width | 27 in |
| sound pressure high cooling | 73 dBA |
| weight unit | 73 lb |
| cooling capacity rated | 17600 Btu/H |
| additional refrigerant charge oz ft | 0.55 lb |
| factory std refrigerant charge | 54 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 27.50 in |
| dimensions case height | 29.50 in |
| dimensions case width | 27.50 in |
| dimensions distribution unit depth | 27.5 in |
| dimensions distribution unit height | 29.5 in |
| dimensions distribution unit width | 27.5 in |
| dimensions pallet depth | 27.50 in |
| dimensions pallet height | 29.50 in |
| dimensions pallet width | 55.00 in |
| dimensions shipping unit depth | 27.50 in |
| dimensions shipping unit height | 29.50 in |
| dimensions shipping unit width | 27.50 in |
| distribution shipping volume unit | 22309.375 in³ |
| shipping volume unit | 22309.375 in³ |
| truck factor | 0.0000 |
| volume case | 22309.375 in³ |
| volume distribution shipping unit | 22309.375 in³ |
| weight case | 140.000 lb |
| weight distribution shipping unit | 140 lb |
| weight shipping unit | 140.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
