Product Overview

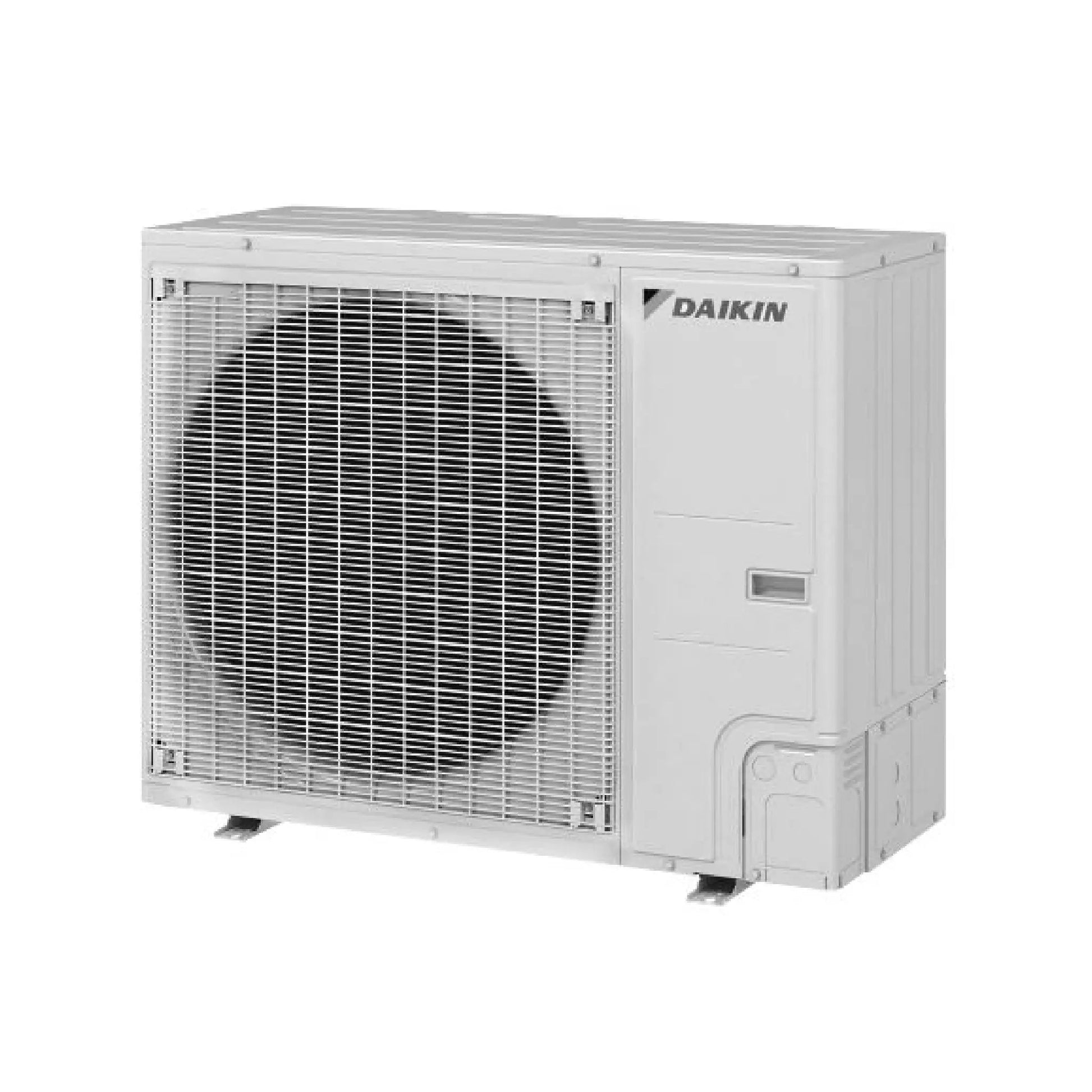

Daikin 24K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA24AAVJU

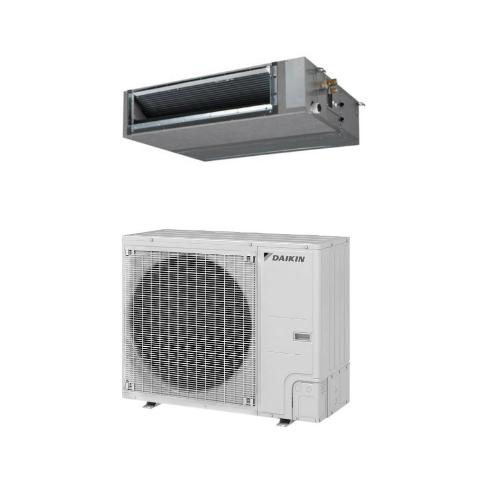

The Daikin SkyAir 24,000 BTU Single Zone Heat Pump is a powerful and energy-efficient solution for precise temperature control in individual spaces. Designed for both residential and light commercial applications, this 2.0-ton outdoor unit uses advanced R-32 refrigerant to deliver reliable performance with a reduced environmental impact.
Key Features
- High-Efficiency R-32 Refrigerant β Utilizes next-generation R-32 for improved energy efficiency and reduced global warming potential
- Precision Comfort, Single Zone β Ideal for targeted heating and cooling in individual rooms or zones
- 10-Year Limited Parts and Compressor Warranty β Backed by Daikinβs industry-leading support for long-term peace of mind
- Optional Drain Pan Heater β Helps protect the system in colder climates by preventing freezing during low temperatures
- Quiet, Durable Operation β Engineered for low-noise performance and built to withstand harsh weather conditions
Daikin 24K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA24AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

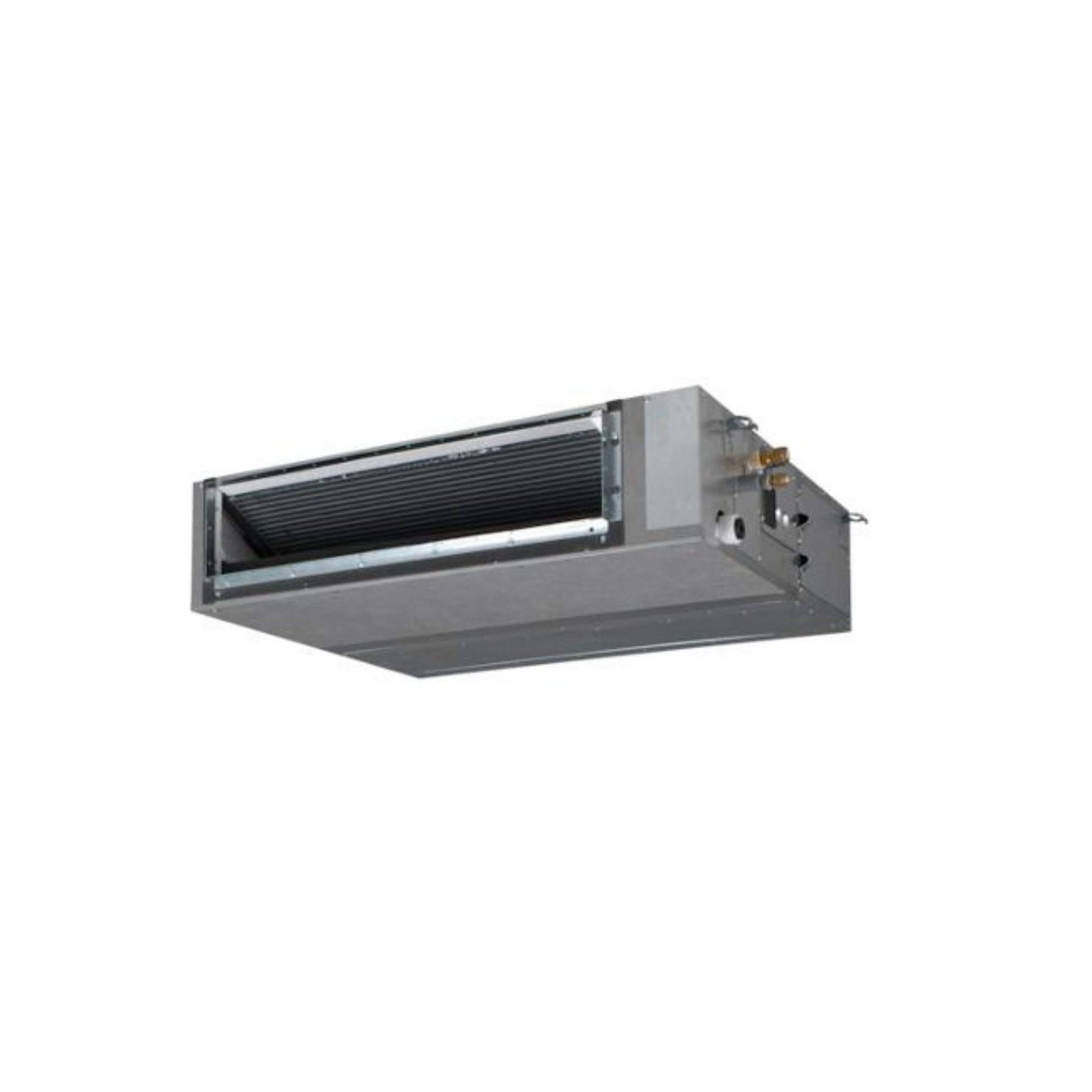

Daikin 24K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA24AAVJU
The Daikin 24,000 BTU Ducted Mini Split Indoor Unit delivers reliable comfort for single-zone applications with a streamlined concealed design. Powered by a quiet DC fan motor, this unit adapts airflow automatically at commissioning based on external static pressure. It features a built-in refrigerant leak detection system with dispersion mode, and offers easy maintenance with complete service access from below. Compatible with R-32 refrigerant, this system supports both cooling and heating modes up to 27,000 BTU.
Key Features
- 24,000 BTU Cooling / 27,000 BTU Heating Capacity
- Uses R-32 Refrigerant for Eco-Friendly Performance
- Single-Zone Indoor Ducted Unit
- Auto Adjusting Airflow Based on Static Pressure
- DC Fan Motor for Quiet and Efficient Operation
- Minimized Discharge Air Temperature to Avoid Condensation
- Built-in Refrigerant Leak Detection System with Dispersion Mode
- Complete Service Access from Below for Easy Maintenance
- Remote Not Included β Recommended Remote: G38-651
Ideal for residential or light commercial ducted mini split applications, this unit provides powerful zoned comfort with smart airflow adjustment, safety features, and user-friendly servicing access.
Daikin 24K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA24AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 Year Parts |
| Registered Warranty | 10 Year Parts |
Technical Specifications β FBA24AAVJU
| sku | FBA24AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FBA_AAVJU |
| series name | FBA |
| short description | SkyAir Indoor Fan Coil |
| family description | HSP R-32 SkyAir 1.5 - 4.0 Ton DC Ducted Unit |
| product description | R-32 2.0 TON HSP DUCTED CONCEALED |
| cooling btu | 24,000 |
| heating btu | 27,000 |
| decibel level (dba) | 39 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 1.9 A |
| tonnage | 2 |
| btu/tonnage | 24,000 BTU/2 Ton |
| height | 9-11/16 in |
| width | 39-3/8 in |
| depth | 31-1/2 in |
| weight | 84 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 217175220 |
Technical Specifications β RZA24AAVJU
| sku | RZA24AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 2.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 20 A |
| min. breaker size | 19.8 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EM_RZA_AAVJU-FCA_AA-FAA_AA-
- Installation Manual (English) - IM-EN_3P493125-10H FBA18-48AAV
- Installation Manual (English) - IM-IM_EN_3P493125-10H FBA18-48
- Installation Manual (English) - IM-IM_EN_3P493125-10H_FBA18-48
- Operation Manual (English) - OM-OM_EN_3P494229-8G FBA18-48A
- Operation Manual (English) - OM-OM_EN_3P494229-8G_FBA18-48A
