Product Overview

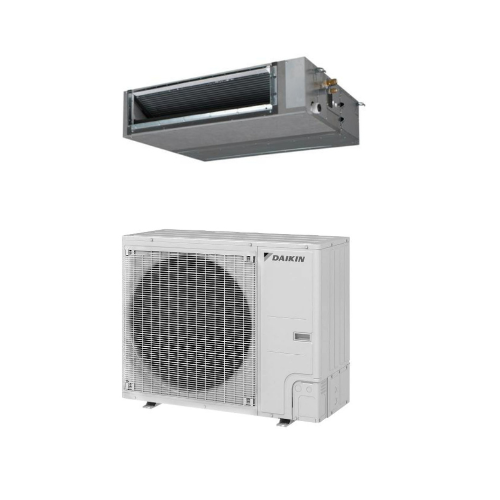

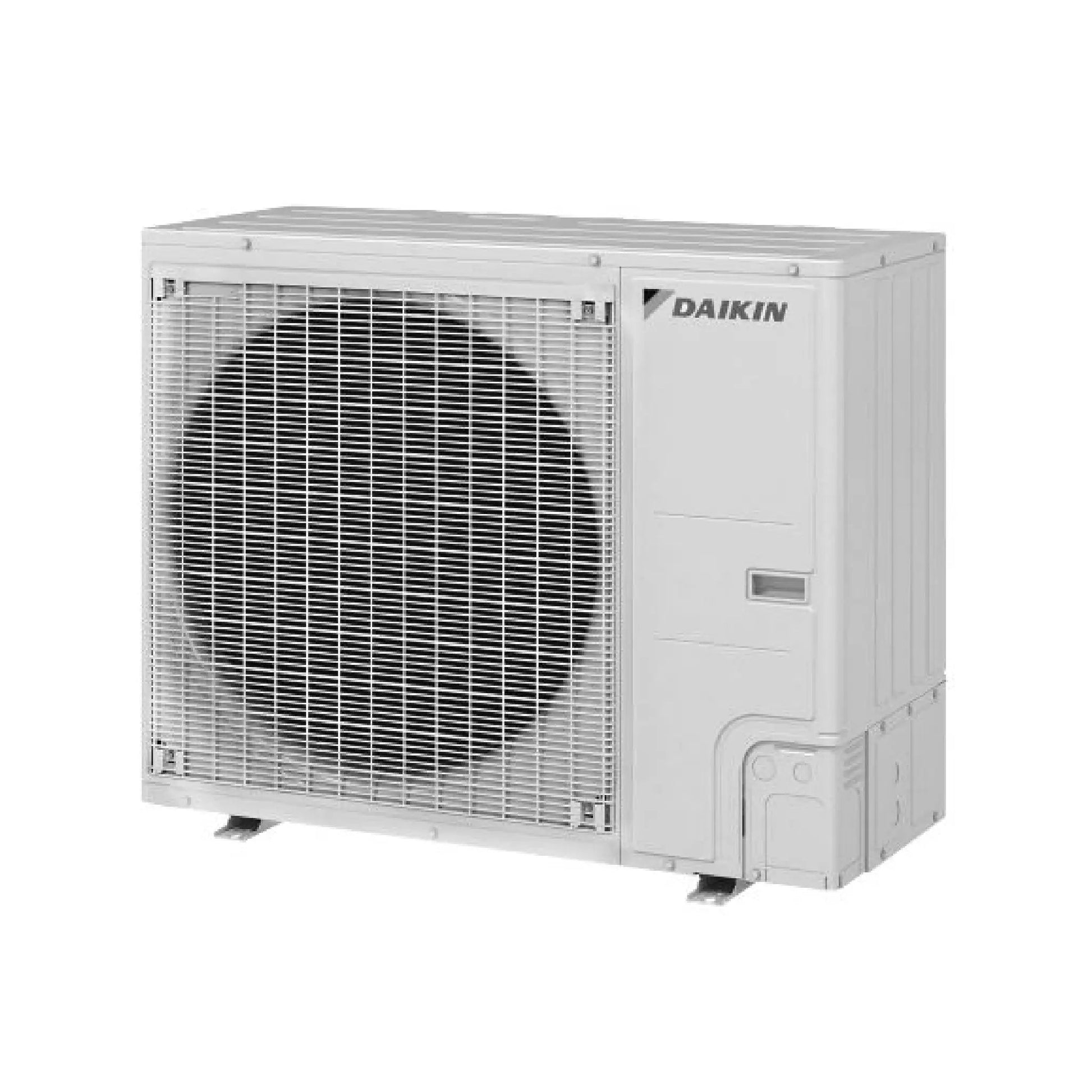

Daikin 36K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA36AAVJU
The Daikin SkyAir 36,000 BTU Single Zone Heat Pump is a high-performance HVAC solution designed for larger residential or light commercial spaces. With a powerful 3.0-ton capacity and eco-friendly R-32 refrigerant, this outdoor unit provides reliable heating and cooling while reducing environmental impact and energy consumption.
Key Features
- 3.0 Ton Capacity for Larger Spaces – Perfect for open layouts or big rooms that require powerful, efficient climate control
- Eco-Friendly R-32 Refrigerant – Delivers enhanced efficiency with lower global warming potential compared to traditional refrigerants
- 10-Year Limited Parts and Compressor Warranty – Supported by Daikin’s industry-leading warranty coverage for long-term reliability
- Optional Drain Pan Heater – Helps prevent freezing in cold climates, ensuring consistent performance year-round
- Quiet, Durable Design – Engineered for silent operation and built to withstand demanding weather conditions and daily use
Daikin 36K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA36AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

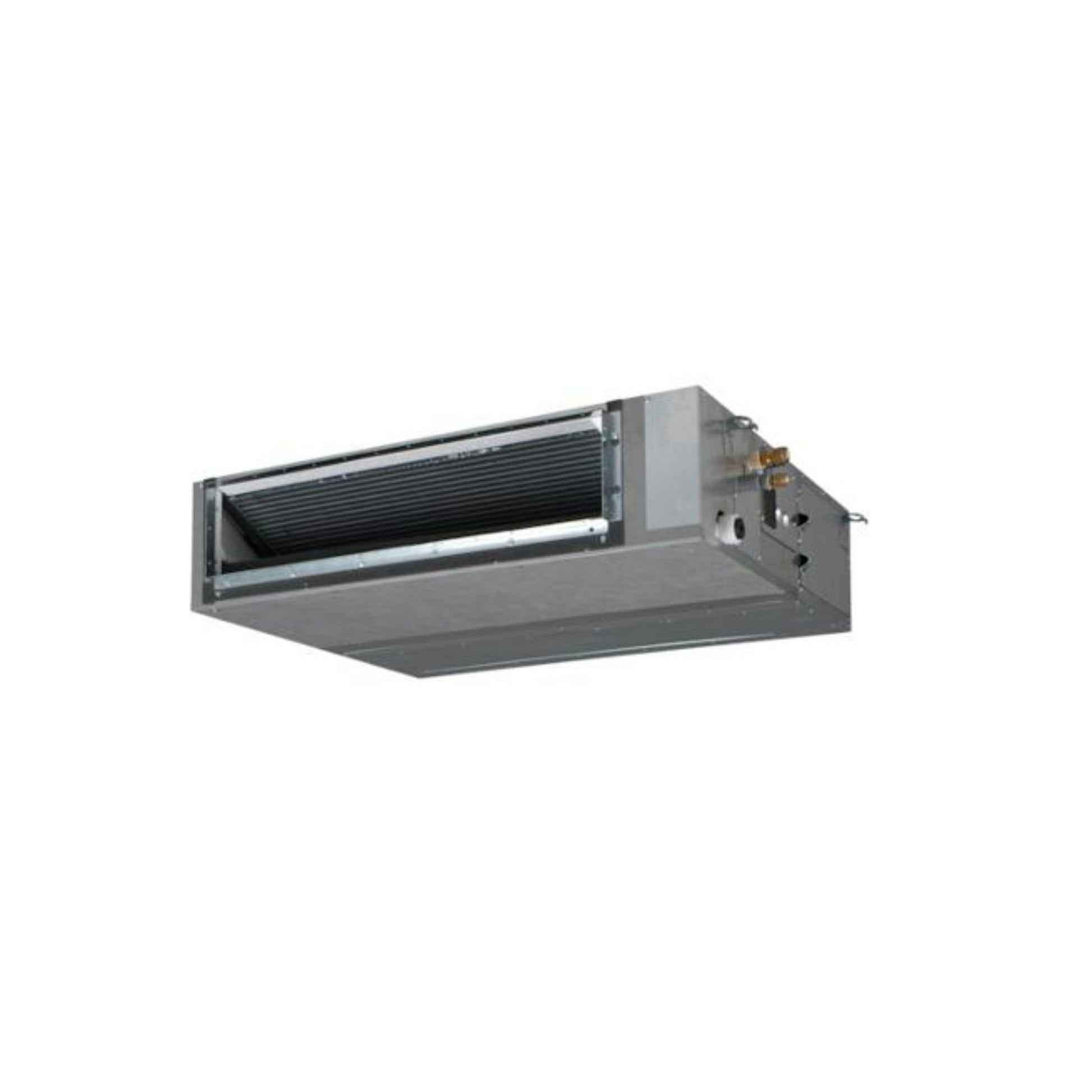

Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA36AAVJU
The Daikin 36,000 BTU Ducted Mini Split Indoor Unit offers high-capacity cooling and heating in a slim-profile ducted configuration. Designed for quiet operation with a DC fan motor, this single-zone unit features advanced functions including auto airflow adjustment during commissioning, refrigerant leak detection with dispersion mode, and service-friendly access from below. Utilizing R-32 refrigerant, it delivers up to 40,000 BTU of heating performance, making it ideal for year-round climate control in residential or commercial spaces.
Key Features
- 36,000 BTU Cooling / 40,000 BTU Heating Capacity
- Uses Efficient and Eco-Friendly R-32 Refrigerant
- Single-Zone Indoor Ducted Application
- Auto Adjusting Airflow Based on Static Pressure During Commissioning
- DC Fan Motor Ensures Quiet and Reliable Performance
- Minimized Discharge Air Temperature to Reduce Condensation
- Built-in Refrigerant Leak Detection System with Dispersion Mode
- Remote Not Included – Recommended Remote: G38-651
- Service Access from Below Simplifies Maintenance
This ducted indoor unit is built for performance, serviceability, and comfort, supporting both cooling and heating for medium-to-large single-zone installations.
Daikin 36K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA36AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 Year Parts |
| Registered Warranty | 10 Year Parts |
Technical Specifications — FBA36AAVJU
| sku | FBA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FBA_AAVJU |
| series name | FBA |
| short description | SkyAir Indoor Fan Coil |
| family description | HSP R-32 SkyAir 1.5 - 4.0 Ton DC Ducted Unit |
| product description | R-32 3.0 TON HSP DUCTED CONCEALED |
| cooling btu | 36,000 |
| heating btu | 40,000 |
| decibel level (dba) | 44 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 3.1 A |
| tonnage | 3 |
| btu/tonnage | 36,000 BTU/3 Ton |
| height | 9-11/16 in |
| width | 55-1/8 in |
| depth | 31-1/2 in |
| weight | 101 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 217175222 |
Technical Specifications — RZA36AAVJU
| sku | RZA36AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 3.0 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EM_RZA_AAVJU-FCA_AA-FAA_AA-
- Installation Manual (English) - IM-EN_3P493125-10H FBA18-48AAV
- Installation Manual (English) - IM-IM_EN_3P493125-10H FBA18-48
- Installation Manual (English) - IM-IM_EN_3P493125-10H_FBA18-48
- Operation Manual (English) - OM-OM_EN_3P494229-8G FBA18-48A
- Operation Manual (English) - OM-OM_EN_3P494229-8G_FBA18-48A
