Product Overview

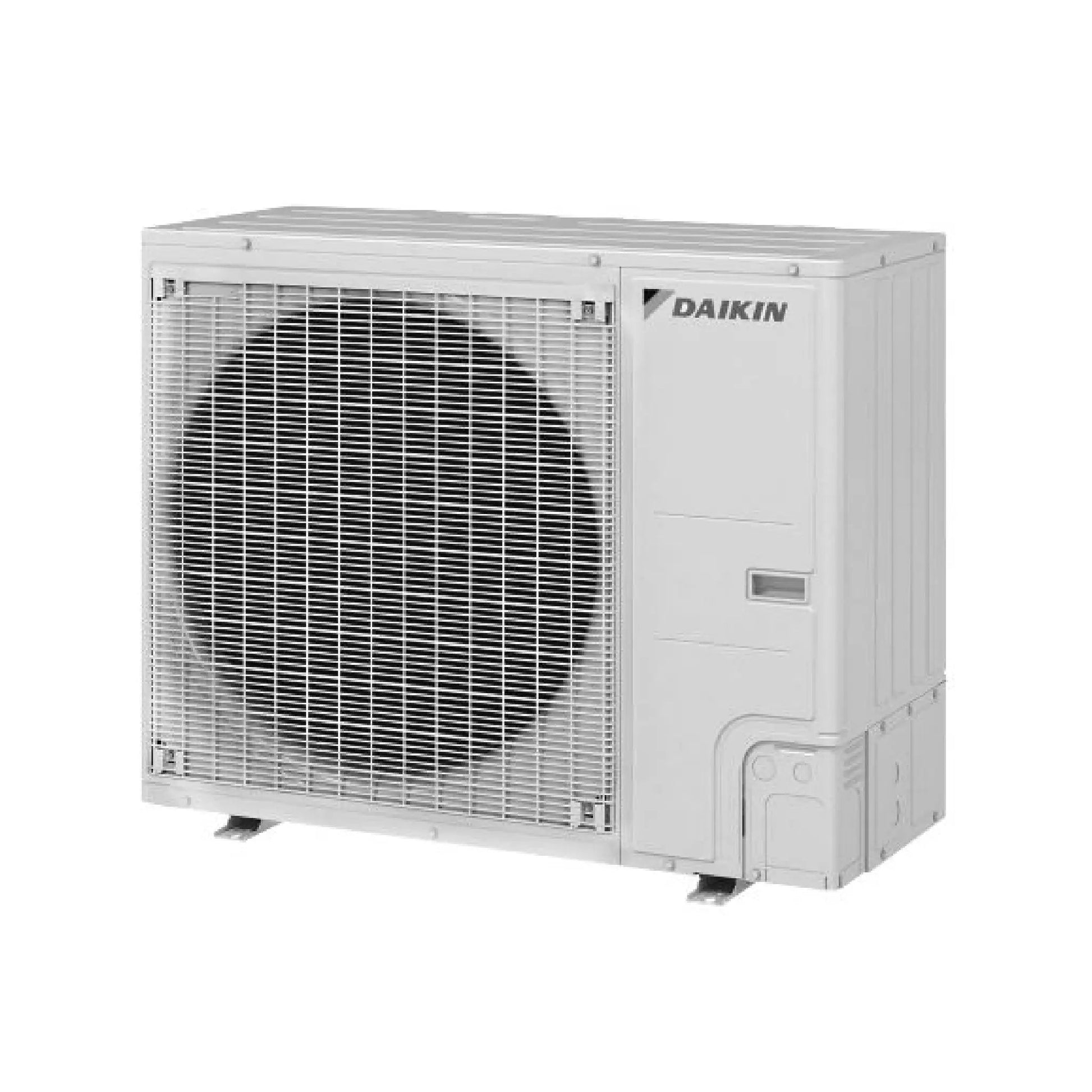

Daikin 30K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA30AAVJU
The Daikin SkyAir 30,000 BTU Single Zone Heat Pump is a high-capacity, energy-efficient system designed to meet the demands of larger spaces. Ideal for both residential and light commercial environments, this 2.5-ton R-32 unit provides reliable heating and cooling with advanced technology for quiet, consistent operation.
Key Features
- High-Capacity, Single Zone Comfort – Ideal for larger rooms or open spaces needing precise, energy-efficient temperature control
- Environmentally Friendly R-32 Refrigerant – Offers lower global warming potential and enhanced system performance
- 10-Year Limited Parts and Compressor Warranty – Supported by Daikin’s leading warranty for peace of mind and long-term protection
- Optional Drain Pan Heater – Prevents freezing in cold weather to maintain uninterrupted operation in winter conditions
- Engineered for Reliability – Built with high-quality components and sound-reducing technology to ensure quiet, dependable performance in any climate
Daikin 30K BTU SkyAir Heat Pump Condenser Mini Split Single Zone R32 230V RZA30AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

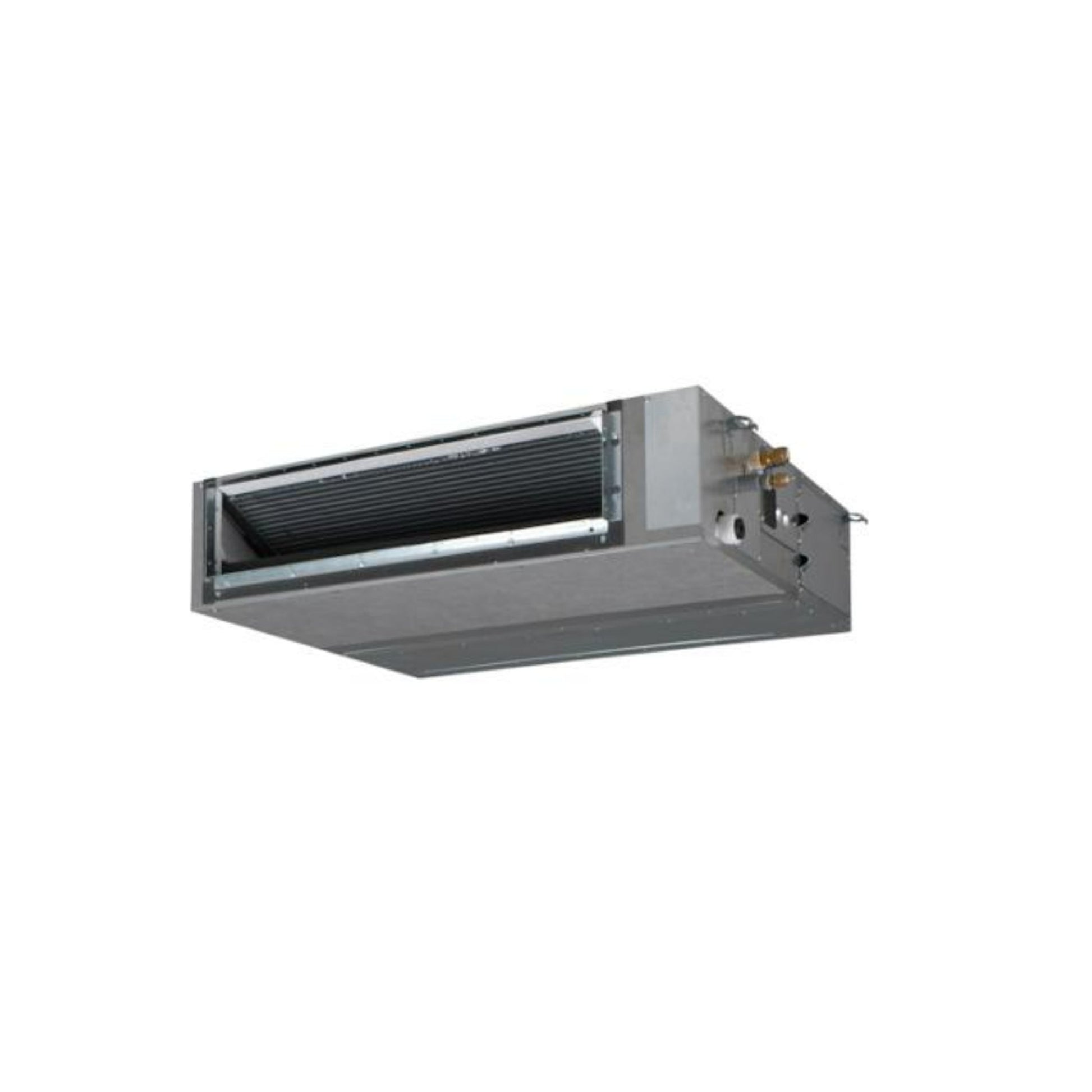

Daikin 30K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA30AAVJU
The Daikin 30,000 BTU Ducted Mini Split Indoor Unit is a high-capacity single-zone solution designed for efficient, quiet operation in concealed ducted applications. With a built-in refrigerant detection system and dispersion mode, this unit enhances safety and performance. It features a DC fan motor, auto-adjusting airflow at commissioning, and easy maintenance access from below. The system uses environmentally friendly R-32 refrigerant and provides up to 34,000 BTU of heating capacity for year-round comfort.
Key Features
- 30,000 BTU Cooling / 34,000 BTU Heating Capacity
- R-32 Refrigerant for Eco-Conscious Efficiency
- Single-Zone Indoor Ducted Configuration
- Auto Adjusting Airflow Based on External Static Pressure
- DC Fan Motor for Quiet and Consistent Operation
- Built-In Refrigerant Leak Detection with Dispersion Mode
- Service Access from Below for Simplified Maintenance
- Remote Control Not Included – Recommended Remote: G38-651
- Low Discharge Air Temperature to Prevent Condensation
Perfect for mid- to large-size applications, this indoor ducted unit provides powerful airflow and adaptable control while maintaining hidden comfort through ceiling or closet installations.
Daikin 30K BTU Concealed Duct Air Handler Mini Split Single Zone R32 230V FBA30AAVJU
| Warranty Type | Parts |
| Standard Warranty | 5 Year Parts |
| Registered Warranty | 10 Year Parts |
Technical Specifications — FBA30AAVJU
| sku | FBA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Fan Coil |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Indoor |
| market type | Light Commercial |
| product family | FBA_AAVJU |
| series name | FBA |
| short description | SkyAir Indoor Fan Coil |
| family description | HSP R-32 SkyAir 1.5 - 4.0 Ton DC Ducted Unit |
| product description | R-32 2.5 TON HSP DUCTED CONCEALED |
| cooling btu | 30,000 |
| heating btu | 34,000 |
| decibel level (dba) | 43 dBA |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 3. A |
| tonnage | 2.5 |
| btu/tonnage | 30,000 BTU/2.5 Ton |
| height | 9-11/16 in |
| width | 55-1/8 in |
| depth | 31-1/2 in |
| weight | 101 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| ahri reference number | 217175221 |
Technical Specifications — RZA30AAVJU
| sku | RZA30AAVJU |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Sky Air Heat Pump |
| system family | Sky Air |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Light Commercial |
| product family | RZA_AAVJU |
| short description | SkyAir Heat Pump, Single Zone |
| family description | SkyAir Heat Pump 1.5 to 4.0 Ton |
| product description | R-32 SkyAir 2.5 T Heat Pump Single Zone |
| decibel level (dba) | 56 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 3/8 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 34.6 A |
| zone compatibility | Single Zone |
| height | 34-1/4 in |
| width | 43-5/16 in |
| depth | 18-1/8 in |
| weight | 234 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EM_RZA_AAVJU-FCA_AA-FAA_AA-
- Installation Manual (English) - IM-EN_3P493125-10H FBA18-48AAV
- Installation Manual (English) - IM-IM_EN_3P493125-10H FBA18-48
- Installation Manual (English) - IM-IM_EN_3P493125-10H_FBA18-48
- Operation Manual (English) - OM-OM_EN_3P494229-8G FBA18-48A
- Operation Manual (English) - OM-OM_EN_3P494229-8G_FBA18-48A
