{"id":7901938417779,"title":"Cooper \u0026 Hunter Slim Duct Hyper 9,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 21.4 SEER2 0.75 TON With Wi-Fi Enabled Thermostat \u0026 Optional Installation Kit. CH-RS09MDT-MS +CH-RHP09-230V0 *Waiting List*","handle":"cooper-hunter-slim-duct-hyper-9-000-btu-230v-r454b-concealed-duct-air-conditioning-unit-for-heat-pump-mini-split-inverter-system-22-8-seer2-0-75-ton-with-wi-fi-enabled-thermostat-and-optional-installation-kit-ch-rs09mdt-ms-ch-rhp09-230v0","description":"\u003csection class=\"shopify-section section\"\u003e\n\u003cdiv class=\"page-width\"\u003e\n\u003cdiv class=\"cstm_description_tab_main\"\u003e\n\u003cdiv class=\"cstm_description_tab_content_main\"\u003e\n\u003cdiv data-id=\"tabtitle_12\" class=\"cstm_description_tab_content active_data\"\u003e\n\u003cdiv class=\"cstm_productdescription\"\u003e\n\u003cdiv class=\"product__description rte\"\u003e\n\u003ch1 style=\"font-size: 16px;\"\u003e\u003ca rel=\"noopener\" title=\"Contact Us\" href=\"https:\/\/southminisplits.com\/pages\/contact\" target=\"_blank\"\u003eCLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS \u003c\/a\u003e\u003c\/h1\u003e\n\u003cp\u003e\u003ca title=\"Call Us Now!\" href=\"tel:(737)%20738-6329\"\u003eCLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS\u003c\/a\u003e\u003c\/p\u003e\n\u003ch1\u003eCooper \u0026amp; Hunter Slim Duct Hyper 9,000 BTU 230V, Concealed Duct Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 21.4 SEER2, 0.75 TON, Optional Installation Kit. CH-M09DTUI + CH-HPR09-230VO\u003c\/h1\u003e\n\u003ch2\u003eSummary\u003c\/h2\u003e\n\u003cp\u003e\u003cspan\u003eThe Cooper\u0026amp;Hunter Light Commercial Slim Duct systems present an efficient and discreet cooling and heating solution, ideal for installation in attics and ceiling crawl spaces. These units are designed to minimize energy loss commonly seen in central ducted systems.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith available capacities ranging from 9K-24K and 36k-60K in Single-Zone Light Commercial Applications BTU\/h in Multi-Zone and an impressive efficiency of up to 21.4 SEER, these systems adapt flexibly to varying architectural demands, allowing ducts to be directed into different areas under a single wall thermostat control. This setup not only enhances comfort but also ensures a streamlined, hidden installation that complements any space without intruding on its aesthetics.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThis system is capable of heating even in ambient temperatures as low as -13°F for standard units, and as low as -22°F for Hyper Units, making it perfect for a variety of applications, from bedrooms and additions to living rooms and commercial spaces.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2\u003e\n\u003cspan\u003e\u003cstrong\u003e\u003c\/strong\u003e\u003c\/span\u003e\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ch2\u003e\u003cspan\u003e\u003cstrong\u003eImportant\u003c\/strong\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003eAll units must be installed by a licensed HVAC professional for the warranty to be valid\u003c\/strong\u003e. \u003cstrong\u003eRegistration is required within 60 days of installation and can be completed online or by phone.\u003c\/strong\u003e \u003cstrong\u003eThe installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above\u003c\/strong\u003e. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.\u003c\/span\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eWhat's Included\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eIndoor Unit\u003cspan\u003e \u003cstrong\u003eCH-RS09MDT-MS\u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e(9,000 BTU 230V Slim Duct, Concealed Duct Air Conditioning Unit)\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eOutdoor unit\u003cspan\u003e \u003cstrong\u003eCH-RHP09-230V0\u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e\u003cstrong\u003e \u003c\/strong\u003e(9,000 BTU)\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003eOptional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.)\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eMUST BE SELECTED ABOVE.\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003cli\u003eWireless Remote Control\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eInstallation Manual\u003c\/li\u003e\n\u003cli\u003eUser’s Manual\u003c\/li\u003e\n\u003cli\u003eManufacturer Warranty\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003e\u003cspan\u003eStandard Slim Duct Units\u003c\/span\u003e\u003c\/h2\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"242\"\u003e \u003ccol width=\"131\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 9,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 9,000 BTU 230V, R410A, 22.8 SEER Slim Duct Mini Split Air Conditioner Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/9-000-btu-230v-22-8-seer-slim-duct-mini-split-air-conditioner-heat-pump-0-75-ton-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-M09DTUI + CH-ES09-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 12,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\n\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 12,000 BTU 230V 21.5 SEER Slim Duct Mini Split Air Conditioner Heat Pump 1 TON,\" href=\"https:\/\/southminisplits.com\/products\/12-000-btu-230v-22-8-seer-slim-duct-mini-split-air-conditioner-heat-pump-0-75-ton-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-M12DTUI + CH-ES12-230VO\u003c\/span\u003e\u003c\/a\u003eCH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 18,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 18,000 BTU 230V, R410A, 20.8 SEER Slim Duct 1.5 TON Mini Split Air Conditioner Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/cooper-hunter-18-000-btu-230v-21-5-seer-slim-duct-mini-split-air-conditioner-heat-pump-1-ton-sophia-series-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-M18DTUI + CH-ES18-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 24,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 24,000 BTU 230V, R410A, 20.5 SEER Slim Duct Mini Split Air Conditioner Heat Pump 2 TON\" href=\"https:\/\/southminisplits.com\/products\/cooper-hunter-24-000-btu-230v-20-5-seer-slim-duct-mini-split-air-conditioner-heat-pump-2-ton-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-24MDT-W-1 + CH-ES24-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 36,000 BTU\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper\u0026amp;Hunter R410A, 36,000 BTU 230V 16.5 SEER Concealed Duct Mini Split AC System \u0026amp; Heat Pump, Light Commercial Series 3 TON Air Conditioner Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/cooper-hunter-36-000-slim-duct\" target=\"_blank\"\u003e\u003cspan\u003eCH-36LCDTU\/I + CH-N36LCU-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 64.6863%;\"\u003eSlim Duct 48,000 BTU\u003c\/td\u003e\n\u003ctd style=\"width: 35.0456%;\"\u003e\u003ca rel=\"noopener\" title=\"cooper and hunter slim duct 48,000 BTU 230V 17.4 SEER, R410A, Concealed Duct Mini Split Air Conditioner\" href=\"https:\/\/southminisplits.com\/products\/48-000-btu-230v-17-4-seer-concealed-duct-mini-split-air-conditioner-optional-installation-kit-light-commercial-series-single-zone-heating-and-cooling-heat-pump-1\" target=\"_blank\"\u003e\u003cspan\u003eCH-48LCDTU\/I + CH-N48LCU-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 64.6863%;\"\u003eSlim Duct 60,000 BTU\u003c\/td\u003e\n\u003ctd style=\"width: 35.0456%;\"\u003e\u003ca rel=\"noopener\" title=\"cooper and hunter slim duct 60,000 BTU 230V 18 SEER Concealed Duct Mini Split Air Conditioner \u0026amp; Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/48-000-btu-230v-17-4-seer-concealed-duct-mini-split-air-conditioner-optional-installation-kit-light-commercial-series-single-zone-heating-and-cooling-heat-pump\" target=\"_blank\"\u003e\u003cspan\u003eCH-60LCDTU\/I + CH-N60LCU-230V\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eWarranty\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e7 year compressor limited warranty\u003c\/li\u003e\n\u003cli\u003e5 year parts limited warranty (must be installed by a licensed HVAC technician)\u003c\/li\u003e\n\u003cli\u003e1 year remote control\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eTechnical Information\u003c\/h2\u003e\n\u003ch3\u003eIndoor Unit Model Number: CH-RS09MDT-MS\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003cstyle type=\"text\/css\"\u003e\u003c!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--\u003e\u003c\/style\u003e\n\u003csection class=\"shopify-section section\"\u003e\n\u003cdiv class=\"page-width\"\u003e\n\u003cdiv class=\"cstm_description_tab_main\"\u003e\n\u003cdiv class=\"cstm_description_tab_content_main\"\u003e\n\u003cdiv data-id=\"tabtitle_12\" class=\"cstm_description_tab_content active_data\"\u003e\n\u003cdiv class=\"cstm_productdescription\"\u003e\n\u003cdiv class=\"product__description rte\"\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"259\"\u003e \u003ccol width=\"188\"\u003e \u003ccol width=\"62\"\u003e \u003ccol width=\"205\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003e\u003cstrong\u003eIndoor Model\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003eCH-RS09MDT-MS CH-RS06-12MDT-MS (Dip Switch 9)\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eRated\u003c\/td\u003e\n\u003ctd\u003eV,Ph,Hz\u003c\/td\u003e\n\u003ctd\u003e208\/230,1,60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\"\u003e\n\u003cdiv\u003eRated Capacity\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e9000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e10000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eMinimum Circuit Ampacity (MCA)\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e3\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eMax. Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Air Flow (Turbo\/Hi\/Mi\/Lo\/Si)\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e323.7\/264.9\/206.0\/147.2\/117.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Noise Level (Turbo\/Hi\/Mi\/Lo\/Si)\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003eN1A\/32.5\/31\/29.5\/23\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\" colspan=\"1\"\u003e\n\u003cdiv\u003eIndoor\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimension (WxDxH)\u003c\/td\u003e\n\u003ctd\u003einch\u003c\/td\u003e\n\u003ctd\u003e27.56 x 19.92 x 7.87\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003einch\u003c\/td\u003e\n\u003ctd\u003e33.86 x 21.26 x 11.22\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e39.46\/46.74\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\"\u003e\n\u003cdiv\u003eRoom Temperature\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e60-90\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e32-86\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eLiquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd\u003einch\u003c\/td\u003e\n\u003ctd\u003e1\/4\"\/3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch3\u003e\u003cbr\u003e\u003c\/h3\u003e\n\u003ch3\u003eOutdoor Model Number:\u003cspan\u003e CH-RHP09-230V0\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"product__description rte\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003cstyle type=\"text\/css\"\u003e\u003c!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--\u003e\u003c\/style\u003e\n\u003csection class=\"shopify-section section\" id=\"shopify-section-template--16576096567411__main\"\u003e\n\u003cdiv class=\"page-width\"\u003e\n\u003cdiv class=\"cstm_description_tab_main\"\u003e\n\u003cdiv class=\"cstm_description_tab_content_main\"\u003e\n\u003cdiv data-id=\"tabtitle_12\" class=\"cstm_description_tab_content active_data\"\u003e\n\u003cdiv class=\"cstm_productdescription\"\u003e\n\u003cdiv class=\"product__description rte\"\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\" style=\"width: 100%; height: 685.783px;\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"259\" style=\"width: 42.5987%;\"\u003e \u003ccol width=\"188\" style=\"width: 30.9211%;\"\u003e \u003ccol width=\"62\" style=\"width: 10.1974%;\"\u003e \u003ccol width=\"205\" style=\"width: 33.7171%;\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\" style=\"height: 39.1875px;\"\u003e\u003cstrong\u003eOutdoor Model\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003e\u003cstrong\u003eCH-RHP09-230V0\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\" style=\"height: 39.1876px;\"\u003e\n\u003cdiv\u003ePower Supply\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eV, Ph, Hz\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e208\/230,1,60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eVoltage Range\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eV\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e187-253\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"4\" colspan=\"1\" style=\"height: 78.3752px;\"\u003e\n\u003cdiv\u003eCooling\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Capacity (Range)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3,400~13,500\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Current\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e4.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eEER2\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e13.4\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eSEER2\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e21.4\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"5\" colspan=\"1\" style=\"height: 97.969px;\"\u003e\n\u003cdiv\u003eHeating at 47°F\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Capacity (Range)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3,800~16,200\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Current\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3.9\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eCOP\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eW\/W\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3.53\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eHSPF4\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e12.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eHSPF5\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e9.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMinimum Circuit Ampacity (MCA)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMax. Fuse (Outdoor Unit)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eOutdoor Air Flow (Max.)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eCFM\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e1471.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eOutdoor Noise Level (Sound Pressure)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003edB(A)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e56\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 39.1875px;\"\u003eDimension (W×D×H)\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003einch\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003e31.69 x 12.99 x 21.81\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 39.1875px;\"\u003ePacking (W×D×H)\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003einch\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003e36.02 x 14.57 x 24.21\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003elbs.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e72.75\/78.70\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eRefrigerant Type \/ Charge\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eoz.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eR454B 35.27\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eRefrigerant Precharge Length\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e25\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eAdditional Charge for Each ft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eoz\/ft\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e0.16\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eDesign Pressure\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003ePSIG\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e550\/340\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eRefrigerant Piping Liquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003einch\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e1\/4\"\/3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMax. Pipe Length\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e82\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMax. Difference in Level\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e32.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\" style=\"height: 39.1876px;\"\u003e\n\u003cdiv\u003eAmbient Temperature\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eCooling\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e°F\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e-22-122\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eHeating\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e°F\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e-22~75\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"4\" colspan=\"1\" style=\"height: 78.3752px;\"\u003e\n\u003cdiv\u003eCertifications\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eETL\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eAHRI\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eEnergy Star for Cold Climate\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eNEEP\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eCertifications\u003c\/h2\u003e\n\u003ch2\u003e\n\u003cimg\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0134\/6709\/1044\/files\/certifications_6B.png?v=1723060874\" alt=\"\"\u003e\n\u003c\/h2\u003e\n\u003cp\u003e\u003cimg\u003e\u003c\/p\u003e\n\u003ch2\u003ePerformance Data\/Features\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eEfficiency and Design\u003c\/strong\u003e: Boasts up to 20.5 SEER, offering an efficient and discreet cooling and heating solution. Ideal for installation in attics and ceiling crawl spaces, designed to minimize energy loss compared to central ducted systems.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eFlexible Installation\u003c\/strong\u003e: The system's ducts can be directed into separate areas, all controlled by a single wall thermostat, ensuring a streamlined installation that remains hidden and complements any interior design without intruding on space aesthetics.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eExtreme Temperature Operation\u003c\/strong\u003e: Capable of heating in ambient temperatures as low as -13°F for standard units and -22°F for Hyper Units, making it versatile for various applications including bedrooms, additions, living rooms, and commercial spaces.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eOptional Accessories\u003c\/strong\u003e: Available pre-flared 99% Copper Installation Kit (16ft, 25ft, or 50ft) must be selected as per installation needs.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eControl and Documentation\u003c\/strong\u003e: Includes Wireless Remote Control, Installation Manual, User’s Manual, and Manufacturer Warranty for comprehensive support and easy operation.\u003cbr\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eManuals \u0026amp; Downloads\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca title=\"Slim Duct Leaflet\" href=\"https:\/\/api.cooperandhunter.us\/storage\/3760\/SlimDuct-Leaflet-2024.pdf\"\u003eSlim-Duct Leaflet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/1be4UNt2E-hgva0d1qX-6gPmKUMvXn7h-\/view?usp=sharing\" title=\"Multi-Zone Leaflet\" rel=\"noopener\" target=\"_blank\"\u003eMulti-Zone Booklet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"Custom Combination Chart\" href=\"https:\/\/southminisplits.com\/pages\/multi-zone-custom-combination-builder\" target=\"_blank\"\u003eSpecification Table\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"Olivia Quick Start Guide\" href=\"https:\/\/api.cooperandhunter.us\/storage\/1126\/QUICK-START-GUIDE.pdf\" target=\"_blank\"\u003eQuick-Start Guide\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"Slim Duct Installation Manual\" href=\"https:\/\/api.cooperandhunter.us\/storage\/3015\/Users-manual-Duct-09-24.pdf\" target=\"_blank\"\u003eInstallation Manual\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"ch-m09dtui Cooper\u0026amp;Hunter Manufacturer Information\" href=\"https:\/\/cooperandhunter.us\/product\/ch-m09dtui\" target=\"_blank\"\u003eGeneral Manufacturing Information\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"REBATE INFORMATION\" href=\"https:\/\/cooperandhunter.us\/rebates\" target=\"_blank\"\u003eRebates\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e","published_at":"2025-02-18T10:22:12-06:00","created_at":"2025-02-14T13:57:59-06:00","vendor":"Cooper\u0026Hunter","type":"Slim Duct","tags":["1 zone","10% BLACK FRIDAY 2","208-230V","250-400","9000 BTU","9000 BTU (0.75 TON)","9000 BTU VO","9000 BTU VO (0.75 TON)","Cooper\u0026Hunter","Ducted","Hyper","R454B","Slim Duct"],"price":145530,"price_min":145530,"price_max":178750,"available":false,"price_varies":true,"compare_at_price":132300,"compare_at_price_min":132300,"compare_at_price_max":162500,"compare_at_price_varies":true,"variants":[{"id":42849270759539,"title":"NO INSTALLATION KIT","option1":"NO INSTALLATION KIT","option2":null,"option3":null,"sku":"CH-RS09MDT-MS\/CH-RS06-12MDT-MS + CH-RHP09-230V0","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Cooper \u0026 Hunter Slim Duct Hyper 9,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 21.4 SEER2 0.75 TON With Wi-Fi Enabled Thermostat \u0026 Optional Installation Kit. CH-RS09MDT-MS +CH-RHP09-230V0 *Waiting List* - NO INSTALLATION KIT","public_title":"NO INSTALLATION KIT","options":["NO INSTALLATION KIT"],"price":145530,"weight":0,"compare_at_price":132300,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42849270792307,"title":"16FT","option1":"16FT","option2":null,"option3":null,"sku":"CH-RS09MDT-MS\/CH-RS06-12MDT-MS + CH-RHP09-230V0 + PJX-N1-C16FTW-MAX","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Cooper \u0026 Hunter Slim Duct Hyper 9,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 21.4 SEER2 0.75 TON With Wi-Fi Enabled Thermostat \u0026 Optional Installation Kit. CH-RS09MDT-MS +CH-RHP09-230V0 *Waiting List* - 16FT","public_title":"16FT","options":["16FT"],"price":158840,"weight":0,"compare_at_price":144400,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42849270825075,"title":"25FT","option1":"25FT","option2":null,"option3":null,"sku":"CH-RS09MDT-MS\/CH-RS06-12MDT-MS + CH-RHP09-230V0 + PJX-N1-C25FTW-MAX","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Cooper \u0026 Hunter Slim Duct Hyper 9,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 21.4 SEER2 0.75 TON With Wi-Fi Enabled Thermostat \u0026 Optional Installation Kit. CH-RS09MDT-MS +CH-RHP09-230V0 *Waiting List* - 25FT","public_title":"25FT","options":["25FT"],"price":162250,"weight":0,"compare_at_price":147500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42849270857843,"title":"50FT","option1":"50FT","option2":null,"option3":null,"sku":"CH-RS09MDT-MS\/CH-RS06-12MDT-MS + CH-RHP09-230V0 + PJX-N1-C50FTW-MAX","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Cooper \u0026 Hunter Slim Duct Hyper 9,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 21.4 SEER2 0.75 TON With Wi-Fi Enabled Thermostat \u0026 Optional Installation Kit. CH-RS09MDT-MS +CH-RHP09-230V0 *Waiting List* - 50FT","public_title":"50FT","options":["50FT"],"price":178750,"weight":0,"compare_at_price":162500,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/southminisplits.com\/cdn\/shop\/files\/slim_duct_hyper_9k.png?v=1734378323","\/\/southminisplits.com\/cdn\/shop\/files\/Screenshot_2024-12-16_at_1.46.24_PM.png?v=1734723973","\/\/southminisplits.com\/cdn\/shop\/files\/9K_BTU_HYPER_HYPER_DIMS_46a5d266-f1c0-4fe4-b6f9-6036db91e930.png?v=1739896180","\/\/southminisplits.com\/cdn\/shop\/files\/SlimDuctR454BREGULARSEER.png?v=1740070512","\/\/southminisplits.com\/cdn\/shop\/files\/Amazon_SlimDuct_Large_image_copy.png?v=1740070512","\/\/southminisplits.com\/cdn\/shop\/files\/Hyper_Heat_Condenser_Efficient_Heating_3.jpg?v=1740070512","\/\/southminisplits.com\/cdn\/shop\/files\/Hyper_Heat_Condenser.jpg?v=1740070512","\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Installation_Kit_for_Ductless_Mini_Splits_85.png?v=1739896225","\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Line_Set_Insulation_durability_81.png?v=1739896225","\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Line_Set_Details_12.png?v=1739896225","\/\/southminisplits.com\/cdn\/shop\/files\/Installation_Kit_Drain_Hose_Comparison_2.png?v=1739896225","\/\/southminisplits.com\/cdn\/shop\/files\/Remote.png?v=1740070512","\/\/southminisplits.com\/cdn\/shop\/files\/Smart_Thermostat_Controller.jpg?v=1740070512"],"featured_image":"\/\/southminisplits.com\/cdn\/shop\/files\/slim_duct_hyper_9k.png?v=1734378323","options":["Size"],"media":[{"alt":null,"id":28685637943411,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/slim_duct_hyper_9k.png?v=1734378323"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/slim_duct_hyper_9k.png?v=1734378323","width":1000},{"alt":null,"id":28685641220211,"position":2,"preview_image":{"aspect_ratio":1.016,"height":1222,"width":1242,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Screenshot_2024-12-16_at_1.46.24_PM.png?v=1734723973"},"aspect_ratio":1.016,"height":1222,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Screenshot_2024-12-16_at_1.46.24_PM.png?v=1734723973","width":1242},{"alt":null,"id":28513778008179,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/9K_BTU_HYPER_HYPER_DIMS_46a5d266-f1c0-4fe4-b6f9-6036db91e930.png?v=1739896180"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/9K_BTU_HYPER_HYPER_DIMS_46a5d266-f1c0-4fe4-b6f9-6036db91e930.png?v=1739896180","width":1080},{"alt":null,"id":29063729840243,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/SlimDuctR454BREGULARSEER.png?v=1740070512"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/SlimDuctR454BREGULARSEER.png?v=1740070512","width":1080},{"alt":null,"id":28685650657395,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Amazon_SlimDuct_Large_image_copy.png?v=1740070512"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Amazon_SlimDuct_Large_image_copy.png?v=1740070512","width":1800},{"alt":"Hyper Heat Condenser Efficient Heating","id":28399971303539,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1473,"width":1473,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Hyper_Heat_Condenser_Efficient_Heating_3.jpg?v=1740070512"},"aspect_ratio":1.0,"height":1473,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Hyper_Heat_Condenser_Efficient_Heating_3.jpg?v=1740070512","width":1473},{"alt":"Hyper Heat Condenser","id":28399971270771,"position":7,"preview_image":{"aspect_ratio":0.998,"height":1470,"width":1467,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Hyper_Heat_Condenser.jpg?v=1740070512"},"aspect_ratio":0.998,"height":1470,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Hyper_Heat_Condenser.jpg?v=1740070512","width":1467},{"alt":"C\u0026H Installation Kit for Ductless Mini Splits","id":28399964323955,"position":8,"preview_image":{"aspect_ratio":1.006,"height":1467,"width":1476,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Installation_Kit_for_Ductless_Mini_Splits_85.png?v=1739896225"},"aspect_ratio":1.006,"height":1467,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Installation_Kit_for_Ductless_Mini_Splits_85.png?v=1739896225","width":1476},{"alt":"Cooper and Hunter Line Set Insulation durability","id":28399964356723,"position":9,"preview_image":{"aspect_ratio":1.003,"height":1470,"width":1475,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Line_Set_Insulation_durability_81.png?v=1739896225"},"aspect_ratio":1.003,"height":1470,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Cooper_and_Hunter_Line_Set_Insulation_durability_81.png?v=1739896225","width":1475},{"alt":"C\u0026H Line Set Details","id":28399978381427,"position":10,"preview_image":{"aspect_ratio":1.005,"height":1469,"width":1476,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Line_Set_Details_12.png?v=1739896225"},"aspect_ratio":1.005,"height":1469,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/C_H_Line_Set_Details_12.png?v=1739896225","width":1476},{"alt":"Installation Kit Drain Hose Comparison","id":28399978414195,"position":11,"preview_image":{"aspect_ratio":1.005,"height":1469,"width":1477,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Installation_Kit_Drain_Hose_Comparison_2.png?v=1739896225"},"aspect_ratio":1.005,"height":1469,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Installation_Kit_Drain_Hose_Comparison_2.png?v=1739896225","width":1477},{"alt":null,"id":27856534601843,"position":12,"preview_image":{"aspect_ratio":1.0,"height":300,"width":300,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Remote.png?v=1740070512"},"aspect_ratio":1.0,"height":300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Remote.png?v=1740070512","width":300},{"alt":"Smart Thermostat Controller","id":28398839136371,"position":13,"preview_image":{"aspect_ratio":1.015,"height":925,"width":939,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/Smart_Thermostat_Controller.jpg?v=1740070512"},"aspect_ratio":1.015,"height":925,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/Smart_Thermostat_Controller.jpg?v=1740070512","width":939}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003csection class=\"shopify-section section\"\u003e\n\u003cdiv class=\"page-width\"\u003e\n\u003cdiv class=\"cstm_description_tab_main\"\u003e\n\u003cdiv class=\"cstm_description_tab_content_main\"\u003e\n\u003cdiv data-id=\"tabtitle_12\" class=\"cstm_description_tab_content active_data\"\u003e\n\u003cdiv class=\"cstm_productdescription\"\u003e\n\u003cdiv class=\"product__description rte\"\u003e\n\u003ch1 style=\"font-size: 16px;\"\u003e\u003ca rel=\"noopener\" title=\"Contact Us\" href=\"https:\/\/southminisplits.com\/pages\/contact\" target=\"_blank\"\u003eCLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS \u003c\/a\u003e\u003c\/h1\u003e\n\u003cp\u003e\u003ca title=\"Call Us Now!\" href=\"tel:(737)%20738-6329\"\u003eCLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS\u003c\/a\u003e\u003c\/p\u003e\n\u003ch1\u003eCooper \u0026amp; Hunter Slim Duct Hyper 9,000 BTU 230V, Concealed Duct Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 21.4 SEER2, 0.75 TON, Optional Installation Kit. CH-M09DTUI + CH-HPR09-230VO\u003c\/h1\u003e\n\u003ch2\u003eSummary\u003c\/h2\u003e\n\u003cp\u003e\u003cspan\u003eThe Cooper\u0026amp;Hunter Light Commercial Slim Duct systems present an efficient and discreet cooling and heating solution, ideal for installation in attics and ceiling crawl spaces. These units are designed to minimize energy loss commonly seen in central ducted systems.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eWith available capacities ranging from 9K-24K and 36k-60K in Single-Zone Light Commercial Applications BTU\/h in Multi-Zone and an impressive efficiency of up to 21.4 SEER, these systems adapt flexibly to varying architectural demands, allowing ducts to be directed into different areas under a single wall thermostat control. This setup not only enhances comfort but also ensures a streamlined, hidden installation that complements any space without intruding on its aesthetics.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cspan\u003eThis system is capable of heating even in ambient temperatures as low as -13°F for standard units, and as low as -22°F for Hyper Units, making it perfect for a variety of applications, from bedrooms and additions to living rooms and commercial spaces.\u003c\/span\u003e\u003c\/p\u003e\n\u003ch2\u003e\n\u003cspan\u003e\u003cstrong\u003e\u003c\/strong\u003e\u003c\/span\u003e\u003cbr\u003e\n\u003c\/h2\u003e\n\u003ch2\u003e\u003cspan\u003e\u003cstrong\u003eImportant\u003c\/strong\u003e\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp\u003e\u003cspan\u003e\u003cstrong\u003eAll units must be installed by a licensed HVAC professional for the warranty to be valid\u003c\/strong\u003e. \u003cstrong\u003eRegistration is required within 60 days of installation and can be completed online or by phone.\u003c\/strong\u003e \u003cstrong\u003eThe installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above\u003c\/strong\u003e. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.\u003c\/span\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eWhat's Included\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003eIndoor Unit\u003cspan\u003e \u003cstrong\u003eCH-RS09MDT-MS\u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e(9,000 BTU 230V Slim Duct, Concealed Duct Air Conditioning Unit)\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eOutdoor unit\u003cspan\u003e \u003cstrong\u003eCH-RHP09-230V0\u003c\/strong\u003e\u003c\/span\u003e\u003cspan\u003e\u003cstrong\u003e \u003c\/strong\u003e(9,000 BTU)\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003eOptional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.)\u003cspan\u003e \u003c\/span\u003e\u003cstrong\u003eMUST BE SELECTED ABOVE.\u003c\/strong\u003e\n\u003c\/li\u003e\n\u003cli\u003eWireless Remote Control\u003cbr\u003e\n\u003c\/li\u003e\n\u003cli\u003eInstallation Manual\u003c\/li\u003e\n\u003cli\u003eUser’s Manual\u003c\/li\u003e\n\u003cli\u003eManufacturer Warranty\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003e\u003cspan\u003eStandard Slim Duct Units\u003c\/span\u003e\u003c\/h2\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"242\"\u003e \u003ccol width=\"131\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 9,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 9,000 BTU 230V, R410A, 22.8 SEER Slim Duct Mini Split Air Conditioner Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/9-000-btu-230v-22-8-seer-slim-duct-mini-split-air-conditioner-heat-pump-0-75-ton-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-M09DTUI + CH-ES09-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 12,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\n\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 12,000 BTU 230V 21.5 SEER Slim Duct Mini Split Air Conditioner Heat Pump 1 TON,\" href=\"https:\/\/southminisplits.com\/products\/12-000-btu-230v-22-8-seer-slim-duct-mini-split-air-conditioner-heat-pump-0-75-ton-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-M12DTUI + CH-ES12-230VO\u003c\/span\u003e\u003c\/a\u003eCH\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 18,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 18,000 BTU 230V, R410A, 20.8 SEER Slim Duct 1.5 TON Mini Split Air Conditioner Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/cooper-hunter-18-000-btu-230v-21-5-seer-slim-duct-mini-split-air-conditioner-heat-pump-1-ton-sophia-series-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-M18DTUI + CH-ES18-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 24,000 BTU\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper \u0026amp; Hunter 24,000 BTU 230V, R410A, 20.5 SEER Slim Duct Mini Split Air Conditioner Heat Pump 2 TON\" href=\"https:\/\/southminisplits.com\/products\/cooper-hunter-24-000-btu-230v-20-5-seer-slim-duct-mini-split-air-conditioner-heat-pump-2-ton-installation-kit-option\" target=\"_blank\"\u003e\u003cspan\u003eCH-24MDT-W-1 + CH-ES24-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSlim Duct 36,000 BTU\u003cbr\u003e\n\u003c\/td\u003e\n\u003ctd\u003e\u003ca rel=\"noopener\" title=\"Cooper\u0026amp;Hunter R410A, 36,000 BTU 230V 16.5 SEER Concealed Duct Mini Split AC System \u0026amp; Heat Pump, Light Commercial Series 3 TON Air Conditioner Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/cooper-hunter-36-000-slim-duct\" target=\"_blank\"\u003e\u003cspan\u003eCH-36LCDTU\/I + CH-N36LCU-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ctable width=\"100%\"\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 64.6863%;\"\u003eSlim Duct 48,000 BTU\u003c\/td\u003e\n\u003ctd style=\"width: 35.0456%;\"\u003e\u003ca rel=\"noopener\" title=\"cooper and hunter slim duct 48,000 BTU 230V 17.4 SEER, R410A, Concealed Duct Mini Split Air Conditioner\" href=\"https:\/\/southminisplits.com\/products\/48-000-btu-230v-17-4-seer-concealed-duct-mini-split-air-conditioner-optional-installation-kit-light-commercial-series-single-zone-heating-and-cooling-heat-pump-1\" target=\"_blank\"\u003e\u003cspan\u003eCH-48LCDTU\/I + CH-N48LCU-230VO\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd style=\"width: 64.6863%;\"\u003eSlim Duct 60,000 BTU\u003c\/td\u003e\n\u003ctd style=\"width: 35.0456%;\"\u003e\u003ca rel=\"noopener\" title=\"cooper and hunter slim duct 60,000 BTU 230V 18 SEER Concealed Duct Mini Split Air Conditioner \u0026amp; Heat Pump\" href=\"https:\/\/southminisplits.com\/products\/48-000-btu-230v-17-4-seer-concealed-duct-mini-split-air-conditioner-optional-installation-kit-light-commercial-series-single-zone-heating-and-cooling-heat-pump\" target=\"_blank\"\u003e\u003cspan\u003eCH-60LCDTU\/I + CH-N60LCU-230V\u003c\/span\u003e\u003c\/a\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eWarranty\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e7 year compressor limited warranty\u003c\/li\u003e\n\u003cli\u003e5 year parts limited warranty (must be installed by a licensed HVAC technician)\u003c\/li\u003e\n\u003cli\u003e1 year remote control\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eTechnical Information\u003c\/h2\u003e\n\u003ch3\u003eIndoor Unit Model Number: CH-RS09MDT-MS\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003cstyle type=\"text\/css\"\u003e\u003c!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--\u003e\u003c\/style\u003e\n\u003csection class=\"shopify-section section\"\u003e\n\u003cdiv class=\"page-width\"\u003e\n\u003cdiv class=\"cstm_description_tab_main\"\u003e\n\u003cdiv class=\"cstm_description_tab_content_main\"\u003e\n\u003cdiv data-id=\"tabtitle_12\" class=\"cstm_description_tab_content active_data\"\u003e\n\u003cdiv class=\"cstm_productdescription\"\u003e\n\u003cdiv class=\"product__description rte\"\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"259\"\u003e \u003ccol width=\"188\"\u003e \u003ccol width=\"62\"\u003e \u003ccol width=\"205\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003e\u003cstrong\u003eIndoor Model\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd\u003e\u003cstrong\u003eCH-RS09MDT-MS CH-RS06-12MDT-MS (Dip Switch 9)\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eRated\u003c\/td\u003e\n\u003ctd\u003eV,Ph,Hz\u003c\/td\u003e\n\u003ctd\u003e208\/230,1,60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\"\u003e\n\u003cdiv\u003eRated Capacity\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e9000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e10000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eMinimum Circuit Ampacity (MCA)\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e3\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eMax. Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Air Flow (Turbo\/Hi\/Mi\/Lo\/Si)\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e323.7\/264.9\/206.0\/147.2\/117.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Noise Level (Turbo\/Hi\/Mi\/Lo\/Si)\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003eN1A\/32.5\/31\/29.5\/23\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\" colspan=\"1\"\u003e\n\u003cdiv\u003eIndoor\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimension (WxDxH)\u003c\/td\u003e\n\u003ctd\u003einch\u003c\/td\u003e\n\u003ctd\u003e27.56 x 19.92 x 7.87\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003einch\u003c\/td\u003e\n\u003ctd\u003e33.86 x 21.26 x 11.22\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e39.46\/46.74\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\"\u003e\n\u003cdiv\u003eRoom Temperature\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e60-90\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e32-86\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eLiquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd\u003einch\u003c\/td\u003e\n\u003ctd\u003e1\/4\"\/3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003ch3\u003e\u003cbr\u003e\u003c\/h3\u003e\n\u003ch3\u003eOutdoor Model Number:\u003cspan\u003e CH-RHP09-230V0\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003c\/div\u003e\n\u003cdiv class=\"product__description rte\"\u003e\u003cbr\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e\n\u003cstyle type=\"text\/css\"\u003e\u003c!--td {border: 1px solid #cccccc;}br {mso-data-placement:same-cell;}--\u003e\u003c\/style\u003e\n\u003csection class=\"shopify-section section\" id=\"shopify-section-template--16576096567411__main\"\u003e\n\u003cdiv class=\"page-width\"\u003e\n\u003cdiv class=\"cstm_description_tab_main\"\u003e\n\u003cdiv class=\"cstm_description_tab_content_main\"\u003e\n\u003cdiv data-id=\"tabtitle_12\" class=\"cstm_description_tab_content active_data\"\u003e\n\u003cdiv class=\"cstm_productdescription\"\u003e\n\u003cdiv class=\"product__description rte\"\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\" style=\"width: 100%; height: 685.783px;\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"259\" style=\"width: 42.5987%;\"\u003e \u003ccol width=\"188\" style=\"width: 30.9211%;\"\u003e \u003ccol width=\"62\" style=\"width: 10.1974%;\"\u003e \u003ccol width=\"205\" style=\"width: 33.7171%;\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\" style=\"height: 39.1875px;\"\u003e\u003cstrong\u003eOutdoor Model\u003c\/strong\u003e\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003e\u003cstrong\u003eCH-RHP09-230V0\u003c\/strong\u003e\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\" style=\"height: 39.1876px;\"\u003e\n\u003cdiv\u003ePower Supply\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eV, Ph, Hz\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e208\/230,1,60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eVoltage Range\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eV\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e187-253\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"4\" colspan=\"1\" style=\"height: 78.3752px;\"\u003e\n\u003cdiv\u003eCooling\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Capacity (Range)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3,400~13,500\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Current\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e4.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eEER2\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e13.4\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eSEER2\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e21.4\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"5\" colspan=\"1\" style=\"height: 97.969px;\"\u003e\n\u003cdiv\u003eHeating at 47°F\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Capacity (Range)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eBtu\/h\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3,800~16,200\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eRated Current\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3.9\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eCOP\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eW\/W\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e3.53\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eHSPF4\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e12.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eHSPF5\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e9.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMinimum Circuit Ampacity (MCA)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMax. Fuse (Outdoor Unit)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eA\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eOutdoor Air Flow (Max.)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eCFM\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e1471.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eOutdoor Noise Level (Sound Pressure)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003edB(A)\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e56\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 39.1875px;\"\u003eDimension (W×D×H)\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003einch\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003e31.69 x 12.99 x 21.81\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 39.1875px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 39.1875px;\"\u003ePacking (W×D×H)\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003einch\u003c\/td\u003e\n\u003ctd style=\"height: 39.1875px;\"\u003e36.02 x 14.57 x 24.21\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003elbs.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e72.75\/78.70\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eRefrigerant Type \/ Charge\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eoz.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eR454B 35.27\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eRefrigerant Precharge Length\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e25\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eAdditional Charge for Each ft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eoz\/ft\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e0.16\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eDesign Pressure\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003ePSIG\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e550\/340\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eRefrigerant Piping Liquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003einch\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e1\/4\"\/3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMax. Pipe Length\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e82\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eMax. Difference in Level\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eft.\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e32.8\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"2\" colspan=\"1\" style=\"height: 39.1876px;\"\u003e\n\u003cdiv\u003eAmbient Temperature\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eCooling\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e°F\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e-22-122\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eHeating\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e°F\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003e-22~75\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"4\" colspan=\"1\" style=\"height: 78.3752px;\"\u003e\n\u003cdiv\u003eCertifications\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eETL\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eAHRI\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eEnergy Star for Cold Climate\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr style=\"height: 19.5938px;\"\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\" style=\"height: 19.5938px;\"\u003eNEEP\u003c\/td\u003e\n\u003ctd style=\"height: 19.5938px;\"\u003eTRUE\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eCertifications\u003c\/h2\u003e\n\u003ch2\u003e\n\u003cimg\u003e\u003cimg src=\"https:\/\/cdn.shopify.com\/s\/files\/1\/0134\/6709\/1044\/files\/certifications_6B.png?v=1723060874\" alt=\"\"\u003e\n\u003c\/h2\u003e\n\u003cp\u003e\u003cimg\u003e\u003c\/p\u003e\n\u003ch2\u003ePerformance Data\/Features\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eEfficiency and Design\u003c\/strong\u003e: Boasts up to 20.5 SEER, offering an efficient and discreet cooling and heating solution. Ideal for installation in attics and ceiling crawl spaces, designed to minimize energy loss compared to central ducted systems.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eFlexible Installation\u003c\/strong\u003e: The system's ducts can be directed into separate areas, all controlled by a single wall thermostat, ensuring a streamlined installation that remains hidden and complements any interior design without intruding on space aesthetics.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eExtreme Temperature Operation\u003c\/strong\u003e: Capable of heating in ambient temperatures as low as -13°F for standard units and -22°F for Hyper Units, making it versatile for various applications including bedrooms, additions, living rooms, and commercial spaces.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eOptional Accessories\u003c\/strong\u003e: Available pre-flared 99% Copper Installation Kit (16ft, 25ft, or 50ft) must be selected as per installation needs.\u003c\/p\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cp\u003e\u003cstrong\u003eControl and Documentation\u003c\/strong\u003e: Includes Wireless Remote Control, Installation Manual, User’s Manual, and Manufacturer Warranty for comprehensive support and easy operation.\u003cbr\u003e\u003c\/p\u003e\n\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2\u003eManuals \u0026amp; Downloads\u003c\/h2\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca title=\"Slim Duct Leaflet\" href=\"https:\/\/api.cooperandhunter.us\/storage\/3760\/SlimDuct-Leaflet-2024.pdf\"\u003eSlim-Duct Leaflet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/1be4UNt2E-hgva0d1qX-6gPmKUMvXn7h-\/view?usp=sharing\" title=\"Multi-Zone Leaflet\" rel=\"noopener\" target=\"_blank\"\u003eMulti-Zone Booklet\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"Custom Combination Chart\" href=\"https:\/\/southminisplits.com\/pages\/multi-zone-custom-combination-builder\" target=\"_blank\"\u003eSpecification Table\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"Olivia Quick Start Guide\" href=\"https:\/\/api.cooperandhunter.us\/storage\/1126\/QUICK-START-GUIDE.pdf\" target=\"_blank\"\u003eQuick-Start Guide\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"Slim Duct Installation Manual\" href=\"https:\/\/api.cooperandhunter.us\/storage\/3015\/Users-manual-Duct-09-24.pdf\" target=\"_blank\"\u003eInstallation Manual\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"ch-m09dtui Cooper\u0026amp;Hunter Manufacturer Information\" href=\"https:\/\/cooperandhunter.us\/product\/ch-m09dtui\" target=\"_blank\"\u003eGeneral Manufacturing Information\u003c\/a\u003e\u003c\/li\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" title=\"REBATE INFORMATION\" href=\"https:\/\/cooperandhunter.us\/rebates\" target=\"_blank\"\u003eRebates\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/section\u003e"}

1 13

Cooper & Hunter Slim Duct Hyper 9,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 21.4 SEER2 0.75 TON With Wi-Fi Enabled Thermostat & Optional Installation Kit. CH-RS09MDT-MS +CH-RHP09-230V0 Waiting List

Name: Cooper & Hunter Slim Duct Hyper 9,000 BTU 230V ...
SKU: CH-RS09MDT-MS/CH-RS06-12MDT-MS+CH-RHP09-230V0
Price: 1455.3 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

SKU: CH-RS09MDT-MS/CH-RS06-12MDT-MS + CH-RHP09-230V0

Free Shipping on orders above $300

No Sales Tax *Except Texas

Up to 15% off on bulk orders - call for more details

Out of stock

Price

$1,455.30

$1,455.30 ~~$1,323.00~~

save $-132.30

Sold out

Size NO INSTALLATION KIT 16FT 25FT 50FT

save $-132.30

save $-144.40

save $-147.50

save $-162.50

Quantity

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Slim Duct Hyper 9,000 BTU 230V, Concealed Duct Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 21.4 SEER2, 0.75 TON, Optional Installation Kit. CH-M09DTUI + CH-HPR09-230VO

Summary

The Cooper&Hunter Light Commercial Slim Duct systems present an efficient and discreet cooling and heating solution, ideal for installation in attics and ceiling crawl spaces. These units are designed to minimize energy loss commonly seen in central ducted systems.

With available capacities ranging from 9K-24K and 36k-60K in Single-Zone Light Commercial Applications BTU/h in Multi-Zone and an impressive efficiency of up to 21.4 SEER, these systems adapt flexibly to varying architectural demands, allowing ducts to be directed into different areas under a single wall thermostat control. This setup not only enhances comfort but also ensures a streamlined, hidden installation that complements any space without intruding on its aesthetics.

This system is capable of heating even in ambient temperatures as low as -13°F for standard units, and as low as -22°F for Hyper Units, making it perfect for a variety of applications, from bedrooms and additions to living rooms and commercial spaces.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

What's Included

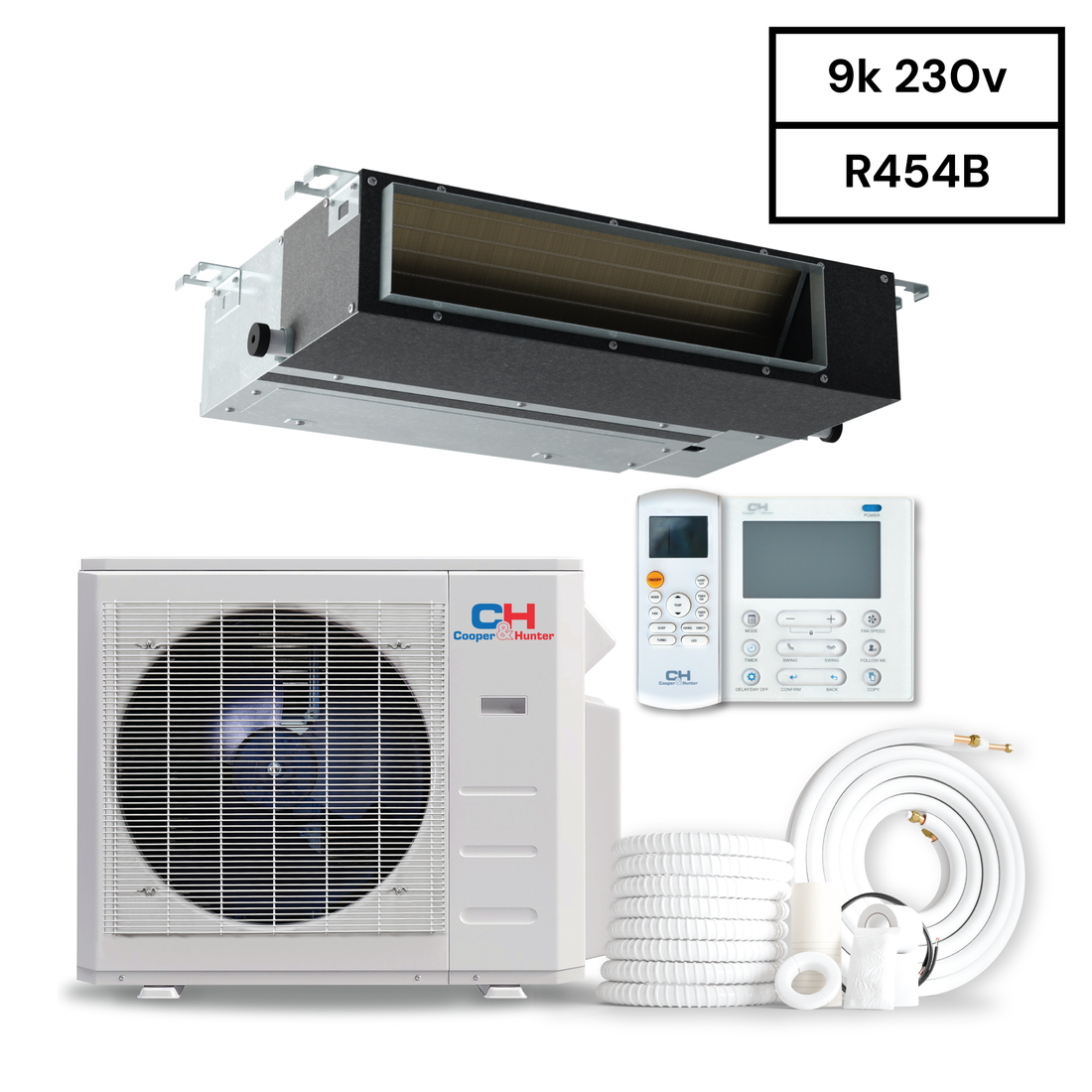

Indoor Unit CH-RS09MDT-MS (9,000 BTU 230V Slim Duct, Concealed Duct Air Conditioning Unit)
Outdoor unit CH-RHP09-230V0 (9,000 BTU)

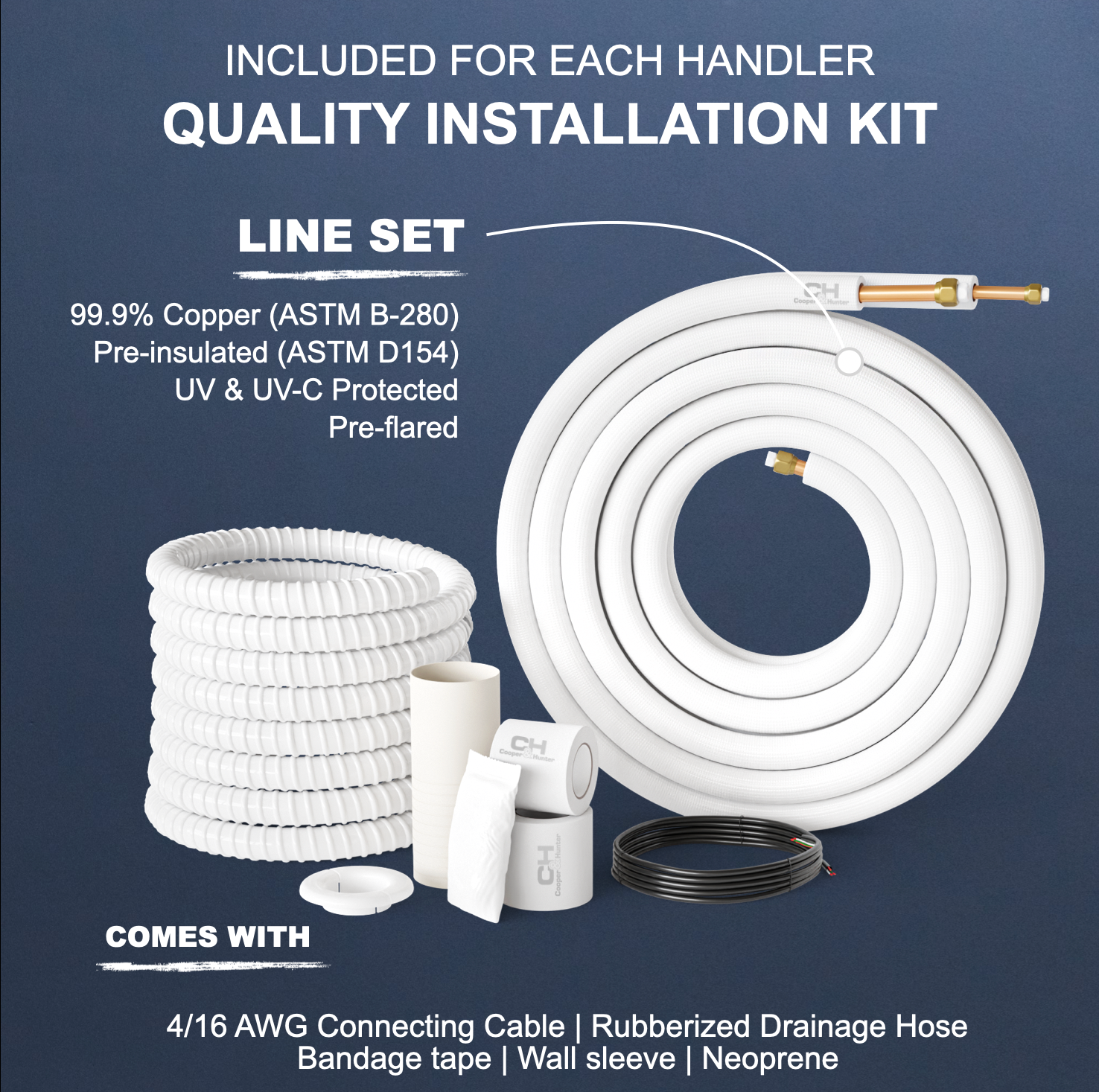

Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Wireless Remote Control
Installation Manual
User’s Manual
Manufacturer Warranty

Standard Slim Duct Units

Slim Duct 9,000 BTU	CH-M09DTUI + CH-ES09-230VO
Slim Duct 12,000 BTU	CH-M12DTUI + CH-ES12-230VOCH
Slim Duct 18,000 BTU	CH-M18DTUI + CH-ES18-230VO
Slim Duct 24,000 BTU	CH-24MDT-W-1 + CH-ES24-230VO
Slim Duct 36,000 BTU	CH-36LCDTU/I + CH-N36LCU-230VO

Slim Duct 48,000 BTU	CH-48LCDTU/I + CH-N48LCU-230VO
Slim Duct 60,000 BTU	CH-60LCDTU/I + CH-N60LCU-230V

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Indoor Unit Model Number: CH-RS09MDT-MS

Indoor Model			CH-RS09MDT-MS CH-RS06-12MDT-MS (Dip Switch 9)
Power Supply	Rated	V,Ph,Hz	208/230,1,60
Rated Capacity	Cooling	Btu/h	9000
Rated Capacity	Heating	Btu/h	10000
Minimum Circuit Ampacity (MCA)		A	3
Max. Fuse		A	15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si)		CFM	323.7/264.9/206.0/147.2/117.7
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si)		dB(A)	N1A/32.5/31/29.5/23

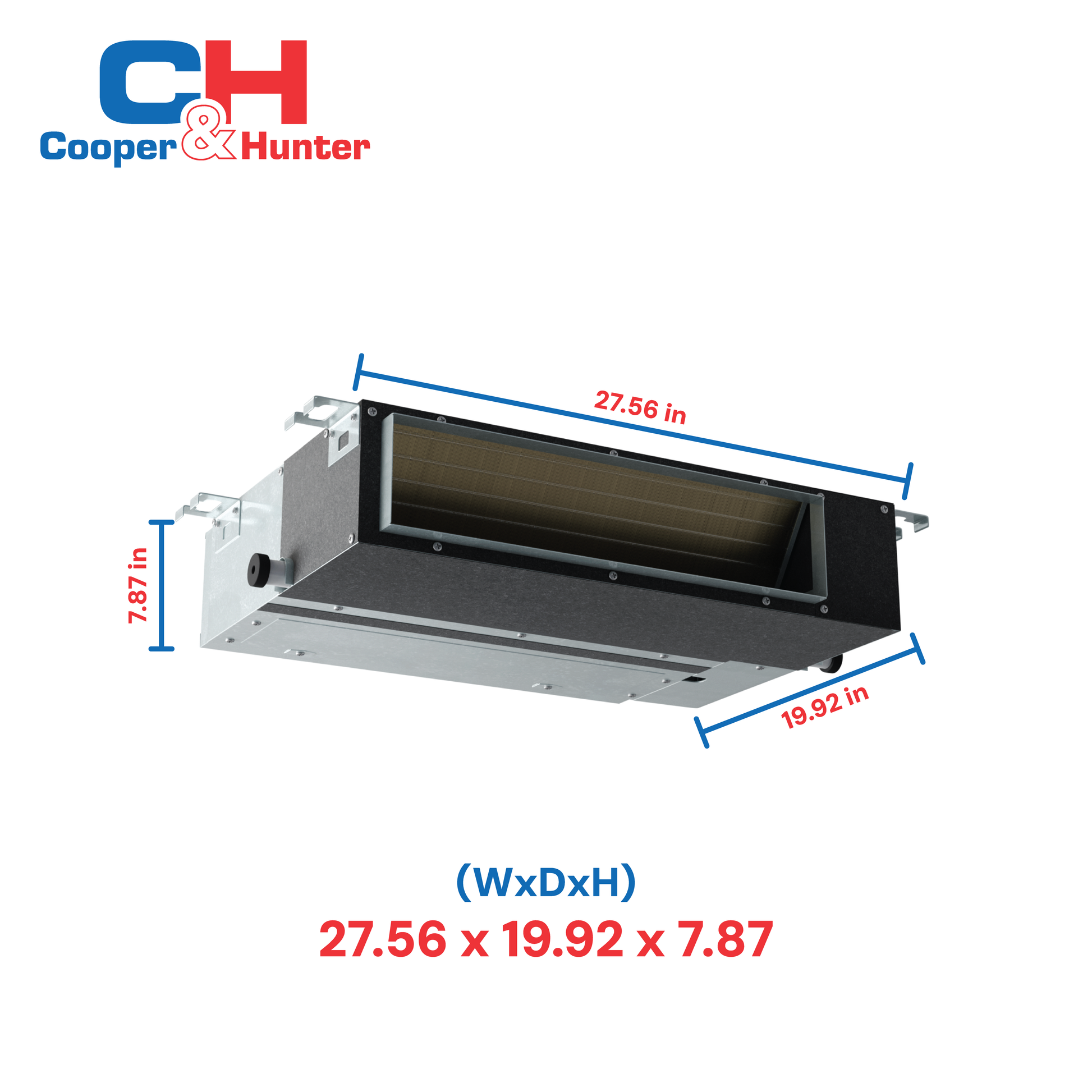

Indoor	Dimension (WxDxH)	inch	27.56 x 19.92 x 7.87
	Packing (WxDxH)	inch	33.86 x 21.26 x 11.22
	Net/Gross Weight	lbs.	39.46/46.74
Room Temperature	Cooling	°F	60-90
Room Temperature	Heating	°F	32-86
Liquid Side/Gas Side		inch	1/4"/3/8"

Outdoor Model Number: CH-RHP09-230V0

Outdoor Model			CH-RHP09-230V0
Power Supply	Rated	V, Ph, Hz	208/230,1,60
Power Supply	Voltage Range	V	187-253
Cooling	Rated Capacity (Range)	Btu/h	3,400~13,500
	Rated Current	A	4.8
	EER2	Btu/h	13.4
	SEER2	Btu/h	21.4
Heating at 47°F	Rated Capacity (Range)	Btu/h	3,800~16,200
	Rated Current	A	3.9
	COP	W/W	3.53
	HSPF4		12.5
	HSPF5		9.7
Minimum Circuit Ampacity (MCA)		A	15
Max. Fuse (Outdoor Unit)		A	15
Outdoor Air Flow (Max.)		CFM	1471.5
Outdoor Noise Level (Sound Pressure)		dB(A)	56
Dimension (W×D×H)		inch	31.69 x 12.99 x 21.81
Packing (W×D×H)		inch	36.02 x 14.57 x 24.21
Net/Gross Weight		lbs.	72.75/78.70
Refrigerant Type / Charge		oz.	R454B 35.27
Refrigerant Precharge Length		ft.	25
Additional Charge for Each ft.		oz/ft	0.16
Design Pressure		PSIG	550/340
Refrigerant Piping Liquid Side/Gas Side		inch	1/4"/3/8"
Max. Pipe Length		ft.	82
Max. Difference in Level		ft.	32.8
Ambient Temperature	Cooling	°F	-22-122
Ambient Temperature	Heating	°F	-22~75
Certifications	ETL		TRUE
	AHRI		TRUE
	Energy Star for Cold Climate		TRUE
	NEEP		TRUE

Certifications

Performance Data/Features

Efficiency and Design: Boasts up to 20.5 SEER, offering an efficient and discreet cooling and heating solution. Ideal for installation in attics and ceiling crawl spaces, designed to minimize energy loss compared to central ducted systems.
Flexible Installation: The system's ducts can be directed into separate areas, all controlled by a single wall thermostat, ensuring a streamlined installation that remains hidden and complements any interior design without intruding on space aesthetics.
Extreme Temperature Operation: Capable of heating in ambient temperatures as low as -13°F for standard units and -22°F for Hyper Units, making it versatile for various applications including bedrooms, additions, living rooms, and commercial spaces.
Optional Accessories: Available pre-flared 99% Copper Installation Kit (16ft, 25ft, or 50ft) must be selected as per installation needs.
Control and Documentation: Includes Wireless Remote Control, Installation Manual, User’s Manual, and Manufacturer Warranty for comprehensive support and easy operation.
