Cooper & Hunter Slim Duct 48,000 BTU 230V R454B Concealed Duct Air Conditioning Unit for Heat Pump Mini Split Inverter System 16.7 SEER2 4 TON With Wi-Fi Enabled Thermostat & Optional Installation Kit CH-RS48LCDT-HS +CH-R48LCU-230V0 Waiting List

Name: Cooper & Hunter Slim Duct 48,000 BTU 230V R454B...
SKU: CH-RS48LCDT-HS+CH-R48LCU-230V0
Price: 3729.87 USD
Availability: OutOfStock
Rating: 4.5 (2 reviews)

SKU: CH-RS48LCDT-HS +CH-R48LCU-230V0

Free Shipping on orders above $300

No Sales Tax *Except Texas

Up to 15% off on bulk orders - call for more details

Out of stock

Price

$3,729.87

Sold out

Size NO INSTALLATION KIT 25FT 50FT

Quantity

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper & Hunter Slim Duct 48,000 BTU 230V, R454B, Concealed Duct Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 16.7 SEER2, 4 TON, With Wi-Fi Enabled Thermostat and Optional Installation Kit. CH-RS48LCDT-HS +CH-R48LCU-230V0 Waiting List

Summary

The Cooper&Hunter Light Commercial Slim Duct systems present an efficient and discreet cooling and heating solution, ideal for installation in attics and ceiling crawl spaces. These units are designed to minimize energy loss commonly seen in central ducted systems.

With available capacities ranging from 9K-24K and 36k-60K in Single-Zone Light Commercial Applications BTU/h in Multi-Zone and an impressive efficiency of up to 16.7 SEER, these systems adapt flexibly to varying architectural demands, allowing ducts to be directed into different areas under a single wall thermostat control. This setup not only enhances comfort but also ensures a streamlined, hidden installation that complements any space without intruding on its aesthetics.

This system is capable of heating even in ambient temperatures as low as -13°F for standard units, and as low as -22°F for Hyper Units, making it perfect for a variety of applications, from bedrooms and additions to living rooms and commercial spaces.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

What's Included

Indoor Unit CH-RS48LCDT-HS (48,000 BTU 230V Slim Duct, Concealed Duct Air Conditioning Unit)
Outdoor unit CH-R48LCU-230V0 (48,000 BTU)

Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Wireless Remote Control
Installation Manual
User’s Manual
Manufacturer Warranty

Standard Slim Duct Units

Slim Duct 9,000 BTU	CH-M09DTUI + CH-ES09-230VO
Slim Duct 12,000 BTU	CH-M12DTUI + CH-ES12-230VOCH
Slim Duct 18,000 BTU	CH-M18DTUI + CH-ES18-230VO
Slim Duct 24,000 BTU	CH-24MDT-W-1 + CH-ES24-230VO
Slim Duct 36,000 BTU	CH-36LCDTU/I + CH-N36LCU-230VO

Slim Duct 48,000 BTU	CH-48LCDTU/I + CH-N48LCU-230VO
Slim Duct 60,000 BTU	CH-60LCDTU/I + CH-N60LCU-230V

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Indoor Unit CH-RS48LCDT-HS

Power Supply	Rated	V,Ph,Hz	208/230,1.60
Rated Capacity	Cooling	Btu/h	48000
Rated Capacity	Heating	Btu/h	50000
Minimum Circuit Ampacity (MCA)		A	5
Max. Fuse		A	15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si)		CFM	1648.1/1471.5/1294.9/1059.5/NVA
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si)		dB(A)	N\A/51/46/42/40

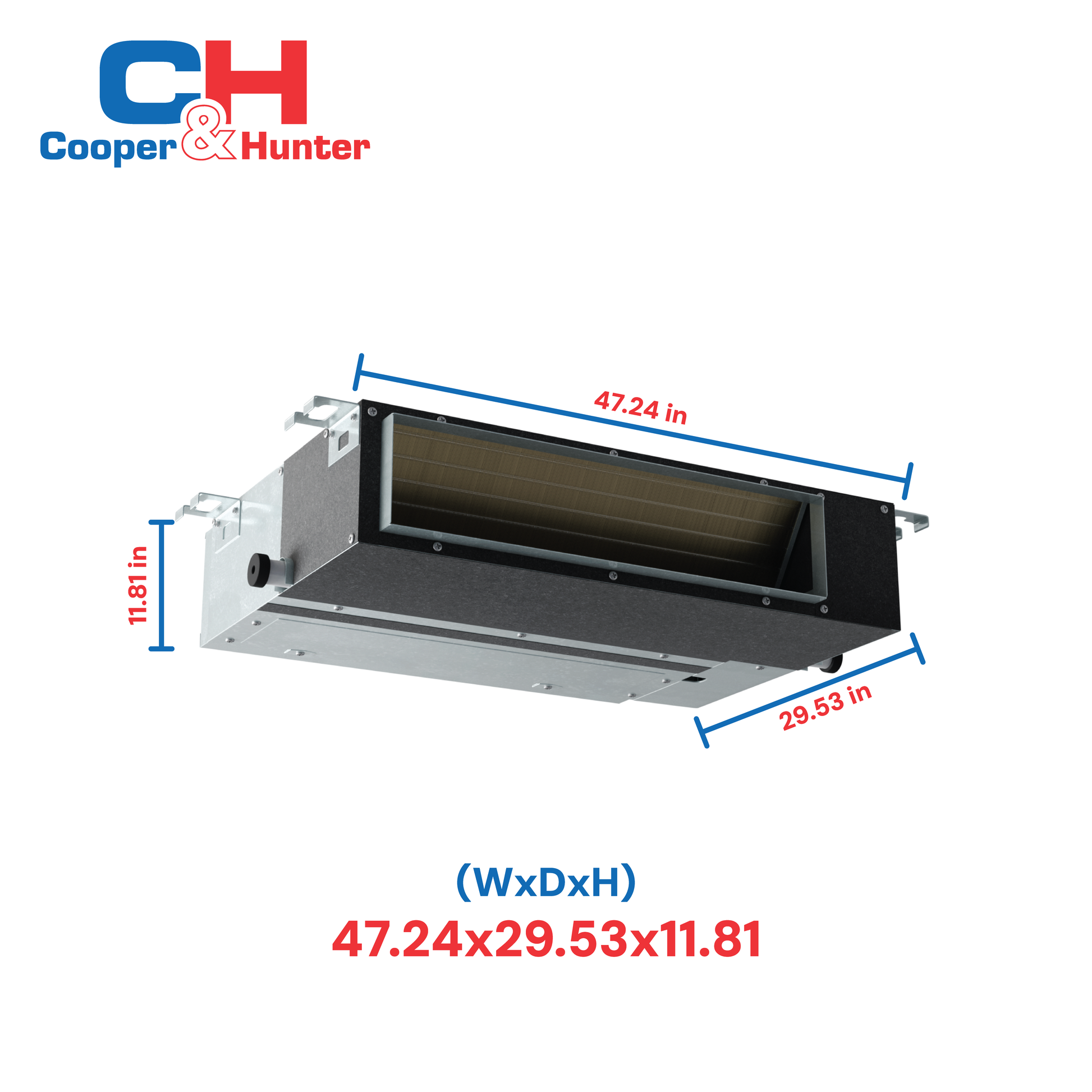

Indoor	Dimension (WxDxH)	inch	47.24 x29.53x11.81
	Packing (WxDxH)	inch	56.10x33.86x14.13
	Net/Gross Weight	lbs.	111.33/124.78
Room Temperature	Cooling	°F	60~90
Room Temperature	Heating	°F	32-86
Liquid Side/Gas Side		inch	3/8"/3/4"

Outdoor Unit: CH-R48LCU-230V0

Power Supply	Rated	V, Ph, Hz	208/230,1, 60
Power Supply	Voltage Range	V	187-253
Cooling	Rated Capacity (Range)	Btu/h	11,000-56,500
	Rated Current	A	21.3
	EER2	Btu/h	10
	SEER2	Btu/h	17.1
Heating at 47°F	Rated Capacity (Range)	Btu/h	11,200-60,500
	Rated Current	A	19
	COP	W/W	3.49
	HSPF4		9.8
	HSPF5		7.7
Minimum Circuit Ampacity		A	39
Max. Fuse (Outdoor Unit)		A	40
Outdoor Air Flow (Max.)		CFM	4237.9
Outdoor Noise Level (Sound Pressure)		dB(A)	64

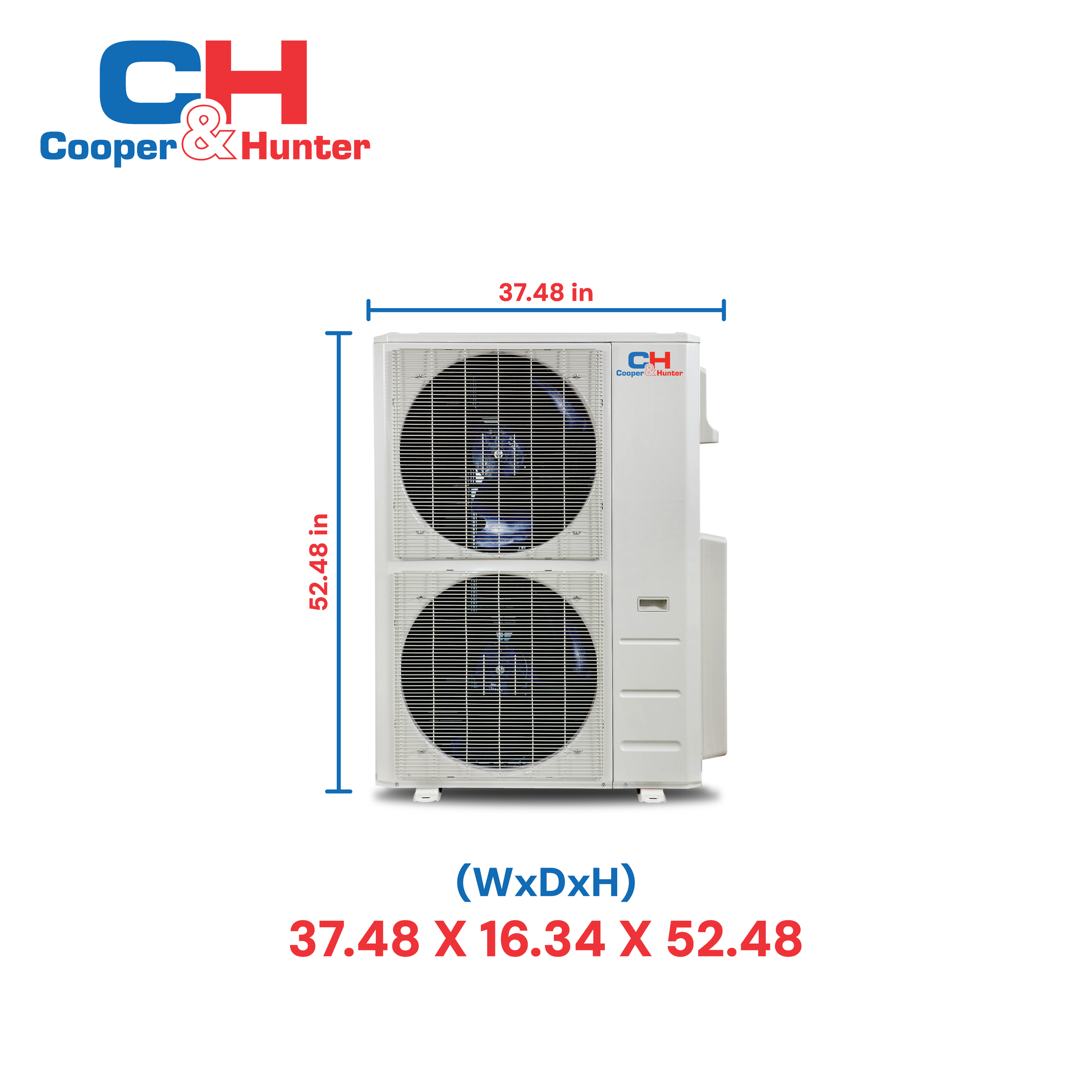

Dimension (W×D×H)		inch	37.48 X 16.34 X 52.48
Packing (W×D×H)		inch	43.11 X 19.49 X 57.48
Net/Gross Weight		lbs.	208.78/239.86
Refrigerant Type / Charge		oz.	R454B/126.99
Refrigerant Precharge Length		ft.	25
Additional Charge for Each ft.		oz/ft	0.32
Design Pressure		PSIG	550/340
Refrigerant Piping Liquid Side/Gas Side		inch	3/8"/3/4"
Max. Pipe Length		ft.	246
Max. Difference in Level		ft.	98.4
Ambient Temperature	Cooling	°F	-13~122
Ambient Temperature	Heating	°F	-13-75
Certifications	ETL		TRUE
	AHRI		TRUE
	Energy Star for Cold Climate		TRUE
	NEEP		TRUE

Certifications

Performance Data/Features

Efficiency and Design: Boasts up to 21.4 SEER, offering an efficient and discreet cooling and heating solution. Ideal for installation in attics and ceiling crawl spaces, designed to minimize energy loss compared to central ducted systems.
Flexible Installation: The system's ducts can be directed into separate areas, all controlled by a single wall thermostat, ensuring a streamlined installation that remains hidden and complements any interior design without intruding on space aesthetics.
Extreme Temperature Operation: Capable of heating in ambient temperatures as low as -13°F for standard units and -22°F for Hyper Units, making it versatile for various applications including bedrooms, additions, living rooms, and commercial spaces.
Optional Accessories: Available pre-flared 99% Copper Installation Kit (16ft, 25ft, or 50ft) must be selected as per installation needs.
Control and Documentation: Includes Wireless Remote Control, Installation Manual, User’s Manual, and Manufacturer Warranty for comprehensive support and easy operation.
