Home 24,000 BTU Cooper&Hunter

Cooper&Hunter Single Zone, Four-Way Ceiling Cassette R454B, 24,000 BTU 230V 22 SEER Ceiling Cassette Ductless Mini Split Air Conditioner, Heat Pump 2 TON + Installation Kit Option. CH-RH24MCT + CH-RES24-230VO

SKU CH-RH24MCT + CH-RES24-230VO Ceiling Cassette208-230V
$2,417.76
In StockShips in 1-2 business days

Brand Information

Cooper&Hunter
Support Number
1 888-293-9252
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter Single Zone, Four-Way Ceiling Cassette R454B, 24,000 BTU 230V 22 SEER Ceiling Cassette Ductless Mini Split Air Conditioner, Heat Pump 2 TON + Installation Kit Option. CH-RH24MCT + CH-RES24-230V0


Summary

The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s Ceiling Cassette mini split series. Ceiling Cassettes offer a convenient solution for offices and businesses, as they can easily fit into a standard ceiling grid, but they can be used for almost any application, as long as enough space exists above the ceiling itself. Ceiling Cassettes provide omnidirectional airflow and user-friendly Remote Control operation.

Ceiling Cassettes are designed to be controlled by our optional wall thermostat, the included remote control.

This series of mini splits is available in 9K, 12K, 18K, 24K (36K-48K in Single Zone Light Commercial Applications.) Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.


Key Features:

  • Up to 22.7 SEER Efficiency: Delivers exceptional energy savings while maintaining powerful heating and cooling performance.
  • Four-Way Airflow Distribution: Ensures balanced and consistent comfort across every corner of the room.
  • Compact Ceiling Integration: Fits seamlessly into standard ceiling grids, ideal for spaces with limited wall or floor space.
  • Quiet Operation: Provides optimal performance without disruptive noise, making it perfect for peaceful environments.
  • Smart Control Ready: Compatible with smart controls, allowing for convenient operation via remote or mobile app.
  • Integrated Drain Pump: Built-in pump simplifies condensation removal for hassle-free operation and maintenance.
  • Optional installation kit available
  • -13°F low-temperature heating capability

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

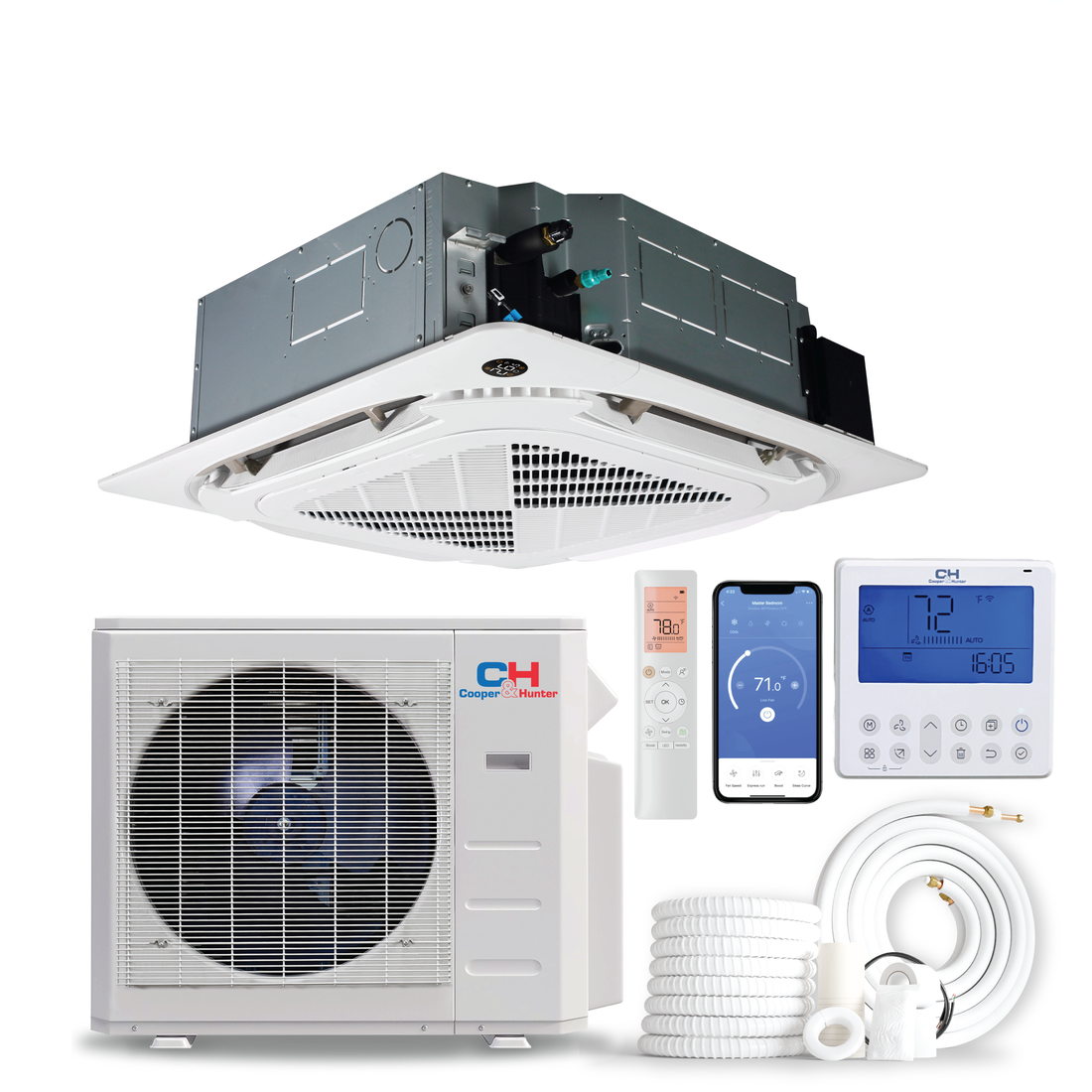

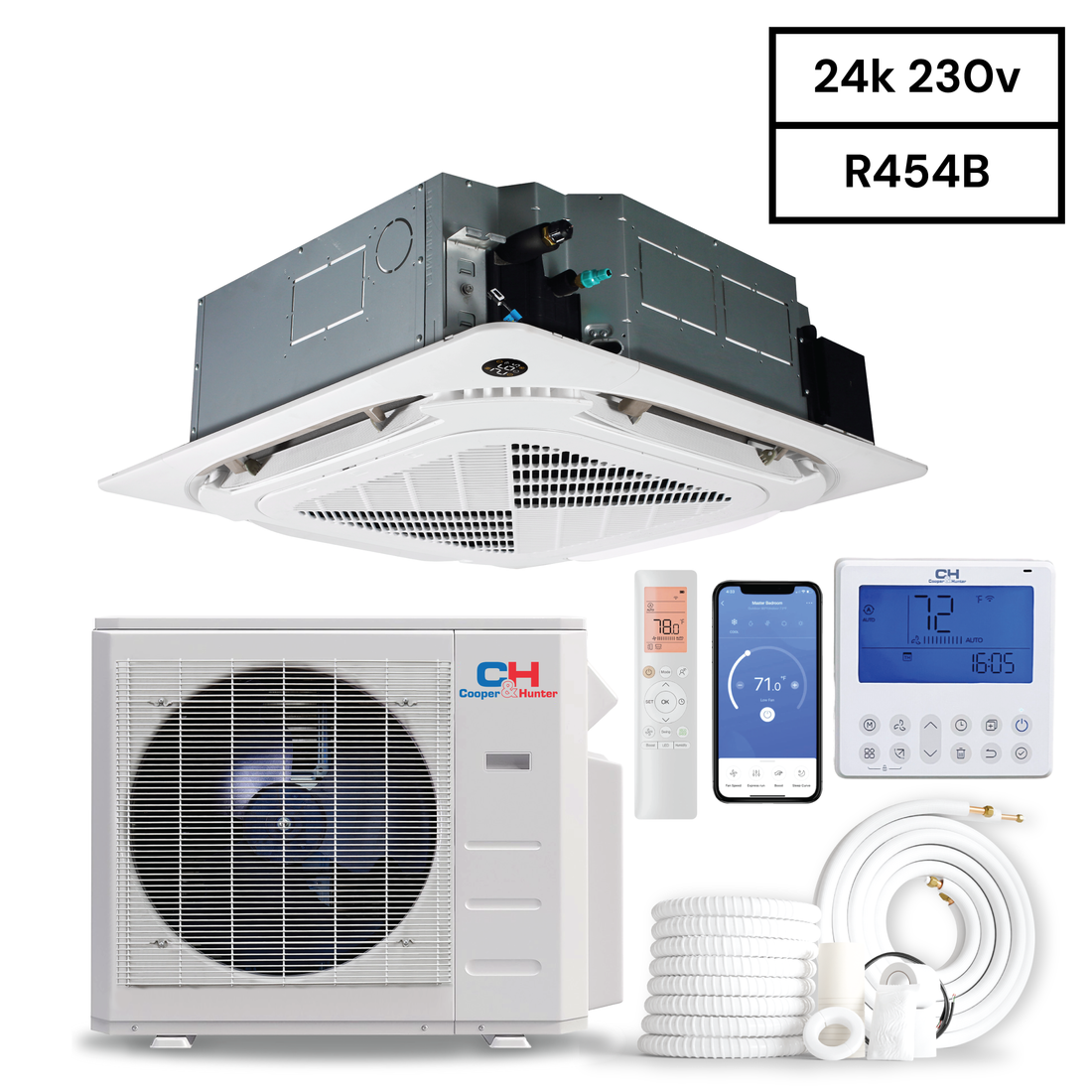

What's Included

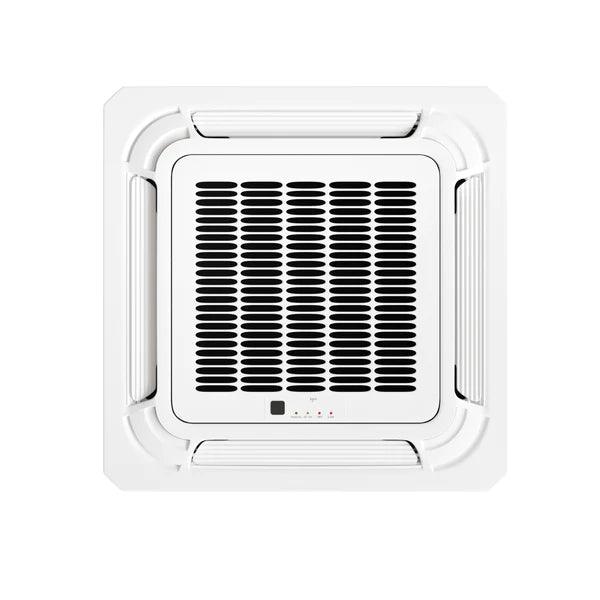

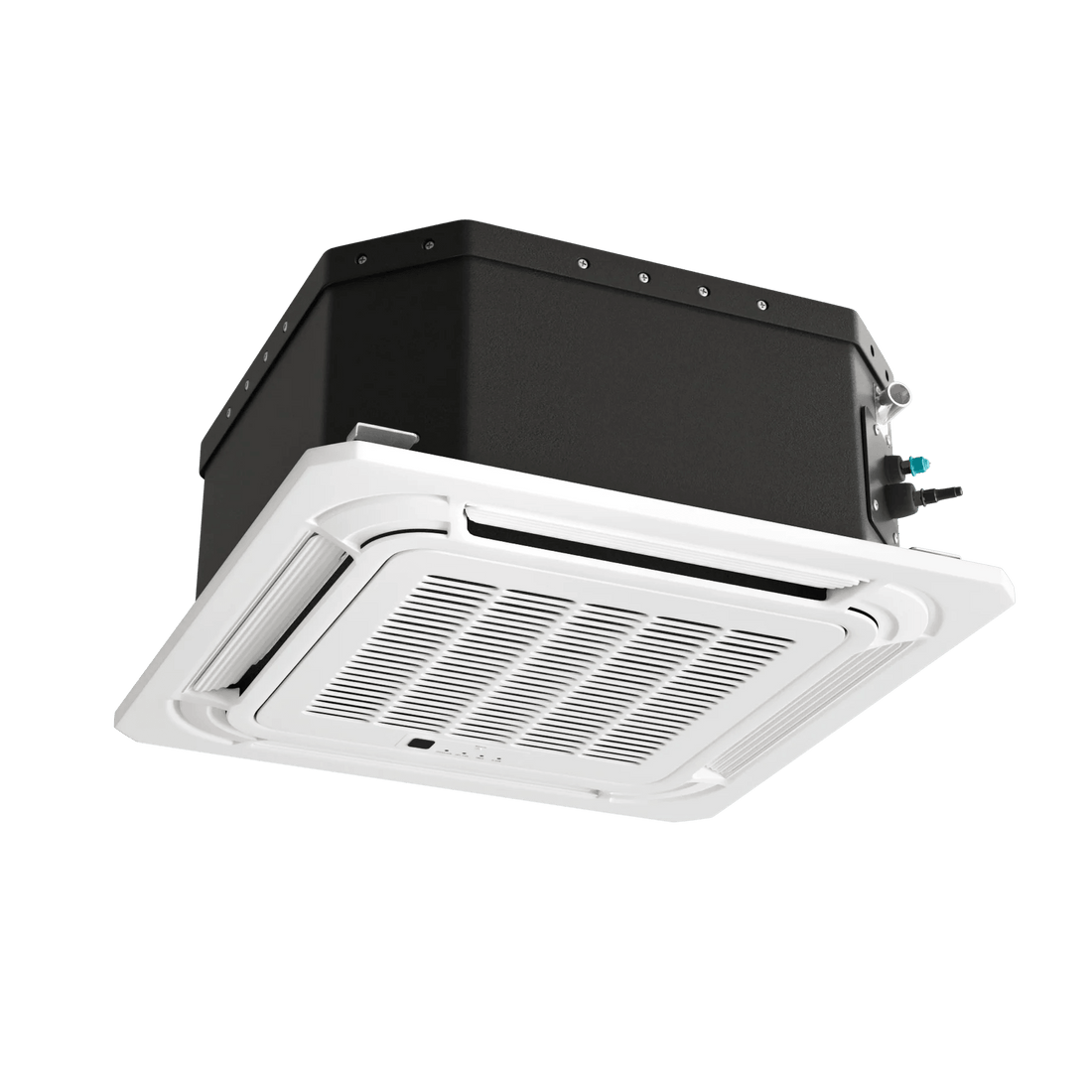

  • Indoor Unit CH-RH24MCT (24,000 BTU Sophia Series Indoor Four-Way Ceiling Cassette)
  • Outdoor Unit 24,000 BTU (1pc) model CH-RES24-230V0

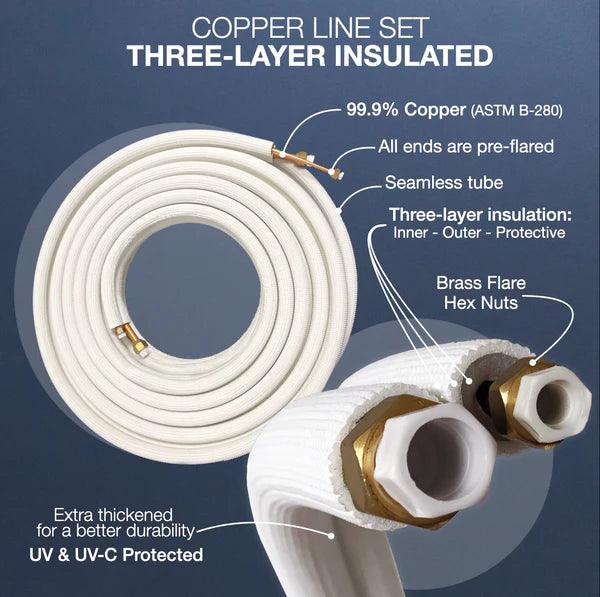

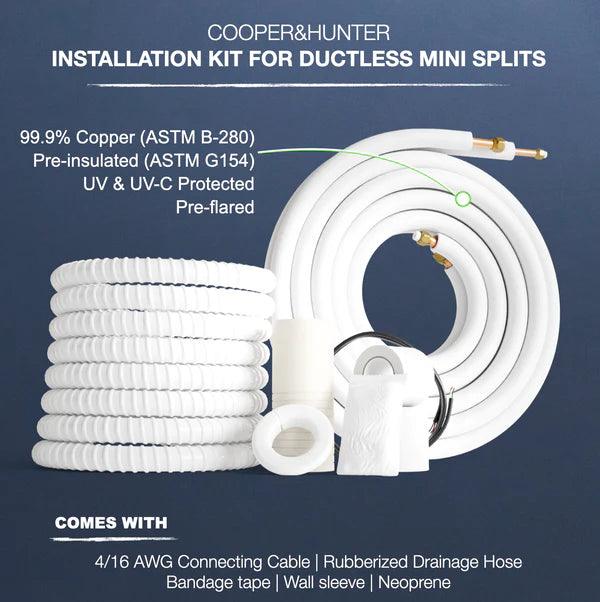

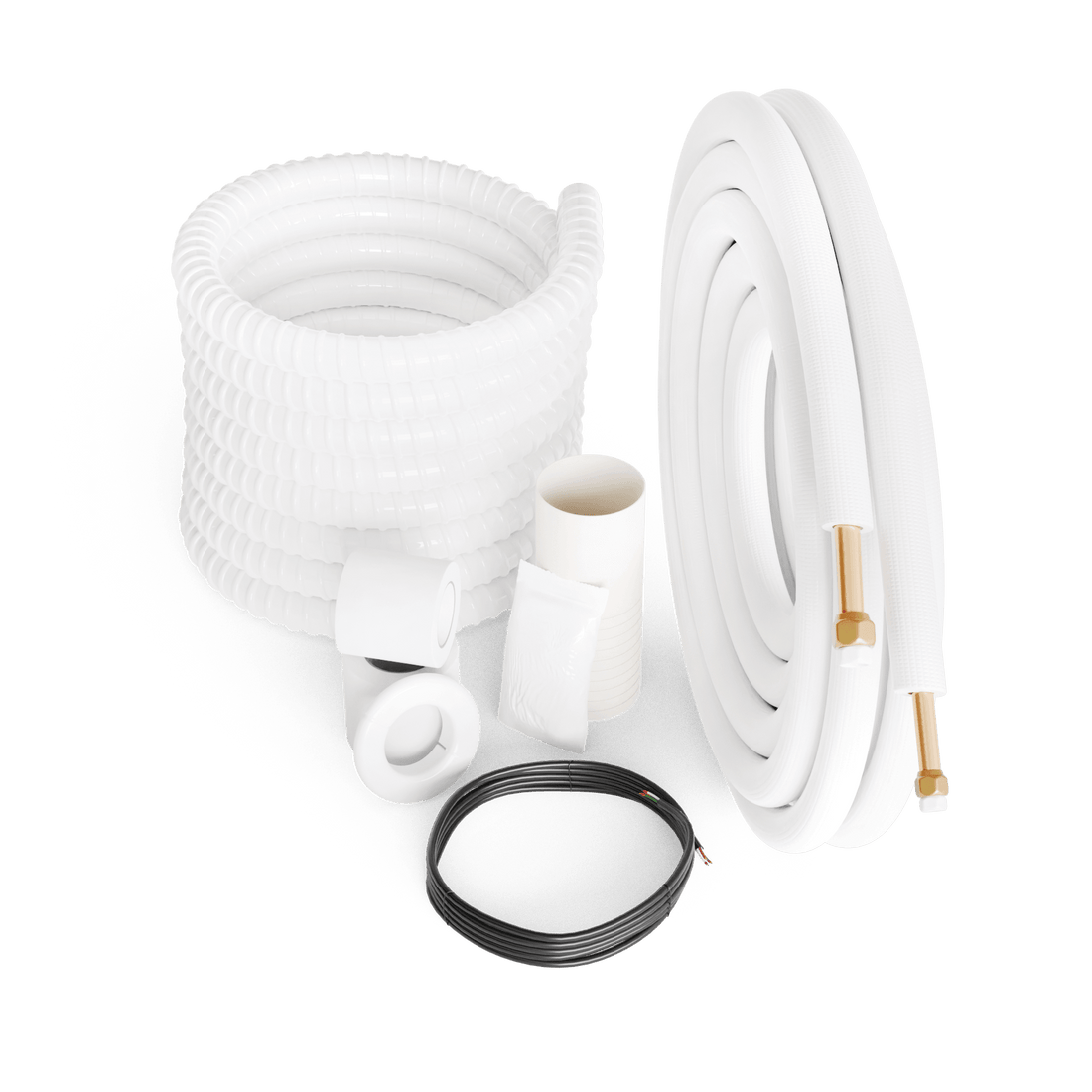

  • Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.

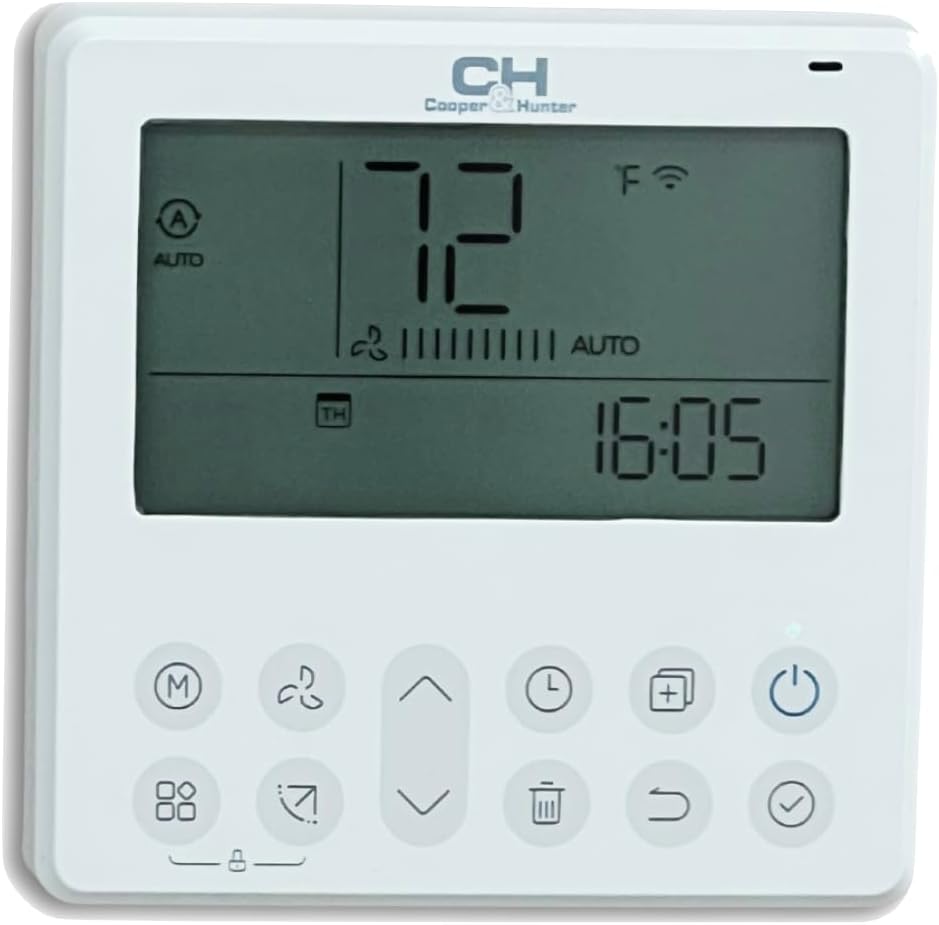

  • Thermostat

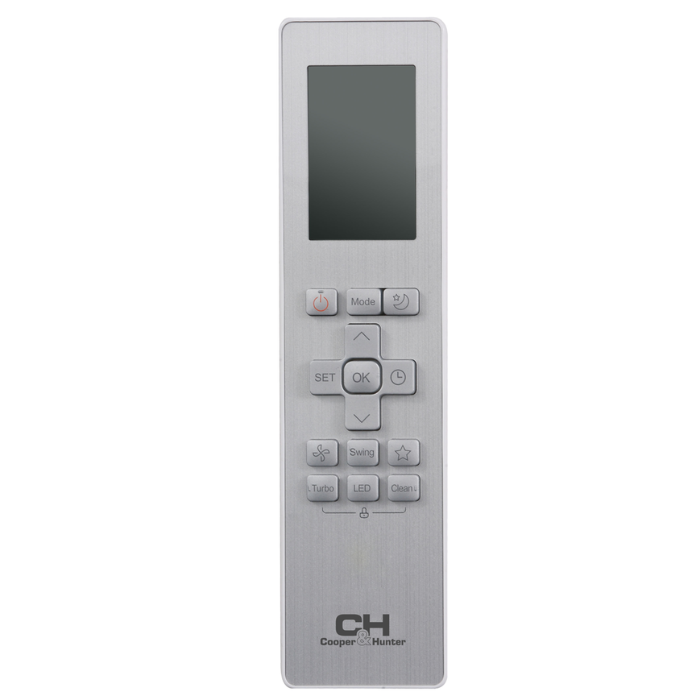

  • Wireless Remote Controls
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

4-Way Ceiling Cassette Systems (R454B Models)

(Hyper and Standard Versions with Dip Switch Details)

Capacity Standard Models (Regular) Hyper Heating Models Dip Switch Setting Voltage Refrigerant
9,000 BTU CH-RH09MCT + CH-RES09-230VO CH-RSH09-12MCT + CH-RHP09-230VO Set to 9K position 230V R454B
12,000 BTU CH-RH12MCT + CH-RES12-230VO CH-RSH09-12MCT + CH-RHP12-230VO Set to 12K position 230V R454B
18,000 BTU CH-RH18MCT + CH-RES18-230VO CH-RSH18MCT + CH-RHP18-230VO N/A (Fixed capacity) 230V R454B
24,000 BTU CH-RH24MCT + CH-RES24-230VO CH-RSH24MCT + CH-RHP24-230VO N/A (Fixed capacity) 230V R454B
36,000 BTU CH-RH36LCCT + CH-R36LCU-230VO CH-RSH36LCCT + CH-RHP36LCU-230VO N/A (Fixed capacity) 230V R454B
48,000 BTU CH-RH48LCCT + CH-R48LCU-230VO CH-RSH48LCCT + CH-RHP48LCU-230VO N/A (Fixed capacity) 230V R454B

Warranty

  • 7 year compressor limited warranty
  • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
  • 1 year remote control

Technical Information

Model Number: CH-RH24MCT

Ceiling Cassette PRO (Model Numbers) CH-RSH24MCT
Ceiling Cassette (Model Numbers) CH-RH24MCT
Panek Model Numbers CH-NPNL24-48CT
Power Supply Rated V,Ph,Hz 208/230, 1, 60
Rated Capacity
Cooling Btu/h 24000
Heating Btu/h 25000
Minimum Circuit Ampacity (MCA) A 3
Max. Fuse A 15
Indoor Air Flow (Turbo/Hi/Mi/Lo/Si) CFM 765.2/706.3
Indoor Noise Level (Turbo/Hi/Mi/Lo/Si) dB(A) N/A/45.5/43.0/33.5/30.5
Indoor

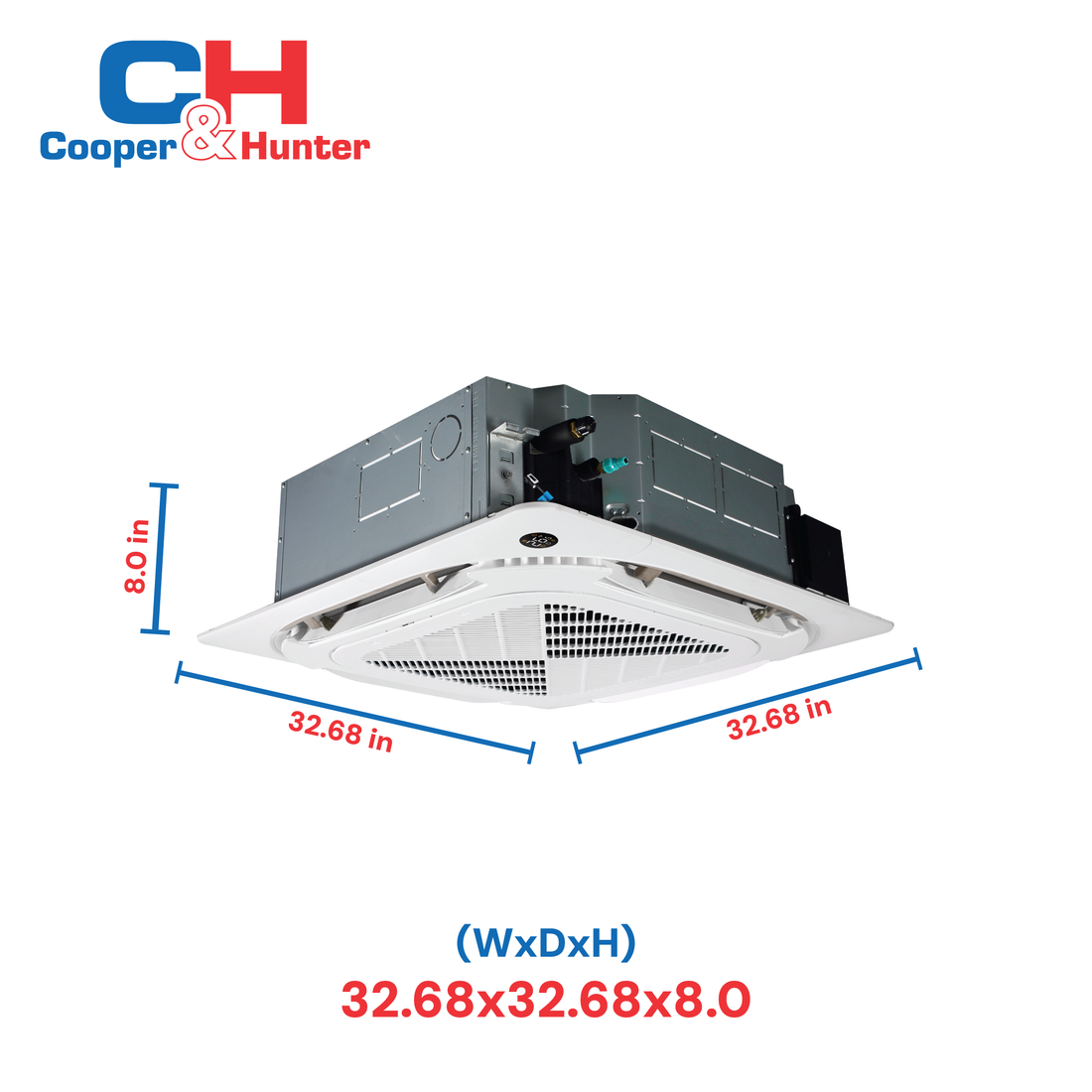

Dimension (WxDxH) inch 32.68x32.68x8
Packing (WxDxH) inch 35.83x35.83x9.84
Net/Gross Weight lbs. 47.18/59.08
Room Temperature
Cooling °F 60-90
Heating °F 32-86
Liquid Side/Gas Side inch 3/8"-5/8"



Outdoor Unit: CH-RES24-230V0

Outdoor Model CH-RES24-230V0
Power Supply
Rated V, Ph, Hz 208/230,1,60
Voltage Range V 187-253
Cooling
Rated Capacity (Range) Btu/h 12,300~26,800
Rated Current A 8.8
EER2 Btu/h 12
SEER2 Btu/h 22
Heating at 47°F
Rated Capacity (Range) Btu/h 11,600~33,100
Rated Current A 10.2
COP W/W 3.2
HSPF4 10.5
HSPF5 8.1
Minimum Circuit Ampacity (MCA) A 24
Max. Fuse (Outdoor Unit) A 25
Outdoor Air Flow (Max.) CFM 2236.7
Outdoor Noise Level (Sound Pressure) dB(A) 59.5

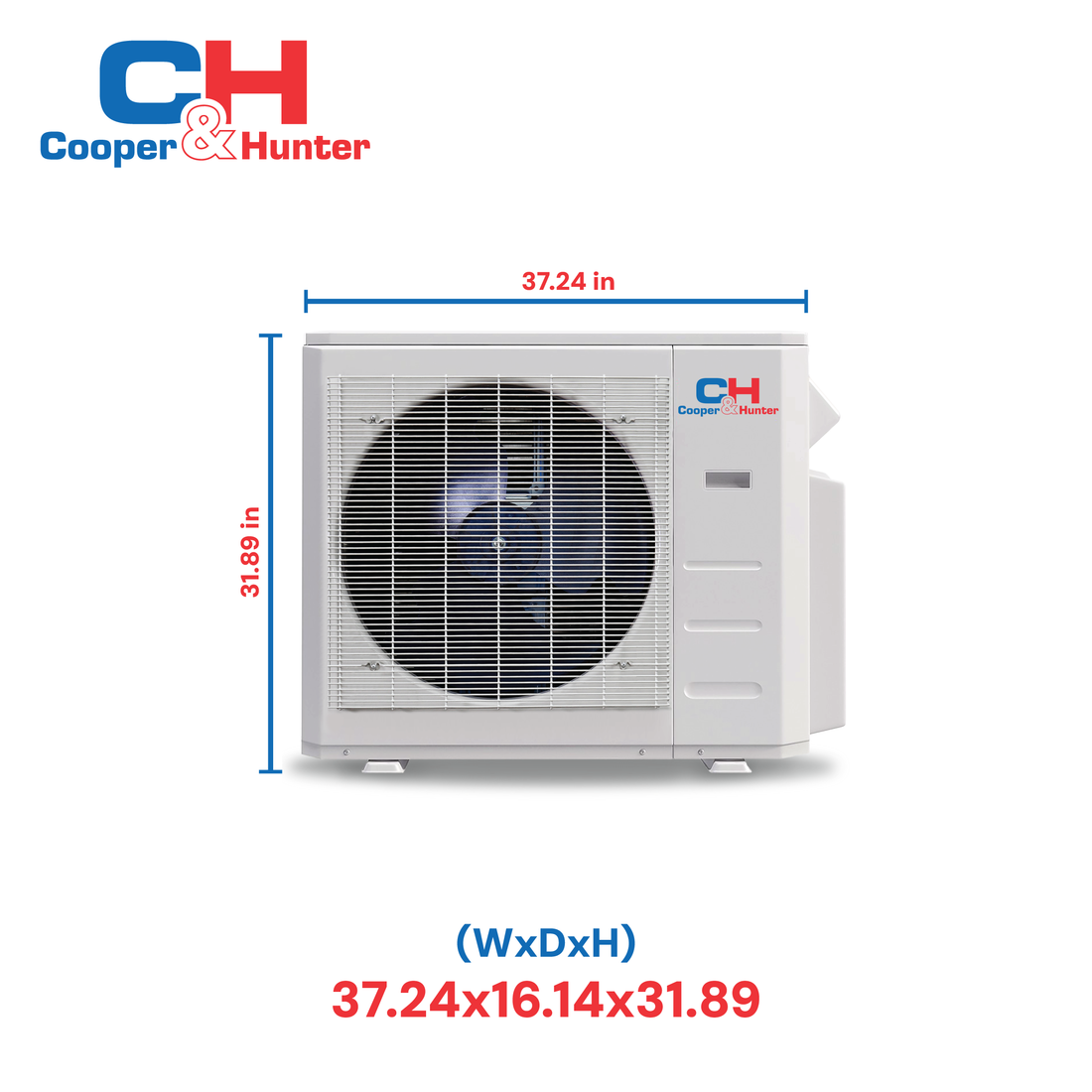

Dimension (W×D×H) inch 37.24x16.14x31.89
Packing (W×D×H) inch 42.91x19.68x34.84
Net/Gross Weight lbs. 122.13/132.28
Refrigerant Type / Charge oz. R454B/70.55
Refrigerant Precharge Length ft. 25
Additional Charge for Each ft. oz/ft 0.32
Design Pressure PSIG 550/340
Refrigerant Piping Liquid Side/Gas Side inch 3/8"/5/8"
Max. Pipe Length ft. 164
Max. Difference in Level ft. 82
Ambient Temperature
Cooling °F -13~122
Heating °F -13~75
Certifications
ETL TRUE
AHRI TRUE
Energy Star for Cold Climate TRUE
NEEP TRUE




Certifications


Performance Data/Features

  • Louver Memory
  • Automatic Operation
  • Self-Diagnosis
  • Auto Swing
  • Goldfin Coating
  • Inverter Technology
  • Multiple Fan Speeds
  • Sleep Mode
  • Timer
  • Auto-restart Function
  • Turbo Mode
  • Follow Me Mode
  • Remote Control included
  • Intelligent Pre-Heating

Manuals & Downloads

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What can the Cooper & Hunter Remote app control?

On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.

Can multiple people control compatible Cooper & Hunter systems through the app?

Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.

How do I find the correct Cooper & Hunter manual or submittal for my unit?

Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.

Does Cooper & Hunter provide dedicated troubleshooting resources for installers?

Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.

Does Cooper & Hunter require licensed HVAC installation for warranty coverage?

Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.

What Cooper & Hunter support resources are available online?

Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.

Does Cooper & Hunter provide a product-selection or dealer-locator tool?

Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.

How can I check whether a Cooper & Hunter system qualifies for rebates or incentives?

Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.

Is a rebate guaranteed when purchasing a Cooper & Hunter system?

No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.

Which mobile app is used with compatible Cooper & Hunter systems?

Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.

Can any wireless adapter be used with a Cooper & Hunter system?

No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.

What standard warranty periods does Cooper & Hunter publish?

For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.

How is a Cooper & Hunter warranty claim started?

The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.

What information should be ready when contacting Cooper & Hunter Technical Support?

Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.

Does Cooper & Hunter offer technical support in multiple languages?

Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.

How can I contact Cooper & Hunter Technical Support?

Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.

Does Cooper & Hunter’s warranty cover labor or refrigerant costs?

Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.

How do I register my Cooper & Hunter product warranty?

Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.

How soon should a Cooper & Hunter system be registered for warranty?

Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.

What information is needed to register a Cooper & Hunter system?

Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.

Can moving a Cooper & Hunter system affect its warranty?

Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.

Can non-compatible or third-party components affect Cooper & Hunter warranty coverage?

Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.

Is a Cooper & Hunter Limited Warranty transferable to a new owner?

Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.

Are all Cooper & Hunter systems compatible with the Cooper & Hunter Remote app?

No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
