Cooper&Hunter 3-Zone Mini Split AC & Heat Pump -- 36000 (3.0 Ton), Mini Floor Console Units (9K+9K+9K BTU), Inverter Technology, 230V, Heating & Cooling - R454B

SKU CH-R36MES-230VO + 3X CH-RSH09MMC Floor Console24.0 SEER2208-230V
$5,283.36
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K room setups:
  • Small bedrooms
  • Home offices
  • Nurseries
  • Small additions
36,000 BTU
Cooling
36,000 BTU
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

Cooper&Hunter
Support Number
1 888-293-9252
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

Cooper&Hunter 3-Zone Mini Split AC & Heat Pump -- 36000 (3.0 Ton), Mini Floor Console Units (9K+9K+9K BTU), Inverter Technology, 230V, Heating & Cooling - R454B


Summary

Enjoy targeted, freestanding comfort with the new 3-Zone R454B Mini Floor Console Mini Split System by Cooper & Hunter. A 36,000 BTU outdoor condenser powers sleek floor consoles that tuck neatly under windows or along walls while delivering whisper-quiet heating and cooling down to -13 F.

Consoles feature twin-discharge technology (65% larger upper outlet & 94% wider lower outlet) for even air distribution, built-in Wi-Fi smart kits, and low-GWP R454B refrigerant for efficiency up to 24 SEER2.

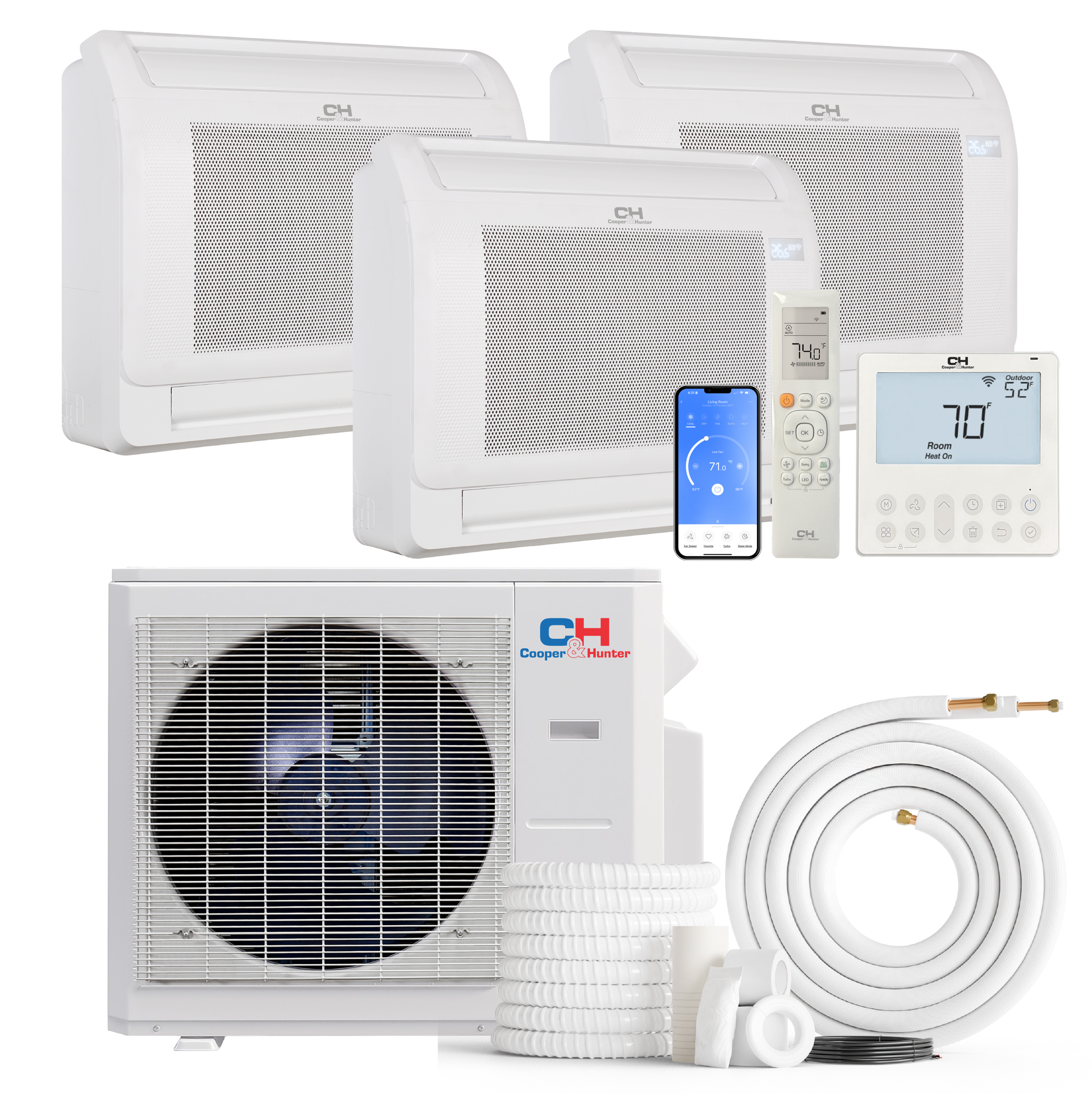

Included in Your Order

Cooper & Hunter Mini Floor Console Mini Split System
Outdoor Unit : 36,000 BTU (1 pc) - Model CH-R36MES-230VO
Indoor Units :

- 9,000 BTU (3 pcs) - Model: CH-RSH09MMC

  • Installation-Kit options (No Kit / 16 ft / 25 ft / 50 ft)
  • (INSTALLATION KIT SIZE MUST BE SELECTED)
  • Wireless Remote Controls (3 remotes)
  • Built-in Smart-Kit & C&H App control
  • Wall Thermostat
  • Installation & User Manuals
  • Manufacturer Warranty

Key Features

  • 3-zone independent temperature control
  • Mini Floor Console - compact, under-window design
  • Twin-discharge: 65% larger upper & 94% wider lower outlet
  • Up to 24 SEER2 efficiency (R454B refrigerant)
  • Quiet operation (as low as 64.5 dB)
  • Reliable heating down to-13 F ambient
  • Refrigerant & humidity sensors for optimal comfort
  • Multiple fan-speed settings & Turbo mode
  • TU1 Copper heat-exchangers for long life
  • 2025 model - Hyper or Regular operation selectable

Complete Technical Specifications

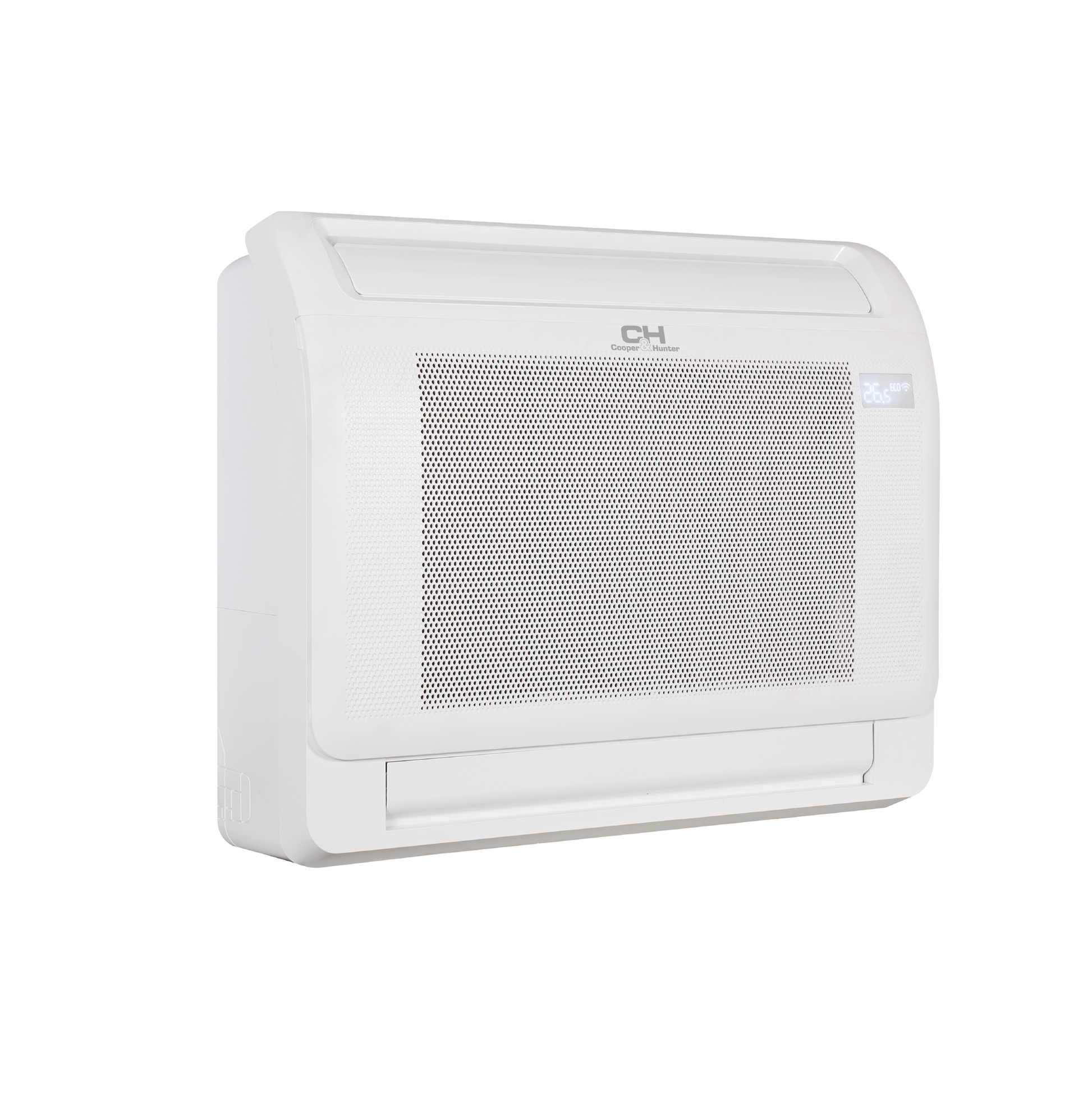

Indoor Unit: CH-RSH09MMC (9,000 BTU) x3

Refrigerant type R454B
System type Single Zone
BTU Rated 9
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 1.71
Voltage range (V) 187-253
Packing dimensions (WxDxH) 34.06 x 11.02 x 28.31
Controller remote controller
Refrigerant piping Liquid/Gas side (inch) 1/4"/3/8"
EER2 15.1
SEER2 27.2
Unit Net/Gross weight 32.85/41.89
Unit dimensions (W*H*D) 31.26 x 7.87 x 24.45
Operation Range - Heating 32~86
Operation Range - Cooling 60~90
Minimum circuit ampacity 3
Max.fuse 15
Indoor Noise Level H/M/L 41/37.5/25.5
Indoor Air Flow 441.4 / 376.7 / 323.7 / 188.4
ESP Range /
Drainage water pipe diameter 5/8"

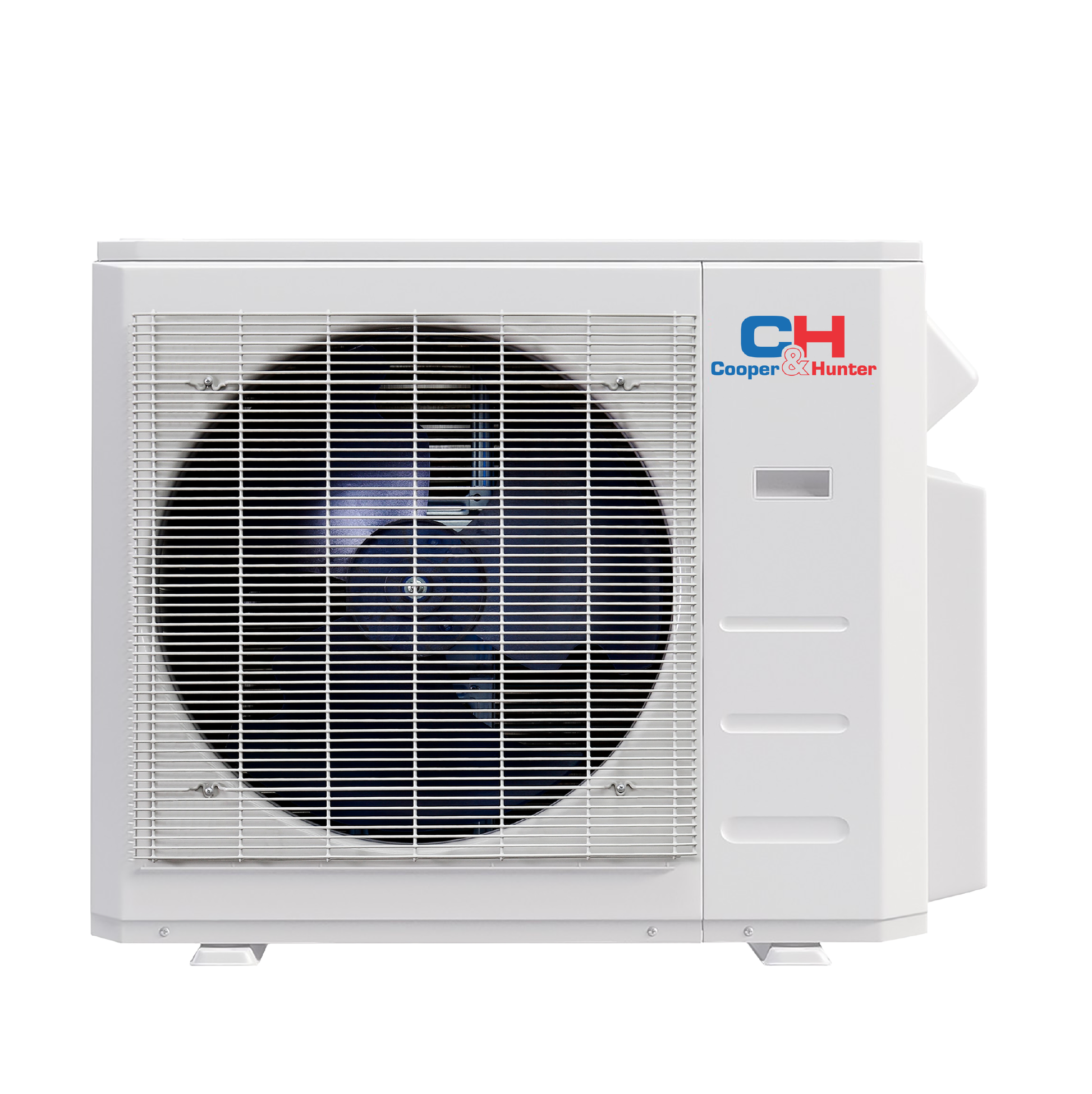

Outdoor Unit: CH-R36MES-230VO (36,000 BTU)

Refrigerant type R454B
System type Multi-zone unit
Power source 208-230V, 1Ph, 60Hz
Dehumidification value (pnt/day) 2.11
Voltage range (V) 187-253
Packing dimensions (WxDxH) 42.91 x 19.68 x 34.84
Refrigerant piping Liquid/Gas side (inch) 5x1/4" - 4x3/8"+1x1/2"
HSPF2-5 7.4
HSPF2-4 9.5
EER2 12
Cooling capacity (Min/Max) (BTU/h) 36,000(9,000~42,000)
SEER2 24
Unit Net/Gross weight 168.87/180.12
Unit dimensions (W*H*D) 37.24 x 16.14 x 31.89
Refrigerant precharge 125
Outdoor Noise Level 64.5
Outdoor Air Flow 2,148.4
Minimum circuit ampacity 30.5
Max.fuse 35
Max height difference between Indoor and Outdoor unit 49.2
Heating capacity (Min/Max) (Btu/h) 37,000(10,000~42,500)
COP 3.5

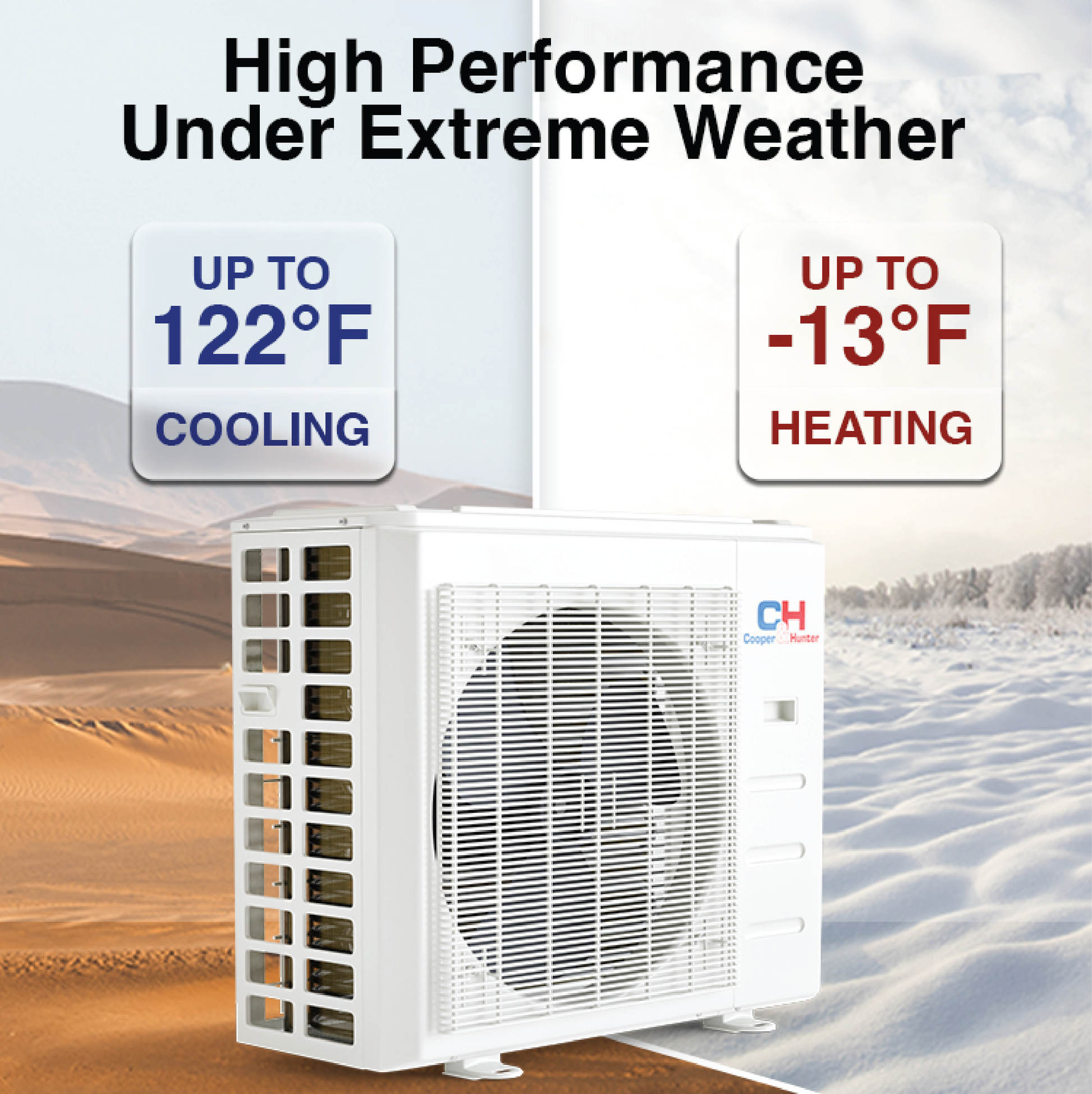

Ambient temperature - Heating (F) -13~75
Ambient temperature - Cooling (F) -13~122
Additional Refrigerant Charge 3/8 liquid line 0.32
Additional Refrigerant Charge 1/4 liquid line 0.16

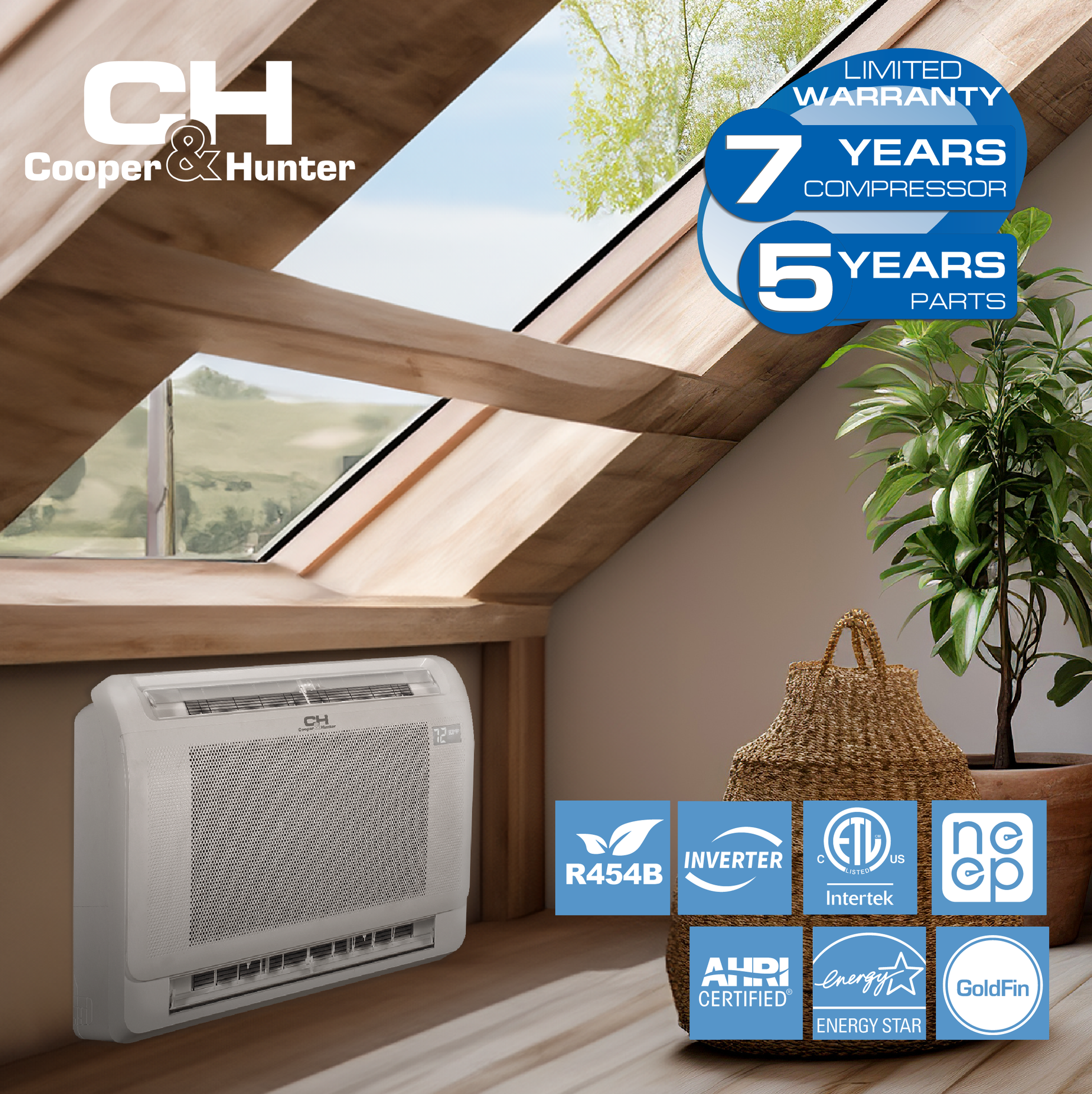

Warranty Information

  • 7-Year Compressor Warranty
  • 5-Year Parts Warranty
  • 1-Year Remote Control Warranty

Note : Warranty valid only when installed by a licensed HVAC technician and registered within 60 days of installation.
