Cooper & Hunter 28,000 BTU Olivia Series, Midnight Edition, Tri Zone 6000 + 6000 + 6000 BTU Wall Mount Air Handlers Ductless Mini Split A/C and Heater, R410A, Including Installation Kits and WiFi Adapters

Name: Cooper & Hunter 28,000 BTU Olivia Series, Midni...
SKU: CH-28MES-230VO+3XCH-B06MOLVWM-230VI
Price: 3009.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: CH-28MES-230VO + 3X CH-B06MOLVWM-230VI

Free Shipping on orders above $300

No sales tax except in TX, FL, & PA!

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$3,009.00

$3,009.00 ~~$2,926.00~~

save $-83.00

Sold out

save $-83.00

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

*ALL OF OUR MULTI ZONE SYSTEMS COME PRE-BUNDLED WITH A 25FT INSTALLATION KIT FOR EACH ZONE. WE CARRY 16FT, 25FT, AND 50FT. TO CUSTOMIZE, GIVE US A CALL!

Cooper & Hunter Midnight Series Multi-Zone 28,000 BTU 230V System - (3x) CH-B06M0LVWM-230VI + CH-28MES-230VO

Summary

This Cooper & Hunter Midnight Series Multi-Zone system combines a high-efficiency 28,000 BTU outdoor unit (CH-28MES-230VO) with three 6,000 BTU black Midnight Series indoor wall-mounted units (CH-B06M0LVWM-230VI) to deliver 24.6 SEER2 efficiency. The system operates on 208/230V power and provides flexible climate control with a heating range down to -13°F. The outdoor unit measures 37.24"W x 31.89"H x 16.14"D and weighs 167.99 lbs, while the compact black indoor units measure 28.70"W x 7.87"D x 11.50"H. With R410A refrigerant and a maximum piping length of 197 feet, this system offers quiet operation (as low as 20.5 dB indoors) and features auto-swing louvers, Wi-Fi control, and Toshiba-GMCC inverter technology for precise multi-zone temperature management.

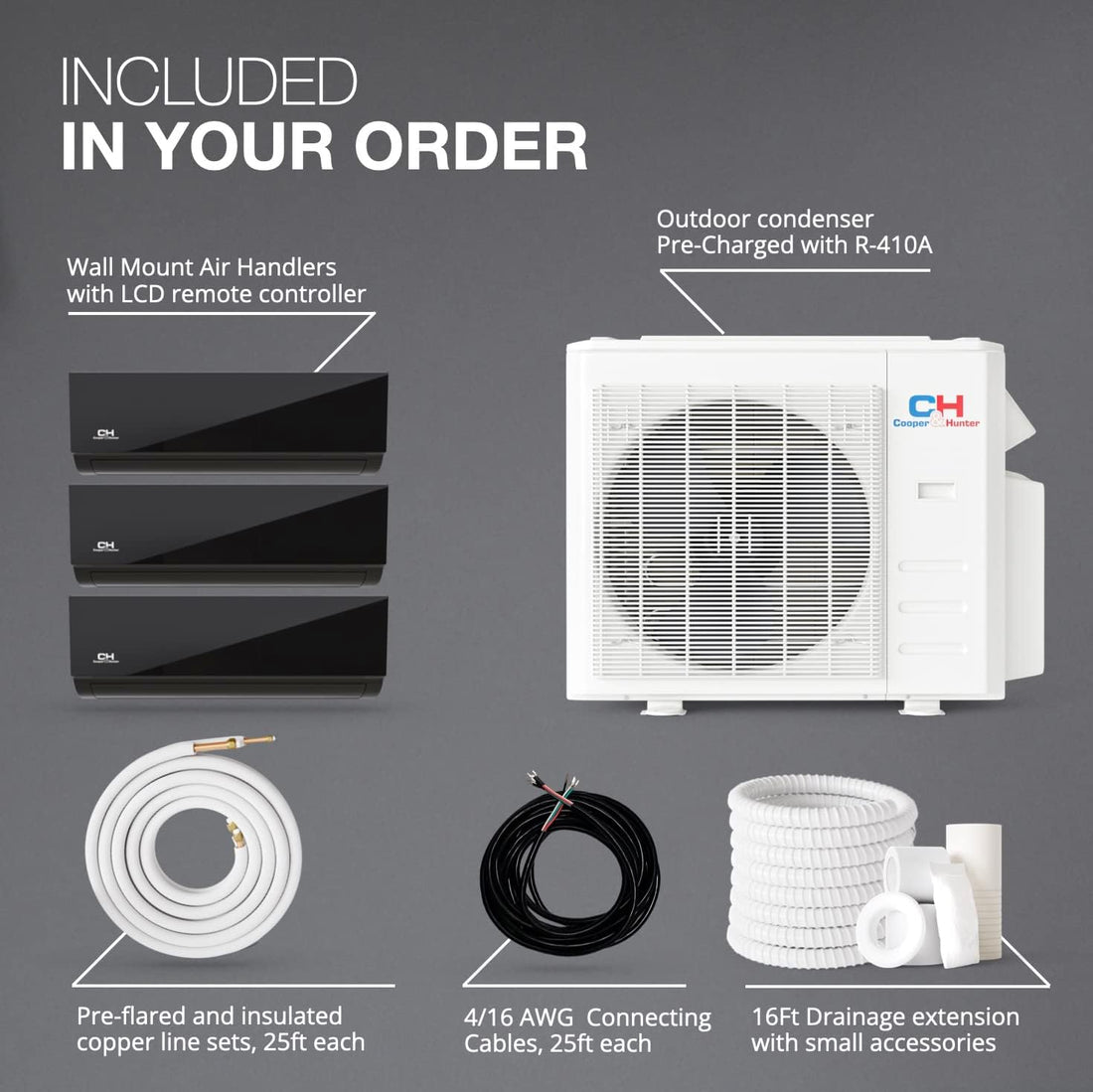

Included in Your Order:

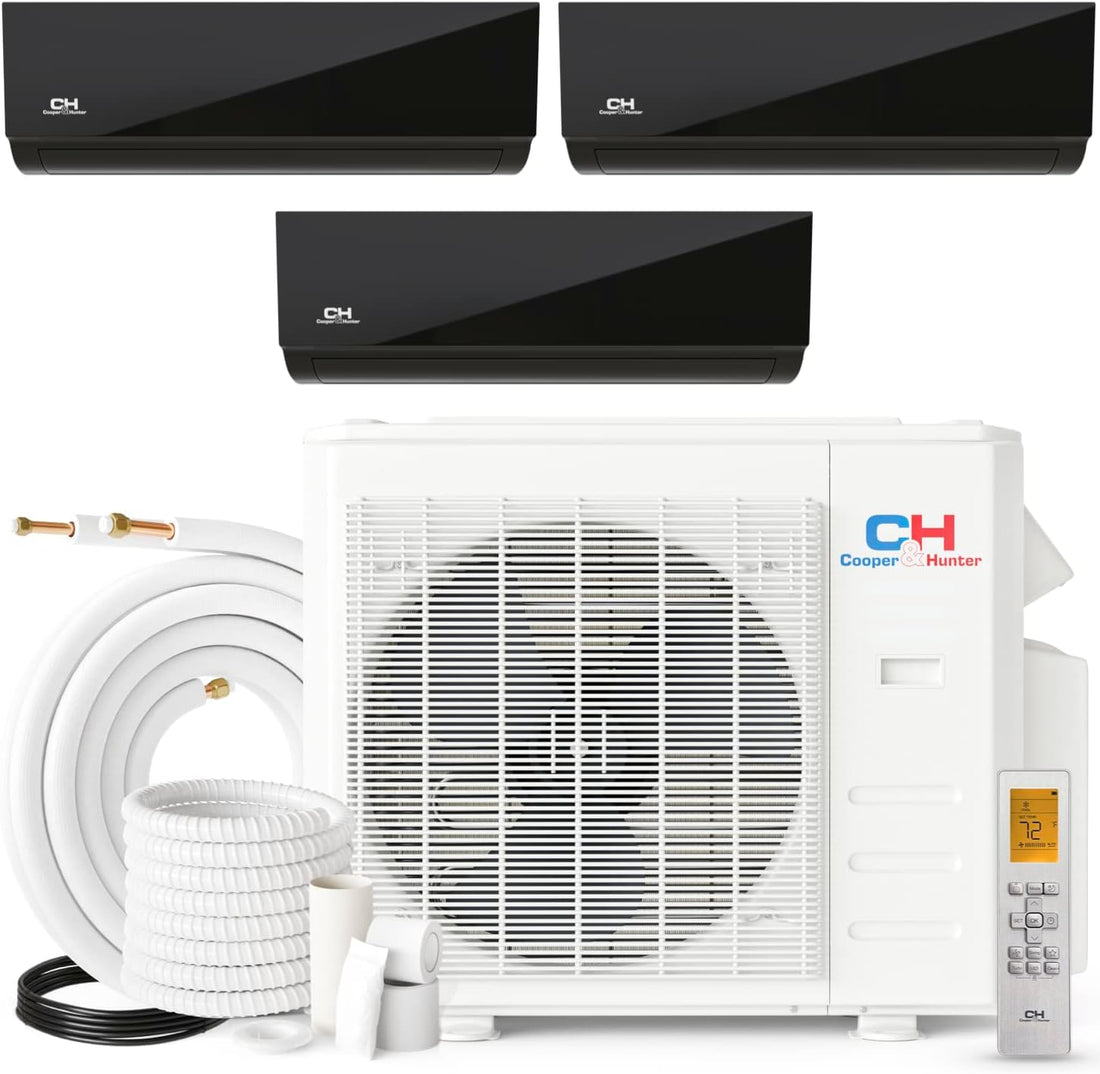

Cooper & Hunter Multi-Zone Ductless Mini Split System (28,000 BTU Outdoor + 6K+6K+6K BTU Indoor)

Outdoor Unit: 28,000 BTU (1pc) – Model: CH-28MES-230VO

Indoor Units:

6,000 BTU (3pcs with remotes) – Model: CH-B06M0LVWM-230VI (Midnight Black Series)

Installation Kits: 25ft Kit (3pcs) with copper lines, wiring, and drainage

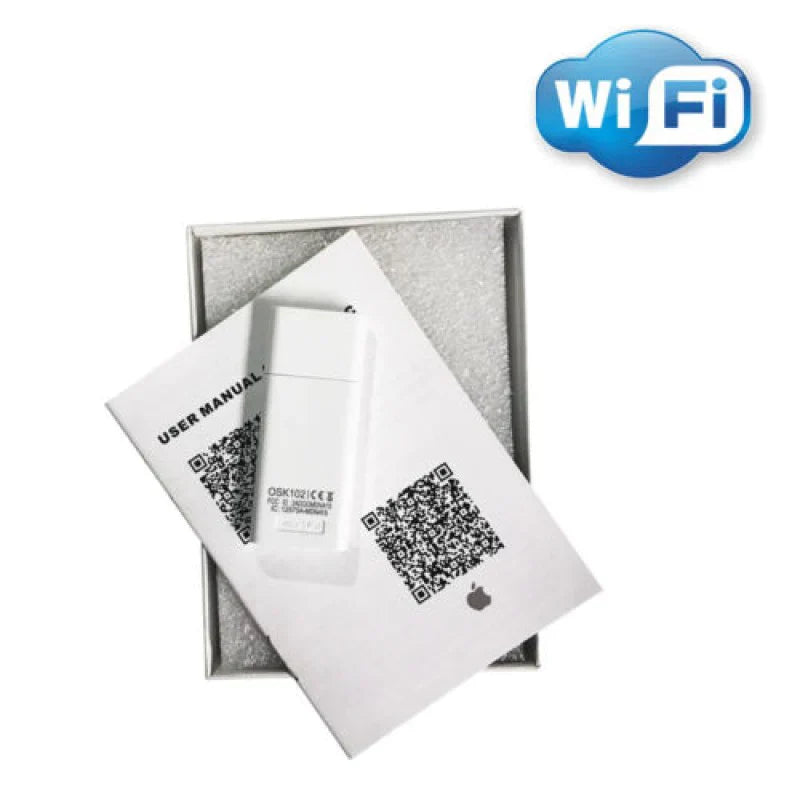

Wi-Fi Adapter (17310900A05963)

Wireless Remote Controls (3)

Installation Manual

User's Manual

Manufacturer Warranty

Key Features:

Three-zone configuration with compact 6K BTU Midnight Black indoor units
Sleek black finish on all indoor units
Auto-Swing horizontal/vertical louvers
Hyper Heat operation down to -13°F
Turbo Mode for rapid cooling/heating
Self-Clean function prevents mold buildup
Follow Me temperature sensing
24V DC powered remote controls
Ultra-quiet operation (20.5-38.5 dB indoor noise)
Smart control via Wi-Fi and C&H Remote app
Energy Star certified (24.6 SEER2)

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone (786-953-6706). 25ft installation kits included with each zone. Available in 16ft, 25ft and 50ft lengths with pre-flared copper linesets (1/4"-3/8" for 6K units).

Warranty

7 year compressor limited warranty
5 year parts limited warranty (professional installation required)
1 year labor warranty (when installed by certified technician)
1 year remote control

Complete Technical Specifications

Indoor Unit: CH-B06M0LVWM-230VI (Midnight Black Series)

Specification	Details
Model Number	CH-B06M0LVWM-230VI
Series	Midnight Black Series
Rated Capacity	6,000 Btu/h
Power Supply	208/230V, 1Ph, 60Hz
Minimum Circuit Ampacity (MCA)	3A
Max Fuse Size	15A
Indoor Air Flow (Turbo/Hi/Med/Lo)	294/247/176/141 CFM
Noise Level (Hi/Med/Lo)	38.5/33/20.5 dB(A)
Dimensions (W×D×H)	28.70×7.87×11.50 inches
Packing Dimensions	31.10×10.63×14.76 inches
Net/Gross Weight	17.64/22.49 lbs
Operating Temp (Cooling)	60-90°F
Operating Temp (Heating)	32-86°F
Refrigerant Lines	1/4" (liquid) / 3/8" (gas)

Outdoor Unit: CH-28MES-230VO

Specification	Details
Model Number	CH-28MES-230VO
Series	ES Series
Rated Capacity (Cooling)	28,000 BTU/h (9,838-30,438 range)
Rated Capacity (Heating)	28,000 BTU/h (8,218-31,000 range)
Power Supply	208-230V, 1Ph, 60Hz
Voltage Range	187-253V
Cooling Rated Current	8.25A
Heating Rated Current	11.38A
EER2	12.5
SEER2	24.6
COP	3.73
HSPF2-4	10.6
HSPF2-5	8.1
Minimum Circuit Ampacity	24.5A
Max Fuse Size	30A
Refrigerant Type	R410A
Precharged Refrigerant	Up to 75 oz
Additional Charge (3/8" line)	0.32 oz/ft
Additional Charge (1/4" line)	0.16 oz/ft
Max Pipe Length	197 ft
Max Height Difference	49.21 ft
Outdoor Air Flow	2,129 CFM
Noise Level	61 dB(A)
Dimensions (W×D×H)	37.24×16.14×31.89 inches
Packing Dimensions	42.91×19.69×34.84 inches
Net/Gross Weight	167.99/179.67 lbs
Refrigerant Lines	3x1/4" (liquid) / 3x3/8" (gas)
Operating Temp (Cooling)	5-122°F
Operating Temp (Heating)	-13-75°F
Design Pressure	550 PSIG (high side) / 340 PSIG (low side)

Certifications

Performance Features

Precise ±1°F temperature maintenance
294 CFM adjustable airflow per indoor unit
3.57 pints/hour dehumidification capacity
3.73 COP heating efficiency at 47°F
Automatic reverse cycle defrost
Filter cleaning reminder system
Refrigerant leak detection with auto-shutdown
