Home 36,000 BTU Hyper Series
Hyper Series

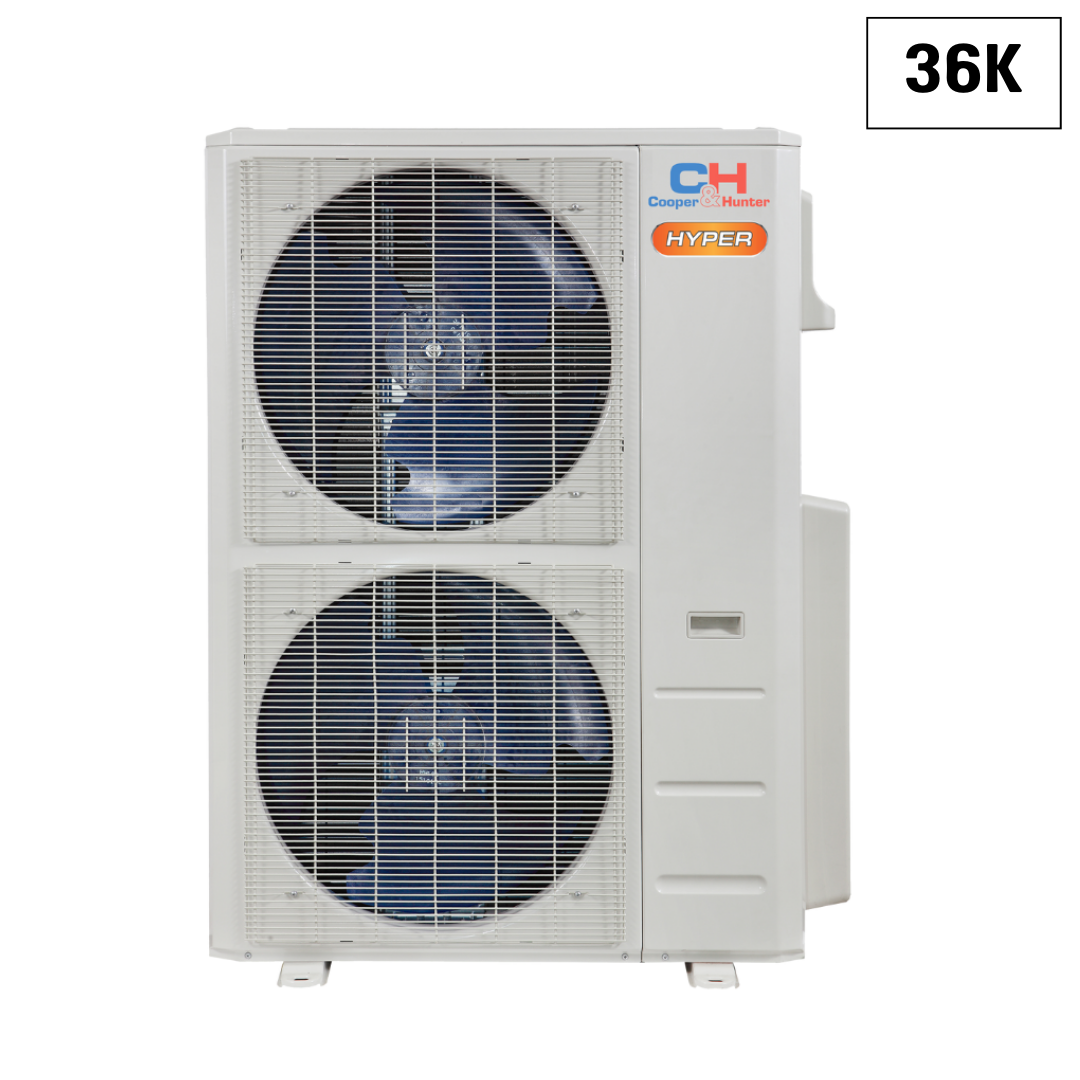

Cooper&Hunter High Efficiency Hyper Heat Multi-Zone R410A, 36,000 BTU (3 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 24 SEER2 (2-4 Zones) CH-HPR36M-230VO

SKU CH-HPR36M-230VO Outdoor Unit208-230V
$1,550.00 $3,018.73 Save $1,468.73 (48%)
Currently unavailableContact us for lead time
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 36K room setups:
  • Open floor plans
  • Large garages
  • Light commercial
  • Multi-room areas
36,000 BTU
Cooling
36,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

Cooper&Hunter
Support Number
1 888-293-9252
Product Overview Full product description Read the longer product copy, features, and application notes.

Cooper&Hunter High Efficiency Hyper Heat Multi-Zone 36,000 BTU (3 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 22.2 SEER2 (2-4 Zones) CH-HPR36M-230VO



Summary

Experience the ultimate combination of performance and versatility with C&H’s Multi Zone Hyper Heat condenser series, available in 19K, 28K, 36K, 48K, and 55K BTU/h capacities. Designed to deliver reliable heating and cooling, even in extreme conditions as low as -22°F, these outdoor units boast impressive efficiency with up to 23 SEER.

Certified for superior performance, these units support up to 5 independent zones, offering a customizable solution tailored to your space. Choose from a variety of indoor model types, including Wall Mounts, Ceiling Cassettes, Universal Floor/Ceiling, Mini Floor Consoles, Slim Ducts, and Air Handler Units, to match your unique needs and aesthetic preferences.



Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have made a correct selection for an indoor unit as well in our Indoor Units section. Units are pre-charged with refrigerant up to 100FT.



What's Included

  • 36,000 BTU 230V Hyper Heat Multi-Zone Outdoor Condenser Air Conditioner (CH-HPR36M-230VO)
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty


Zone Combinations

2 Zone 3 Zone 4 Zone
6K + 18K 6K + 6K + 24K
6K + 6K + 6K + 18K
6K + 24K 6K + 9K + 12K
6K + 6K + 6K + 24K
9K + 18K 6K + 9K + 18K
6K + 6K + 9K + 12K
9K + 24K 6K + 9K + 24K
6K + 6K + 9K + 18K
12K + 12K 6K + 12K + 18K
6K + 6K + 9K + 24K
12K + 18K 6K + 12K + 24K
6K + 6K + 12K + 12K
12K + 24K 6K + 18K + 18K
6K + 6K + 12K + 18K
18K + 18K 6K + 18K + 24K
6K + 6K + 12K + 24K
18K + 24K 6K + 24K + 24K
6K + 6K + 18K + 18K
24K + 24K 9K + 9K + 9K
6K + 6K + 18K + 24K
9K + 9K + 12K
6K + 9K + 9K + 9K
9K + 9K + 18K
6K + 9K + 9K + 12K
9K + 9K + 24K
6K + 9K + 9K + 18K
9K + 12K + 12K
6K + 9K + 9K + 24K
9K + 12K + 18K
6K + 9K + 12K + 12K
9K + 12K + 24K
6K + 9K + 12K + 18K
9K + 18K + 18K
6K + 9K + 12K + 24K
9K + 18K + 24K
6K + 9K + 18K + 18K
12K + 12K + 12K
6K + 12K + 12K + 12K
12K + 12K + 18K
6K + 12K + 12K + 18K
12K + 12K + 24K
6K + 12K + 12K + 24K
12K + 18K + 18K
6K + 12K + 18K + 18K
12K + 18K + 24K
9K + 9K + 9K + 9K
18K + 18K + 18K
9K + 9K + 9K + 12K
9K + 9K + 9K + 18K
9K + 9K + 9K + 24K
9K + 9K + 12K + 12K
9K + 9K + 12K + 18K
9K + 9K + 12K + 24K
9K + 9K + 18K + 18K
9K + 12K + 12K + 12K
9K + 12K + 12K + 18K
12K + 12K + 12K + 12K
12K + 12K + 12K + 18K
*Note: Units marked in RED can be either a Multi-position Air Handler, or other Indoor unit TYPE


6,000 BTU Compatible Units

    Wall Mounts SKU

    Dimensions(WxDxH)

    Astoria (Up to 28.1 SEER2) CH-06MASTWM-230VI 33.66x9.09x11.69
    Olivia (Up to 26.4 SEER2) CH-06MOLVWM-230VI 28.70x7.87x11.50
    Olivia Midnight (Black Style, Up to 26.4 SEER2) CH-B06MOLVWM-230VI 28.70x7.87x11.50
    Ceiling Cassettes
    SKU Dimensions(WxDxH)
    One-Way Cassette (Up to 24 SEER2) СH-06MCT1W-W 50.31x13.19x8.98


    9,000 BTU Compatible Units

      Wall Mounts SKU

      Dimensions(WxDxH)

      Astoria (Up to 28.1 SEER2) CH-09MASTWM-230VI 33.66x9.09x11.69
      Olivia (Up to 26.4 SEER2) CH-09MOLVWM-230VI 28.70x7.87x11.50
      Olivia Midnight (Black Style, Up to 26.4 SEER2) CH-B09MOLVWM-230VI 28.70x7.87x11.50
      Ceiling Cassettes SKU Dimensions(WxDxH)
      One-Way Cassette (Up to 24 SEER2) СH-09MCT1W-W 50.31x13.19x8.98
      Ceiling Cassette (Up To 22.7 SEER2)  CH-09MSPHCT-230VI 22.44x22.44x10.24
      Other Units SKU Dimensions(WxDxH)
      Slim Duct/Concealed Duct (Up To 20.2 SEER2)  CH-M09DTUI 27.56x19.92x7.87


      12,000 BTU Compatible Units

        Wall Mounts SKU

        Dimensions(WxDxH)

        Astoria (Up to 28.1 SEER2) CH-12MASTWM-230VI 33.66x9.09x11.69
        Olivia (Up to 26.4 SEER2) CH-12MOLVWM-230VI 31.57x7.87x11.61
        Olivia Midnight (Black Style, Up to 26.4 SEER2) CH-B12MOLVWM-230VI 31.57x7.87x11.61
        Ceiling Cassettes SKU Dimensions(WxDxH)
        One-Way Cassette (Up to 24 SEER2) СH-12MCT1W-W 50.31x13.19x8.98
        Ceiling Cassette (Up To 22.7 SEER2)  CH-12MSPHCT-230VI 22.44x22.44x10.24
        Other Units SKU Dimensions(WxDxH)
        Slim Duct/Concealed Duct (Up To 20.2 SEER2)  CH-M12DTUI 27.56x19.92x7.87
        Mini Floor Console (Up to 25 SEER2) CH-12MMC-230VI 31.26x7.87x24.45



          18,000 BTU Compatible Units

            Wall Mounts SKU

            Dimensions(WxDxH)

            Astoria (Up to 28.1 SEER2) CH-18MASTWM-230VI 40.28x9.65x12.56
            Olivia (Up to 26.4 SEER2) CH-18MOLVWM-230VI 42.64x9.61x13.23
            Olivia Midnight (Black Style, Up to 26.4 SEER2) CH-B18MOLVWM-230VI 42.64x9.61x13.23
            Ceiling Cassettes SKU Dimensions(WxDxH)
            One-Way Cassette (Up to 24 SEER2) СH-18MCT1W-W 50.31x13.19x8.98
            Ceiling Cassette (Up To 22.7 SEER2)  CH-18MCT-W 22.44x22.44x10.24
            Other Units SKU Dimensions(WxDxH)
            Slim Duct/Concealed Duct (Up To 20.2 SEER2)  CH-M18DTUI 34.65x26.54x8.27
            Mini Floor Console (18K BTU) (Up to 25 SEER2) CH-16MMC-230VI 31.26x7.87x24.45
            Universal Floor Ceiling (UP TO 23 SEER2) CH-18MSPHFC-230VI 42.05x26.57x9.25
            Multi-Position Air Handler (UP TO 18.4 SEER2) CH-M18AHU-W 21.02x17.52x45.00



            24,000 BTU Compatible Units

            Wall Mounts SKU

            Dimensions(WxDxH)

            Astoria (Up to 28.1 SEER2) CH-24MASTWM-230VI 47.09x10.98x14.57
            Olivia (Up to 26.4 SEER2) CH-24MOLVWM-230VI 42.60x9.21x13.27
            Olivia Midnight (Black Style, Up to 26.4 SEER2) CH-B24MOLVWM-230V 42.60x9.21x13.27
            Ceiling Cassettes SKU Dimensions(WxDxH)
            Ceiling Cassette (Up To 22.7 SEER2)  CH-24MCT-W 32.68x32.68x8.07
            Other Units SKU Dimensions(WxDxH)
            Slim Duct/Concealed Duct (Up To 20.2 SEER2)  CH-24MDT-W 43.31x30.47x9.80
            Universal Floor Ceiling (UP TO 23 SEER2) CH-24MSPHFC-230VI 42.05x26.57x9.25
            Multi-Position Air Handler (UP TO 18.4 SEER2) CH-M24AHU-W 21.02x17.52x45.00



              Sizing and Compatability:

              Combination Chart

              The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

              Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.



              Warranty

              • 7 year compressor limited warranty
              • 5 year parts limited warranty (must be installed by a licensed HVAC technician)
              • 1 year remote control



              Technical Information

              Model Number: CH-HPR36M-230VO

              Specification Details
              System type Multi-zone unit
              BTU Rated 36,000
              Power source
              208-230V, 1Ph, 60Hz
              Dehumidification value (pnt/day) 4.06
              Max. pipe length (ft) 262
              Refrigerant type R410A
              Voltage range (V) 187-253
              Packing dimensions (WxDxH)
              43.11x19.49x58.27
              Refrigerant piping Liquid/Gas side (inch)
              4x1/4" - 2x3/8"+2x1/2"
              HSPF2-5 8.3
              HSPF2-4 10.3
              EER2 13.6
              Cooling capacity (Min/Max) (BTU/h)
              36,000(17,900~42,000)
              SEER2 22.2
              Unit Net/Gross weight 223.11/253.97

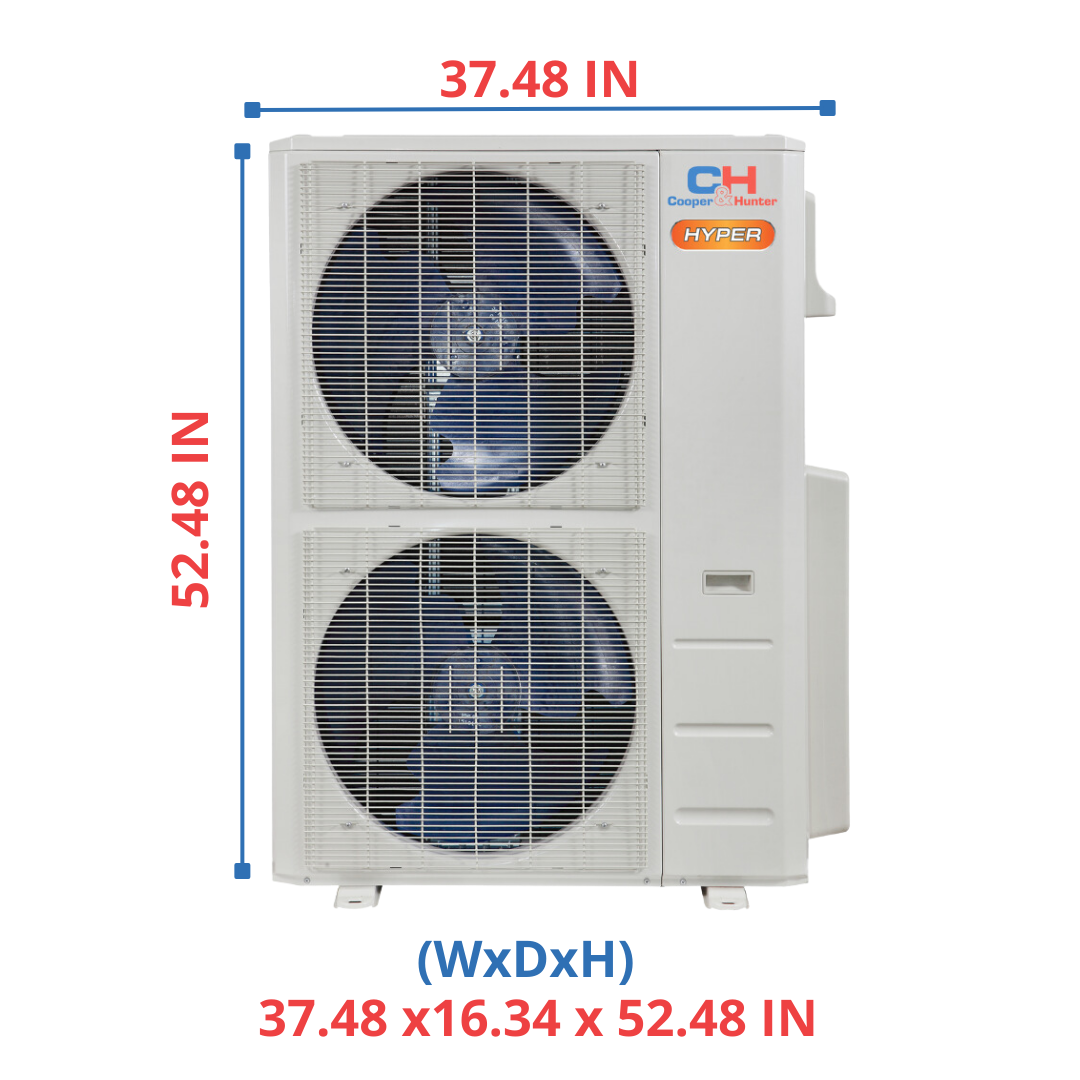

              Unit dimensions (W*H*D)
              37.48x16.34x52.48
              Refrigerant precharge up to 100
              Outdoor Noise Level 63
              Outdoor Air Flow 4,500
              Minimum circuit ampacity 40
              Max. fuse 60
              Max height difference between Indoor and Outdoor unit 49.21
              Heating capacity (Min/Max) (Btu/h)
              37,000(12,500~51,000)
              COP 3.9
              Ambient temperature - Heating (F) -22~75
              Ambient temperature - Cooling (F) 5~122
              Additional Refrigerant Charge 3/8 liquid line 0.32
              Additional Refrigerant Charge 1/4 liquid line 0.16


              Certifications


              Manuals & Downloads

              Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

              Technical Data

              Specs, manuals, videos, and product documents

              Loading technical data…

              Product FAQs

              Product FAQs

              Helpful answers matched to this product, brand, specs, and configuration.
              What can the Cooper & Hunter Remote app control?

              On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.

              Can multiple people control compatible Cooper & Hunter systems through the app?

              Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.

              How do I find the correct Cooper & Hunter manual or submittal for my unit?

              Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.

              Does Cooper & Hunter provide dedicated troubleshooting resources for installers?

              Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.

              Does Cooper & Hunter require licensed HVAC installation for warranty coverage?

              Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.

              What Cooper & Hunter support resources are available online?

              Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.

              Does Cooper & Hunter provide a product-selection or dealer-locator tool?

              Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.

              How can I check whether a Cooper & Hunter system qualifies for rebates or incentives?

              Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.

              Is a rebate guaranteed when purchasing a Cooper & Hunter system?

              No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.

              Which mobile app is used with compatible Cooper & Hunter systems?

              Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.

              Can any wireless adapter be used with a Cooper & Hunter system?

              No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.

              What standard warranty periods does Cooper & Hunter publish?

              For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.

              How is a Cooper & Hunter warranty claim started?

              The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.

              What information should be ready when contacting Cooper & Hunter Technical Support?

              Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.

              Does Cooper & Hunter offer technical support in multiple languages?

              Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.

              How can I contact Cooper & Hunter Technical Support?

              Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.

              Does Cooper & Hunter’s warranty cover labor or refrigerant costs?

              Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.

              How do I register my Cooper & Hunter product warranty?

              Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.

              How soon should a Cooper & Hunter system be registered for warranty?

              Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.

              What information is needed to register a Cooper & Hunter system?

              Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.

              Can moving a Cooper & Hunter system affect its warranty?

              Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.

              Can non-compatible or third-party components affect Cooper & Hunter warranty coverage?

              Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.

              Is a Cooper & Hunter Limited Warranty transferable to a new owner?

              Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.

              Are all Cooper & Hunter systems compatible with the Cooper & Hunter Remote app?

              No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
