Cooper&Hunter Multi-Zone R410A, 30,000 BTU 230V Astoria Series Indoor Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, Up to 28.1 SEER2 with Wi-Fi, Optional Installation Kit - CH-30ASTWM-230VI

Name: Cooper&Hunter Multi-Zone R410A, 30,000 BTU 230V Astoria Series Indoor Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, Up to 28.1 SEER2 with Wi-Fi, Optional Installation Kit - CH-30ASTWM-230VI
Availability: InStock

$586.99

FREE
SHIPPING

LOWEST PRICES
BACK GUARANTEED

ONLINE
SUPPORT 24/7

Don't know What to Buy

Availability: 100 In Stock

Sku: CH-30MASTWM-230VI

Product Type: Wall Mount

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

NOTE: The default selection does not include an Installation Kit. Upgrade your selection to add to your order.

IMPORTANT: THIS IS ONLY ONE PART OF THE SYSTEM. TO HAVE A FULLY FUNCTIONING SETUP, YOU MUST ALSO PURCHASE A COMPATIBLE [INDOOR/OUTDOOR] UNIT.

Add to wishlist

Description
Shipping & Delivery
Technical Data
Installation Photos

Cooper&Hunter Multi-Zone 30,000 BTU 230V Astoria Series Indoor Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, High SEER Up To 28.1 SEER2 with Wi-Fi and Optional Installation Kit, High Wall, Wall AC Unit CH-30ASTWM-230VI

Summary

The option to choose both, aesthetics and functionality is brought by Cooper&Hunter’s Astoria indoor wall-mounted mini split series. Its revolutionary design offers the most convenient disassembly on the market, with an easy-to-remove blower wheel, front E-Box and PCB, and a kickstand on the front cover panel. The larger inlet and outlet design vastly improves airflow, complemented by auto-swinging vertical and horizontal louvers.

Astoria mini split wall mounts are designed to be controlled by our optional wall thermostat, the included remote control, or our included Smart Kit, which enables you to connect to any smart device through the downloadable C&H App.

This series of mini splits is available in 6K, 9K, 12K, 18K, 24K, 30K, 35K, and 36K Btu/h models and can be paired with Regular or Hyper Heat Pump Outdoor Units. The Genius Core Technology enables the unit to operate with an ultra-low compressor speed for extra energy savings, granting them a rating of up to a 28.1 SEER2. These systems can heat and cool your home or office effectively down to -13°F for Standard units and even down to -22°F for Hyper units.

Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.

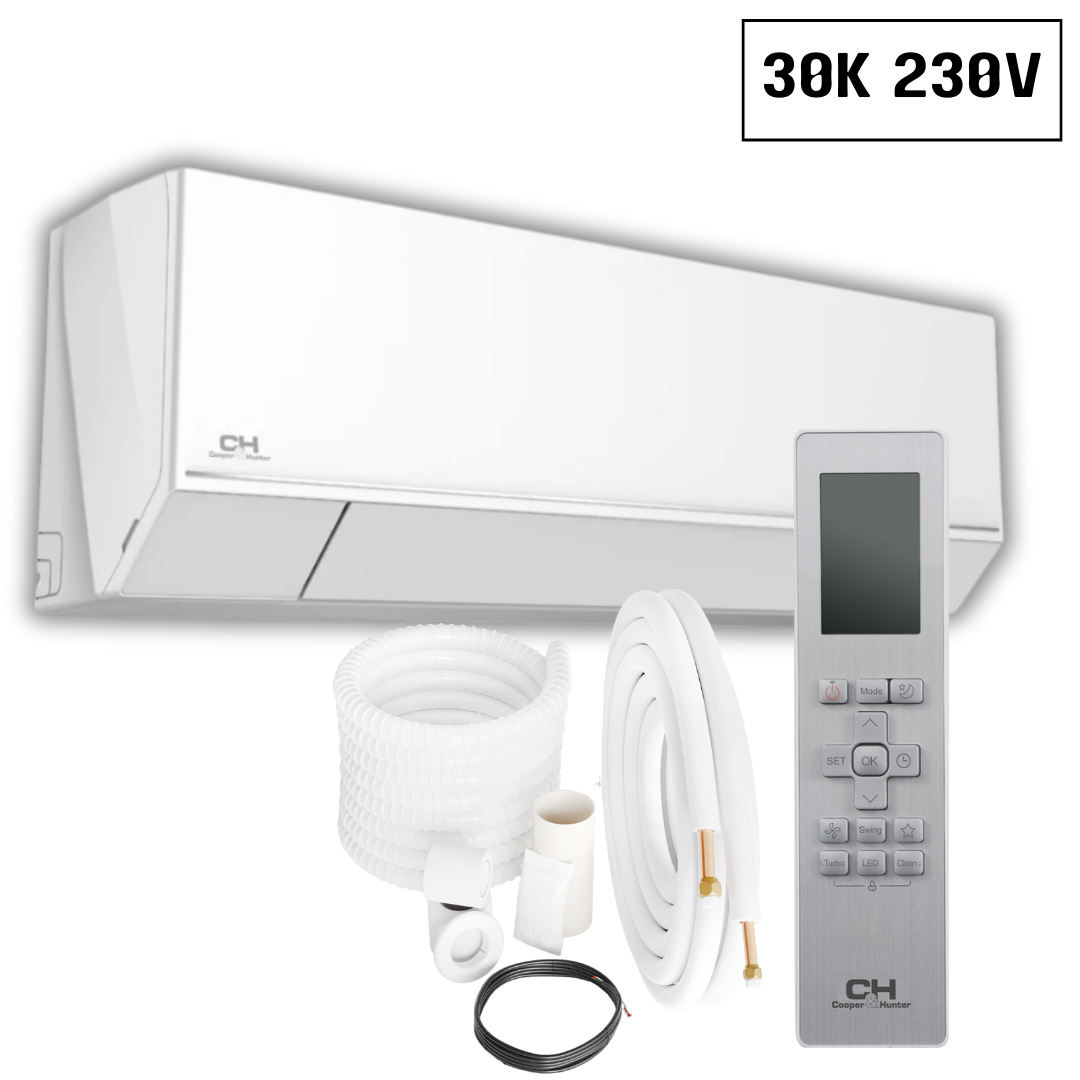

What's Included

Indoor Unit CH-30ASTWM-230VI (30,000 BTU Astoria Indoor Wall Mount Unit)
Wi-Fi Adapter (17310900A05963)
Optional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.
Wireless Remote Controls
Installation Manual
User’s Manual
Manufacturer Warranty

Compatible Standard Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	18,000 BTU	CH-18MES-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-28MES-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-36MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-48MES-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-55MES-230VO

Compatible Hyper Outdoor Units

Capacity	BTU	SKU
Dual (2) Zone:	19,000 BTU	CH-HPR19M-230VO
Dual/Tri (2 or 3) Zone:	28,000 BTU	CH-HPR28M-230VO
Dual/Tri/Quad (2, 3 or 4) Zone:	36,000 BTU	CH-HPR36M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	48,000 BTU	CH-HPR48M-230VO
Dual/Tri/Quad/Pent (2, 3, 4 or 5) Zone:	55,000 BTU	CH-HPR55M-230VO

Sizing and Compatability:

Combination Chart

The capacity and number of systems can vary for each outdoor unit. Consult the combination chart for potential loading configurations. Ensure the total capacity of all connected indoor units aligns with the minimum and maximum loading range of the selected outdoor unit. It is not mandatory to utilize all circuits on an outdoor unit; some circuits may remain sealed without an attached indoor unit.

Our sales team meticulously reviews every order and will promptly contact you to make any necessary adjustments. For guidance in selecting the correct combination of indoor units, please contact us directly or refer to the Combination Chart provided above or located in the Custom tab.

Warranty

7 year compressor limited warranty
5 year parts limited warranty (must be installed by a licensed HVAC technician)
1 year remote control

Technical Information

Model Number: CH-30ASTWM-230VI

Specification	Details
Power Supply	208~230V, 60Hz, 1Ph
Rated Capacity	30,000 BTU/h
EER2	11.5
SEER 2	20
Refrigerant Type	R410A
Suitable Area	1500+ SQ FT
Indoor Air Flow (Turbo/Hi/Mi/Lo)	842.94/646.47/505.29/382.35
Sound Level (Hi/Lo)	46/39/34

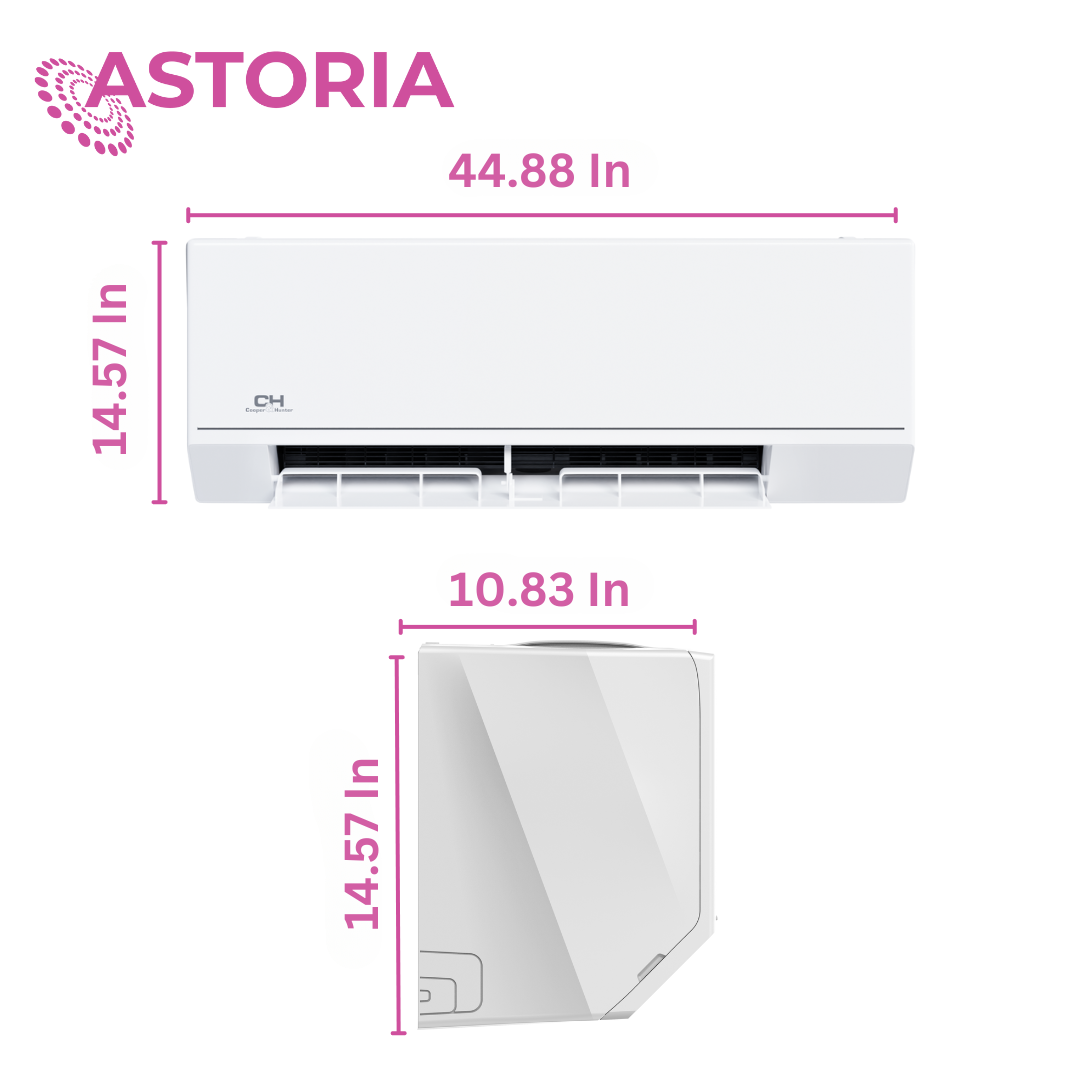

Dimensions	44.88x10.83x14.57
Net/Gross Weight	43.65/54.89
Cooling	60 ~ 90°F
Heating	32 ~ 86°F
Liquid Side/Gas Side	3/8" - 5/8"

Certifications

Performance Data/Features

Auto-Swing for horizontal
louvers
Louver Memory
Automatic Operation
Self-Diagnosis
Goldfin Coating
Inverter Technology
Multiple Fan Speeds
Sleep Mode
Timer
Auto-restart Function
Genius Core ultra-low
compressor speed of 12Hz
46° Freeze Protection
Turbo Mode
Follow Me Mode
Remote Control included
LED Display
Intelligent Pre-Heating

Manuals & Downloads

We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.

Delivery Map

IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.

SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.

INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.

Southminisplits exclusively distributes Cooper & Hunter and OLMO products, you can always find the most technical information on the manufacturer's website:
Cooper & Hunter
DETAILED PRODUCT BOOKLETS FOR THIS PRODUCT:
Olivia Series Booklet
Multi-Zone Booklet
Specification Table
Quick-Start Guide
Installation Manual
General Manufacturing Information
