Home 24,000 BTU Roma Series
Roma Series

Bravo Roma Single Zone Wall Mount, 2 Ton Mini Split AC and Heat Pump, R32, 24,000 BTU Wall Mount Ductless Mini Split, 18 SEER Inverter System, 230V/60HZ, Single Head, Smart app, 13FT Installation Kit Included, BRV-R24W-230VI + BRV-R24LS-230VO

SKU BRV-R24W-230VI + BRV-R24LS-230VO Wall Mount17.0 SEER2208-230V
$1,023.84
In StockShips in 1-2 business days

Brand Information

Bravo
Support Number
(888) 293-9252
Official Site
Bravo Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS


Bravo Roma Single Zone Wall Mount, 2 Ton Mini Split AC and Heat Pump, R32, 24,000 BTU Wall Mount Ductless Mini Split, 18 SEER Inverter System, 230V/60HZ, Single Head, Smart app, 13FT Installation Kit Included, BRV-R24W-230VI + BRV-R24LS-230V





BRAVO - More than a compliment!


The Bravo Single Zone Mini Split is a compact and efficient cooling solution for your home, available in 12K, 18K, and 24K Btu/h capacities. Designed for single-room use, it offers optimal comfort by adjusting cooling and heating settings based on room conditions. In addition, this unit includes a SMART APP allowing you to control your unit through any smart device. With a SEER2 rating of up to 17, the Bravo Single-Zone Mini Split combines efficiency, convenience, and quiet performance to keep your space comfortable year-round.

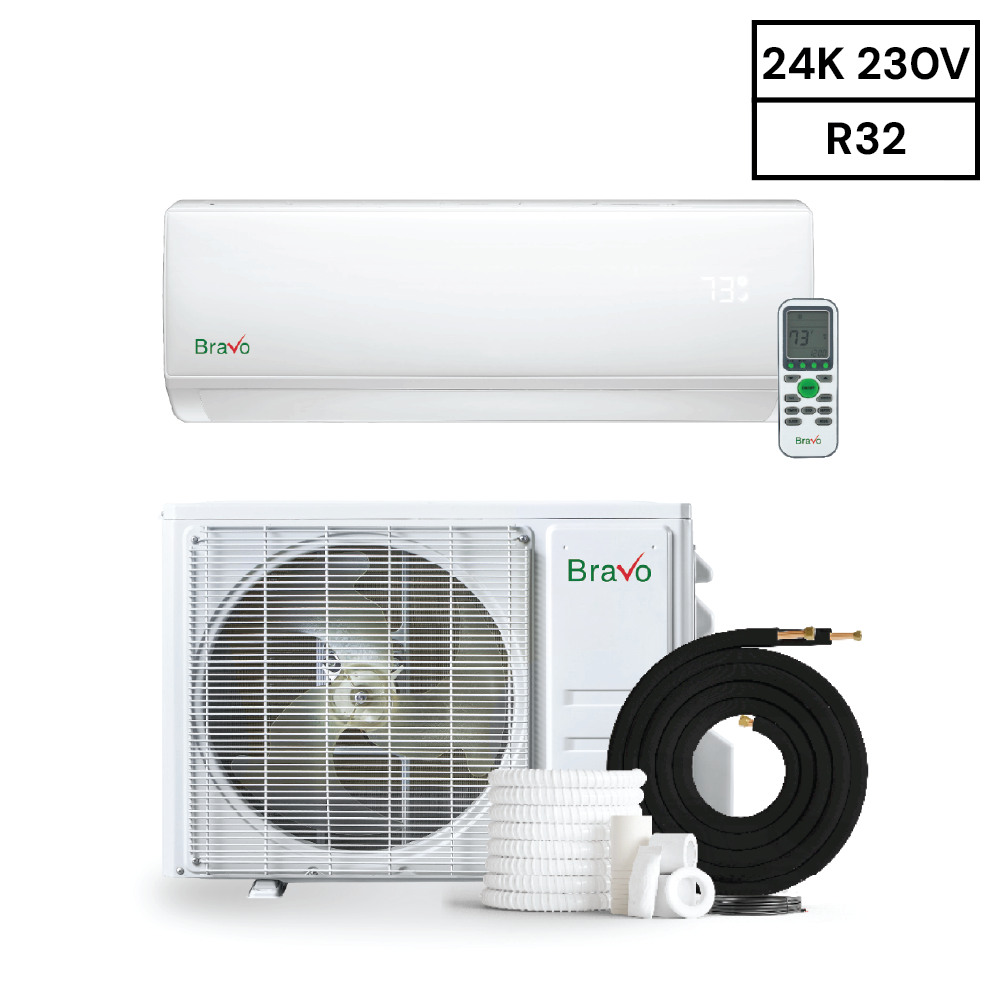

Included in Your Order:

Bravo Roma Single Zone Ductless Mini Split System (Mini Split AC 24,000 BTU Inverter with Heat Pump)

Outdoor Unit: BRV-R24LS-230VO 24,000 BTU (1pc)

Indoor Unit: BRV-R24W-230VI 24,000 BTU (1pc with remote)

Wi-Fi Adapter

Includes 13FT Installation Kit






Key Features:

  • Remote Control Included
  • Smart App: Connect from anywhere
  • Comfortable Sleep Mode
  • Super Mode
  • Eco Mode
  • Multiple Fan Speeds
  • Timer
  • Sleep Mode
  • Louver Auto Swing
  • Anti Mildew Mode
  • LED Display






Important

All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.






Other Single Zone Bravo Roma Systems







Warranty

3 year compressor limited warranty

3 year parts limited warranty (must be installed by a licensed HVAC technician)






Technical Information



Indoor Unit Specifications:  BRV-R24W-230VI

Outdoor Unit Specifications: BRV-R24LS-230VO



Indoor Model BRV-R24W-230VI
Outdoor Model BRV-R24LS-230VO
Power Supply V-Ph-Hz 208/230V-1Ph-60
Cooling
Capacity Btu/h 24000
EER2 Btu/h 3
SEER2 Btu/h 18
Heating
Rated Capacity Btu/h 24000
HSPF2-4 Btu/h 8.64
COP2 W/W 3.5
Minimum Circuit Ampacity A 13
Max Fuse A 20
Indoor Air Flow CFM 588
Indoor Noise Level (Hi/Mi/Lo) dB(A) 47/45/39
Indoor Unit

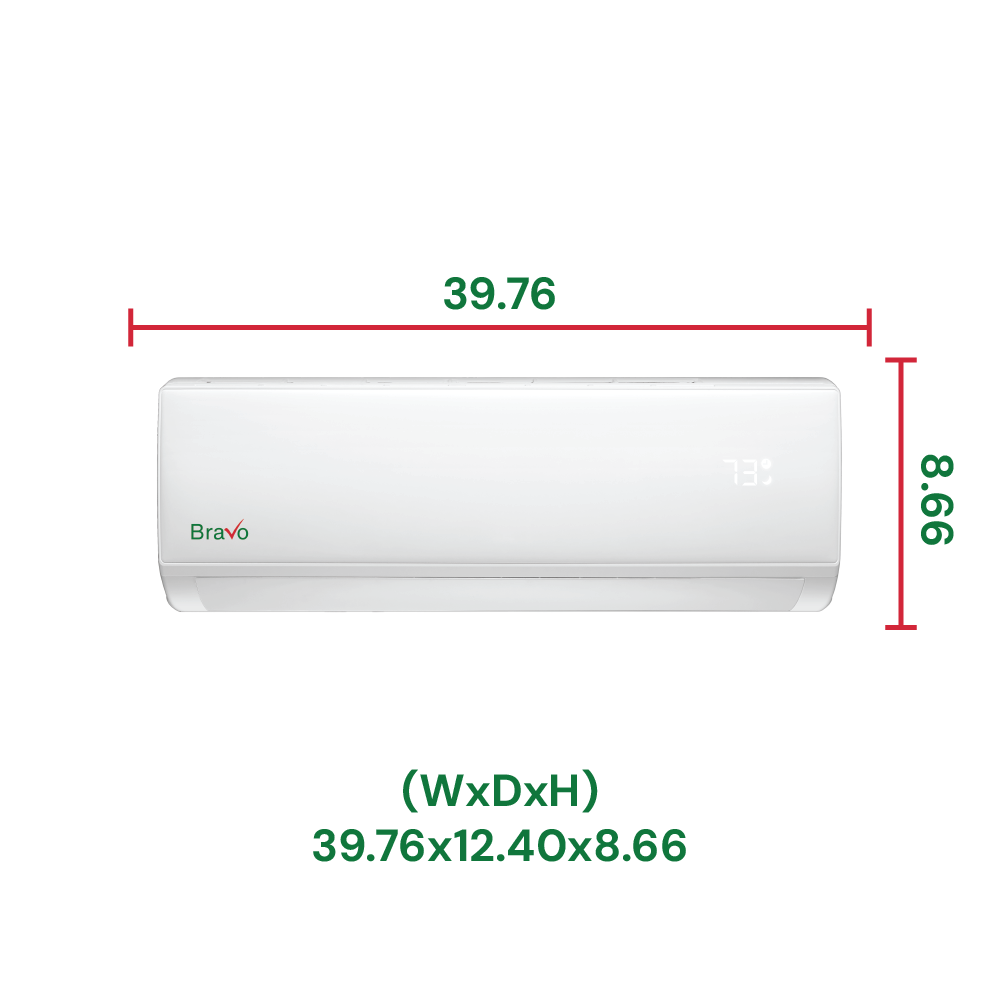

Dimensions (WxDxH) in 39.76x12.40x8.66
Packing (WxDxH) in 43.15x15.35x11.81
Net Weight lbs 28.66
Outdoor Air Flow CFM 1645
Outdoor Side Noise Level dB(A) 55
Outdoor Unit

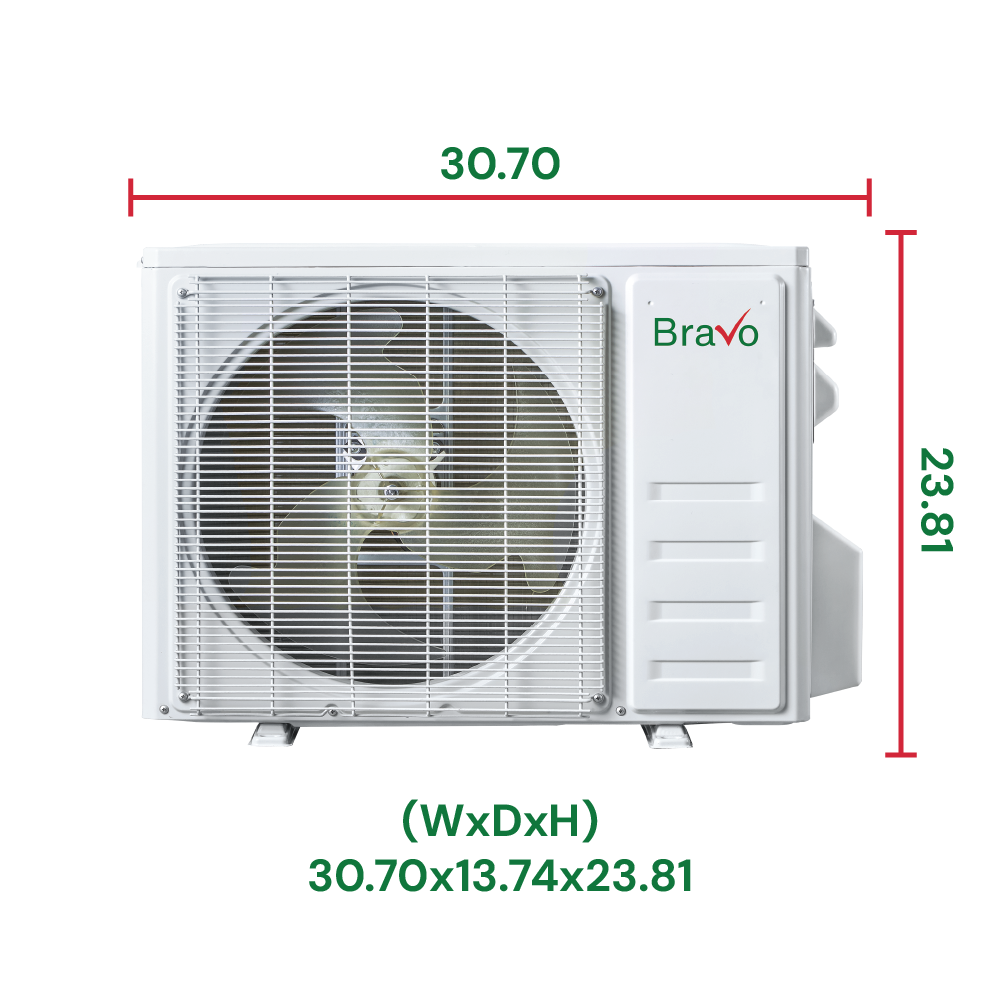

Dimensions (WxDxH) in 30.70x13.74x23.81
Packing (WxDxH) in 35.43x15.94x25.79
Net Weight lbs. 72.8
Refrigerant Type OZ R32
Refrigerant Precharge ft 25
Design Pressure PSIG 652.5
Refrigerant Liquid Side / Gas Side in 1/4"/ 1 1/2"
Piping Max Refrigerant Pipe Length ft 65
Connection Wiring Size X Core Number 4x16AWG
Ambient
Temperature
Indoor (Cooling/Heating) °F >=62/<=86
Outdoor (Cooling/Heating) °F 5-122/-4-86


Certifications






Performance Data/Features

  • Sleek matte finish
  • Turbo Function
  • Silent Function
  • LED Display
  • Horizontal Auto Swing
  • Timer
  • Comfortable Sleep Mode
  • Multiple Fan Speeds
  • Self-Cleaning Function
  • Follow Me Function
  • Activated Carbon Filter






Manuals & Downloads

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What is Bravo?

Bravo is a mini-split HVAC brand that combines Italian-inspired styling with inverter-driven heating and cooling technology. In North America, Bravo equipment is distributed and supported by Comfortside, with product documentation, technical support, and warranty resources available for homeowners and licensed contractors.

How efficient are Bravo mini-split systems?

Bravo uses inverter technology to adjust compressor output as the heating or cooling load changes. Current Milano configurations are published with efficiency ratings as high as 24 SEER2, although the certified rating depends on the exact outdoor unit, indoor-unit combination, and installation. Check the product documentation and AHRI information for the specific system.

What should I do if a Bravo system displays an error code?

Confirm that electrical power is available, the remote settings are correct, the filters are reasonably clean, and the air inlets and outlets are unobstructed. If the code remains, stop operating the equipment and contact the installing contractor or a licensed HVAC technician. Do not open the refrigerant circuit or electronic components yourself.

Which indoor-unit styles are available from Bravo?

Depending on the product family, Bravo offers high-wall units, ceiling cassettes, slim-duct units, and universal floor/ceiling units. This allows the system design to match the room layout, ceiling space, appearance, and airflow needs of each zone.

Where can I find Bravo manuals and technical information?

Bravo provides product manuals, troubleshooting guides, warranty information, and other technical resources through its official support websites. Use the exact indoor and outdoor model numbers when selecting documentation because wiring, piping, controls, capacities, and operating limits can differ between models.

Can different Bravo indoor-unit styles be used on the same multi-zone system?

Compatible Bravo Milano multi-zone outdoor units can support approved combinations of wall-mounted, ceiling cassette, slim-duct, and other matching indoor units. The installer should confirm that every indoor model, total connected capacity, line size, and zone combination is approved for the selected outdoor unit.

Can Bravo systems provide heating and cooling in extreme outdoor temperatures?

Bravo publishes extended operating ranges on select Milano systems, including heating operation down to approximately -13°F and cooling operation up to approximately 125.6°F. Operating limits are model-specific, and available capacity normally changes as outdoor temperature changes, so review the exact performance data before relying on a unit for extreme-weather heating or cooling.

What types of mini-split systems does Bravo offer?

Bravo offers single-zone and multi-zone mini-split solutions. The current lineup includes wall-mounted systems along with compatible ceiling cassette, slim-duct, and universal floor/ceiling indoor-unit options. Available capacities, combinations, and features vary by series and model.

Does a Bravo mini-split need professional installation?

Yes. Bravo systems are intended to be installed and commissioned by a licensed HVAC professional. Correct installation includes equipment matching, electrical work, refrigerant piping, pressure testing, evacuation, drainage, startup, and verification of operation. Licensed installation is also required for Bravo Limited Warranty eligibility.

What refrigerant do current Bravo mini-split systems use?

Current Bravo Milano and Roma mini-split lines use R32 refrigerant. R32 systems require the correct tools, procedures, approved components, and installation practices, so refrigerant work should be handled only by a qualified HVAC professional. Always verify the refrigerant shown on the exact unit nameplate.

What information is needed to register a Bravo system?

Have the model and serial number for each indoor and outdoor unit, the installation date, the owner contact and installation-address information, the installing contractor or dealer information and HVAC license number, and the purchase date and seller information when applicable.

What routine maintenance does a Bravo indoor unit need?

Keep the return-air area and supply outlet unobstructed, and clean the reusable filters regularly according to the owner manual. Filters can generally be vacuumed or rinsed with lukewarm water and must be fully dry before reinstallation. Turn off power before cleaning, and use a licensed professional for deep cleaning, electrical work, or refrigerant service.

Does Bravo offer both single-zone and multi-zone systems?

Yes. Bravo offers single-zone systems for one area and Milano multi-zone systems that can connect several compatible indoor units to one outdoor condenser. Select Milano configurations support up to five zones, but the approved indoor-unit combination and connected capacity must be verified for the exact outdoor model.

Can Bravo mini-splits be controlled from a smartphone?

Compatible Bravo systems can be controlled through the Bravo SMART App when the indoor unit has built-in Wi-Fi or the correct Wi-Fi module is installed. App compatibility and available controls vary by model, so confirm the product specifications before purchase.

What can the Bravo SMART App control?

On compatible systems, the Bravo SMART App can provide remote on/off control, operating-mode changes, temperature adjustments, fan-speed control, supported louver controls, timers, and schedules. Available functions can differ by indoor unit and app version.

How can I contact Bravo technical support?

Bravo technical and warranty support is provided through Comfortside at 786-953-6706. Published support hours are Monday through Friday, 9:00 a.m. to 5:00 p.m. Eastern Time. Support is offered in English, Spanish, Mandarin, Russian, and Ukrainian. For technical troubleshooting, having a licensed HVAC technician at the equipment is recommended.

How do I start a Bravo warranty claim?

Contact the licensed HVAC technician who installed or services the system and have the technician diagnose the equipment on site. The technician should contact Comfortside Technical Support with the serial number, purchase invoice, licensed-installation invoice, existing case number, and any requested measurements, photos, or diagnostic information.

What warranty coverage is available for Bravo equipment?

Eligible Bravo systems generally include a 3-year limited parts warranty and 3-year compressor warranty when installed by a licensed HVAC technician and registered within 60 days of installation. Coverage is subject to the exact model and the complete written Bravo Limited Warranty terms.

Does the Bravo Limited Warranty cover labor, refrigerant, or shipping?

The published Bravo Limited Warranty is generally parts-only. Labor for diagnosis or replacement, field materials, refrigerant-related costs, travel, transportation, and shipping are not covered unless applicable law requires otherwise. Review the complete warranty document for the exact equipment and location.

When must a Bravo system be registered for warranty coverage?

Bravo states that the system must be registered within 60 days of installation to activate eligible Limited Warranty coverage. The equipment must also be installed by a licensed HVAC technician and remain with the original registered owner at the original installation address.

Is the Bravo Limited Warranty transferable?

No. Bravo states that its Limited Warranty applies only to the original registered owner at the original installation address and does not transfer to a later owner or a different installation location.

What Wi-Fi network is needed to connect a Bravo mini-split?

Bravo recommends a compatible indoor unit or installed Wi-Fi module, an internet-connected 2.4 GHz Wi-Fi network, the network name and password, and a supported phone or tablet with the current Bravo SMART App. Follow the model-specific app manual to place the unit in pairing mode.
