BRAVO MILANO Wall-Mount Indoor Unit
Product Overview

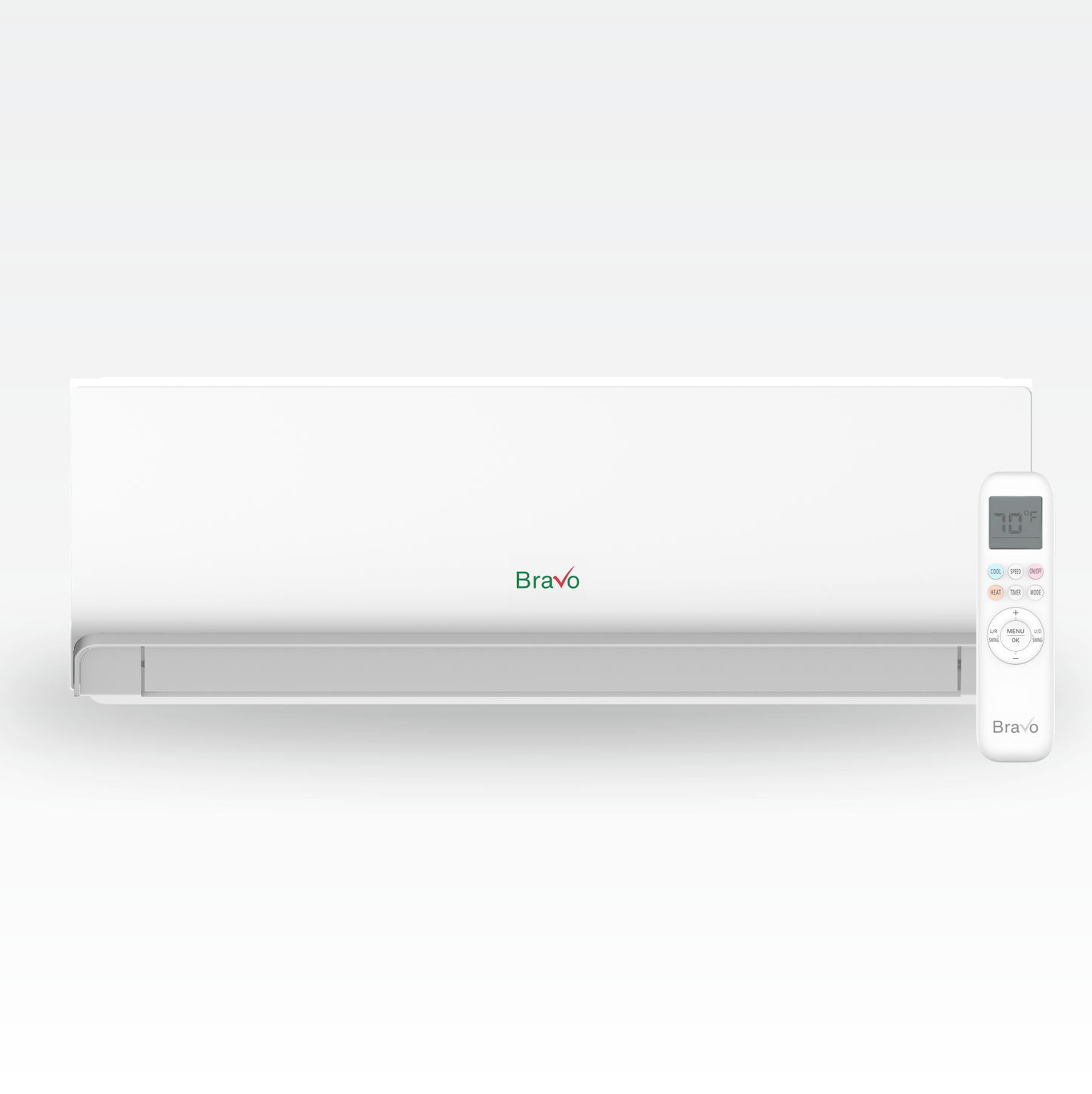

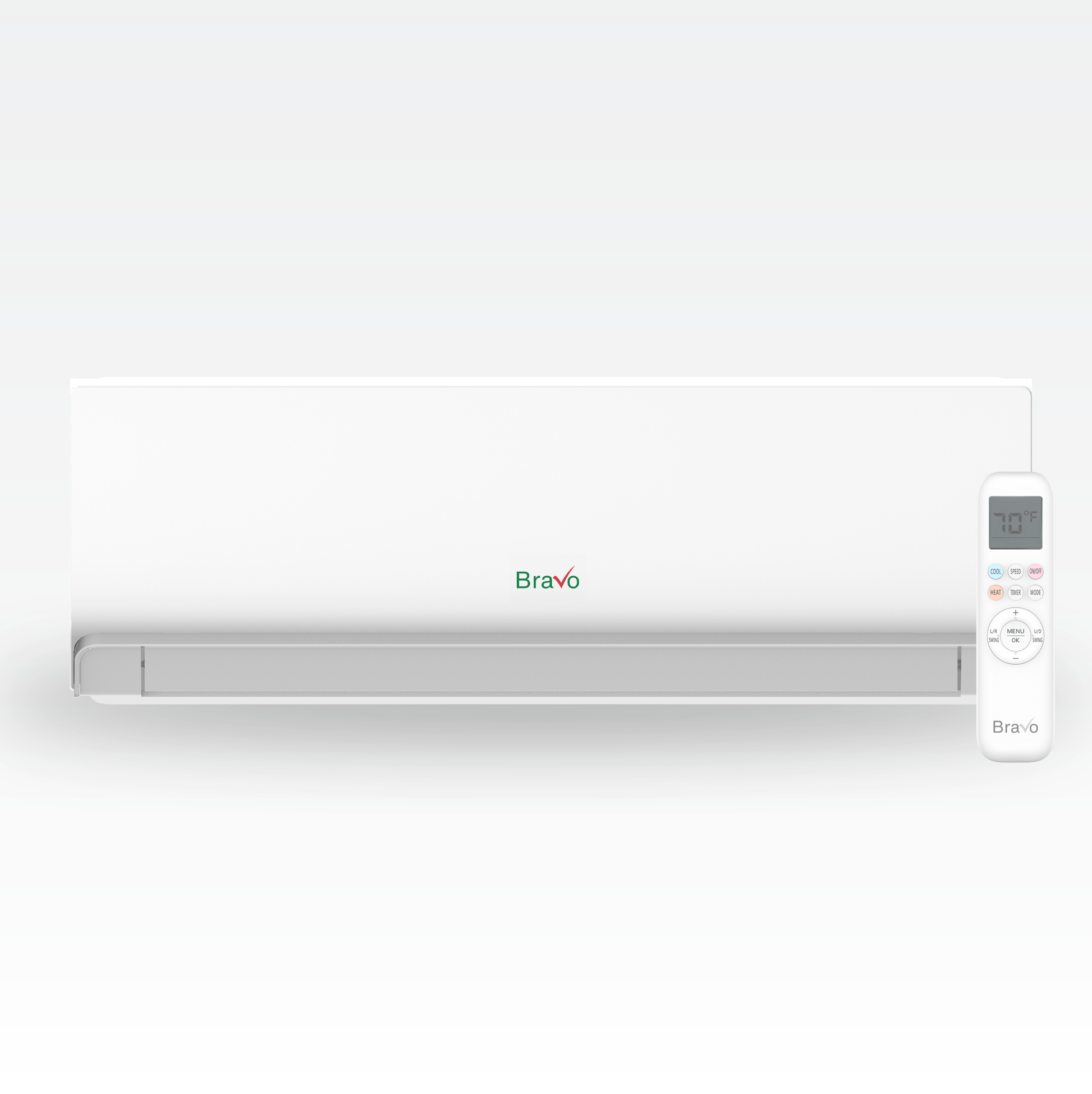

7,000 BTU 230V wall-mounted indoor unit for Bravo Milano multi-zone systems. Designed for compact rooms and smaller comfort zones, this indoor head delivers quiet operation, clean styling, and dependable heating and cooling when paired with a compatible Bravo Milano outdoor condenser.
Contact us for custom quotes & questions, or call (737) 738-6329.
Performance & comfort features
BRAVO – More than a compliment!
- Wall-mounted indoor unit for bedrooms, living areas, home offices, and smaller comfort zones
- Inverter technology for consistent temperature control and improved efficiency when paired with a compatible outdoor condenser
- Remote control included for easy in-room adjustments
- Smart App control: connect and control from anywhere
- Sleek matte finish that blends into modern interiors
- Turbo / Super mode for rapid cooling or heating
- Silent function for quiet operation
- Comfortable Sleep Mode with gentle temperature transitions
- Eco Mode for reduced power consumption
- Multiple fan speeds for fine-tuned airflow
- Timer function for scheduled on/off
- Louver auto swing / horizontal auto swing for even air distribution
- Self-cleaning / anti-mildew mode to help keep the coil cleaner
- Follow Me function that senses temperature near the remote
- Activated carbon filter to help improve indoor air quality
- LED display with clear status indication
At-a-glance
| Indoor type | Wall-mount mini split head |
|---|---|
| Capacity | 7,000 BTU |
| Power supply | 208–230V, 1Ph, 60Hz |
| Indoor noise level | 40 dB(A) |
| Indoor airflow | 353 CFM |
| Refrigerant piping | 1/4" liquid / 3/8" gas |
Video
What’s included
- Indoor wall-mount unit — BRV-M07WM-230VI — 7,000 BTU 230V Bravo Milano indoor unit
- Wireless remote control
- Installation manual
- User’s manual
- Manufacturer limited warranty

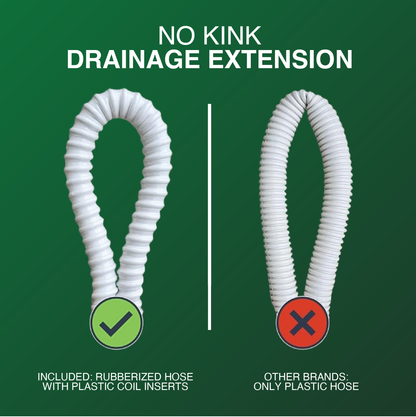

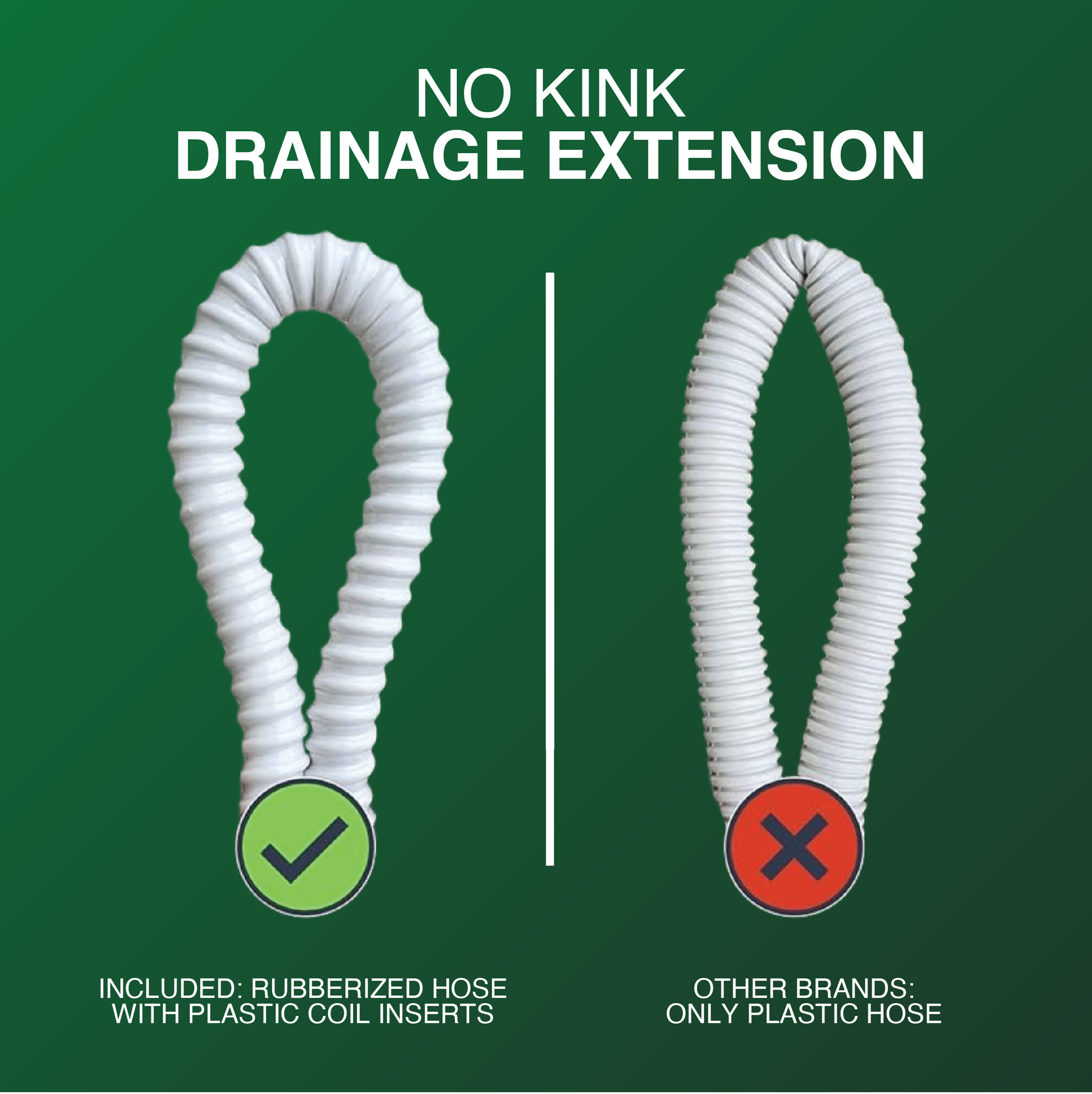

Optional pre-flared 99% copper installation kit: 16 ft, 25 ft, or 50 ft. Kit includes copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related accessories.
Other Bravo Milano indoor wall-mount units
| Capacity | SKU / Search |
|---|---|
| 7,000 BTU | BRV-M07WM-230VI |
| 9,000 BTU | BRV-M09WM-230VI |
| 12,000 BTU | BRV-M12WM-230VI |
| 18,000 BTU | BRV-M18WM-230VI |
| 24,000 BTU | BRV-M24WM-230VI |
Warranty
- 3 year compressor limited warranty
- 3 year parts limited warranty when installed by a licensed HVAC technician
Registration is required within 60 days of installation. See manufacturer documentation for full terms and conditions.
Technical specifications — BRV-M07WM-230VI
| Power supply | 208–230V, 1Ph, 60Hz |
|---|---|
| Cooling rated capacity | 7,000 BTU/h |
| Heating rated capacity | 7,000 BTU/h |
| Max fuse | 5 A |
| Indoor airflow | 353 CFM |
| Indoor noise level | 40 dB(A) |
| Unit dimensions (W×D×H) | 31.02 × 7.80 × 11.50 in |
| Packing dimensions (W×D×H) | 34.65 × 14.57 × 11.42 in |
| Net / gross weight | 17.60 / 22.00 lbs |
| Refrigerant piping — liquid / gas | 1/4" / 3/8" |
| Operating temperature range | 60.8–89.6°F |
Adapters for 1/4" / 1/2" and 1/4" / 5/8" are included in the outdoor unit box.
Important installation notes
All units must be installed by a licensed HVAC professional for the warranty to be valid.
The installation kit is necessary for the system to function and includes copper lines, data communication wires, PVC drainage attachment, wrapping bands, and related hardware.
Certifications
Manuals & downloads
- 7K BTU Indoor Unit General Manufacturing Information — BRV-M07WM-230VI
- Bravo Milano Leaflet
- Owner’s Manual
Need documents? Contact us and reference the model BRV-M07WM-230VI.
Full description
Expand
The Bravo Milano Multi-Zone Wall-Mounted Mini Split System offers a stylish and efficient way to heat and cool individual rooms. The BRV-M07WM-230VI indoor unit is a compact 7,000 BTU wall-mounted head designed for smaller spaces that need quiet, reliable comfort.
With inverter-driven performance, multiple comfort modes, airflow controls, and remote operation, Bravo Milano wall-mounted heads provide precise climate control tailored to the needs of each room.
When paired with a compatible Bravo Milano outdoor condenser and properly sized installation kit, this indoor unit helps create a clean, efficient ductless comfort solution for residential and light commercial applications.
