Name: Bravo Milano Series 3-Zone Ductless Mini Split ...
SKU: 43079763722355
Price: 3130.0 USD
Availability: InStock
Rating: 4.5 (2 reviews)

{"id":7998317887603,"title":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling","handle":"bravo-milano-series-3-zone-ductless-mini-split-ac-heat-pump-30-000-btu-2-5-ton-ceiling-cassette-units-9k-9k-24k-btu-inverter-technology-230v-heating-cooling","description":"\u003ch1 dir=\"ltr\"\u003e\u003ca href=\"https:\/\/southminisplits.com\/pages\/contact\"\u003e\u003cspan\u003eCLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS\u003c\/span\u003e\u003c\/a\u003e\u003c\/h1\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"tel:(737)%20738-6329\"\u003e\u003cspan\u003eCLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ch1 dir=\"ltr\"\u003eBravo Milano Series 3-Zone Ductless Mini Split AC \u0026amp; Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026amp; Cooling\u003c\/h1\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cbr\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eBRAVO - More than a compliment!\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cbr\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eThe Bravo Milano Multi-Zone Mini Split Ceiling Cassette System offers a powerful and discreet climate control solution for residential or light commercial spaces. Available in a range of indoor unit capacities—9K, 12K, 18K, and 24K Btu\/h—this system is ideal for multi-room installations where ceiling-mounted airflow is preferred.\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eEach ceiling cassette unit is designed to deliver uniform air distribution throughout the room while maintaining a low-profile appearance that blends seamlessly with your ceiling. The system automatically adjusts heating and cooling based on room conditions to maintain consistent comfort.\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\n\u003cspan\u003eEquipped with a user-friendly SMART APP, you can conveniently control temperature, mode, and fan settings from any compatible smart device. With a SEER2 rating of up to 24, the Bravo Milano Ceiling Cassette Mini Split system offers an energy-efficient, quiet, and flexible solution to keep your space comfortable all year long.\u003c\/span\u003e\u003cb\u003e\u003c\/b\u003e\n\u003c\/h3\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eWhat's Included\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003e2X Indoor Units BRV-M09CT-230VI \u003c\/strong\u003e(9,000 BTU 230V Bravo Milano Indoor Ceiling Cassette Unit)\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eIndoor Units BRV-M24CT-230VI \u003c\/strong\u003e(24,000 BTU 230V Bravo Milano Indoor Ceiling Cassette Unit)\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eOutdoor Unit \u003cspan data-sheets-root=\"1\"\u003eBRV-M30-230VO\u003c\/span\u003e\u003c\/strong\u003e (30,000 BTU 230V Bravo Milano Outdoor Condenser Unit)\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eOptional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eWireless Remote Controls\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eInstallation Manual\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eUser’s Manual\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eManufacturer Warranty\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eKey Features:\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eRemote Control Included\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSmart App: Connect from anywhere\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eComfortable Sleep Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSuper Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eEco Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eMultiple Fan Speeds\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eTimer\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSleep Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eLouver Auto Swing\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eAnti Mildew Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eLED Display\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eImportant\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eAll units must be installed by a licensed HVAC professional for the warranty to be valid\u003c\/span\u003e\u003cspan\u003e. \u003c\/span\u003e\u003cspan\u003eRegistration is required within 60 days of installation and can be completed online or by phone.\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003eThe installation kit is necessary for the system to function. \u003c\/span\u003e\u003cspan\u003eThis kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\n\u003cspan\u003eOther Multi-Zone Bravo Milano Ceiling Cassette Systems\u003c\/span\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\n\u003c\/h2\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"187\"\u003e \u003ccol width=\"165\"\u003e \u003ccol width=\"143\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003e3 Zone\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003eBRV-M30-230VO\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e18K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e24K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e18K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e24K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e18K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cbr\u003e\u003c\/h2\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eWarranty\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003e3 year compressor limited warranty\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003e3 year parts limited warranty (must be installed by a licensed HVAC technician)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eTechnical Information\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch3 dir=\"ltr\"\u003e\n\u003cspan\u003eIndoor Unit Specifications:\u003c\/span\u003e\u003cspan\u003e BRV-M09CT-230VI\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"187\"\u003e \u003ccol width=\"165\"\u003e \u003ccol width=\"143\"\u003e \u003ccol width=\"176\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003eIndoor Model\u003c\/td\u003e\n\u003ctd\u003eBRV-M09CT-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003ePanel Model Number\u003c\/td\u003e\n\u003ctd\u003eBRV-PN9-18CT\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eV-Ph-Hz\u003c\/td\u003e\n\u003ctd\u003e208-230-1-60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eCapacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e9,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003eRated Capacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e10,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eMax Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eIndoor Air Flow\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e383\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eIndoor Noise Level\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eIndoor Unit\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e22.44x22.44x10.24\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e28.35x25.59x11.42\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e30.9\/37.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003ePanel\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e25.59x25.59x2.17\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e27.95x27.95x3.15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e4.9\/8.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRefrigerant Piping\u003c\/td\u003e\n\u003ctd\u003eLiquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e1\/4\" \/ 3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eOperation Temperature Range\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e60.8-89.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003ch3 dir=\"ltr\"\u003e\n\u003cspan\u003eIndoor Unit Specifications:\u003c\/span\u003e\u003cspan\u003e BRV-M24CT-230VI\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\"\u003e\n\u003ccolgroup\u003e\n\u003ccol width=\"187\"\u003e\n\u003ccol width=\"165\"\u003e\n\u003ccol width=\"143\"\u003e\n\u003ccol width=\"176\"\u003e\n\u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003eIndoor Model\u003c\/td\u003e\n\u003ctd\u003eBRV-M24CT-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003ePanel Model Number\u003c\/td\u003e\n\u003ctd\u003eBRV-PN24CT\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eV-Ph-Hz\u003c\/td\u003e\n\u003ctd\u003e208-230-1-60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eCapacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e24,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003eRated Capacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e24,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eMax Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Air Flow\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e824\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Noise Level\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003e47\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\" colspan=\"1\"\u003e\n\u003cdiv\u003eIndoor Unit\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e33.07x33.07x9.69\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e35.83x35.83x12.20\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e52.9\/61.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\" colspan=\"1\"\u003e\n\u003cdiv\u003ePanel\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e37.40x37.40x2.17\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e39.37x39.37x3.94\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e11.7\/17.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRefrigerant Piping\u003c\/td\u003e\n\u003ctd\u003eLiquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e1\/4\" \/ 5\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eOperation Temperature Range\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e60.8~89.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eOutdoor Unit Specifications: \u003cspan data-sheets-root=\"1\"\u003eBRV-M30-230VO\u003c\/span\u003e\u003c\/span\u003e\u003c\/h3\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"187\"\u003e \u003ccol width=\"165\"\u003e \u003ccol width=\"143\"\u003e \u003ccol width=\"176\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003eOutdoor Model\u003c\/td\u003e\n\u003ctd\u003eBRV-M30-230VO\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eV-Ph-Hz\u003c\/td\u003e\n\u003ctd\u003e208-230-1-60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eCooling\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eCapacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e30,000 (6,000-38,200)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEER2\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e3.66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSEER2\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e23\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eHeating\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eRated Capacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e30,000 (6,300-36,000)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHSPF2-4\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e10\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCOP2\u003c\/td\u003e\n\u003ctd\u003eW\/W\u003c\/td\u003e\n\u003ctd\u003e3.9\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMinimum\u003c\/td\u003e\n\u003ctd\u003eCircuit Ampacity\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eMax Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eOutdoor Air Flow\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e2353\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Side\u003c\/td\u003e\n\u003ctd\u003eNoise Level\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003e58\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eOutdoor Unit\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e41.18x17.91x31.81\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e43.50x19.49x34.84\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e148.8\/157.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eRefrigerant Type\/Volume\u003c\/td\u003e\n\u003ctd\u003eOZ\u003c\/td\u003e\n\u003ctd\u003eR32\/67.0\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eRefrigerant Precharge\u003c\/td\u003e\n\u003ctd\u003eft\u003c\/td\u003e\n\u003ctd\u003e24.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"2\"\u003e\n\u003cdiv\u003eRefrigerant Piping\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eLiquid Side \/ Gas Side\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e1\/4\" \/ 3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Refrigerant Pipe Length\u003c\/td\u003e\n\u003ctd\u003eft\u003c\/td\u003e\n\u003ctd\u003e115\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"2\"\u003e\n\u003cdiv\u003eAmbient Tempeture\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eOutdoor (Cooling)\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e-13~125.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor (Heating)\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e-13-75.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eCertifications\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch2 dir=\"ltr\"\u003e\n\u003cspan\u003e\u003cimg height=\"81\" width=\"624\" src=\"https:\/\/lh7-rt.googleusercontent.com\/docsz\/AD_4nXcXfQneUCVex6CCTBAU16WrIVQrKKVc-a71NK6qRZcWWd02z4exZVUv5W1i6FNsBZBRX9-JZICZhYUCUFUFggLM-1qKjQPSPFbhvuMbv0uQ3Xui03vpjBcAB2EN5DujJfRSCsTfgQ?key=23P6FPiIZZlSdfulAKnb2w\"\u003e\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\n\u003c\/h2\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003ePerformance Data\/Features\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSleek matte finish\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eTurbo Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSilent Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eLED Display\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eHorizontal Auto Swing\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eTimer\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eComfortable Sleep Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eMultiple Fan Speeds\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSelf-Cleaning Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eFollow Me Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eActivated Carbon Filter\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eManuals \u0026amp; Downloads\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M09CT-230VI\"\u003e\u003cspan\u003e9K BTU Indoor Unit General Manufacturing Information\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M12CT-230VI\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M18CT-230VI\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M18-230VO\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M24CT-230VI\"\u003e24K BTU Indoor Unit General Manufacturing Information\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M30-230VO\"\u003e\u003cspan\u003e30K BTU Outdoor Unit General Manufacturing Information\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M30-230VO\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/11iY7wATMm-Eu1dVA_UYOvUXoUnCsDgjw\/view?usp=drive_link\"\u003e\u003cspan\u003eBravo Milano Leaflet\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/1LUTYR7M_UrB7gqxy6isI0MRtFN1Xi7hC\/view?usp=drive_link\"\u003e\u003cspan\u003eOwners Manual\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/1-ktVW8Fh-6jWBrKqXbMwpjLGjJ4XccH6\/view?usp=sharing\"\u003e\u003cspan\u003eInstallation Manual\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2025-06-19T13:53:39-05:00","created_at":"2025-05-23T11:00:00-05:00","vendor":"Bravo","type":"Ceiling Cassette","tags":["1000-1500","208-230V","24000 BTU (2 TON)","250-400","3 zone","30000 BTU VO (2.5 TON)","9000 BTU (0.75 TON)","Bravo","Ceiling Cassette","Milano","Multi Zone","Multi Zone Ceiling Cassette","Pre-Made Kits","R32"],"price":313000,"price_min":313000,"price_max":440600,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43079763722355,"title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ NO INSTALLATION KIT","option1":"NO INSTALLATION KIT","option2":"NO INSTALLATION KIT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ NO INSTALLATION KIT","public_title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ NO INSTALLATION KIT","options":["NO INSTALLATION KIT","NO INSTALLATION KIT","NO INSTALLATION KIT"],"price":313000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763755123,"title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 16FT","option1":"NO INSTALLATION KIT","option2":"NO INSTALLATION KIT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 16FT","public_title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 16FT","options":["NO INSTALLATION KIT","NO INSTALLATION KIT","16FT"],"price":331700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763787891,"title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 25FT","option1":"NO INSTALLATION KIT","option2":"NO INSTALLATION KIT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 25FT","public_title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 25FT","options":["NO INSTALLATION KIT","NO INSTALLATION KIT","25FT"],"price":336400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763820659,"title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 50FT","option1":"NO INSTALLATION KIT","option2":"NO INSTALLATION KIT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 50FT","public_title":"NO INSTALLATION KIT \/ NO INSTALLATION KIT \/ 50FT","options":["NO INSTALLATION KIT","NO INSTALLATION KIT","50FT"],"price":359000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763853427,"title":"NO INSTALLATION KIT \/ 16FT \/ NO INSTALLATION KIT","option1":"NO INSTALLATION KIT","option2":"16FT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 16FT \/ NO INSTALLATION KIT","public_title":"NO INSTALLATION KIT \/ 16FT \/ NO INSTALLATION KIT","options":["NO INSTALLATION KIT","16FT","NO INSTALLATION KIT"],"price":331700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763886195,"title":"NO INSTALLATION KIT \/ 16FT \/ 16FT","option1":"NO INSTALLATION KIT","option2":"16FT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 16FT \/ 16FT","public_title":"NO INSTALLATION KIT \/ 16FT \/ 16FT","options":["NO INSTALLATION KIT","16FT","16FT"],"price":350300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763918963,"title":"NO INSTALLATION KIT \/ 16FT \/ 25FT","option1":"NO INSTALLATION KIT","option2":"16FT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 16FT \/ 25FT","public_title":"NO INSTALLATION KIT \/ 16FT \/ 25FT","options":["NO INSTALLATION KIT","16FT","25FT"],"price":355100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763951731,"title":"NO INSTALLATION KIT \/ 16FT \/ 50FT","option1":"NO INSTALLATION KIT","option2":"16FT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 16FT \/ 50FT","public_title":"NO INSTALLATION KIT \/ 16FT \/ 50FT","options":["NO INSTALLATION KIT","16FT","50FT"],"price":377700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079763984499,"title":"NO INSTALLATION KIT \/ 25FT \/ NO INSTALLATION KIT","option1":"NO INSTALLATION KIT","option2":"25FT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 25FT \/ NO INSTALLATION KIT","public_title":"NO INSTALLATION KIT \/ 25FT \/ NO INSTALLATION KIT","options":["NO INSTALLATION KIT","25FT","NO INSTALLATION KIT"],"price":336400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764017267,"title":"NO INSTALLATION KIT \/ 25FT \/ 16FT","option1":"NO INSTALLATION KIT","option2":"25FT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 25FT \/ 16FT","public_title":"NO INSTALLATION KIT \/ 25FT \/ 16FT","options":["NO INSTALLATION KIT","25FT","16FT"],"price":355100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764050035,"title":"NO INSTALLATION KIT \/ 25FT \/ 25FT","option1":"NO INSTALLATION KIT","option2":"25FT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 25FT \/ 25FT","public_title":"NO INSTALLATION KIT \/ 25FT \/ 25FT","options":["NO INSTALLATION KIT","25FT","25FT"],"price":359800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764082803,"title":"NO INSTALLATION KIT \/ 25FT \/ 50FT","option1":"NO INSTALLATION KIT","option2":"25FT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 25FT \/ 50FT","public_title":"NO INSTALLATION KIT \/ 25FT \/ 50FT","options":["NO INSTALLATION KIT","25FT","50FT"],"price":382400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764115571,"title":"NO INSTALLATION KIT \/ 50FT \/ NO INSTALLATION KIT","option1":"NO INSTALLATION KIT","option2":"50FT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 50FT \/ NO INSTALLATION KIT","public_title":"NO INSTALLATION KIT \/ 50FT \/ NO INSTALLATION KIT","options":["NO INSTALLATION KIT","50FT","NO INSTALLATION KIT"],"price":359000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764148339,"title":"NO INSTALLATION KIT \/ 50FT \/ 16FT","option1":"NO INSTALLATION KIT","option2":"50FT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 50FT \/ 16FT","public_title":"NO INSTALLATION KIT \/ 50FT \/ 16FT","options":["NO INSTALLATION KIT","50FT","16FT"],"price":377700,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764181107,"title":"NO INSTALLATION KIT \/ 50FT \/ 25FT","option1":"NO INSTALLATION KIT","option2":"50FT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 50FT \/ 25FT","public_title":"NO INSTALLATION KIT \/ 50FT \/ 25FT","options":["NO INSTALLATION KIT","50FT","25FT"],"price":382400,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764213875,"title":"NO INSTALLATION KIT \/ 50FT \/ 50FT","option1":"NO INSTALLATION KIT","option2":"50FT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - NO INSTALLATION KIT \/ 50FT \/ 50FT","public_title":"NO INSTALLATION KIT \/ 50FT \/ 50FT","options":["NO INSTALLATION KIT","50FT","50FT"],"price":405100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764246643,"title":"25FT \/ NO INSTALLATION KIT \/ NO INSTALLATION KIT","option1":"25FT","option2":"NO INSTALLATION KIT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ NO INSTALLATION KIT \/ NO INSTALLATION KIT","public_title":"25FT \/ NO INSTALLATION KIT \/ NO INSTALLATION KIT","options":["25FT","NO INSTALLATION KIT","NO INSTALLATION KIT"],"price":348500,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764279411,"title":"25FT \/ NO INSTALLATION KIT \/ 16FT","option1":"25FT","option2":"NO INSTALLATION KIT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ NO INSTALLATION KIT \/ 16FT","public_title":"25FT \/ NO INSTALLATION KIT \/ 16FT","options":["25FT","NO INSTALLATION KIT","16FT"],"price":367200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764312179,"title":"25FT \/ NO INSTALLATION KIT \/ 25FT","option1":"25FT","option2":"NO INSTALLATION KIT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ NO INSTALLATION KIT \/ 25FT","public_title":"25FT \/ NO INSTALLATION KIT \/ 25FT","options":["25FT","NO INSTALLATION KIT","25FT"],"price":371900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764344947,"title":"25FT \/ NO INSTALLATION KIT \/ 50FT","option1":"25FT","option2":"NO INSTALLATION KIT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ NO INSTALLATION KIT \/ 50FT","public_title":"25FT \/ NO INSTALLATION KIT \/ 50FT","options":["25FT","NO INSTALLATION KIT","50FT"],"price":394600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764377715,"title":"25FT \/ 16FT \/ NO INSTALLATION KIT","option1":"25FT","option2":"16FT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 16FT \/ NO INSTALLATION KIT","public_title":"25FT \/ 16FT \/ NO INSTALLATION KIT","options":["25FT","16FT","NO INSTALLATION KIT"],"price":367200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764410483,"title":"25FT \/ 16FT \/ 16FT","option1":"25FT","option2":"16FT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 16FT \/ 16FT","public_title":"25FT \/ 16FT \/ 16FT","options":["25FT","16FT","16FT"],"price":385800,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764443251,"title":"25FT \/ 16FT \/ 25FT","option1":"25FT","option2":"16FT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 16FT \/ 25FT","public_title":"25FT \/ 16FT \/ 25FT","options":["25FT","16FT","25FT"],"price":390600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764476019,"title":"25FT \/ 16FT \/ 50FT","option1":"25FT","option2":"16FT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 16FT \/ 50FT","public_title":"25FT \/ 16FT \/ 50FT","options":["25FT","16FT","50FT"],"price":413200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764508787,"title":"25FT \/ 25FT \/ NO INSTALLATION KIT","option1":"25FT","option2":"25FT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 25FT \/ NO INSTALLATION KIT","public_title":"25FT \/ 25FT \/ NO INSTALLATION KIT","options":["25FT","25FT","NO INSTALLATION KIT"],"price":371900,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764541555,"title":"25FT \/ 25FT \/ 16FT","option1":"25FT","option2":"25FT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 25FT \/ 16FT","public_title":"25FT \/ 25FT \/ 16FT","options":["25FT","25FT","16FT"],"price":390600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764574323,"title":"25FT \/ 25FT \/ 25FT","option1":"25FT","option2":"25FT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 25FT \/ 25FT","public_title":"25FT \/ 25FT \/ 25FT","options":["25FT","25FT","25FT"],"price":395300,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764607091,"title":"25FT \/ 25FT \/ 50FT","option1":"25FT","option2":"25FT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 25FT \/ 50FT","public_title":"25FT \/ 25FT \/ 50FT","options":["25FT","25FT","50FT"],"price":418000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764639859,"title":"25FT \/ 50FT \/ NO INSTALLATION KIT","option1":"25FT","option2":"50FT","option3":"NO INSTALLATION KIT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 50FT \/ NO INSTALLATION KIT","public_title":"25FT \/ 50FT \/ NO INSTALLATION KIT","options":["25FT","50FT","NO INSTALLATION KIT"],"price":394600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764672627,"title":"25FT \/ 50FT \/ 16FT","option1":"25FT","option2":"50FT","option3":"16FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 50FT \/ 16FT","public_title":"25FT \/ 50FT \/ 16FT","options":["25FT","50FT","16FT"],"price":413200,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764705395,"title":"25FT \/ 50FT \/ 25FT","option1":"25FT","option2":"50FT","option3":"25FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 50FT \/ 25FT","public_title":"25FT \/ 50FT \/ 25FT","options":["25FT","50FT","25FT"],"price":418000,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":43079764738163,"title":"25FT \/ 50FT \/ 50FT","option1":"25FT","option2":"50FT","option3":"50FT","sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bravo Milano Series 3-Zone Ductless Mini Split AC \u0026 Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026 Cooling - 25FT \/ 50FT \/ 50FT","public_title":"25FT \/ 50FT \/ 50FT","options":["25FT","50FT","50FT"],"price":440600,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-06_c12fc3bf-bb6d-46f1-9119-e553205ecf4a.png?v=1748016138","\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-01_276eef56-5983-43cc-905c-8e920adea947.png?v=1748016138","\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-02_4677517d-85ce-49b9-ba17-14590dc070f2.png?v=1748016138","\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-11_e8560409-d43b-45fe-886f-e25647891c65.png?v=1748016138","\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-12_5529bae6-94a1-454e-a064-95fcec806d88.png?v=1748016139","\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-13_393c42b9-0509-44c3-9ca3-ac9b0542178a.png?v=1748016139","\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-14_85330f91-167c-48ba-8f69-91d8c1ead7fd.png?v=1748016138"],"featured_image":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-06_c12fc3bf-bb6d-46f1-9119-e553205ecf4a.png?v=1748016138","options":["24,000 BTU Installation Kit","9,000 BTU Installation Kit - 1","9,000 BTU Installation Kit - 2"],"media":[{"alt":null,"id":29657624936563,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2303,"width":2303,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-06_c12fc3bf-bb6d-46f1-9119-e553205ecf4a.png?v=1748016138"},"aspect_ratio":1.0,"height":2303,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-06_c12fc3bf-bb6d-46f1-9119-e553205ecf4a.png?v=1748016138","width":2303},{"alt":null,"id":29657624969331,"position":2,"preview_image":{"aspect_ratio":0.998,"height":2300,"width":2295,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-01_276eef56-5983-43cc-905c-8e920adea947.png?v=1748016138"},"aspect_ratio":0.998,"height":2300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-01_276eef56-5983-43cc-905c-8e920adea947.png?v=1748016138","width":2295},{"alt":null,"id":29657625002099,"position":3,"preview_image":{"aspect_ratio":0.998,"height":2300,"width":2295,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-02_4677517d-85ce-49b9-ba17-14590dc070f2.png?v=1748016138"},"aspect_ratio":0.998,"height":2300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-02_4677517d-85ce-49b9-ba17-14590dc070f2.png?v=1748016138","width":2295},{"alt":null,"id":29657625034867,"position":4,"preview_image":{"aspect_ratio":0.998,"height":2300,"width":2295,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-11_e8560409-d43b-45fe-886f-e25647891c65.png?v=1748016138"},"aspect_ratio":0.998,"height":2300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-11_e8560409-d43b-45fe-886f-e25647891c65.png?v=1748016138","width":2295},{"alt":null,"id":29657625067635,"position":5,"preview_image":{"aspect_ratio":0.998,"height":2300,"width":2295,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-12_5529bae6-94a1-454e-a064-95fcec806d88.png?v=1748016139"},"aspect_ratio":0.998,"height":2300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-12_5529bae6-94a1-454e-a064-95fcec806d88.png?v=1748016139","width":2295},{"alt":null,"id":29657625100403,"position":6,"preview_image":{"aspect_ratio":0.998,"height":2300,"width":2295,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-13_393c42b9-0509-44c3-9ca3-ac9b0542178a.png?v=1748016139"},"aspect_ratio":0.998,"height":2300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-13_393c42b9-0509-44c3-9ca3-ac9b0542178a.png?v=1748016139","width":2295},{"alt":null,"id":29657625133171,"position":7,"preview_image":{"aspect_ratio":0.998,"height":2300,"width":2295,"src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-14_85330f91-167c-48ba-8f69-91d8c1ead7fd.png?v=1748016138"},"aspect_ratio":0.998,"height":2300,"media_type":"image","src":"\/\/southminisplits.com\/cdn\/shop\/files\/BarvaoMilano-14_85330f91-167c-48ba-8f69-91d8c1ead7fd.png?v=1748016138","width":2295}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch1 dir=\"ltr\"\u003e\u003ca href=\"https:\/\/southminisplits.com\/pages\/contact\"\u003e\u003cspan\u003eCLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS\u003c\/span\u003e\u003c\/a\u003e\u003c\/h1\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"tel:(737)%20738-6329\"\u003e\u003cspan\u003eCLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003ch1 dir=\"ltr\"\u003eBravo Milano Series 3-Zone Ductless Mini Split AC \u0026amp; Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating \u0026amp; Cooling\u003c\/h1\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cbr\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eBRAVO - More than a compliment!\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cbr\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eThe Bravo Milano Multi-Zone Mini Split Ceiling Cassette System offers a powerful and discreet climate control solution for residential or light commercial spaces. Available in a range of indoor unit capacities—9K, 12K, 18K, and 24K Btu\/h—this system is ideal for multi-room installations where ceiling-mounted airflow is preferred.\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eEach ceiling cassette unit is designed to deliver uniform air distribution throughout the room while maintaining a low-profile appearance that blends seamlessly with your ceiling. The system automatically adjusts heating and cooling based on room conditions to maintain consistent comfort.\u003c\/span\u003e\u003c\/h3\u003e\n\u003ch3 dir=\"ltr\"\u003e\n\u003cspan\u003eEquipped with a user-friendly SMART APP, you can conveniently control temperature, mode, and fan settings from any compatible smart device. With a SEER2 rating of up to 24, the Bravo Milano Ceiling Cassette Mini Split system offers an energy-efficient, quiet, and flexible solution to keep your space comfortable all year long.\u003c\/span\u003e\u003cb\u003e\u003c\/b\u003e\n\u003c\/h3\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eWhat's Included\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003e2X Indoor Units BRV-M09CT-230VI \u003c\/strong\u003e(9,000 BTU 230V Bravo Milano Indoor Ceiling Cassette Unit)\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eIndoor Units BRV-M24CT-230VI \u003c\/strong\u003e(24,000 BTU 230V Bravo Milano Indoor Ceiling Cassette Unit)\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cstrong\u003eOutdoor Unit \u003cspan data-sheets-root=\"1\"\u003eBRV-M30-230VO\u003c\/span\u003e\u003c\/strong\u003e (30,000 BTU 230V Bravo Milano Outdoor Condenser Unit)\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eOptional, Pre-Flared 99% Copper Installation Kit (16ft, 25ft or 50ft.) MUST BE SELECTED ABOVE.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eWireless Remote Controls\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eInstallation Manual\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eUser’s Manual\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eManufacturer Warranty\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eKey Features:\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eRemote Control Included\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSmart App: Connect from anywhere\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eComfortable Sleep Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSuper Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eEco Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eMultiple Fan Speeds\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eTimer\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSleep Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eLouver Auto Swing\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eAnti Mildew Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eLED Display\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eImportant\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eAll units must be installed by a licensed HVAC professional for the warranty to be valid\u003c\/span\u003e\u003cspan\u003e. \u003c\/span\u003e\u003cspan\u003eRegistration is required within 60 days of installation and can be completed online or by phone.\u003c\/span\u003e\u003cspan\u003e \u003c\/span\u003e\u003cspan\u003eThe installation kit is necessary for the system to function. \u003c\/span\u003e\u003cspan\u003eThis kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\n\u003cspan\u003eOther Multi-Zone Bravo Milano Ceiling Cassette Systems\u003c\/span\u003e\u003cspan\u003e\u003cbr\u003e\u003c\/span\u003e\n\u003c\/h2\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"187\"\u003e \u003ccol width=\"165\"\u003e \u003ccol width=\"143\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003e3 Zone\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003eBRV-M30-230VO\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e18K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e24K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e18K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e9K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e24K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e12K\u003c\/td\u003e\n\u003ctd\u003e18K\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cbr\u003e\u003c\/h2\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eWarranty\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003e3 year compressor limited warranty\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003e3 year parts limited warranty (must be installed by a licensed HVAC technician)\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eTechnical Information\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch3 dir=\"ltr\"\u003e\n\u003cspan\u003eIndoor Unit Specifications:\u003c\/span\u003e\u003cspan\u003e BRV-M09CT-230VI\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"187\"\u003e \u003ccol width=\"165\"\u003e \u003ccol width=\"143\"\u003e \u003ccol width=\"176\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003eIndoor Model\u003c\/td\u003e\n\u003ctd\u003eBRV-M09CT-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003ePanel Model Number\u003c\/td\u003e\n\u003ctd\u003eBRV-PN9-18CT\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eV-Ph-Hz\u003c\/td\u003e\n\u003ctd\u003e208-230-1-60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eCapacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e9,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003eRated Capacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e10,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eMax Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eIndoor Air Flow\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e383\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eIndoor Noise Level\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eIndoor Unit\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e22.44x22.44x10.24\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e28.35x25.59x11.42\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e30.9\/37.5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003ePanel\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e25.59x25.59x2.17\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e27.95x27.95x3.15\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e4.9\/8.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRefrigerant Piping\u003c\/td\u003e\n\u003ctd\u003eLiquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e1\/4\" \/ 3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eOperation Temperature Range\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e60.8-89.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003ch3 dir=\"ltr\"\u003e\n\u003cspan\u003eIndoor Unit Specifications:\u003c\/span\u003e\u003cspan\u003e BRV-M24CT-230VI\u003c\/span\u003e\n\u003c\/h3\u003e\n\u003ctable xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\" cellspacing=\"0\" cellpadding=\"0\" dir=\"ltr\" border=\"1\" data-sheets-root=\"1\" data-sheets-baot=\"1\"\u003e\n\u003ccolgroup\u003e\n\u003ccol width=\"187\"\u003e\n\u003ccol width=\"165\"\u003e\n\u003ccol width=\"143\"\u003e\n\u003ccol width=\"176\"\u003e\n\u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003eIndoor Model\u003c\/td\u003e\n\u003ctd\u003eBRV-M24CT-230VI\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"3\"\u003ePanel Model Number\u003c\/td\u003e\n\u003ctd\u003eBRV-PN24CT\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eV-Ph-Hz\u003c\/td\u003e\n\u003ctd\u003e208-230-1-60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCooling\u003c\/td\u003e\n\u003ctd\u003eCapacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e24,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHeating\u003c\/td\u003e\n\u003ctd\u003eRated Capacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e24,000\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eMax Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e5\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Air Flow\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e824\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eIndoor Noise Level\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003e47\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\" colspan=\"1\"\u003e\n\u003cdiv\u003eIndoor Unit\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e33.07x33.07x9.69\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e35.83x35.83x12.20\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e52.9\/61.7\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"3\" colspan=\"1\"\u003e\n\u003cdiv\u003ePanel\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e37.40x37.40x2.17\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e39.37x39.37x3.94\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet\/Gross Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e11.7\/17.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eRefrigerant Piping\u003c\/td\u003e\n\u003ctd\u003eLiquid Side\/Gas Side\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e1\/4\" \/ 5\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd rowspan=\"1\" colspan=\"2\"\u003eOperation Temperature Range\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e60.8~89.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch3 dir=\"ltr\"\u003e\u003cspan\u003eOutdoor Unit Specifications: \u003cspan data-sheets-root=\"1\"\u003eBRV-M30-230VO\u003c\/span\u003e\u003c\/span\u003e\u003c\/h3\u003e\n\u003ctable data-sheets-baot=\"1\" data-sheets-root=\"1\" border=\"1\" dir=\"ltr\" cellpadding=\"0\" cellspacing=\"0\" xmlns=\"http:\/\/www.w3.org\/1999\/xhtml\"\u003e\n\u003ccolgroup\u003e \u003ccol width=\"187\"\u003e \u003ccol width=\"165\"\u003e \u003ccol width=\"143\"\u003e \u003ccol width=\"176\"\u003e \u003c\/colgroup\u003e\n\u003ctbody\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"3\" rowspan=\"1\"\u003eOutdoor Model\u003c\/td\u003e\n\u003ctd\u003eBRV-M30-230VO\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003ePower Supply\u003c\/td\u003e\n\u003ctd\u003eV-Ph-Hz\u003c\/td\u003e\n\u003ctd\u003e208-230-1-60\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eCooling\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eCapacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e30,000 (6,000-38,200)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eEER2\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e3.66\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eSEER2\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e23\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eHeating\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eRated Capacity\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e30,000 (6,300-36,000)\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eHSPF2-4\u003c\/td\u003e\n\u003ctd\u003eBtu\/h\u003c\/td\u003e\n\u003ctd\u003e10\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eCOP2\u003c\/td\u003e\n\u003ctd\u003eW\/W\u003c\/td\u003e\n\u003ctd\u003e3.9\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMinimum\u003c\/td\u003e\n\u003ctd\u003eCircuit Ampacity\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eMax Fuse\u003c\/td\u003e\n\u003ctd\u003eA\u003c\/td\u003e\n\u003ctd\u003e40\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eOutdoor Air Flow\u003c\/td\u003e\n\u003ctd\u003eCFM\u003c\/td\u003e\n\u003ctd\u003e2353\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor Side\u003c\/td\u003e\n\u003ctd\u003eNoise Level\u003c\/td\u003e\n\u003ctd\u003edB(A)\u003c\/td\u003e\n\u003ctd\u003e58\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"3\"\u003e\n\u003cdiv\u003eOutdoor Unit\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eDimensions (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e41.18x17.91x31.81\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003ePacking (WxDxH)\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e43.50x19.49x34.84\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eNet Weight\u003c\/td\u003e\n\u003ctd\u003elbs.\u003c\/td\u003e\n\u003ctd\u003e148.8\/157.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eRefrigerant Type\/Volume\u003c\/td\u003e\n\u003ctd\u003eOZ\u003c\/td\u003e\n\u003ctd\u003eR32\/67.0\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"2\" rowspan=\"1\"\u003eRefrigerant Precharge\u003c\/td\u003e\n\u003ctd\u003eft\u003c\/td\u003e\n\u003ctd\u003e24.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"2\"\u003e\n\u003cdiv\u003eRefrigerant Piping\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eLiquid Side \/ Gas Side\u003c\/td\u003e\n\u003ctd\u003ein\u003c\/td\u003e\n\u003ctd\u003e1\/4\" \/ 3\/8\"\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eMax Refrigerant Pipe Length\u003c\/td\u003e\n\u003ctd\u003eft\u003c\/td\u003e\n\u003ctd\u003e115\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd colspan=\"1\" rowspan=\"2\"\u003e\n\u003cdiv\u003eAmbient Tempeture\u003c\/div\u003e\n\u003c\/td\u003e\n\u003ctd\u003eOutdoor (Cooling)\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e-13~125.6\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003ctr\u003e\n\u003ctd\u003eOutdoor (Heating)\u003c\/td\u003e\n\u003ctd\u003e°F\u003c\/td\u003e\n\u003ctd\u003e-13-75.2\u003c\/td\u003e\n\u003c\/tr\u003e\n\u003c\/tbody\u003e\n\u003c\/table\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eCertifications\u003c\/span\u003e\u003c\/h2\u003e\n\u003ch2 dir=\"ltr\"\u003e\n\u003cspan\u003e\u003cimg height=\"81\" width=\"624\" src=\"https:\/\/lh7-rt.googleusercontent.com\/docsz\/AD_4nXcXfQneUCVex6CCTBAU16WrIVQrKKVc-a71NK6qRZcWWd02z4exZVUv5W1i6FNsBZBRX9-JZICZhYUCUFUFggLM-1qKjQPSPFbhvuMbv0uQ3Xui03vpjBcAB2EN5DujJfRSCsTfgQ?key=23P6FPiIZZlSdfulAKnb2w\"\u003e\u003c\/span\u003e\u003cspan\u003e\u003c\/span\u003e\n\u003c\/h2\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003ePerformance Data\/Features\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSleek matte finish\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eTurbo Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSilent Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eLED Display\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eHorizontal Auto Swing\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eTimer\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eComfortable Sleep Mode\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eMultiple Fan Speeds\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eSelf-Cleaning Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eFollow Me Function\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003eActivated Carbon Filter\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e \u003c\/p\u003e\n\u003chr\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003ch2 dir=\"ltr\"\u003e\u003cspan\u003eManuals \u0026amp; Downloads\u003c\/span\u003e\u003c\/h2\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M09CT-230VI\"\u003e\u003cspan\u003e9K BTU Indoor Unit General Manufacturing Information\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M12CT-230VI\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M18CT-230VI\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M18-230VO\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003cspan\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M24CT-230VI\"\u003e24K BTU Indoor Unit General Manufacturing Information\u003c\/a\u003e\u003c\/span\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M30-230VO\"\u003e\u003cspan\u003e30K BTU Outdoor Unit General Manufacturing Information\u003c\/span\u003e\u003c\/a\u003e\u003ca href=\"https:\/\/acbravo.com\/product\/BRV-M30-230VO\"\u003e\u003cspan\u003e\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/11iY7wATMm-Eu1dVA_UYOvUXoUnCsDgjw\/view?usp=drive_link\"\u003e\u003cspan\u003eBravo Milano Leaflet\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/1LUTYR7M_UrB7gqxy6isI0MRtFN1Xi7hC\/view?usp=drive_link\"\u003e\u003cspan\u003eOwners Manual\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp dir=\"ltr\"\u003e\u003ca href=\"https:\/\/drive.google.com\/file\/d\/1-ktVW8Fh-6jWBrKqXbMwpjLGjJ4XccH6\/view?usp=sharing\"\u003e\u003cspan\u003eInstallation Manual\u003c\/span\u003e\u003c\/a\u003e\u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e"}

3 Zone
BRV-M30-230VO
9K	9K	9K
9K	9K	12K
9K	9K	18K
9K	9K	24K
9K	12K	12K
9K	12K	18K
9K	12K	24K
12K	12K	12K
12K	12K	18K

Indoor Model			BRV-M09CT-230VI
Panel Model Number			BRV-PN9-18CT
Power Supply		V-Ph-Hz	208-230-1-60
Cooling	Capacity	Btu/h	9,000
Heating	Rated Capacity	Btu/h	10,000
Max Fuse		A	5
Indoor Air Flow		CFM	383
Indoor Noise Level		dB(A)	40
Indoor Unit	Dimensions (WxDxH)	in	22.44x22.44x10.24
	Packing (WxDxH)	in	28.35x25.59x11.42
	Net Weight	lbs.	30.9/37.5
Panel	Dimensions (WxDxH)	in	25.59x25.59x2.17
	Packing (WxDxH)	in	27.95x27.95x3.15
	Net/Gross Weight	lbs.	4.9/8.2
Refrigerant Piping	Liquid Side/Gas Side	in	1/4" / 3/8"
Operation Temperature Range		°F	60.8-89.6

Indoor Model			BRV-M24CT-230VI
Panel Model Number			BRV-PN24CT
Power Supply		V-Ph-Hz	208-230-1-60
Cooling	Capacity	Btu/h	24,000
Heating	Rated Capacity	Btu/h	24,000
Max Fuse		A	5
Indoor Air Flow		CFM	824
Indoor Noise Level		dB(A)	47
Indoor Unit	Dimensions (WxDxH)	in	33.07x33.07x9.69
	Packing (WxDxH)	in	35.83x35.83x12.20
	Net Weight	lbs.	52.9/61.7
Panel	Dimensions (WxDxH)	in	37.40x37.40x2.17
	Packing (WxDxH)	in	39.37x39.37x3.94
	Net/Gross Weight	lbs.	11.7/17.2
Refrigerant Piping	Liquid Side/Gas Side	in	1/4" / 5/8"
Operation Temperature Range		°F	60.8~89.6

Outdoor Model			BRV-M30-230VO
Power Supply		V-Ph-Hz	208-230-1-60
Cooling	Capacity	Btu/h	30,000 (6,000-38,200)
	EER2	Btu/h	3.66
	SEER2	Btu/h	23
Heating	Rated Capacity	Btu/h	30,000 (6,300-36,000)
	HSPF2-4	Btu/h	10
	COP2	W/W	3.9
Minimum	Circuit Ampacity	A	40
Max Fuse		A	40
Outdoor Air Flow		CFM	2353
Outdoor Side	Noise Level	dB(A)	58
Outdoor Unit	Dimensions (WxDxH)	in	41.18x17.91x31.81
	Packing (WxDxH)	in	43.50x19.49x34.84
	Net Weight	lbs.	148.8/157.6
Refrigerant Type/Volume		OZ	R32/67.0
Refrigerant Precharge		ft	24.6
Refrigerant Piping	Liquid Side / Gas Side	in	1/4" / 3/8"
Refrigerant Piping	Max Refrigerant Pipe Length	ft	115
Ambient Tempeture	Outdoor (Cooling)	°F	-13~125.6
Ambient Tempeture	Outdoor (Heating)	°F	-13-75.2

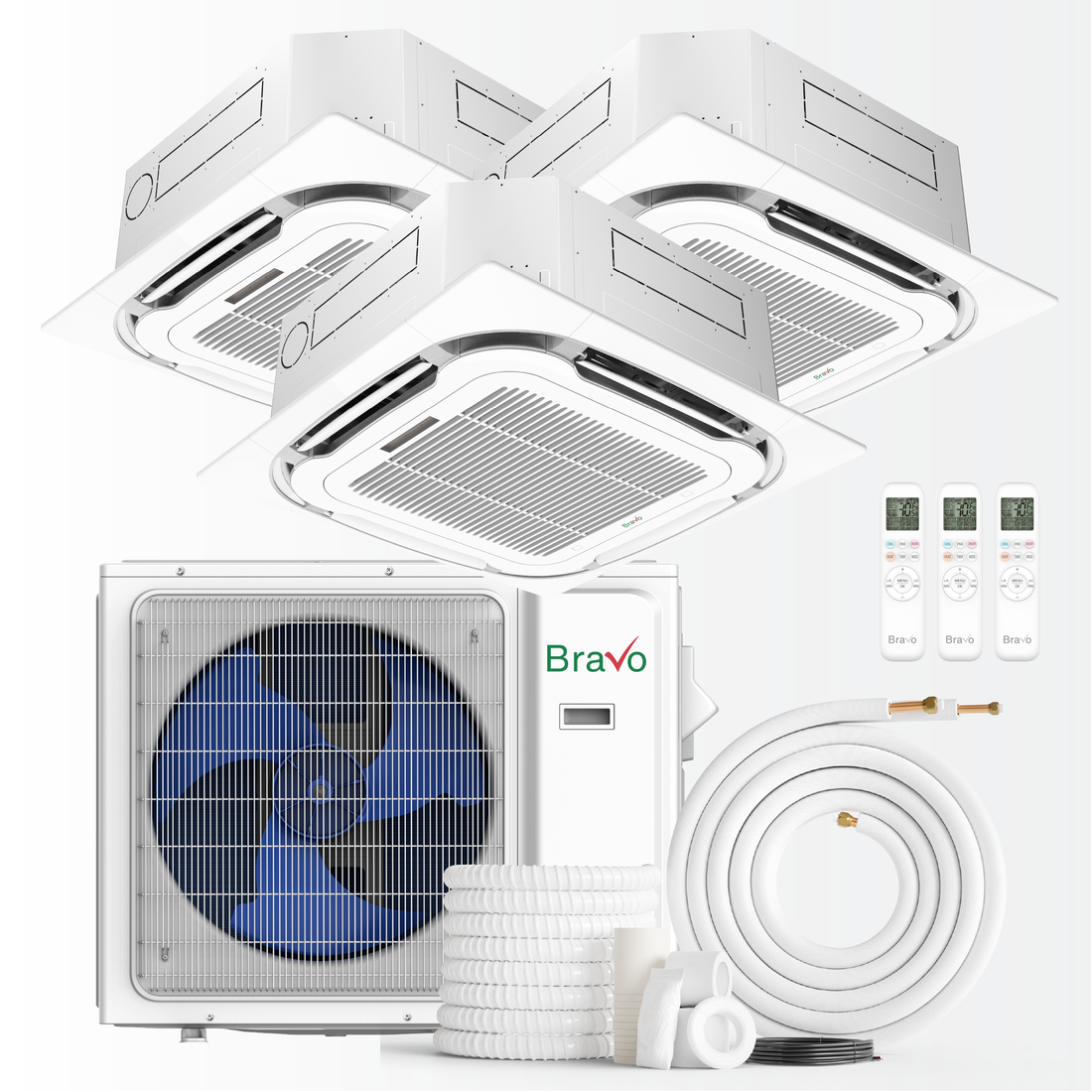

Bravo Milano Series 3-Zone Ductless Mini Split AC & Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating & Cooling

Bravo Milano Series 3-Zone Ductless Mini Split AC & Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating & Cooling

Bravo Milano Series 3-Zone Ductless Mini Split AC & Heat Pump – 30,000 BTU (2.5 Ton), Ceiling Cassette Units (9K+9K+24K BTU), Inverter Technology, 230V, Heating & Cooling

BRAVO - More than a compliment!

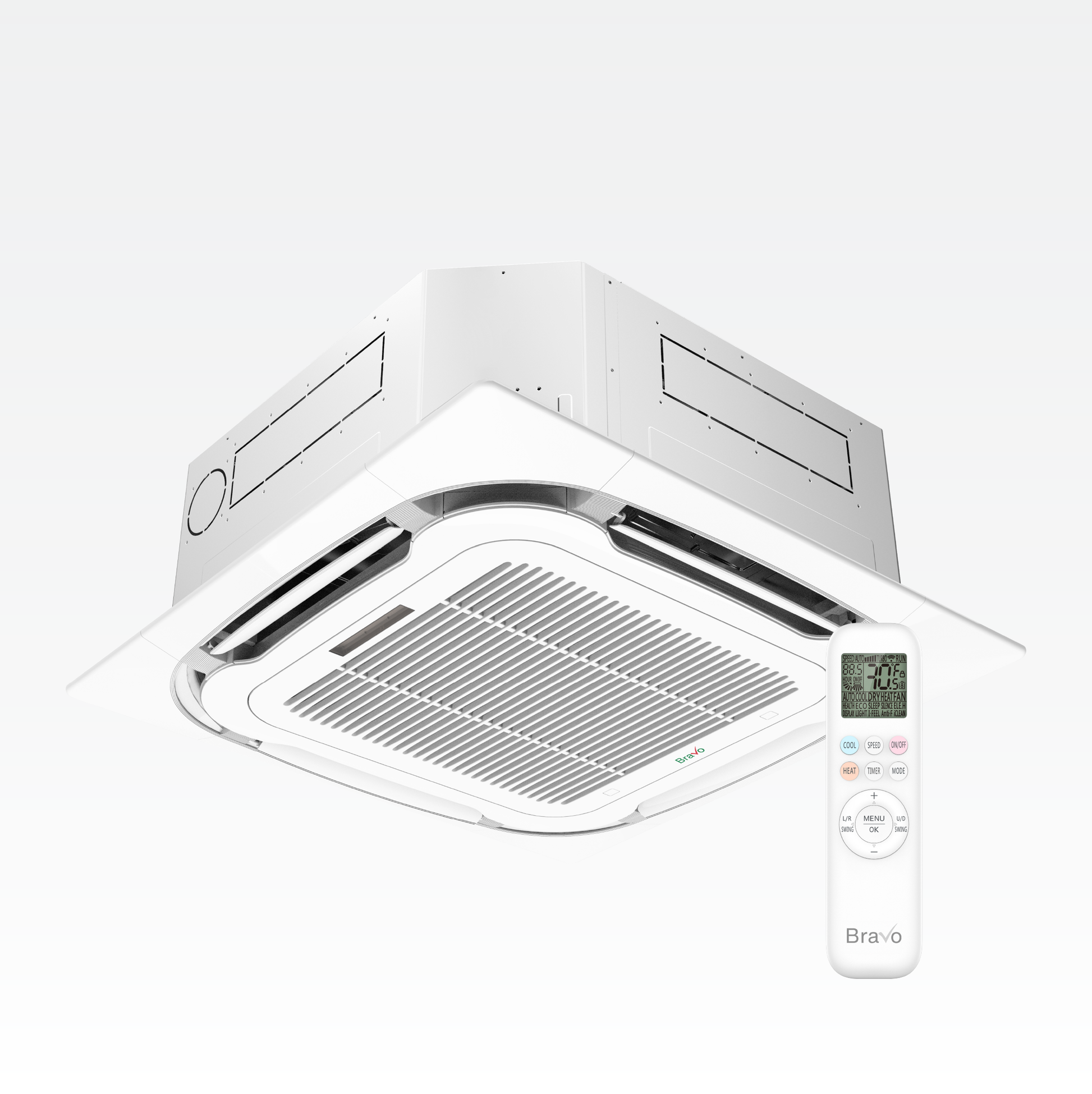

Each ceiling cassette unit is designed to deliver uniform air distribution throughout the room while maintaining a low-profile appearance that blends seamlessly with your ceiling. The system automatically adjusts heating and cooling based on room conditions to maintain consistent comfort.

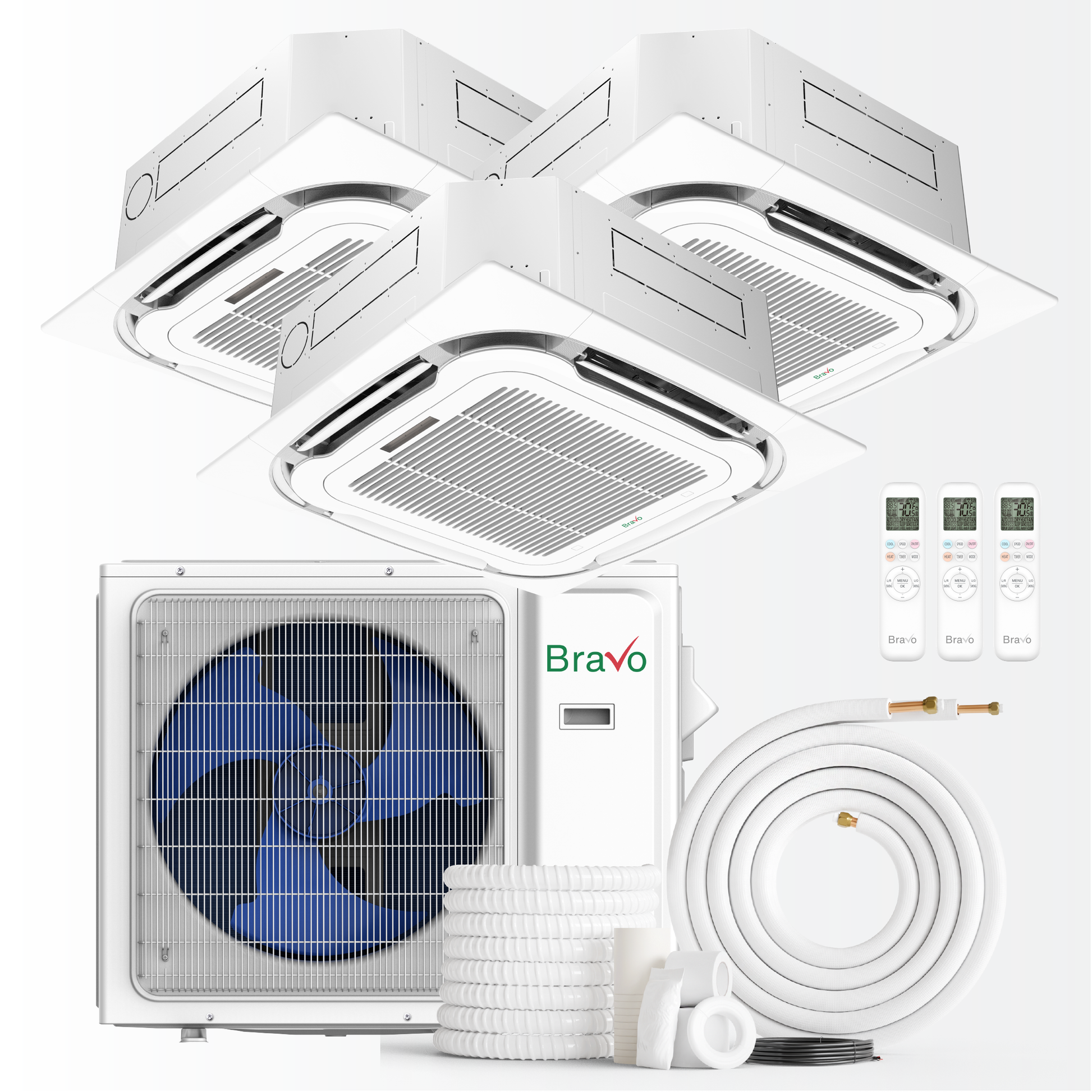

What's Included

Key Features:

Important

Other Multi-Zone Bravo Milano Ceiling Cassette Systems

Warranty

Technical Information

Indoor Unit Specifications: BRV-M09CT-230VI

Indoor Unit Specifications: BRV-M24CT-230VI

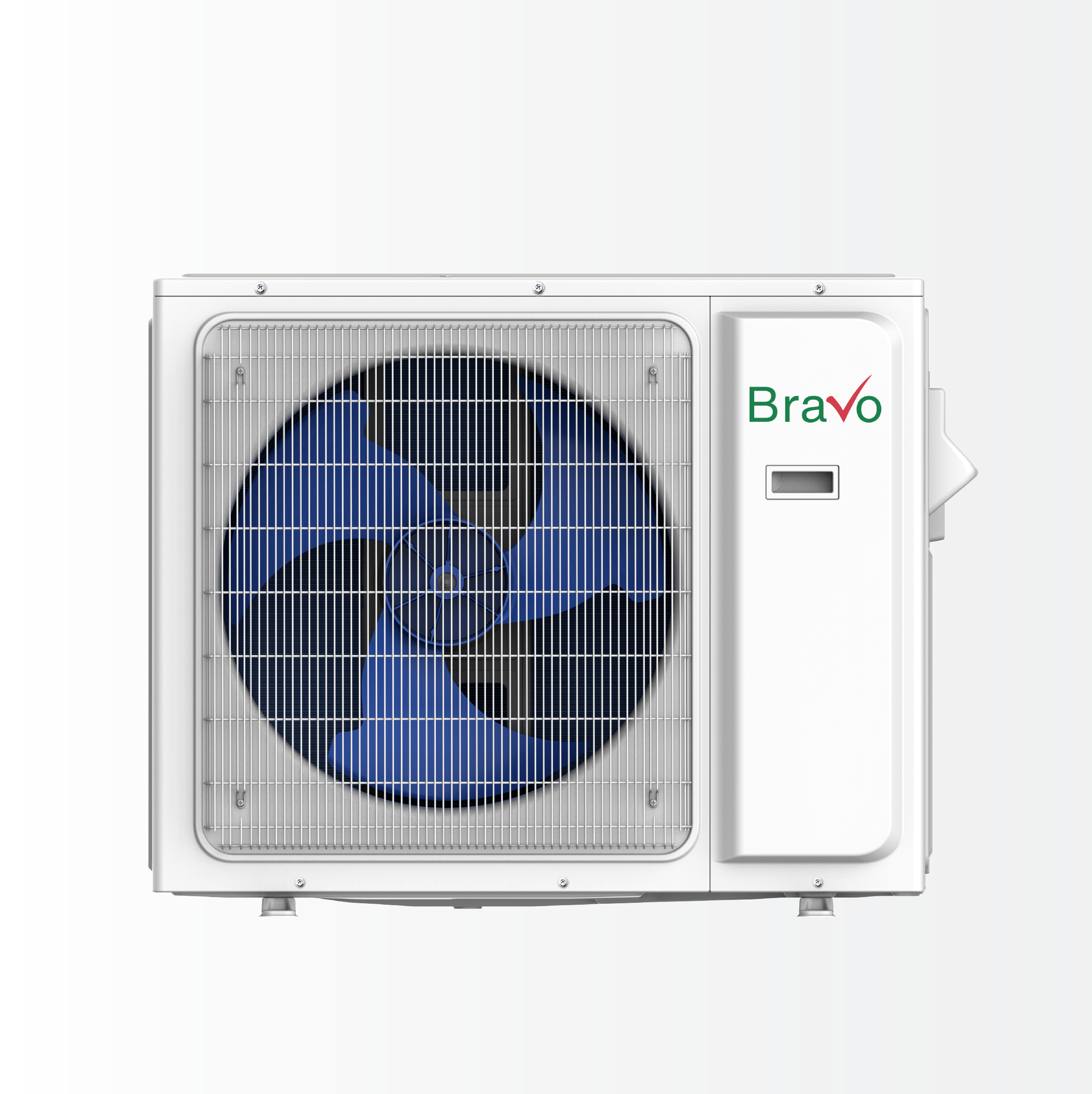

Outdoor Unit Specifications: BRV-M30-230VO

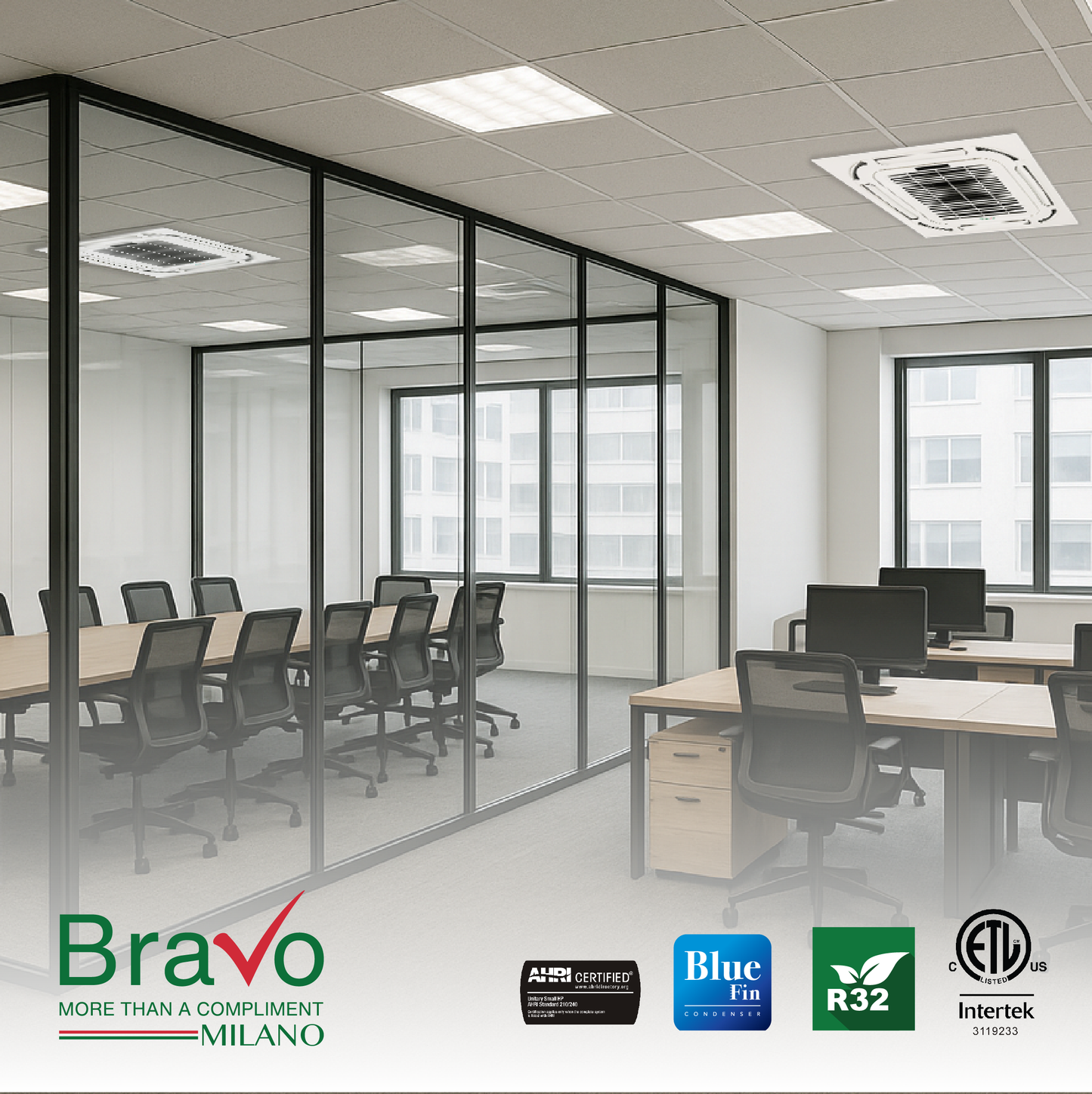

Certifications

Performance Data/Features

Manuals & Downloads

Brackets and Concrete Pads

Line covers

Delivery Map

Shipping & Delivery

Delivery Map

IMPORTANT DELIVERY INFORMATION

SMALLWARES INFORMATION

INSPECT YOUR MERCHANDISE BEFORE SIGNING

SMS Delivery Notifications
