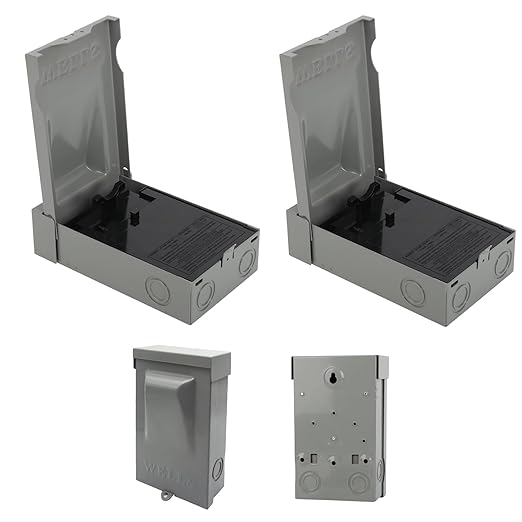

Armbridge 60 AMP Fusible Disconnect Box - Metallic
$29.00
In StockShips in 1-2 business days
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ARMBRIDGE
- Support Number
- (800) 977-0722
- Official Site
- ARMBRIDGE Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
Armbridge — 60 Amp Fusible Disconnect Box (Metallic)
Reliable power isolation for HVAC outdoor units. Metallic enclosure designed for long-term outdoor durability and service access.
60A 240V 1-Phase 2-Pole 3-Wire Fusible Metallic enclosure Residential + light commercial
60 Amp Fusible AC Disconnect
SKU: AB-DIS60-F
Overview
Designed for air conditioning disconnect applications in residential and light commercial installations. Provides a dedicated means of disconnect for servicing and maintenance.
Key Features
- 60 Amp fusible disconnect: Built for 60A HVAC disconnect applications using a fused configuration.
- Durable metallic enclosure: Enduring durability designed to stand strong against harsh weather conditions for sustained performance.
- Service-friendly safety: Supports safe power isolation during routine service and maintenance.
- Installation-ready design: Engineered to streamline installation by a qualified electrician, minimizing time and labor.
- Application fit: For residential and light commercial air conditioning units.
Electrical Ratings
| Main ampere rating | Voltage | Phase | Poles | Wires |
|---|---|---|---|---|
| 60 AMP | 240V | 1 Phase | 2 Pole | 3 Wire |
Dimensions & Weight
| Box size (in) | Net weight | Gross weight |
|---|---|---|
| 5.63 × 2.67 × 9.13 | 2.98 lb | 3.1 lb |
Description
The Armbridge 60 Amp Fusible Disconnect Box is a metallic, outdoor-capable disconnect solution for HVAC equipment requiring a 60A disconnect. It’s designed for dependable service access and power isolation during maintenance when installed by a qualified electrician.
Note: Always follow local electrical code requirements and verify equipment MCA/MOP and disconnect sizing prior to installation.
FAQs
Where is this commonly used?
As an air conditioning disconnect for residential and light commercial HVAC outdoor units, providing a local disconnect for service.
Who should install it?
Installation should be performed by a qualified electrician and in accordance with local code requirements.
Is it suitable for outdoor installations?
The metallic enclosure is designed for long-term outdoor use and durability in harsh weather conditions.
