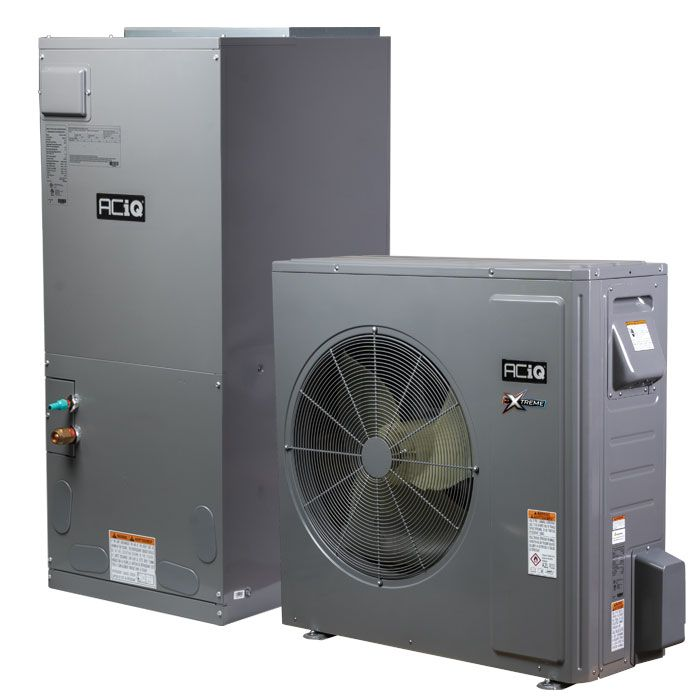

ACiQ 2 Ton (24,000 BTU) 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32

Name: ACiQ 2 Ton (24,000 BTU) 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32
Brand: ACiQ
SKU: ACIQ-24-HP32 + ACIQ-24-AH32

SKU: ACIQ-24-HP32 + ACIQ-24-AH32

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$3,951.00

Sale Sold out

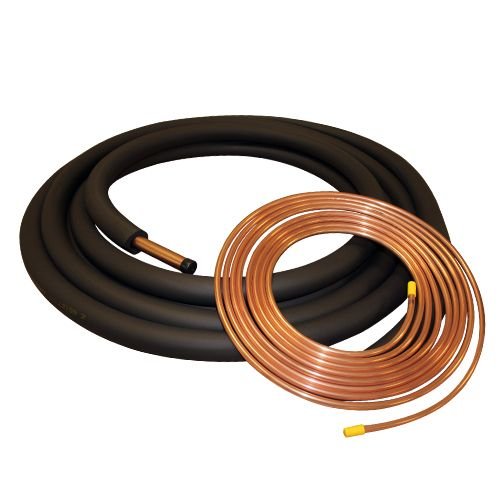

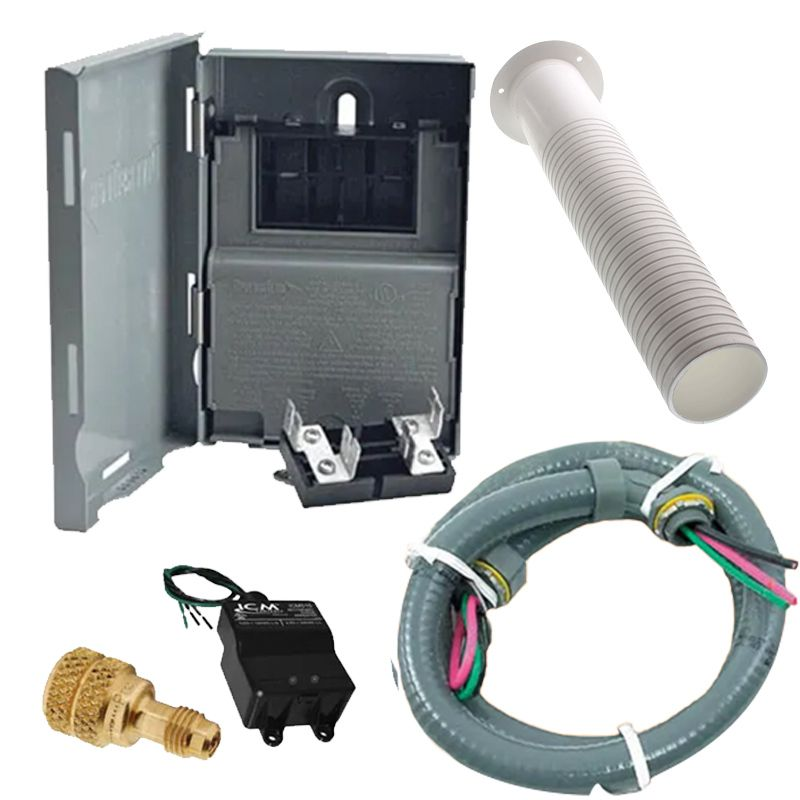

Size No Installation Kit 50FT Installation Kit

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

ACiQ 2 Ton 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32

System Overview

The ACiQ-24-HP32 / ACiQ-24-AH32 system features advanced inverter technology with R32 refrigerant, delivering exceptional efficiency and performance in both heating and cooling modes. This system combines cutting-edge technology with eco-friendly operation for year-round comfort.

Key Features:

Variable output from 12,000 BTU to 30,000 BTU based on demand
Inverter heat pump system designed for ducted applications
Reliable cooling performance from 5°F to 129°F outdoor temperatures
Efficient heating operation from -22°F to 75°F outdoor temperatures
Gold Fin condenser coil coating for enhanced durability
Quiet operation even during demanding workloads
Eco-friendly R32 refrigerant

Important

Professional installation by a licensed HVAC technician is required for warranty validation. Registration must be completed within 60 days of installation either online or by phone.

Advanced Technology

Learning System

The system features advanced sensors that monitor indoor and outdoor air temperature, system performance, duct pressure, and refrigerant temperature. During initial startup, it enters a learning mode to optimize future operation.

Inverter Technology

The inverter converts AC power to DC, allowing the compressor to adjust speed dynamically. This enables the system to self-adjust BTU output based on demand for optimal efficiency.

Extreme Heat Technology

Provides efficient heating even in ambient temperatures as low as -22°F, ensuring consistent comfort in harsh winter conditions.

Complete System Specifications

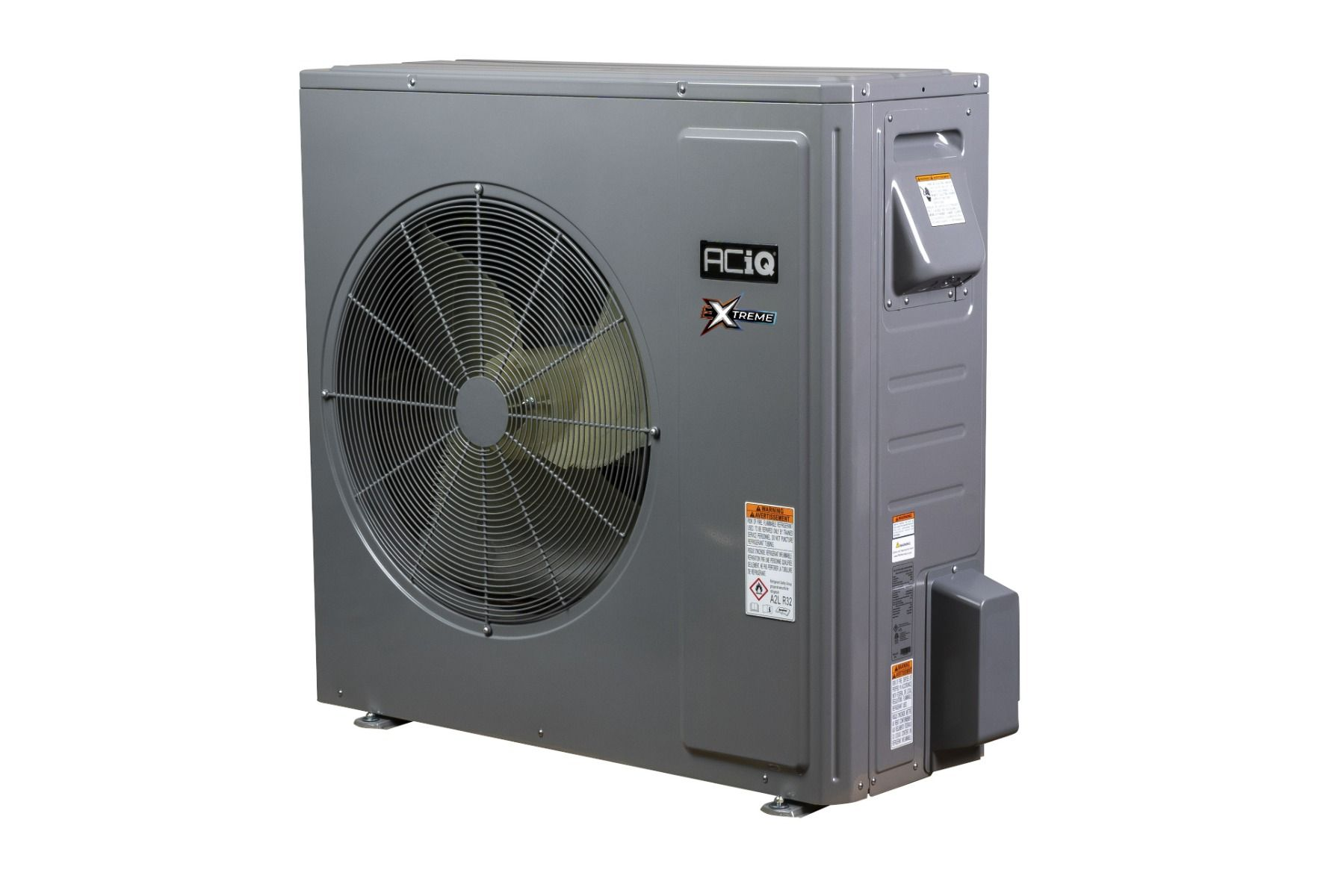

Outdoor Unit: ACiQ 2 Ton 18 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series | R32

SKU	ACIQ-24-HP32
Weight	144.400000 lbs
Manufacturer	ACiQ
Product Features	Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser
HSPF2	10
Cooling BTU	24,000 BTU
Heating BTU	24,000 BTU
Maximum CFM	3,176
Decibel Level (dBA)	70 (Max)
Electric Heat	Heat Pump
Refrigerant	R32
SEER2	18
Condenser Stages	Variable Speed
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	3/4"
Electrical	208/230V 1 Phase 60 Hz
Tonnage	2 Ton
BTU/Tonnage	24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating	-22°F～75°F
Min/Max Outdoor Temp for Cooling	5°F～129°F
Zone Compatibility	Single Zone
Dimensions (H×W×D)	37.5" × 39" × 14.57"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Submittal AHRI Certificate with ACIQ-24-AH32 Owner's Manual Technical Sales Guide Warranty Information You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING

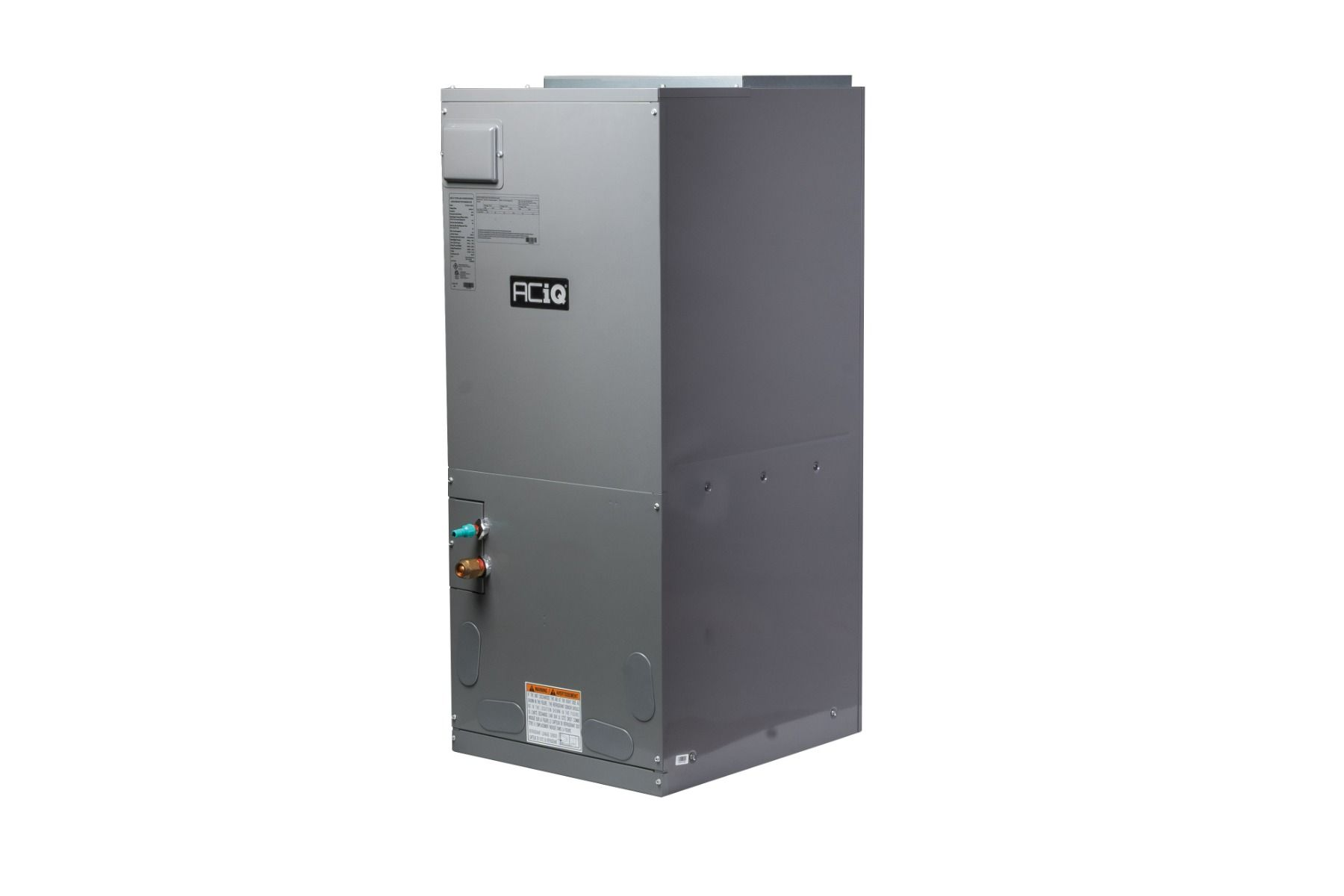

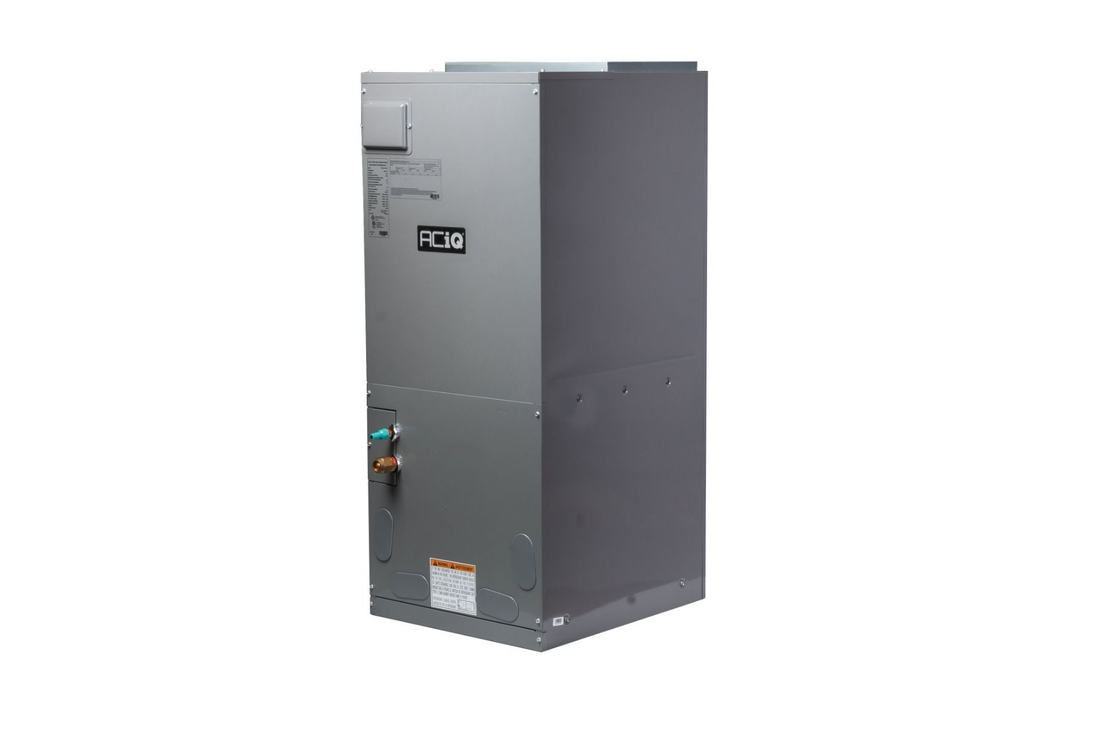

Indoor Unit: 2 Ton ACiQ Central Air Handler | R32

SKU	ACIQ-24-AH32
Weight	144.400000 lbs
AHRI Certificate Number	215387238
Manufacturer	ACiQ
HSPF2	10.0
Cooling BTU	24,000 BTU
Heating BTU	24,000 BTU
Maximum CFM	760
Decibel Level (dBA)	60 (Max)
Electric Heat	Heat Pump
Refrigerant	R32
Liquid Line	3/8"
Suction Line	3/4"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	15
Min. Breaker Size	5
Tonnage Bundle	3.5 Ton
BTU/Tonnage	42,000 BTU/3.5 Ton
Mini Split Type	Multi-Positional
Min/Max Outdoor Temp for Heating	5°F~75°F
Min/Max Outdoor Temp for Cooling	5°F-118°F
Zone Compatibility	Single Zone
Dimensions (H×W×D)	43.5" × 21.25" × 21.25"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Owner's Manual Warranty Information You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING

System Overview

Key Features:

Variable output from 12,000 BTU to 30,000 BTU based on demand
Inverter heat pump system designed for ducted applications
Reliable cooling performance from 5°F to 129°F outdoor temperatures
Efficient heating operation from -22°F to 75°F outdoor temperatures
Gold Fin condenser coil coating for enhanced durability
Quiet operation even during demanding workloads
Eco-friendly R32 refrigerant

Manuals & Downloads

Safety Information: PROPOSITION 65 WARNING

Performance Benefits

Variable capacity operation eliminates temperature swings
Precise humidity control in cooling mode
Consistent airflow for even temperature distribution
Quiet operation for minimal disturbance
Energy efficient operation reduces utility costs

Ideal Applications

Residential homes with existing ductwork
Manufactured and mobile homes
Climate zones with extreme temperature variations
Homeowners seeking energy efficient solutions
Applications requiring both heating and cooling
