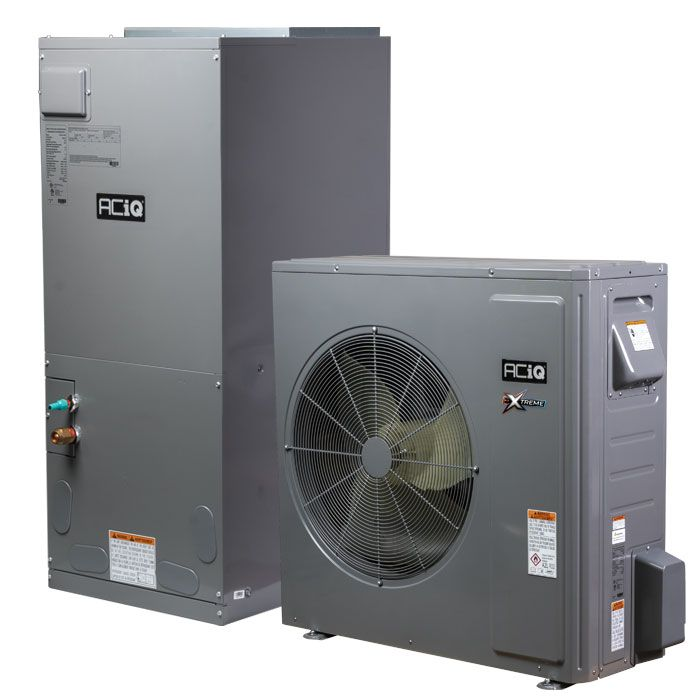

ACIQ 3 Ton 18 SEER2 High Efficiency Heat Pump Split System - R32 Inverter - Multi-Positional
$4,899.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 36K room setups:
- Open floor plans
- Large garages
- Light commercial
- Multi-room areas
- 36,000 BTU
- Cooling
- 36,000 BTU
- Heating
- See specs
- Quiet Inside
- Efficient
- High Efficiency

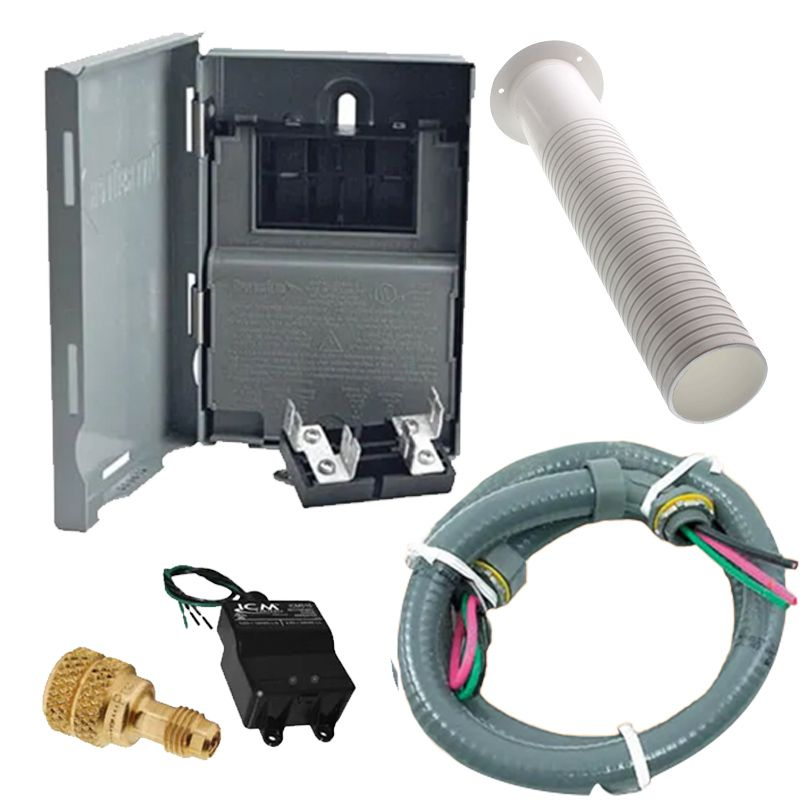

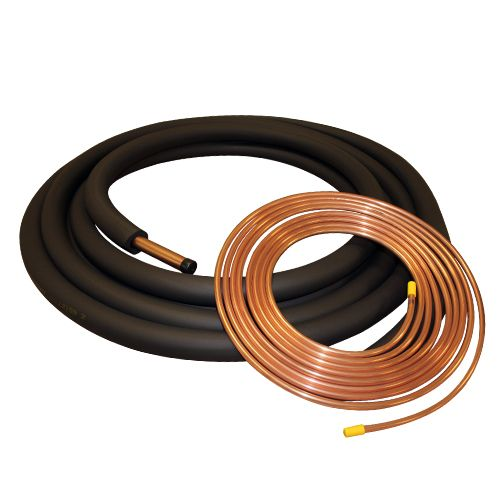

Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACIQ 3 Ton 18 SEER2 High Efficiency Heat Pump Split System - R32 Inverter - Multi-Positional
Product Overview

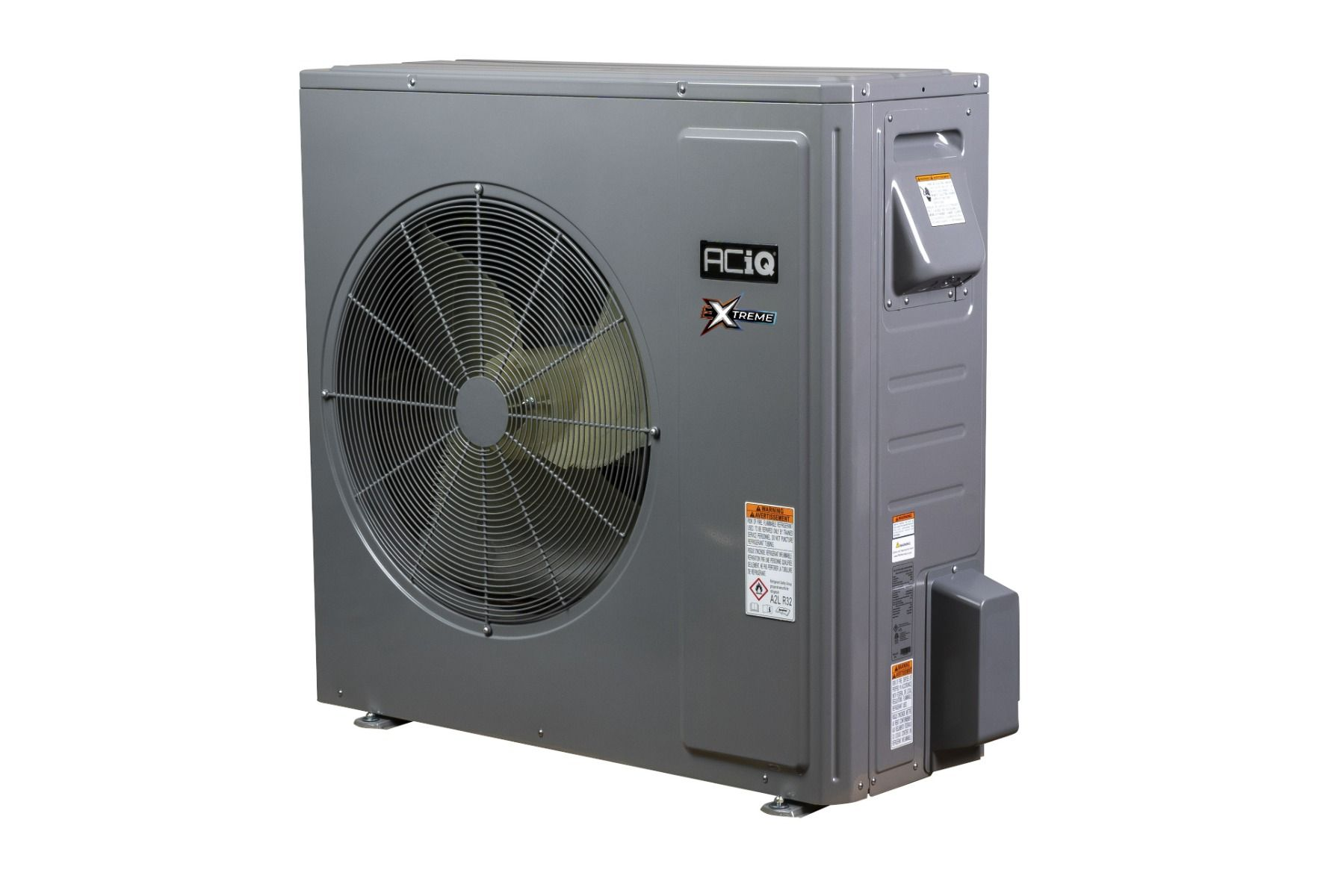

ACIQ 3 Ton 18 SEER2 High Efficiency Heat Pump Condenser - R32 Inverter
OVERVIEW
Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This dynamic operation enables the system to self-adjust BTU output based on demand, ensuring optimal performance as weather conditions change.
Extreme Heat Technology - The ACIQ-36-HP32 features advanced extreme heat technology, allowing it to provide efficient heating even in ambient temperatures as low as -22°F. This capability ensures consistent comfort in the harshest winter conditions.
Learning System - Equipped with a multitude of sensors, this system monitors indoor and outdoor air temperatures, system performance, duct pressure, and refrigerant temperature. During its initial learning mode, the system gathers data to optimize future operation, delivering maximum efficiency and comfort.
Size for Heat - The self-adjusting inverter design eliminates the need to oversize for heating. Unlike traditional heat pumps that can leave your home muggy in the summer, this system automatically adjusts output to match your needs, maintaining a perfect balance for heating and cooling.
QUICK FACTS
- 18,000 BTU to 37,000 BTU variable output based on demand
- Inverter heat pump system for use with ductwork
- Efficient cooling from 5°F to 129°F outdoor temperatures
- Extreme heating down to -22°F outdoor temperatures
- Durable gold fin condenser coil coating
- Quiet operation at even the highest workloads
- Eco-friendly R32 refrigerant
36,000 BTU, 18 SEER2
With an efficiency rating of 18 SEER2, the variable output ACIQ-36-HP32 ensures consistent comfort across a wide range of conditions. Use our handy size calculator to determine the demand for your home. This system can operate anywhere from 18,000 BTU to 37,000 BTU, avoiding the inefficiencies of short cycling.

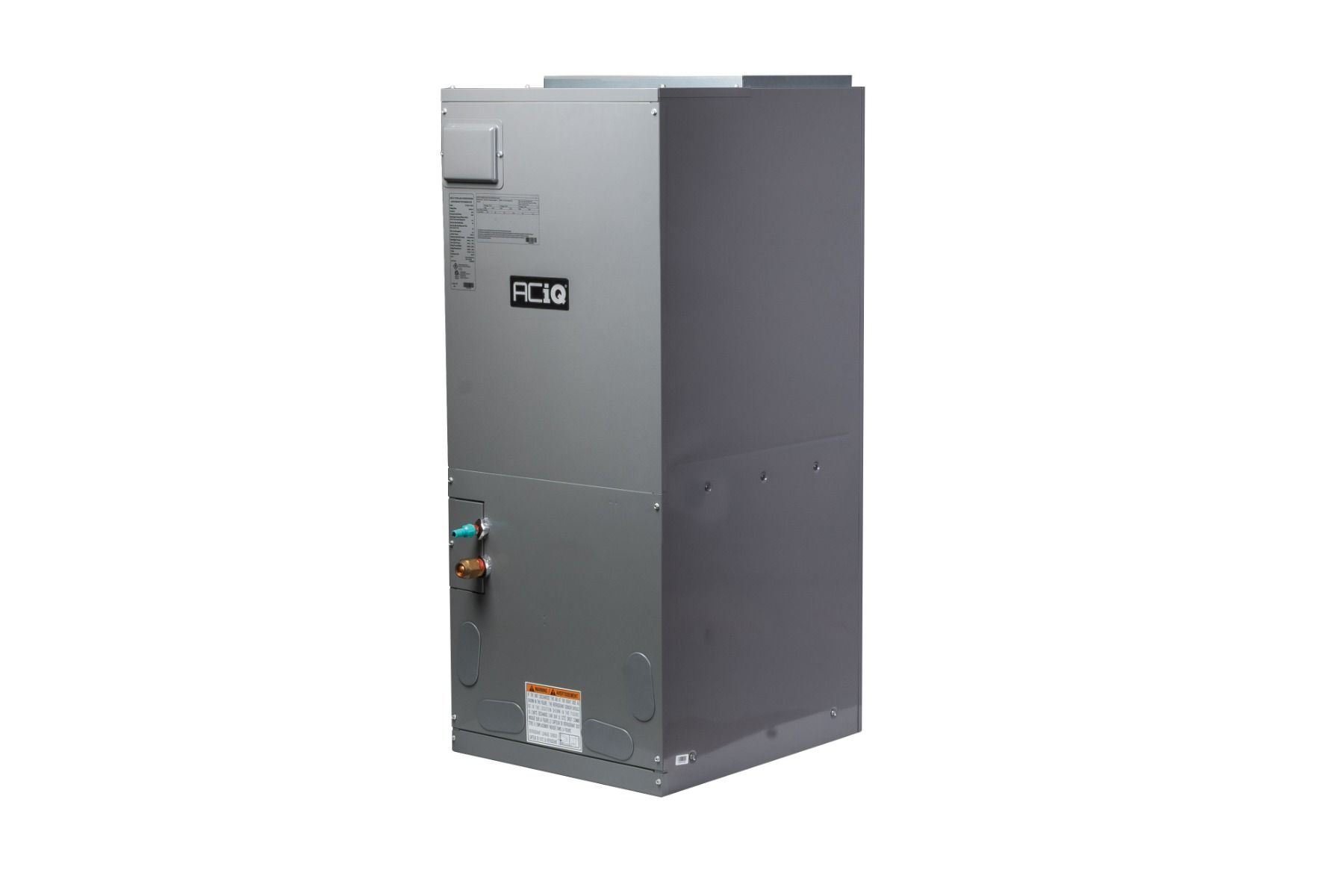

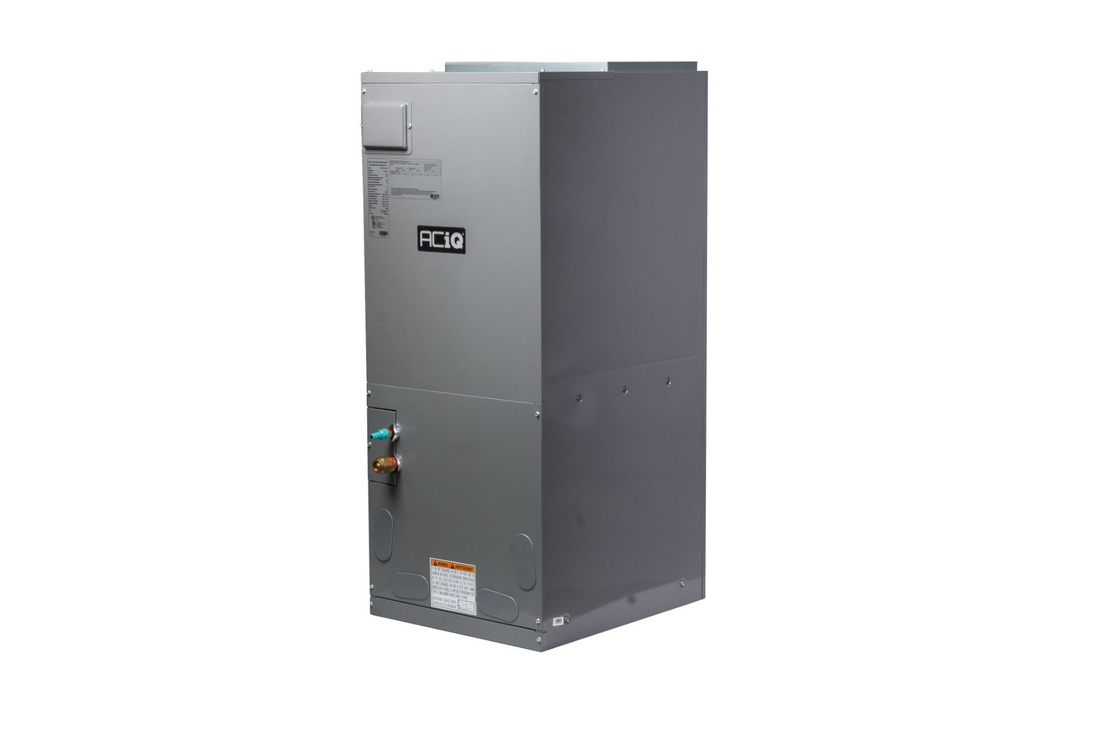

3 Ton ACIQ Central Air Handler | R32
Enhanced Comfort at Maximum Efficiency
The ACIQ-36-AH32 air handler features a variable DC blower and advanced inverter technology to deliver unparalleled comfort and efficiency. Compatible with any 24v thermostat, the air handler operates harmoniously with an ACIQ inverter condenser. The inverter technology allows for self-adjusting BTU output, ensuring ideal comfort while maximizing energy efficiency. The air handler is designed to work with your existing ductwork, efficiently distributing conditioned air throughout your home.
- 36,000 BTU, 3-ton central ducted air handler
- Compatible with 24v thermostats
- Variable DC blower
- Upflow, downflow, horizontal left or right
- Manufactured home and mobile home approved
Installation and Maintenance
Installing the ACIQ-36-AH32 is straightforward and similar to replacing any air handler. Your technician will connect the electrical, refrigerant, and thermostat components, as well as attach the unit to your return and supply ductwork. The multi-positional design (upflow, downflow, or horizontal) makes it versatile for various setups, and it is also approved for mobile homes. For added flexibility, you can integrate electric strip heat for backup heating during extremely cold weather. Additionally, the air handler’s intelligent control board displays fault codes, simplifying maintenance if needed.
Please note - to function as a heat pump, this air handler must be paired with a condenser and other installation equipment, available at an additional cost if not included in a product bundle. For straight electric heating, an optional electric heater coil is required and sold separately.
Technical Specifications — ACiQ-36-HP32
| sku | ACIQ-36-HP32 |
|---|---|
| refrigerant charge | 102.3 oz. |
| weight | 211.600000 |
| ahri certificate number | 215387239 |
| manufacturer | ACiQ |
| product features | Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 10.0 |
| cooling btu | 34000 BTU |
| heating btu | 34000 BTU |
| maximum cfm | 3176 |
| decibel level (dba) | 71 (Max) |
| horsepower | 1/6 |
| refrigerant | R32 |
| seer2 | 18 |
| eer | 12.0 |
| condenser stages | Variable Speed |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| tonnage | 3 Ton |
| btu/tonnage | 36,000 BTU/3 Ton |
| min/max outdoor temp for heating | -22°F ～75.2°F |
| min/max outdoor temp for cooling | 5°F～129.2°F |
| zone compatibility | Single Zone |
| height | 37.80" |
| width | 38.98" |
| depth | 14.57" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACiQ-36-AH32
| sku | ACIQ-36-AH32 |
|---|---|
| weight | 178.600000 |
| ahri certificate number | 215387239 |
| manufacturer | ACiQ |
| hspf2 | 10.0 |
| cooling btu | 34000 BTU |
| heating btu | 34000 BTU |
| maximum cfm | 1000 |
| decibel level (dba) | 61 (Max) |
| horsepower | 1/2 |
| electric backup heat capabilities (optional) | 6 Kilowatts, 8 Kilowatts |
| refrigerant | R32 |
| seer2 | 18 |
| eer | 12.0 |
| liquid line | 3/8" |
| suction line | 3/4" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| tonnage bundle | 3 Ton |
| btu/tonnage | 36,000 BTU/3 Ton |
| mini split type | Multi-Positional |
| zone compatibility | Single Zone |
| height | 48.19" |
| width | 21.26" |
| depth | 21.26" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
