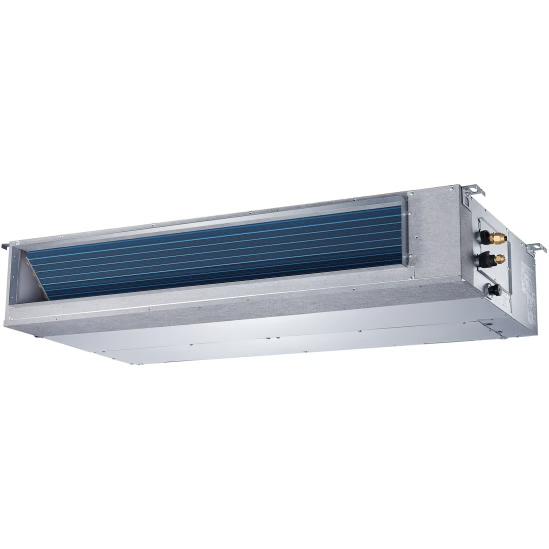

ACiQ 18,000 BTU Quiet Comfort Concealed Duct Mini Split Air Handler (R454B) - ACIQ-18CD-HH-MC

Name: ACiQ 18,000 BTU Quiet Comfort Concealed Duct Mini Split Air Handler (R454B) - ACIQ-18CD-HH-MC
Brand: ACiQ
SKU: ACIQ-18CD-HH-MC
Price: 1000.0 USD
Availability: InStock

SKU: ACIQ-18CD-HH-MC

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$1,000.00

Sale Sold out

Installation Kit No Installation Kit

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: THE DEFAULT SELECTION DOES NOT INCLUDE AN INSTALLATION KIT. UPGRADE YOUR SELECTION TO ADD TO YOUR ORDER.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 855-492-4822 FOR ANY QUESTIONS

ACiQ 18,000 BTU Quiet Comfort Concealed Duct Mini Split Air Handler (R454B) - ACIQ-18CD-HH-MC

Summary

The ACiQ Concealed Duct air handler provides all the advantages of a mini split system without any visible indoor units. This powerful 18,000 BTU (1.5 ton) solution can be hidden above ceilings, below floors, in closets, or behind soffits, with conditioned air delivered through standard ductwork to registers in your desired locations. Perfect for new construction or additions, this system offers whisper-quiet operation and efficient heating/cooling capacity for medium-sized rooms.

The simple design features return air intake at the rear and conditioned air supply at the front via a nearly silent squirrel cage fan. With support for up to 4 flex duct runs, this unit is ideal for distributing air to multiple rooms while maintaining a clean, unobtrusive appearance.

Key Features:

Completely Concealed Installation: No visible indoor units
18,000 BTU Capacity: 1.5-ton heating and cooling
Hyper Heat Technology: Efficient performance in cold climates
Flexible Placement Options: Install above ceilings, below floors, or in closets
Ducted Air Distribution: Up to 4 flex duct runs supported
Ultra-Quiet Operation: As low as 28 dB(A)
Wall-Mounted Thermostat Included: Easy temperature control
Built-In Condensate Pump: Includes factory-installed drainage solution
Multiple Operating Modes: Cool, Heat, Dry, and Fan
R454B Refrigerant: Next-generation, lower GWP refrigerant

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation requires additional ductwork components (flex duct, registers, plenums) not included. This system uses R454B refrigerant.

What's Included

Concealed Duct Air Handler: ACIQ-18CD-HH-MC
Wall-Mounted Thermostat
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty

Technical Specifications

Category	Specification	Unit	Value
Power Supply	Rated	V, Ph, Hz	208/230, 1, 60
Capacity	Cooling	Btu/h	17,500
Capacity	Heating	Btu/h	18,000
Air Flow	Maximum	CFM	706.3
Noise Level	Min	dB(A)	28
Refrigerant	Type		R454B
Connections	Liquid Line / Gas Line	inch	1/4" / 1/2"
Drainage	Pump Lift Capacity	inch	14
Dimensions	Unit (H×W×D)	inch	9.65×39.37×29.53
	Net Weight	lbs	36.2
	Breaker Requirements	Size	A	15
Electrical	Phase		Single
System Type	Configuration		Concealed Duct
Zone Compatibility	Type		Multi Zone

Warranty

12 year compressor limited warranty (with online registration)
7 year parts limited warranty (with online registration and professional installation)
1 year thermostat/remote warranty

Installation Considerations

Requires professional installation with ductwork components
Ideal for new construction or major renovations
Flexible placement options (ceilings, floors, closets, soffits)
Supports up to 4 flex duct runs for air distribution
PVC drain system required beyond built-in pump's 14" lift capacity
1/4" liquid line and 1/2" suction line connections
15A circuit breaker required
Ductboard or plenum fabrication needed for installation
Wider 39.37" width requires adequate installation space

Performance Features

Multiple operating modes: Cool, Heat, Dry, Fan
Auto-restart after power failure
Precise temperature control
Energy efficient operation
Self-diagnosis system with error codes
24-hour timer function
Quiet comfort operation (28 dB minimum)
Hyper Heat technology for cold climate performance
Higher 706.3 CFM airflow for medium-sized rooms

Manuals & Downloads
