Product Overview

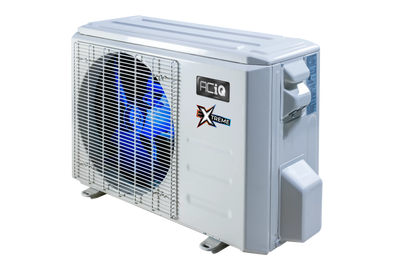

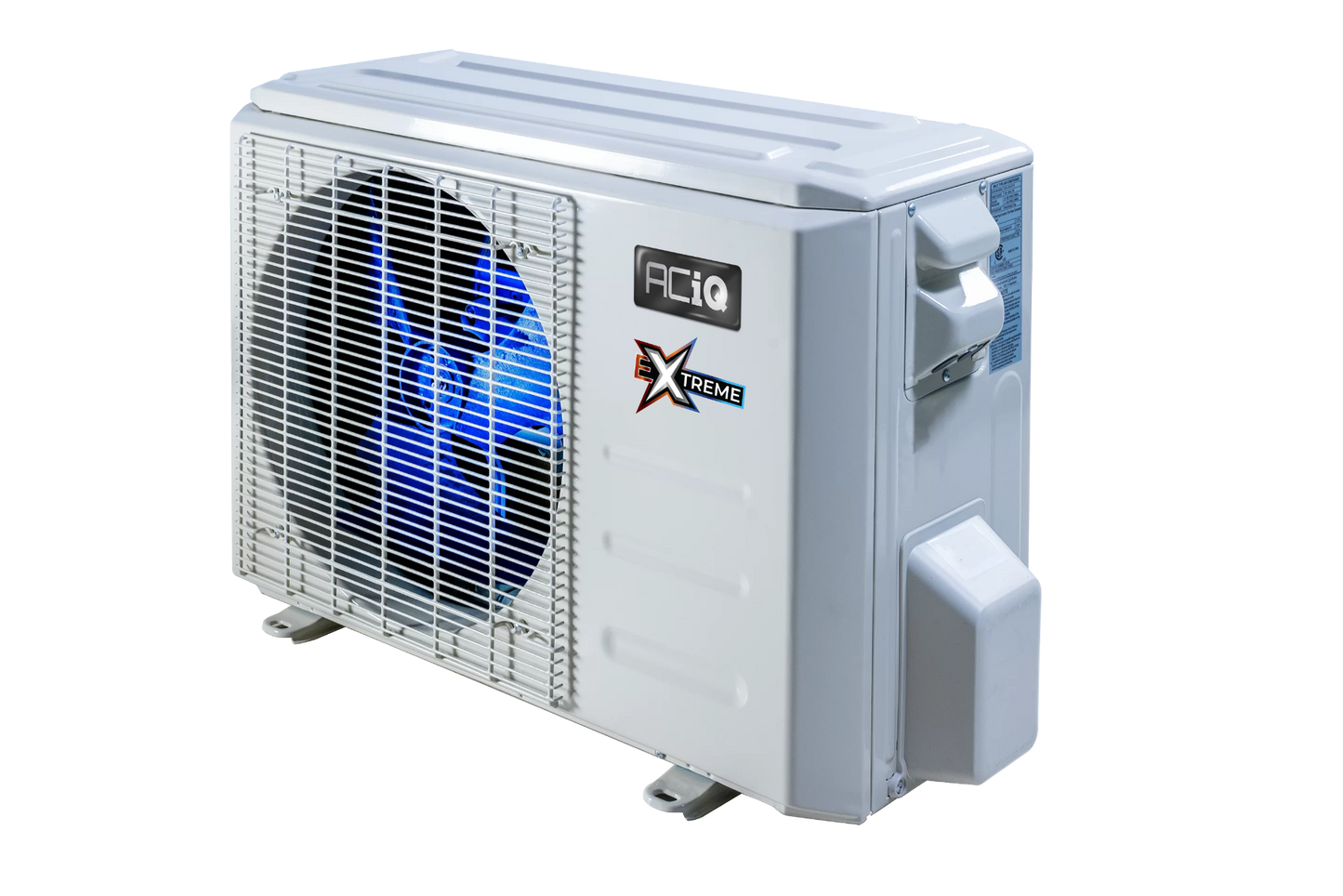

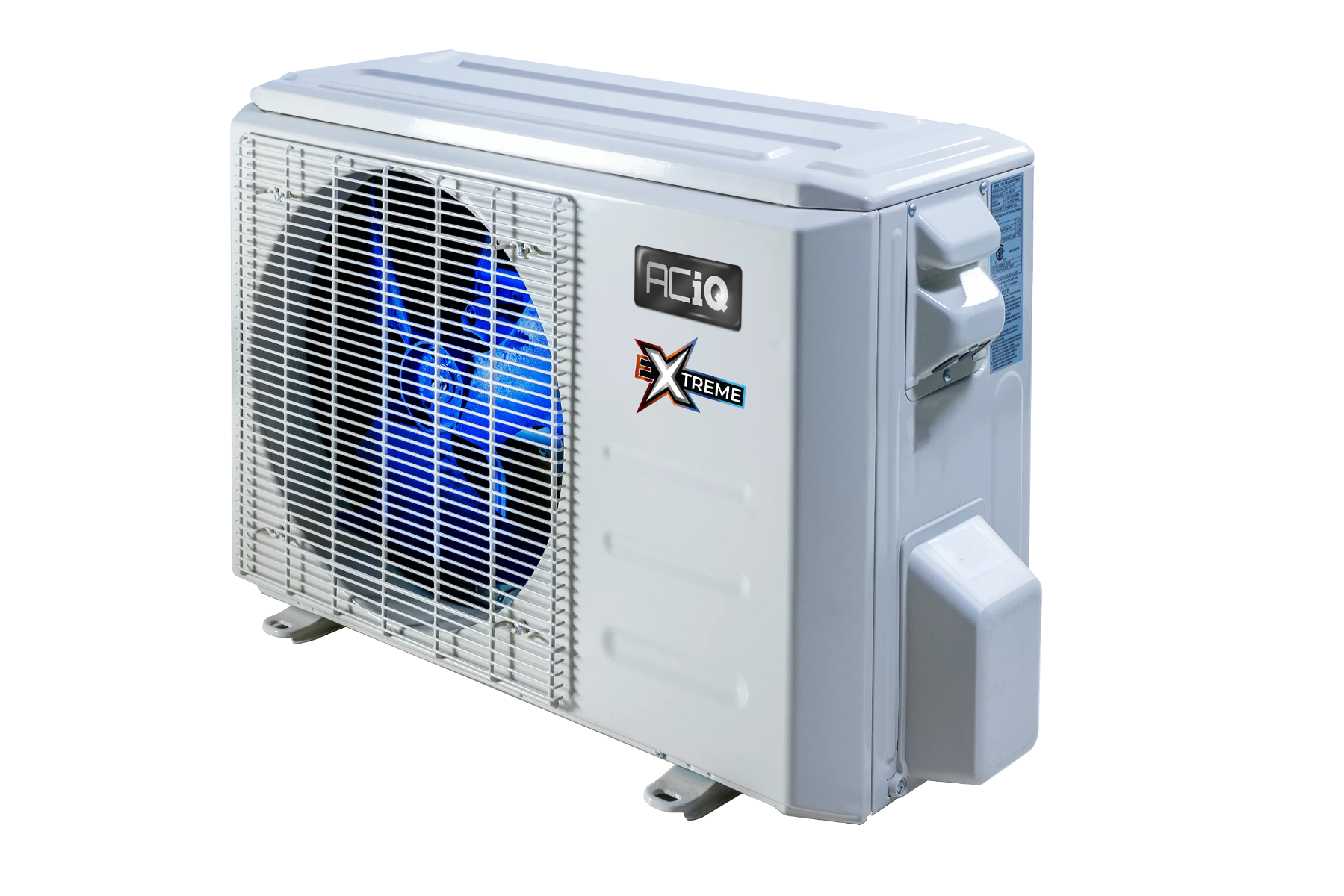

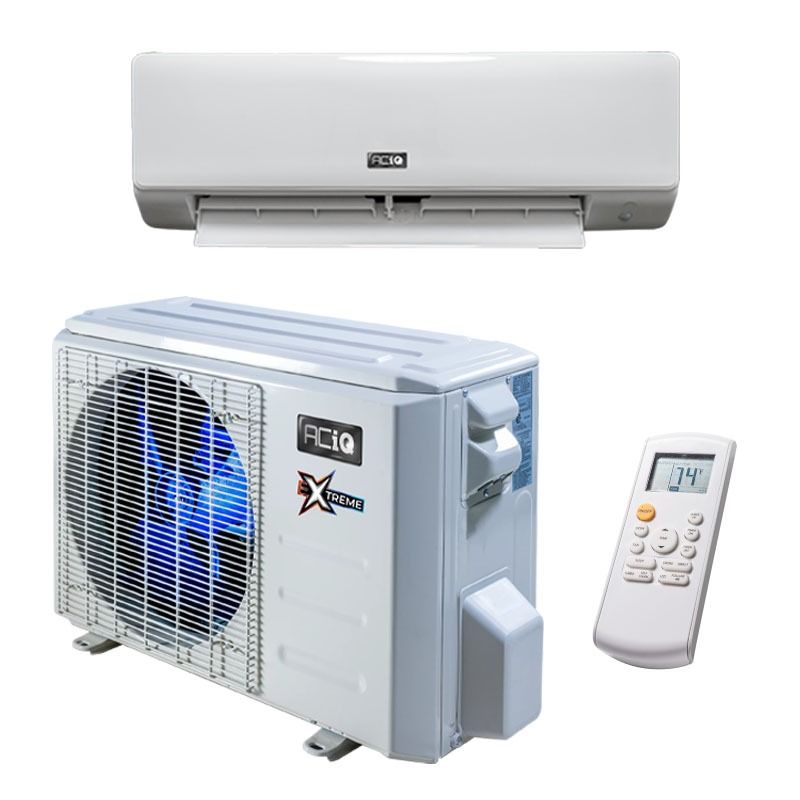

Technical Specifications — ACIQ-18ZPL-HP230C
| sku | ACIQ-18ZPL-HP230C |
|---|---|
| refrigerant charge | 55.38 oz. |
| weight | 107.800000 |
| manufacturer | ACiQ |
| product features | Low Ambient Heating |
| hspf2 | 11.0 |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| maximum cfm | 1764.70 |
| decibel level (dba) | 59.0 |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 | 21.4 |
| compressor type | Rotary |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| electric phase filter | Single Phase |
| max breaker size | 20A |
| min. breaker size | 19A |
| tonnage | 1.5 Ton |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| min/max outdoor temp for heating | -22~75 °F / -30~24 °C |
| min/max outdoor temp for cooling | -22~122 °F / -30~50 °C |
| zone compatibility | Single Zone |
| operating mode | Heating/Cooling |
| certification | Energy Star, NEEP, UL AHRI |
| height | 26.50" |
| width | 35.04" |
| depth | 13.46" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |

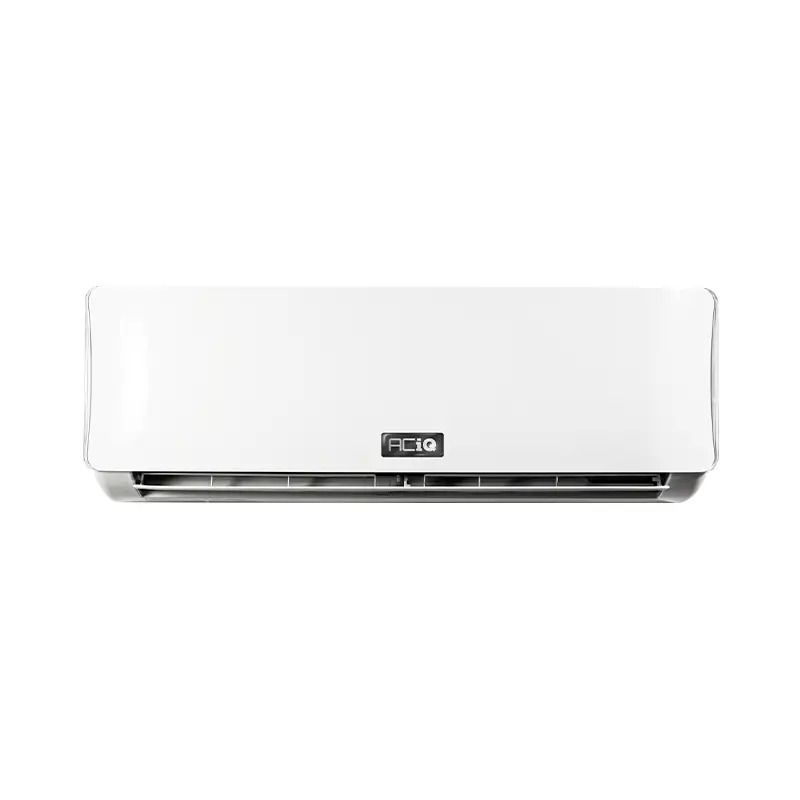

Technical Specifications — ACIQ-18W-HH-MD
| sku | ACIQ-18W-HH-MD |
|---|---|
| weight (in lbs) | 36.600000 |
| brand/manufacturer | ACiQ |
| product features | WiFi |
| cooling btu | 18,000 BTU |
| heating btu | 18,000 BTU |
| maximum cfm | Up to 635.7 CFM |
| decibel level (dba) | As low as 19.5 Decibels |
| electric heat | Heat Pump |
| refrigerant | R454B |
| liquid line | 1/4" |
| suction line | 1/2" |
| electrical | 208/230V, 1 Phase, 60 Hz |
| phase | Single Phase |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Single Zone, Multi Zone |
| height | 12.60" |
| width | 40.06" |
| depth | 9.72" |
| warranty | 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
