Extreme Series

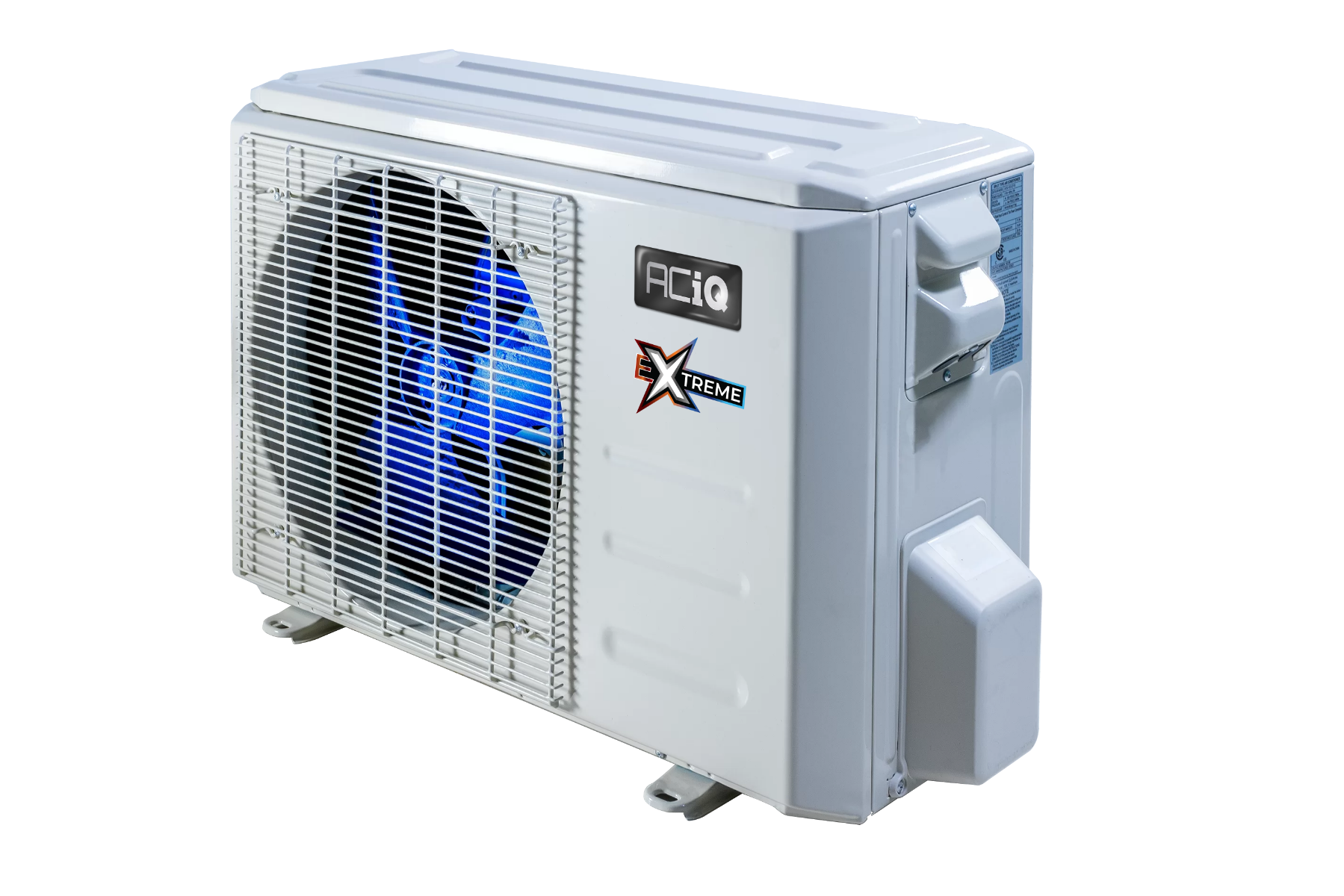

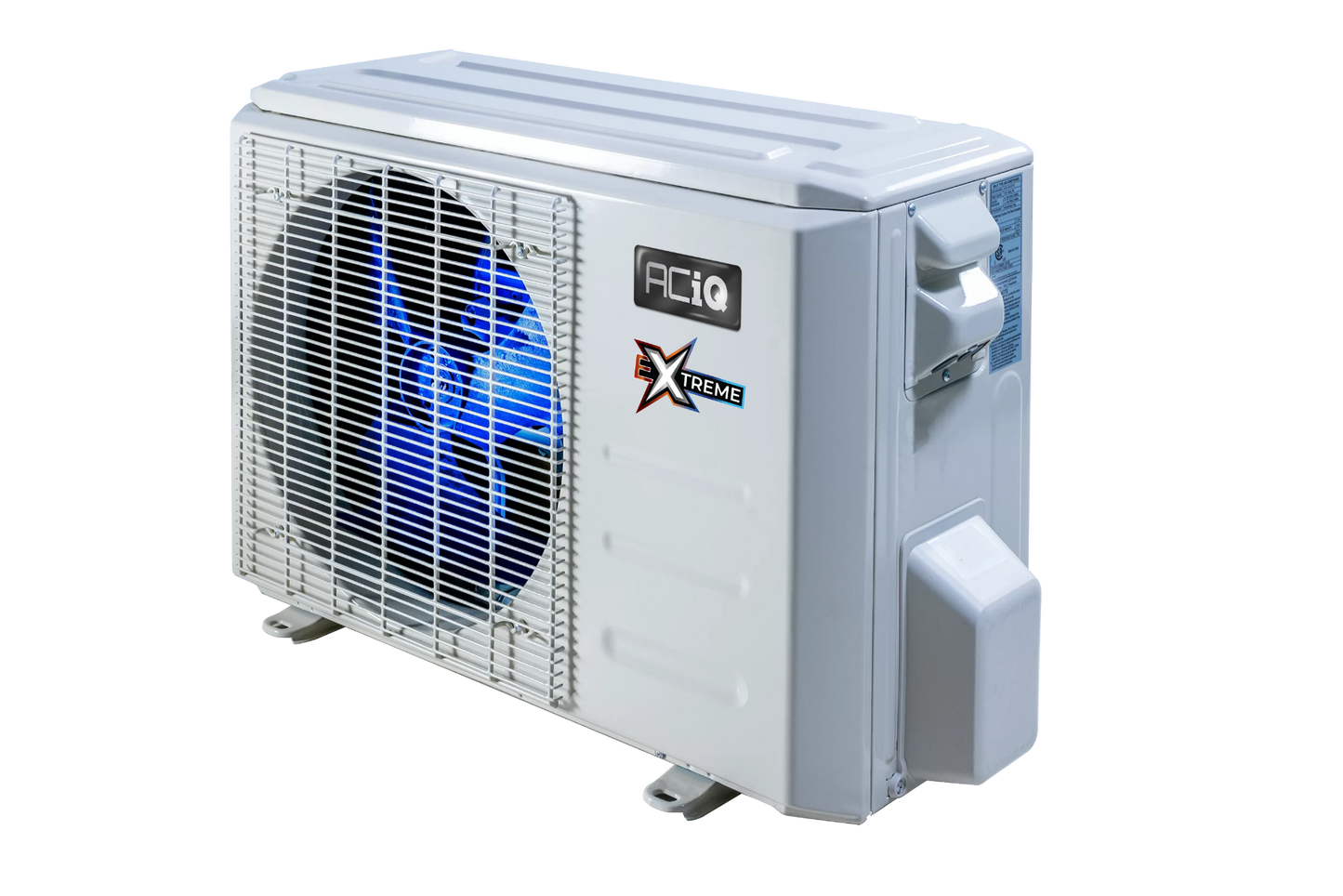

ACIQ 1.5 Ton 25 SEER2 ACiQ Multi Zone Condenser Extreme Series | Inverter - R454B
$2,549.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 9K-18K room setups:
- Large bedrooms
- Living rooms
- Garages
- Additions
- 18,000 BTU
- Cooling
- 18,000 BTU
- Heating
- See specs
- Quiet Inside
- High
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
ACIQ
- Support Number
- 1-877-909-ACiQ
- Official Site
- ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
ACIQ
ACIQ 1.5 Ton 25 SEER2 ACiQ Multi Zone Condenser Extreme Series | Inverter - R454B
Product Overview
OVERVIEW
ACIQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-HH-M3C, you can have up to 3 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
QUICK FACTS
- 18,000 BTU, 25 SEER multi zone heat pump condenser
- Designed to function with up to 3 attached air handlers
- Efficient cooling from -22°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 75°F outdoor temperatures
- Integrated Extreme Heat technology with base pan heater
- Gold Fin full-protection coating on condenser coil
- Quiet operation at even the highest workloads
18,000 BTU, 20 SEER
The 18,000 BTU, ACIQ-18Z-HH-M3C is designed to easily support up to 3 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 25 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACIQ condensers, a minimum of two air handlers is needed for the unit to function.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Installation and Maintenance
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
Self Cleaning Condenser
ACiQ condensers stay clean and efficient with self-cleaning technology built right in. At the end of each cycle, the fan reverses direction and blows air out the back of the unit — helping remove leaves, dirt, and debris before buildup can begin.
Technical Specifications — ACIQ-18Z-HH-M3C
| sku | ACIQ-18Z-HH-M3C |
|---|---|
| refrigerant charge | 78.31 oz. |
| weight (in lbs) | 148.150000 |
| ahri certificate number | 216032361 |
| brand/manufacturer | ACiQ |
| replaces | ACIQ-18Z-HH-M2B |
| product features | Low Ambient Heating, Rebate Available |
| hspf2 | 10.4 |
| cooling btu | 19000 BTU |
| heating btu | 20000 BTU |
| maximum cfm | 2131 |
| decibel level (dba) | 61.5 |
| electric heat | Heat Pump |
| energy star | Yes |
| refrigerant | R454B |
| seer2 (efficiency) | 25 |
| compressor type | Rotary |
| liquid line | 1/4" (3) |
| suction line | 3/8" (3) |
| electrical | 208/230V, 1 Phase, 60 Hz |
| phase | Single Phase |
| max breaker size | 20A |
| min. breaker size | 17.5A |
| tonnage | 1.5 Ton |
| btu/tonnage | 18,000 BTU/1.5 Ton |
| mini split type | Wall Mounted |
| zone compatibility | Multi Zone |
| ambient temperature range | -22 ~ 122 |
| height | 31.89" |
| width | 37.24" |
| depth | 16.14" |
| warranty | 12 year compressor, 7 year parts with online registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
