A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

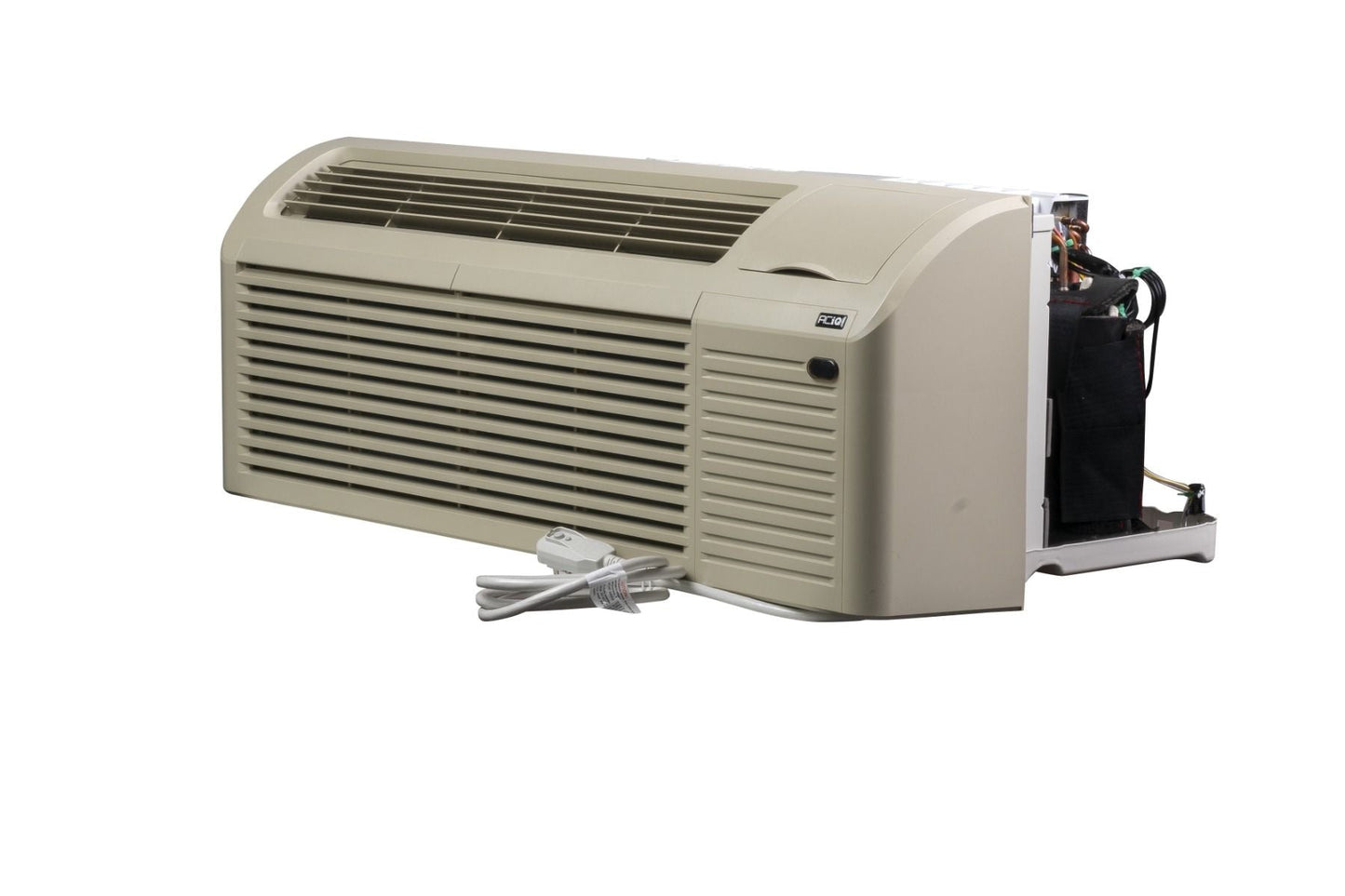

The ACIQ 15,000 BTU Inverter PTAC Heat Pump Air Conditioner Unit offers premium heating and cooling performance with advanced inverter technology and environmentally friendly R32 refrigerant. Ideal for spaces between 130-194 sq ft, this unit provides up to 9,800 BTUs of cooling and 9,400 BTUs of heating. Equipped with a 3.5KW electric heater for colder days, it ensures year-round comfort with energy-efficient operation and a high EER of 13.2. Designed for reliable performance, it operates within a wide range of temperatures, making it perfect for diverse environments.
Maintains precise temperature control while reducing energy consumption.
Includes a 3.5KW electric heater for reliable warmth during colder conditions.
Uses R32 refrigerant, which has a lower global warming potential compared to traditional refrigerants.
Designed for minimal noise disruption, with indoor sound levels as low as 63 dB(A).

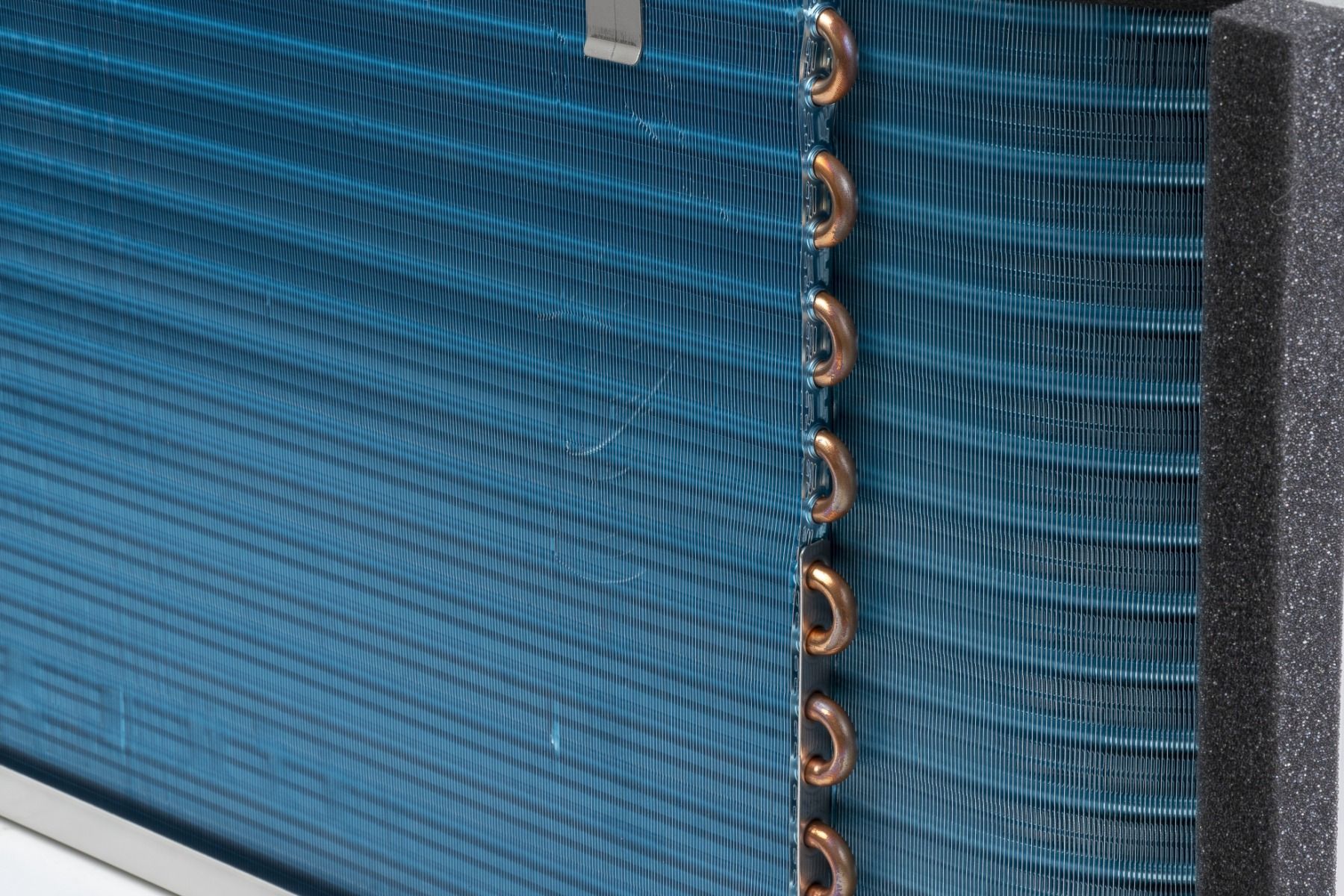

Engineered with aluminum fin-copper tube construction for long-lasting performance.
Recovers previous settings in the event of power loss, ensuring uninterrupted comfort.
| sku | ACIQ-15PTC-INV |
|---|---|
| refrigerant charge | 28.92 oz. |
| weight (in lbs) | 124.600000 |
| ahri certificate number | 215740467 |
| brand/manufacturer | ACiQ |
| cooling btu | 15,000 |
| heating btu | 13,500 |
| maximum cfm | 324 |
| decibel level (dba) | 63 |
| electric heat | 3.5 Kilowatts |
| energy star | No |
| refrigerant | R32 |
| eer | 10.7 |
| compressor type | Rotary |
| phase | Single Phase |
| max breaker size | 15 Amps |
| btu/tonnage | 15,000 BTU/1.25 Ton |
| height | 15.98" |
| width | 42.09" |
| depth | 21.50" |
| warranty | 7 Year Compressor, 1 Year Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Data
Loading technical data…
Product FAQs
ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.
ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.
ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.
Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.
Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.
Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.
ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.
ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.
Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.
Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.
No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
