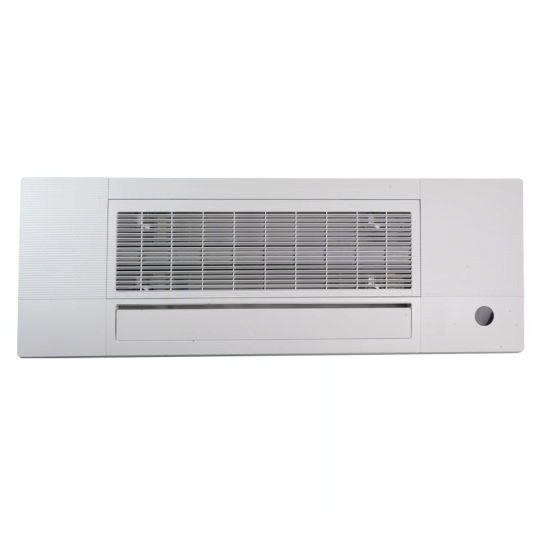

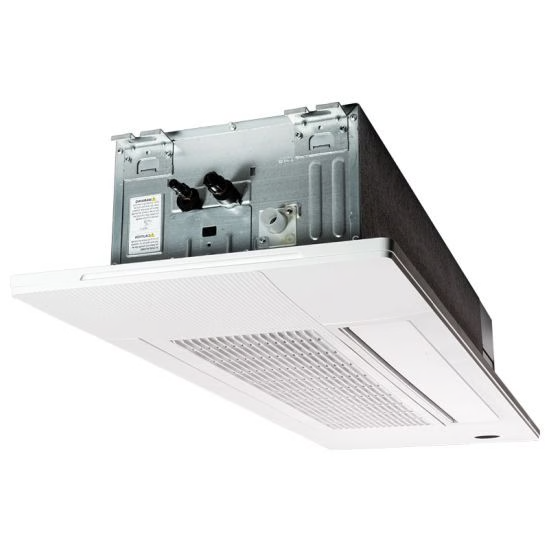

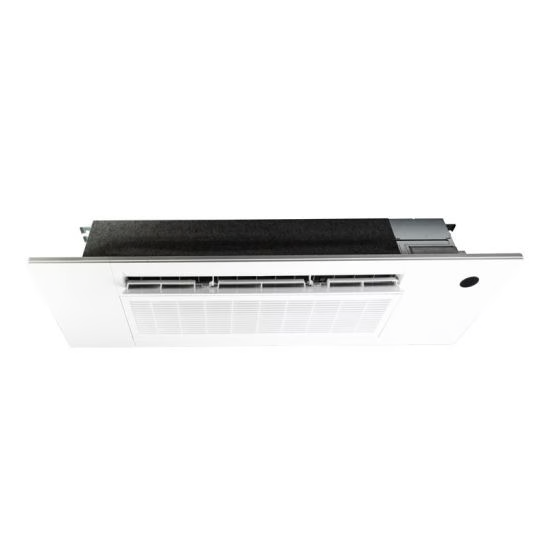

ACiQ 18,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler| R454B - SCC-18-HH-MB

Name: ACiQ 18,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler| R454B - SCC-18-HH-MB
Brand: ACiQ
SKU: SCC-18-HH-MB
Price: 1179.99 USD
Availability: InStock

SKU: SCC-18-HH-MB

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

In stock, ready to ship

Price

$1,179.99

$1,179.99 ~~$3,503.50~~

save $2,323.51

Sold out

Size NO INSTALLATION KIT

save $2,323.51

Quantity

IMPORTANT: This is only one part of the system. To complete your setup, you must also purchase a compatible indoor or outdoor unit that uses the same refrigerant type (R454B, R32 or R410A). Additionally do not mix and match brands (Ex Cooper&Hunter, Bravo, or OLMO).

⚠️ Do not mix R454B, R32 and R410A units—they are not compatible with each other.

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

View full details

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 855-492-4822 FOR ANY QUESTIONS

ACiQ 6,000-12,000 BTU Slim Ceiling Cassette Mini Split Air Handler (R454B) - ACIQ-SCC-0612-HH-MB

Summary

Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.

Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.

Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.

Switchable Sizing

ACiQ-SCC1218 – 18,000 BTU default, switchable to 12,000 BTU by changing the dip switch

FEATURES

Narrow profile fits between 16 inch-on-center joists
Switchable size – select between 12,000 BTU and 18,000 BTU
No-ladder filter cleaning – grille lowers on cables for easy access to filter
Handheld remote included
Decorative Grille included

Important

Professional installation required for warranty validation. Registration must be completed within 60 days of installation at ACiQ.com. Installation materials (line sets, control wire, drain hose, whip, and disconnect) are not included but available separately. This system uses R454B refrigerant.

What's Included

Slim Ceiling Cassette Air Handler: ACIQ-SCC-18-HH-MB
Decorative Grille

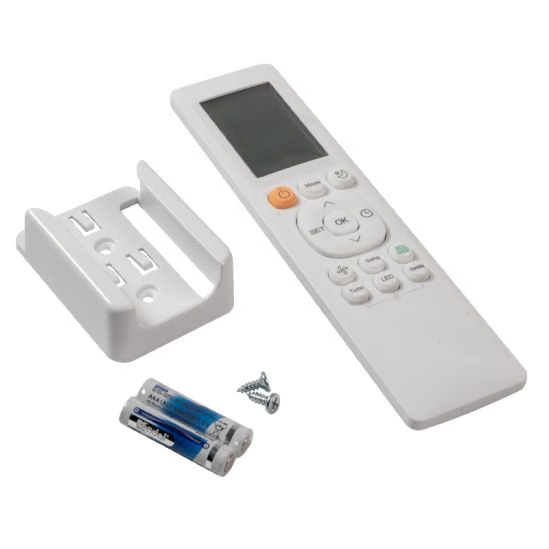

Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty

Technical Specifications

18,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler\| R454B
SKU	SCC-18-HH-MB
Weight (in lbs)	43.870000
Brand/Manufacturer	ACiQ
Controller	Wireless Included
Cooling BTU	16700 BTU
Heating BTU	20000 BTU
Maximum CFM	400
Decibel Level (dBA)	35
Electric Heat	Heat Pump
Refrigerant	R454B
Liquid Line	1/4"
Suction Line	1/2"
Electrical	208/230V 1 Phase 60Hz
Phase	Single Phase
BTU/Tonnage	18,000 BTU/1.5 Ton
Mini Split Type	Ceiling Cassette
Zone Compatibility	Multi Zone
Height	8.98"
Width	50.31"
Depth	13.19"
Warranty	12 year compressor, 7 year parts with online registration
Resources	Installation & Owner's Manual Submittal - 12K Submittal - 18K Remote Manual Service Manual Warranty Information
Safety Information	PROPOSITION 65 WARNING

Warranty

12 year compressor limited warranty (with online registration)
7 year parts limited warranty (with online registration and professional installation)
1 year remote control warranty

Installation Considerations

Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling cassette is designed to fit between 16” on center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.

Performance Features

Narrow profile fits between 16 inch-on-center joists
Switchable size – select between 12,000 BTU and 18,000 BTU
No-ladder filter cleaning – grille lowers on cables for easy access to filter
Handheld remote included
Decorative Grille included

Manuals & Downloads

Safety Information

PROPOSITION 65 WARNING: This product can expose you to chemicals including lead and copper, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
