Welcome to the South Mini Splits collection for Multi-Position Air Handler. We feature high-efficiency systems from industry leaders like Cooper & Hunter, OLMO, MRCOOL, and Bravo.

These units are the essential indoor component for any ducted split system, designed to efficiently circulate conditioned air (heating and cooling) throughout your home’s ductwork. The key advantage is their adaptability to virtually any installation space.

💡Why Choose South Mini Splits for Your Multi-Position Air Handler?

✅ Wholesale Pricing: Competitive rates on top-tier HVAC equipment.

✅ USA-Based Support: Expert help from sizing to post-install troubleshooting.

✅ Free Shipping Over $300: Get your complete system delivered fast.

What is a Multi-Position Air Handler?

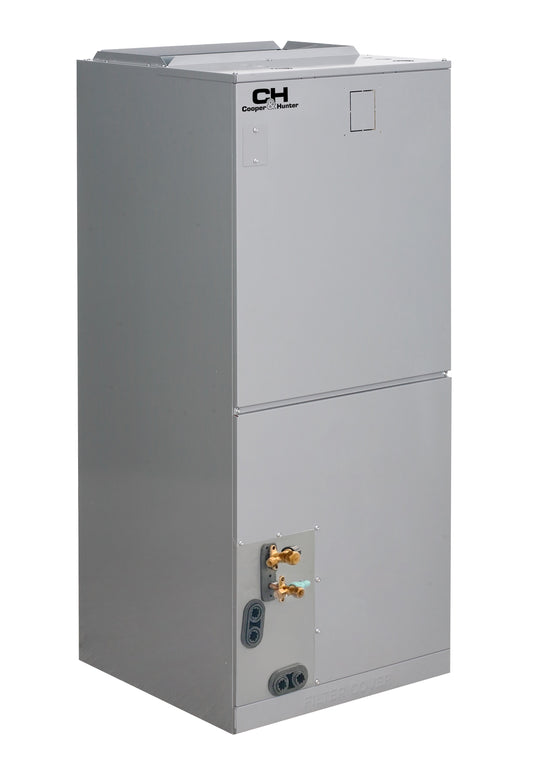

An Air Handler is the indoor cabinet that contains the blower motor, the coil (either a cooling coil or a heat pump coil), and the air filter. It is responsible for drawing in return air, conditioning it, and pushing it out through the supply ducts.

The term "Multi-Position" means the unit is engineered to be installed in several different orientations, making it extremely flexible for various home layouts:

  1. Upflow: The unit sits vertically, and air moves upward (common in basements or ground-level closets).
  2. Downflow: The unit sits vertically, and air moves downward (common in upstairs closets or in slab-foundation homes).
  3. Horizontal (Left or Right): The unit sits on its side (common in attics or crawlspaces).

Critical System Matching & Efficiency

The Air Handler is not a standalone component; its performance is directly tied to the outdoor unit (AC Condenser or Heat Pump).

  • System Matching is Crucial: For optimal SEER (Seasonal Energy Efficiency Ratio) and system lifespan, the air handler and the outdoor unit must be AHRI-matched. This ensures the coils, expansion valves, and refrigerant flow rates are perfectly synchronized to deliver the rated efficiency and performance.
  • Variable Speed Advantage: Many modern multi-position air handlers feature a variable-speed blower motor. This technology gradually ramps up and down, resulting in:
  • Superior Dehumidification: Slower speed allows the air to stay in contact with the coil longer, removing more moisture.
  • Quieter Operation: Eliminates the blast of air associated with traditional single-speed units.
  • Reduced Energy Bills: The unit modulates its energy consumption based on demand.
  • Electric Heat Compatibility: Most air handlers are designed to accept field-installed electric auxiliary heat strips. These are used for backup heat in heat pump systems or as a primary heat source in AC-only systems, and they must be selected with the correct KW rating for your climate and electrical service.

FAQs/Frequently Asked Questions

Q: Why do I need a multi-position handler instead of a fixed one?

A: A multi-position handler gives the installer maximum flexibility. If you are replacing an old system or installing a new one in a tight or unconventional space (like an attic with limited head clearance), the ability to install it horizontally, upflow, or downflow guarantees it will fit, saving significant time and labor costs.

Q: Does the size of the air handler need to match the size of my outdoor unit?

A:Yes, absolutely. The capacity of the air handler (measured by its airflow capability, or CFM) must match the BTU capacity of the outdoor unit. Using a 3-ton air handler with a 4-ton condenser, for example, will cause major efficiency losses and potential system damage. Always refer to AHRI-matched system combinations.

Q: Can I use an air handler with both an AC condenser and a heat pump?

A:Yes, the same air handler can typically be used for both. The primary difference is the outdoor unit. However, if using a heat pump, the air handler must be wired to accommodate the defrost cycle and the supplementary electric heat strips, which may not be necessary for an AC-only system.

Q: What is the main benefit of having a multi-speed or variable-speed motor?

A: The main benefit is enhanced comfort and humidity control. The motor can run longer at a lower speed, which not only keeps temperatures more stable but also cycles more air across the coil, pulling more humidity out of the air—a crucial benefit in humid climates like those in the Southern US.
