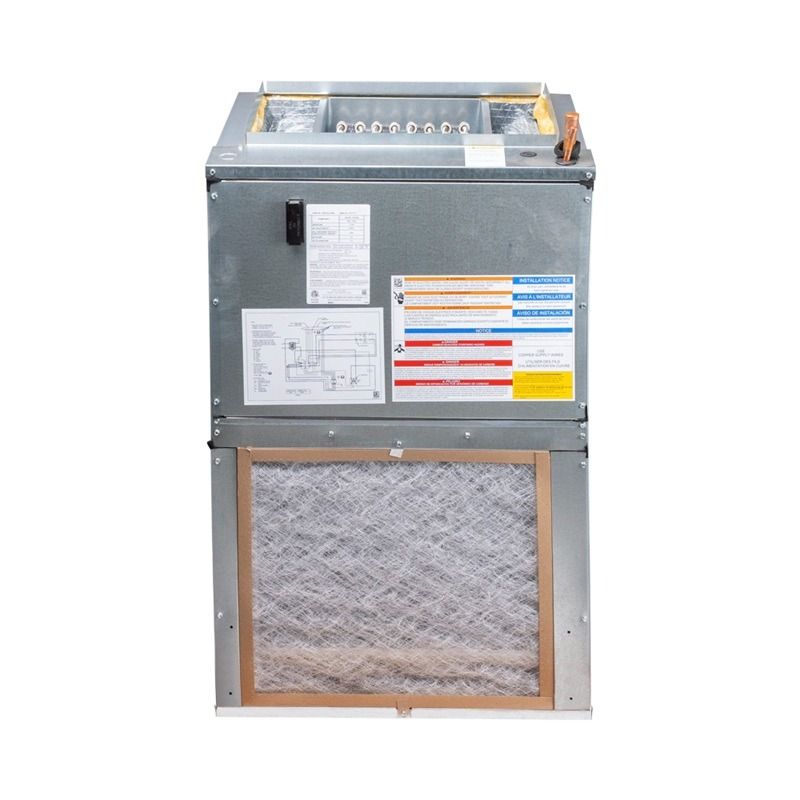

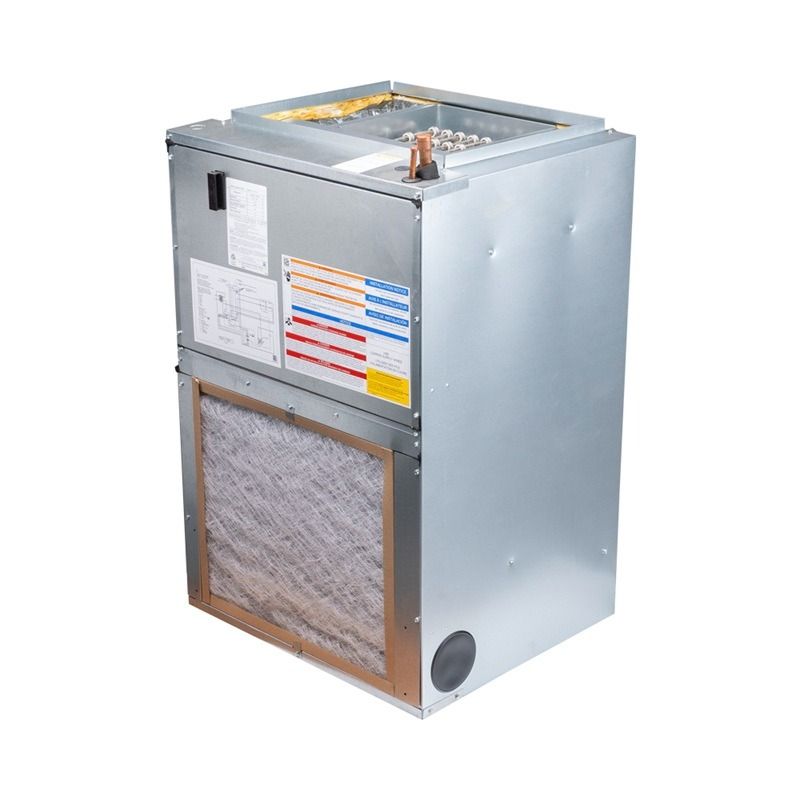

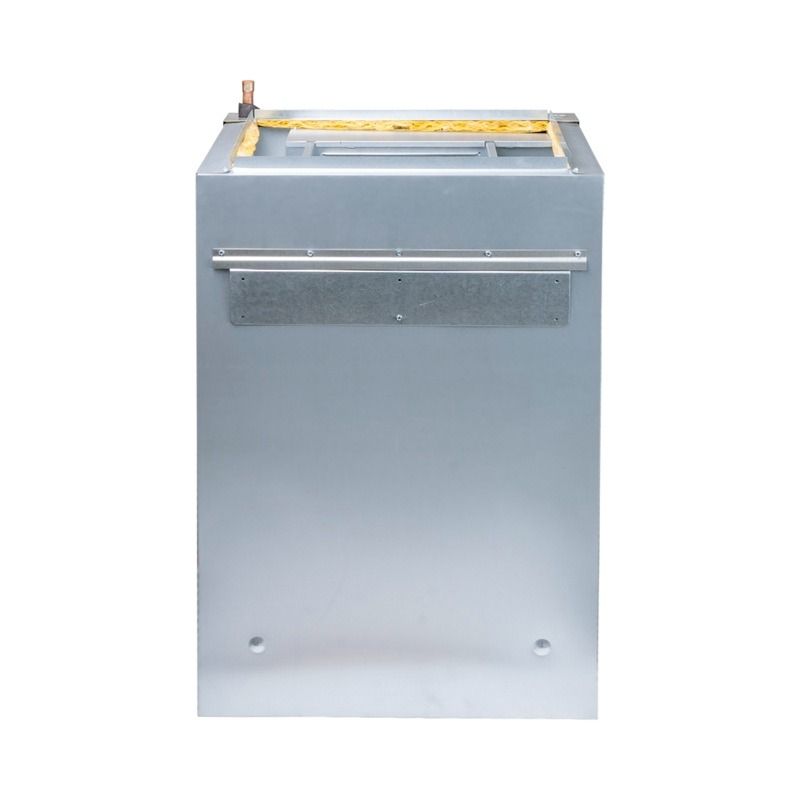

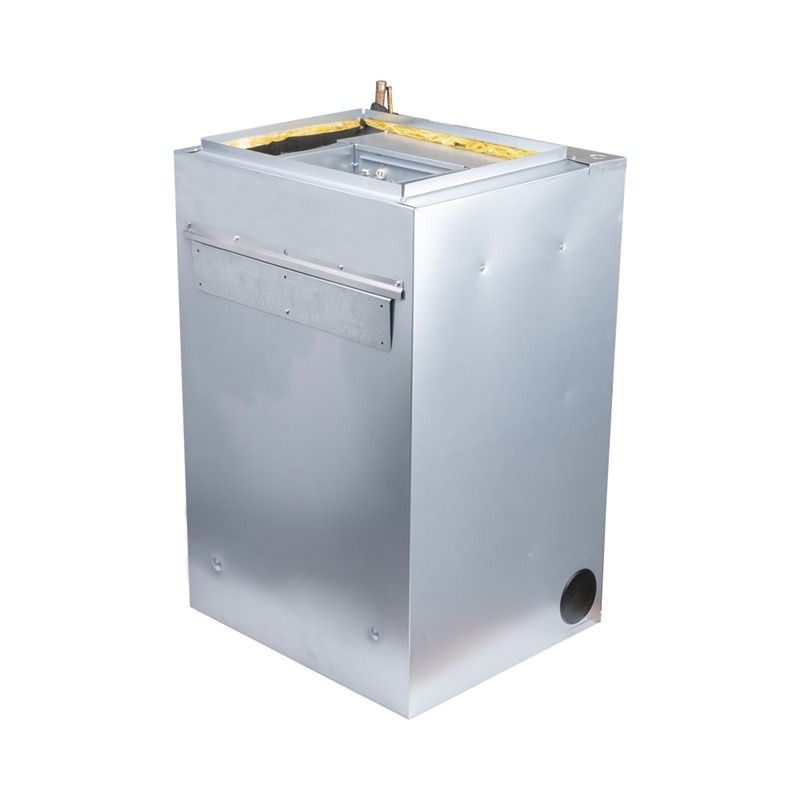

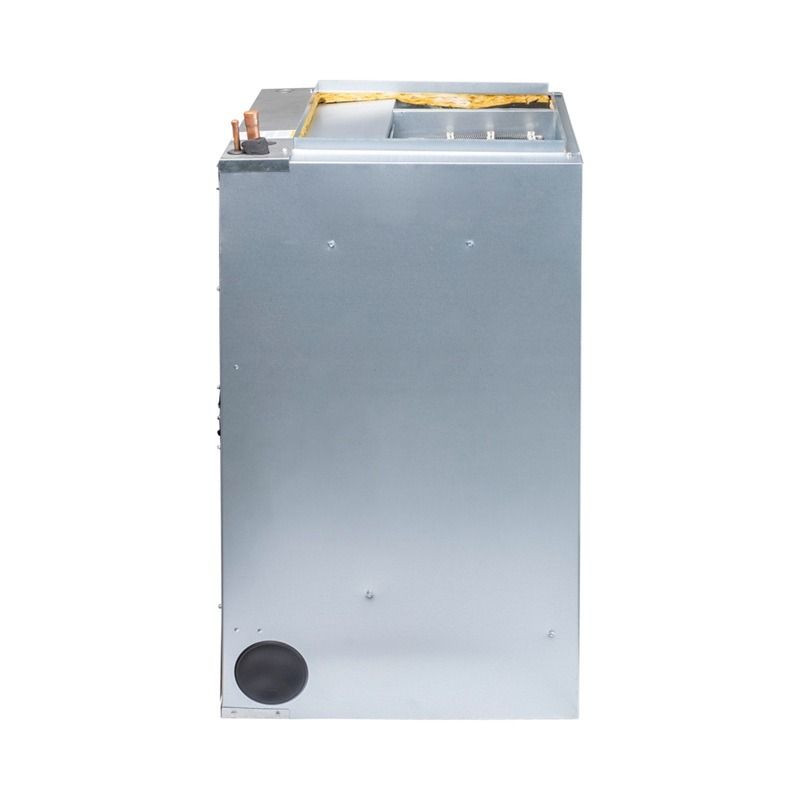

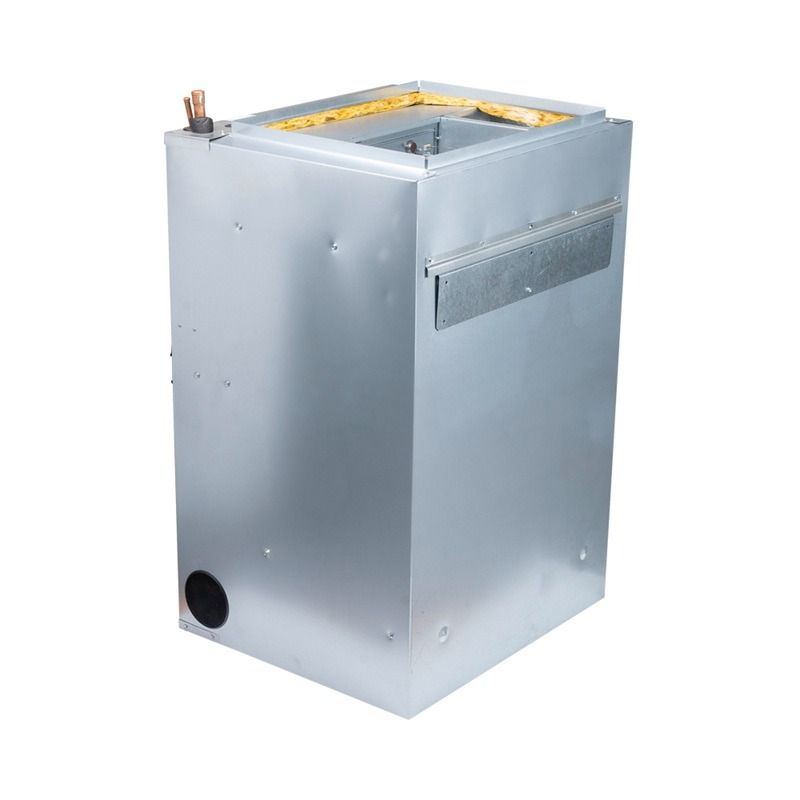

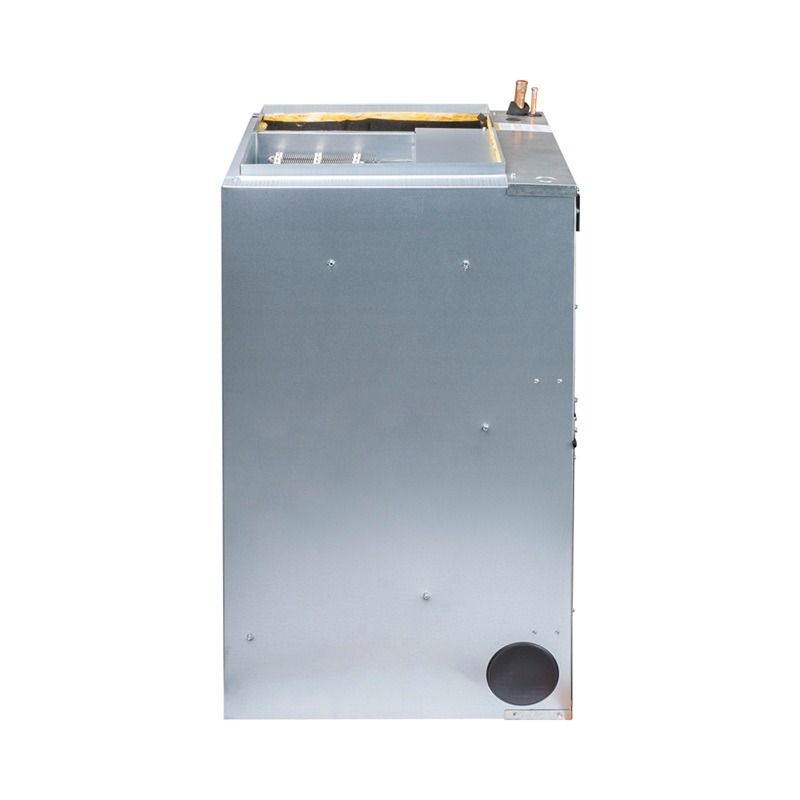

Goodman 2.5 Ton Wall Mounted Air Handler w/ 10kW Heat - R32

SKU AWST30LU1310 Stud Mount Air Handler208-230V
$1,268.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 2.5 Ton Wall Mounted Air Handler w/ 10kW Heat - R32

Product Overview

The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

Features

  • Suitable for use with R32 refrigerant
  • Equipped with a fully adjustable TXV for cooling-only and heat pump operation
  • Direct-drive, multi-speed motor allows air volume variation for heating and cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Factory-installed pull-type disconnect
  • Aluminum tube coils on all models
  • AHRI Certified
  • ETL Listed
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • Built-in filter rack (filter included)
  • Large chassis (2.5- and 3-ton units) - front return only
  • Small chassis (1.5- and 2-ton units) - front or bottom return
  • Wall-hanging bracket provided

Product Benefits

  • All Aluminum Coil
  • Improved Reliability and Quality
  • Factory TXV Installed for Quicker Install
  • More Efficient Refrigerant Metering

Product Features

  • AWST Models: Equipped wit a fully adjustable TXV
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Direct-drive, multi-speed motors allows air volume variation for heating/cooling
  • Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
  • Aluminum tubing coils on all models
  • Factory-installed pull-type disconnect
  • Thermoplastic drain pan with bottom primary and secondary drain connections
  • AHRI Certified and ETL Listed
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features

  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in filter rack (filter included)
  • Large chassis (2-1/2 and 3 ton units), front return only
  • Small chassis (1-1/2 and 2 ton units), front or bottom return
  • Wall-hanging bracket provided

Technical Specifications - AWST30LU1310

sku AWST30LU1310
weight (in lbs) 109.000000
brand/manufacturer Goodman
product features Space-Saving
additional information 18" x 20" x 1" Large Chassis Filter
cooling btu 30,000 BTU
blower motor Multi Speed Direct Drive Motor
maximum cfm 1180
horsepower 1/2 HP
electric heat 10 Kilowatts
refrigerant R32
liquid line 3/8"
suction line 3/4"
electrical 208/230v Single Phase 60 Hz
max breaker size 50/60 Amps
min. breaker size 48.1/54.8 Amps
tonnage 2.5 Ton
fuel type Electric
height 36"
width 24"
depth 21"
warranty 10 Years Parts with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AWST_32
series name AWST
family description Wall-Mount Air Handler 1½ to 3 Tons
installation type Ducted Wall Mounted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051683846
item stocking unit of measure uom EA
pallet qty 4
country of origin Mexico
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 30000 Btu/H
produced in us No
indoor blower fla 3.8 A
max overcurrent protection 50/60 A
max voltage 253 V
min circuit amps 48.1/54.8 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions evap wheel diameter 10 in
dimensions evap wheel width 8 in
dimensions unit depth 21 in
dimensions unit height 36 in
dimensions unit width 24 in
evap coil face area ft 3.35
evap motor rpm 1200 r/min
expansion device TXV
motor speed type Multi Speed ECM
number of speeds 5
weight unit 109 lb
blower motor horsepower 1/2 metric hp
tonnage range 1.5;3
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 25.00 in
dimensions case height 39.00 in
dimensions case width 22.50 in
dimensions distribution unit depth 25 in
dimensions distribution unit height 39 in
dimensions distribution unit width 22.5 in
dimensions pallet depth 52.00 in
dimensions pallet height 44.00 in
dimensions pallet width 46.00 in
dimensions shipping unit depth 25.00 in
dimensions shipping unit height 39.00 in
dimensions shipping unit width 22.50 in
distribution shipping volume unit 21937.5 in³
shipping volume unit 21937.500 in³
truck factor 0.0000
volume case 21937.500 in³
volume distribution shipping unit 21937.5 in³
weight case 106.000 lb
weight distribution shipping unit 106 lb
weight shipping unit 106.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
