Versapro Series

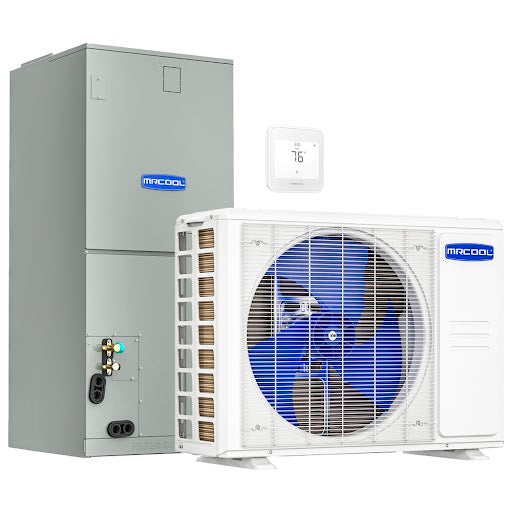

2.5 Ton MRCOOL® VersaPro® 2nd Gen Central Ducted Heat Pump System – 17 SEER R454B | 30000 BTU Energy-Efficient HVAC for Heating & Cooling - MVP-30-HP-MUAH-230A00-O + MVP-30-HP-C-230A00-O
$2,890.00
$2,779.00
Save $0.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- See specs
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump System – 17 SEER R454B | 30000 BTU Energy-Efficient HVAC for Heating & Cooling - MVP-30-HP-MUAH-230A00-O + MVP-30-HP-C-230A00-O5
Summary
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser and Air Handler provide a simple, energy-efficient HVAC upgrade for year-round home comfort. The 30K BTU condenser features variable-speed technology, achieving a 17 SEER2 and 8.5 HSPF4 rating for optimal performance. Its DC inverter technology maximizes energy savings, while R-454B refrigerant ensures an eco-friendly operation. Built with painted galvanized steel for durability, its compact side-discharge design allows for flexible installation in tight spaces. The self-diagnostic system simplifies maintenance, and the included MRCOOL® Smart thermostat offers effortless temperature control.
The 2.5 Ton VersaPro® Air Handler complements this system by efficiently heating and cooling spaces up to 1,250 sq. ft. With a SEER2 rating of up to 17, it provides flexible installation options (upflow, downflow, or horizontal) and long-lasting durability with its painted galvanized steel construction. The self-diagnostics panel streamlines troubleshooting, and the optional heat kit offers additional warmth when needed. It integrates seamlessly with the MRCOOL® SmartHVAC app, allowing for remote temperature control via smartphone.
Backed by a 10-year warranty, the MRCOOL® VersaPro® system delivers efficiency, reliability, and smart convenience, making it an ideal choice for an upgraded home HVAC system.
What's Included
- Indoor Unit 30,000 BTU 230V Air Handler
- Outdoor Condenser 30,000 BTU 230V
- Wired Thermostat
- Wireless Remote
- Installation Manual
- User’s Manual
- Manufacturer Warranty
- Accessories
Warranty
- 10-Year Compressor
- 10-Year Parts
Warranty Inquiries are handled through MRCOOL at https://mrcool.com/contact/
Technical Information
Model Number: MVP-30-HP-C-230A00-O
(MRCOOL Versapro Central Ducted System Condenser)
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Condenser |
|
MODEL |
MVP-30-HP-C-230A00-O |
|
GTIN |
00840255582704 |
|
UPC |
840255582704 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser |
|
LONG DESCRIPTION |
Upgrading your HVAC system doesn’t have to be complicated. The 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a simple, cost-effective solution to meet your home’s heating and cooling needs year-round. With a 30k capacity and a variable-speed design, this unit provides a SEER2 rating of 17 and an HSPF4 rating of 8.5, ensuring it’s both energy-efficient and effective. Paired with the MRCOOL® VersaPro® Central Ducted Air Handler, this system delivers reliable performance, adjusting to your home’s heating and cooling demands. The advanced DC inverter technology helps optimize energy usage and minimize utility costs. A MRCOOL® Smart thermostat is also included, ensuring simple and effective temperature management. The VersaPro® condenser also focuses on sustainability, using eco-friendly R-454B refrigerant. Its durable, painted galvanized steel construction ensures long-lasting reliability, while the compact side-discharge design makes installation easier, even in tight spaces. Built-in self-diagnostic features further simplify maintenance, helping you avoid unnecessary service calls. To give you peace of mind, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This means you can rely on its performance for years to come, knowing your investment is protected. Upgrade today and experience a more efficient, hassle-free way to maintain comfort in your home. |
|
SEER2 |
17 |
|
EER2 |
10.7 |
|
HSPF-4 |
8.5 |
|
HSPF-5 |
6.6 |
|
CFM |
3001.8 |
|
TONNAGE |
2.5 |
|
COOLING CAPACITY (BTU) |
30000 |
|
HEATING CAPACITY (BTU) |
31000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
25 |
|
MIN CIRCUIT AMPACITY (A) |
22.5 |
|
COLOR |
gray |
|
REFRIGERANT TYPE |
R454B |
|
REFRIGERANT VOLUME (OZ) |
91.71 |
|
DECIBEL RATING (DBA) |
60 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
16.14 |
|
NET HEIGHT (IN) |
31.89 |
|
NET WIDTH (IN) |
37.24 |
|
NET WEIGHT (LBS) |
141.76 |
|
GROSS DEPTH (IN) |
19.68 |
|
GROSS HEIGHT (IN) |
34.84 |
|
GROSS WIDTH (IN) |
42.91 |
|
GROSS WEIGHT (LBS) |
152.34 |
|
INSTALL MANUAL |
Model Number:
CENTRAL-30-HP-MUAH-230-25 (MRCOOL Versapro Central Ducted System Air Handler)
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-30-HP-MUAH-230A00-O |
|
GTIN |
00840255586467 |
|
UPC |
840255586467 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |
The 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable choice for heating and cooling spaces up to 1,250 square feet. With a SEER2 rating of up to 17, it provides year-round comfort while keeping energy costs in check. Designed for durability, this air handler features painted galvanized steel construction, ensuring it will last for years to come. Plus, its self-diagnostics panel simplifies maintenance by identifying error codes quickly, reducing downtime. This unit is flexible when it comes to installation, with options for upflow, downflow, and horizontal left or right configurations to suit various setups. It uses R-454B refrigerant, an eco-friendly choice that helps reduce environmental impact. Additionally, this air handler is compatible with our Central Ducted Hyper Heat Condenser. For those who need additional warmth, an optional heat kit is available. The included MRCOOL® Smart Thermostat allows for precise and reliable temperature control, ensuring your home stays comfortable. Plus, it's compatible with the MRCOOL® SmartHVAC app, giving you the convenience of adjusting your system remotely from your smartphone. Backed by a 10-year warranty covering both parts and the compressor, the 2.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable solution for maintaining your home’s climate. It combines efficiency, flexibility, and ease of use, making it an excellent choice for upgrading your HVAC system. |
|
CFM |
988.85/894.67/806.38/712.21 |
|
TONNAGE |
2.5 |
|
COOLING CAPACITY (BTU) |
30000 |
|
HEATING CAPACITY (BTU) |
31000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
8.0/6.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
29 |
|
DECIBEL RATING HIGH (DBA) |
46 |
|
NUMBER OF SPEEDS |
3 |
|
MAX LINESET LENGTH (FT) |
164 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
19x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW/15kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
21.02 |
|
NET HEIGHT (IN) |
49.02 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
128.97 |
|
GROSS DEPTH (IN) |
24.41 |
|
GROSS HEIGHT (IN) |
52.56 |
|
GROSS WIDTH (IN) |
26.57 |
|
GROSS WEIGHT (LBS) |
153.44 |
|
INSTALL MANUAL |
Certifications![]()
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.Where should I purchase MRCOOL equipment?
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
What makes an eligible MRCOOL DIY system different from a conventional mini-split?
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
Does MRCOOL send technicians to a home or jobsite?
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
Why do I need the exact MRCOOL model and serial number?
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
Are all MRCOOL systems designed for do-it-yourself installation?
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
Where can I find MRCOOL manuals, specifications, certifications, and installation documents?
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
What types of products does MRCOOL offer?
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
When should an MRCOOL system be registered?
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
Where can I purchase replacement parts for an MRCOOL system?
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
How can I contact MRCOOL customer or technical support?
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Can MRCOOL support work with my local HVAC technician?
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
Where can I find MRCOOL troubleshooting and error-code information?
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
How do I register an MRCOOL product for warranty coverage?
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
Does every MRCOOL product have the same warranty?
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
