A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

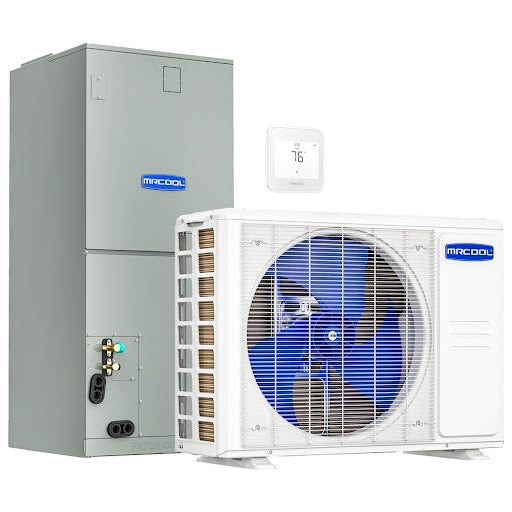

Upgrade your home’s climate control with the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler and Heat Pump Condenser, a high-performance duo designed for year-round comfort and efficiency. With an impressive SEER2 rating of 18.8 and an HSPF4 rating of 9.1, this system delivers powerful heating and cooling while keeping energy costs low. The VersaPro® Air Handler features a durable painted galvanized steel exterior for long-lasting performance, along with a self-diagnostics panel that simplifies maintenance and troubleshooting. Its flexible installation options—including upflow, downflow, and horizontal configurations—make it adaptable to various home setups. Utilizing eco-friendly R-454B refrigerant, this unit reduces environmental impact without compromising performance. An optional heat kit is also available for enhanced warmth during colder months.

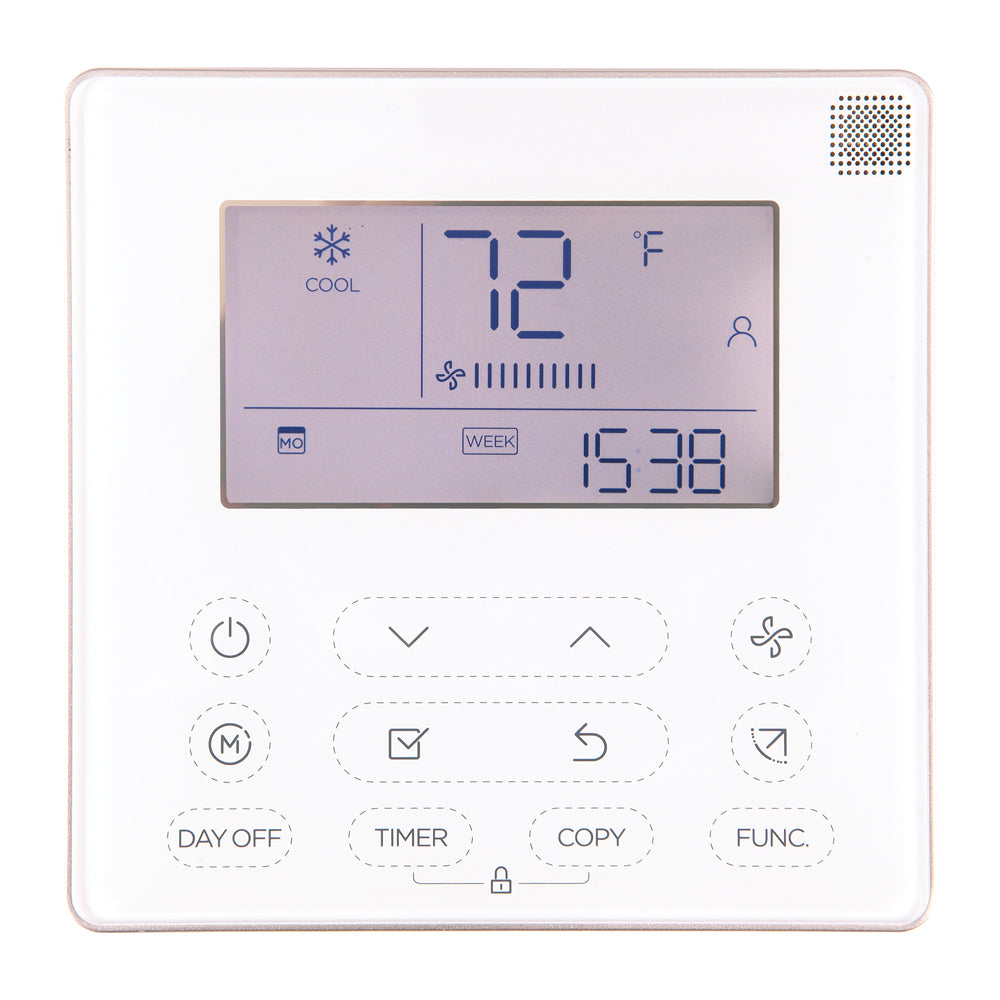

The VersaPro® Heat Pump Condenser complements the air handler seamlessly, offering variable-speed DC inverter technology for quiet, energy-efficient operation. Designed with a space-saving side-discharge layout, it provides versatile installation options while maintaining powerful climate control. The integrated MRCOOL® Smart Thermostat allows for effortless temperature adjustments, whether at home or on the go, via the SmartHVAC app. Its sturdy galvanized steel construction ensures long-lasting durability, and the built-in self-diagnostics system enhances ease of maintenance. Backed by a comprehensive 10-year warranty on both compressor and parts, the 1.5 Ton MRCOOL® VersaPro® system is a smart investment for homeowners looking to enhance indoor comfort, efficiency, and sustainability.
Warranty Inquiries are handled through MRCOOL at https://mrcool.com/contact/
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Condenser |
|
MODEL |
MVP-18-HP-C-230A00-O |
|
GTIN |
00840255582681 |
|
UPC |
840255582681 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Condenser |
|
SHORT DESCRIPTION |
1.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser |
|
LONG DESCRIPTION |

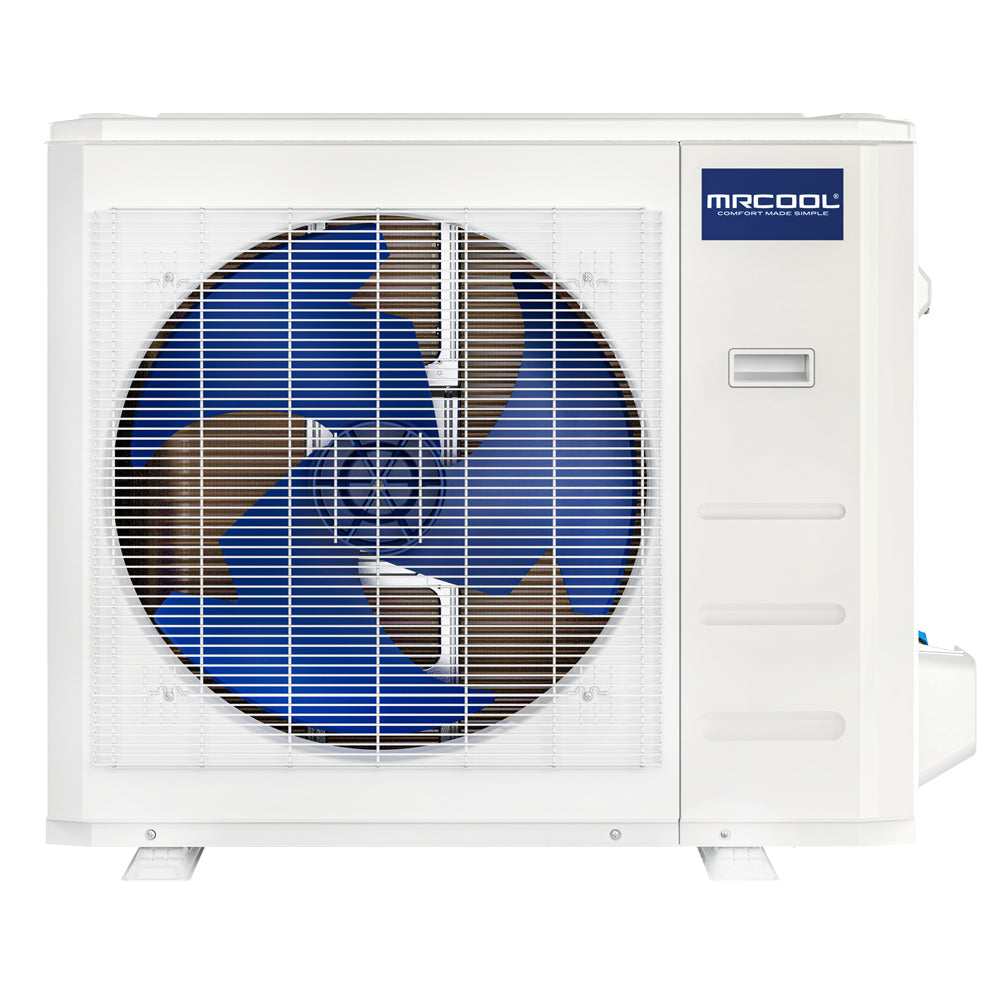

Experience unmatched comfort and efficiency with the 1.5 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser. You will be able to enjoy reliable year-round heating and cooling while saving on your energy bills. This advanced 18k variable-speed unit offers an impressive SEER2 rating of 18.8 and an HSPF4 rating of 9.1, combining high performance with energy savings. Specifically designed to pair seamlessly with the MRCOOL® VersaPro® Central Ducted Air Handler, it creates a dependable, high-quality system tailored to your home’s needs. Featuring a DC inverter, this unit ensures quiet, efficient operation while keeping utility costs under control, making it an excellent upgrade for older, less efficient systems. Additionally, it includes a MRCOOL® Smart thermostat that allows for effortless temperature control. The VersaPro® condenser prioritizes sustainability by utilizing eco-friendly R-454B refrigerant, which has a lower environmental impact than traditional options. Its robust construction, made from painted galvanized steel, ensures long-lasting performance. The compact, side-discharge design allows for versatile installation in smaller spaces, while the integrated self-diagnostics feature simplifies maintenance and troubleshooting. With a comprehensive 10-year warranty covering the compressor and parts, the 1.5 Ton VersaPro® MRCOOL® Central Ducted Heat Pump Condenser offers reliability and peace of mind you can depend on. Upgrade your home’s HVAC system today and experience efficient, powerful climate control that keeps you comfortable no matter the season. |
|
SEER2 |
18.8 |
|
EER2 |
11 |
|
HSPF-4 |
9.1 |
|
HSPF-5 |
7 |
|
CFM |
1450.9 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
18000 |
|
HEATING CAPACITY (BTU) |
18000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
20 |
|
MIN CIRCUIT AMPACITY (A) |
16 |
|
COLOR |
gray |
|
REFRIGERANT TYPE |
R454B |
|
REFRIGERANT VOLUME (OZ) |
51.15 |
|
DECIBEL RATING (DBA) |
55 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
12.99 |
|
NET HEIGHT (IN) |
21.81 |
|
NET WIDTH (IN) |
31.69 |
|
NET WEIGHT (LBS) |
77 |
|
GROSS DEPTH (IN) |
14.57 |
|
GROSS HEIGHT (IN) |
24.21 |
|
GROSS WIDTH (IN) |
36.02 |
|
GROSS WEIGHT (LBS) |
84 |
|
INSTALL MANUAL |
|
BRAND NAME |
MRCOOL |
|
SERIES |
VersaPro® Central Ducted Air Handler |
|
MODEL |
MVP-18-HP-MUAH-230A00-O |
|
GTIN |
00840255586443 |
|
UPC |
840255586443 |
|
UNIT TYPE |
Split System Heat Pump |
|
EQUIPMENT TYPE |
Air Handler |
|
SHORT DESCRIPTION |
1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler |
|
LONG DESCRIPTION |

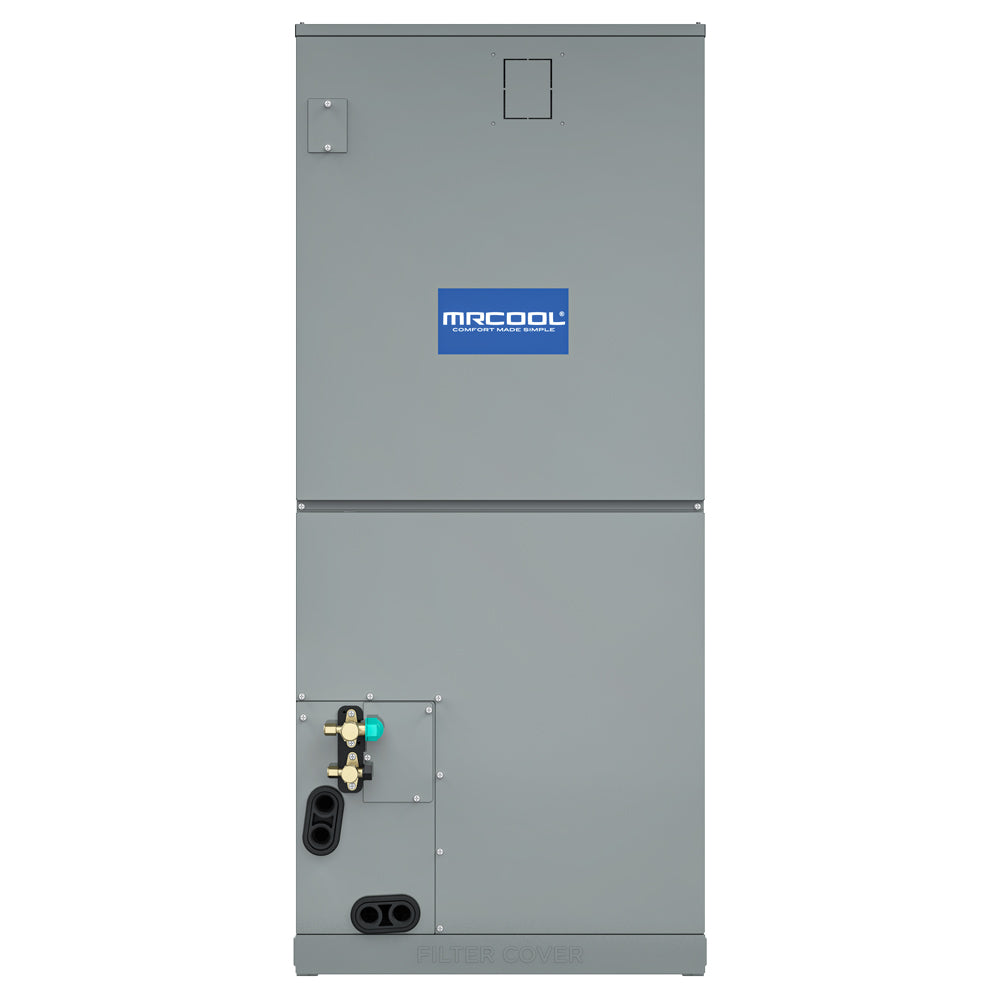

The 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is an efficient and reliable option for heating and cooling your home throughout the year. With a SEER2 rating of up to 18.8, it is ideal for spaces up to 750 square feet, making it a great upgrade for older HVAC systems. The air handler is built with durability in mind, featuring a painted galvanized steel exterior that ensures long-lasting performance. Maintenance is made easier with a self-diagnostics panel that quickly identifies any issues, reducing the need for troubleshooting. This unit offers flexible installation options, including upflow, downflow, and horizontal left or right configurations, allowing it to fit various setups. It uses R-454B refrigerant, an eco-friendly option that reduces environmental impact while maintaining efficient performance. An optional heat kit is available for those who need additional heating. Complementing this, the MRCOOL® Smart Thermostat ensures reliable and easy-to-use temperature control, making it simple to maintain your ideal home climate. Its compatibility with the MRCOOL® SmartHVAC app allows you to conveniently adjust your settings remotely for added comfort and control. Backed by a 10-year warranty, the 1.5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for improving your home’s comfort and performance. |
|
CFM |
618.03/576.83/529.74/488.54 |
|
TONNAGE |
1.5 |
|
COOLING CAPACITY (BTU) |
18000 |
|
HEATING CAPACITY (BTU) |
18000 |
|
VOLTAGE (V) |
115/208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
15 |
|
MIN CIRCUIT AMPACITY (A) |
5.5/4.0 |
|
COLOR |
gray |
|
DECIBEL RATING LOW (DBA) |
33 |
|
DECIBEL RATING HIGH (DBA) |
44 |
|
NUMBER OF SPEEDS |
4 |
|
MAX LINESET LENGTH (FT) |
98.4 ft |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
3/4 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
16x20x1 |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kW/8kW/10kW |
|
ADJUSTABLE THERMOSTAT |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
ETL CERTIFIED |
Yes |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
BASE PARTS WARRANTY |
10 Years |
|
BASE COMPRESSOR WARRANTY |
10 Years |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
NET DEPTH (IN) |
17.52 |
|
NET HEIGHT (IN) |
45 |
|
NET WIDTH (IN) |
21.02 |
|
NET WEIGHT (LBS) |
105.82 |
|
GROSS DEPTH (IN) |
20.87 |
|
GROSS HEIGHT (IN) |
48.62 |
|
GROSS WIDTH (IN) |
26.57 |
|
GROSS WEIGHT (LBS) |
126.76 |
|
INSTALL MANUAL |

Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
