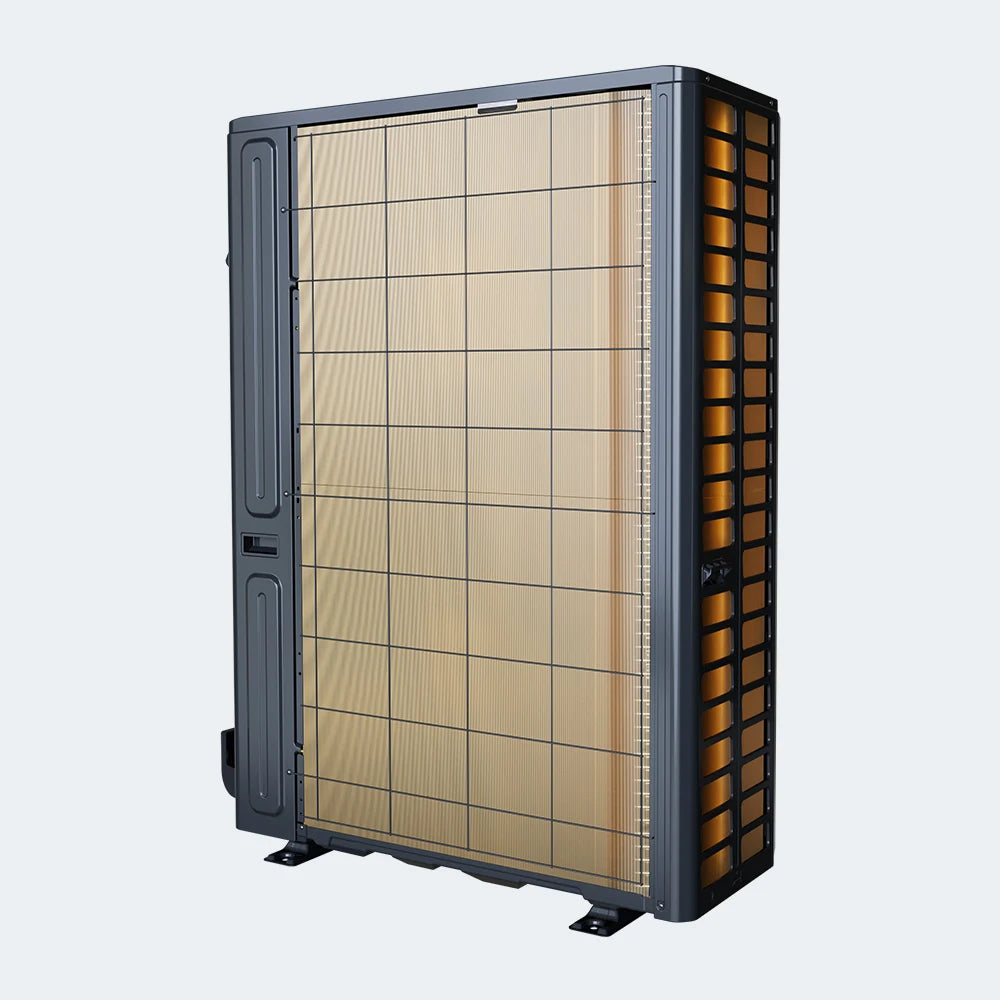

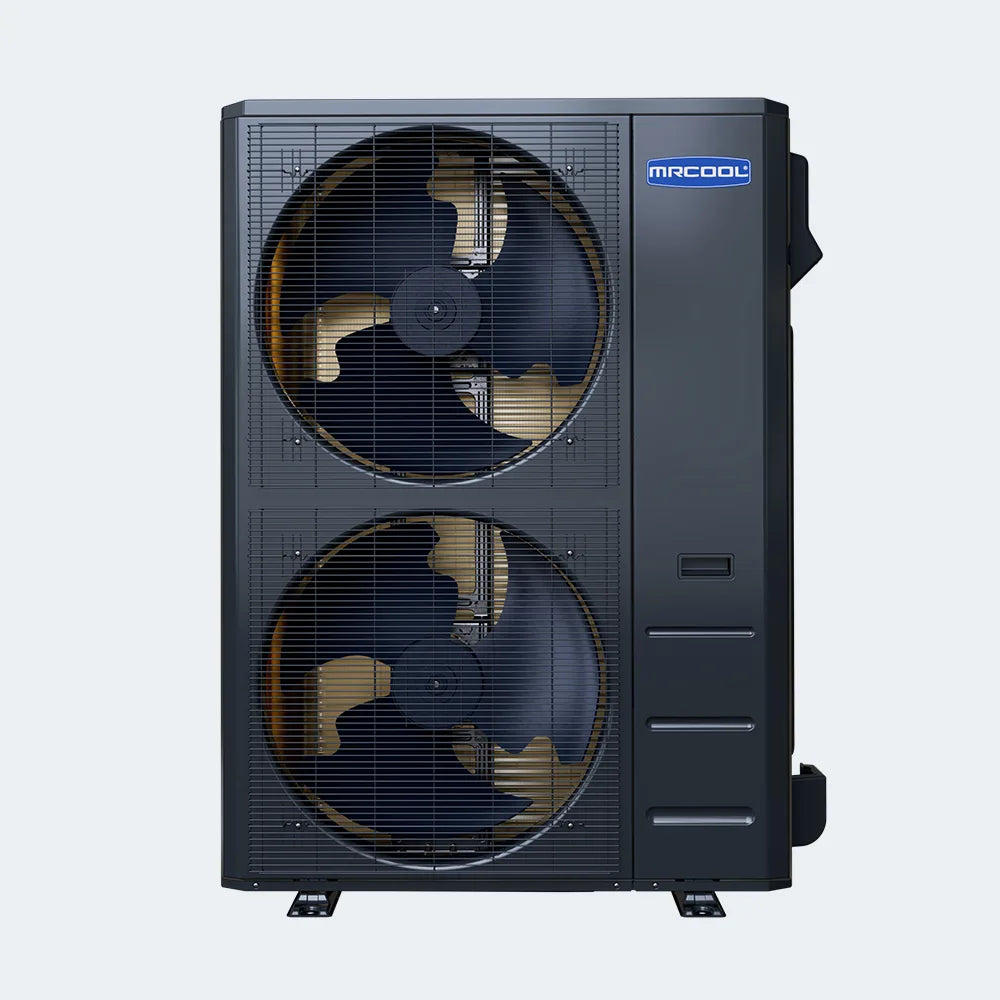

MRCOOL Universal R-454B 5 Ton Inverter Heat Pump Condenser – UHP18060-O
Summary
The MRCOOL® Universal® 60K DC Inverter Heat Pump Condenser is engineered for large spaces and demanding applications. With up to 17.5 SEER2 efficiency and inverter modulation, it delivers powerful, dependable comfort while reducing energy use. Optional NO-VAC® Quick Connect® line sets help shorten installation time.
Important
Up to 17.5 SEER2 efficiency. DC inverter variable speed. R-454B refrigerant. Optional NO-VAC® Quick Connect® line sets.
What's Included
- Universal® Series Inverter Condenser (UHP18060-O)
- Installation & Owner’s Manual
- Warranty Information
Features
- High-capacity heating and cooling with inverter precision
- Compact, side-discharge design for flexible placement
- Pairs with Universal® air handlers; optional heat kits available
- Full-output performance to −13°F heat and 110°F cooling (see brochure notes)
Technical Specifications
| Brand / Series | MRCOOL / Universal R-454B |
| Model | UHP18060-O |
| GTIN | 00840255587914 |
| UPC | 840255587914 |
| Unit Type | Universal Series Heat Pump |
| Equipment Type | Condenser |
| SEER2 / EER2 | Up to 17.5 / Up to 12 |
| HSPF2-4 / HSPF2-5 | 9.5 / 7.7 |
| Tonnage | 5 |
| Cooling / Heating Capacity (BTU) | 54,000 / 55,000 |
| Voltage / Phase / Cycle | 208/230V / 1 / 60 Hz |
| Max Fuse Breaker / Min Circuit Ampacity (A) | 40 / 40 |
| Color | Dark Grey |
| Refrigerant / Charge | R-454B / 183.42 oz |
| Sound Level | 64.5 dBA |
| Inverter | DC |
| Max Line Set Length | 246 ft |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Compressor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 1000 / 900 / 750 / 650 |
| Metering Device | EXV |
| Listings | UL, CSA, ETL |
| Energy Star | Yes |
| Base Warranty | 10-Year Parts / 10-Year Compressor / 2-Year Labor |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
| Prop 65 Warning | Yes |
| Net Dimensions (W × D × H) | 37.48" × 16.34" × 52.48" |
| Net / Gross Weight | 242.95 lbs / 275.13 lbs |
| Gross Dimensions (W × D × H) | 43.11" × 19.49" × 58.27" |
Airflow & Operating Range
| Outdoor Airflow (CFM) | 2648.7 |
| Cooling Output | Up to 100% at 110°F (see brochure) |
| Heating Output | Up to 100% at −13°F (see brochure) |
Compatibility & Pairing
- Pairs with MRCOOL® Universal® Air Handler UAH18060-O (heat kits optional)
- Optional NO-VAC® Quick Connect® line sets
Warranty Information
- Parts: 10 Years (limited)
- Compressor: 10 Years (limited)
- Labor: 2 Years (limited)
Manuals & Downloads
Safety & Install Notes
- Qualified installation required; verify electrical sizing and clearances.
- Use matched components and proper line sizing for rated performance.
Environmental & Efficiency Features
High-efficiency inverter operation with R-454B refrigerant helps reduce energy use and environmental impact.
