A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…
CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

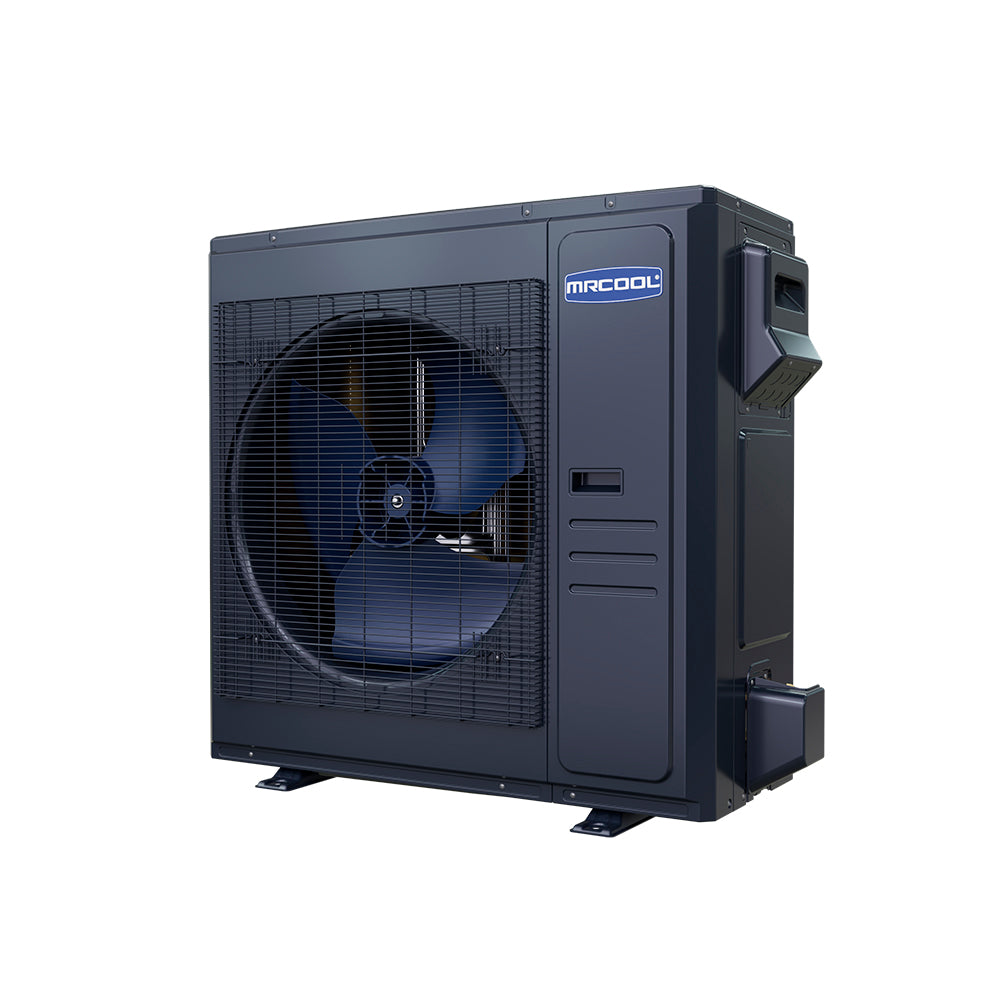

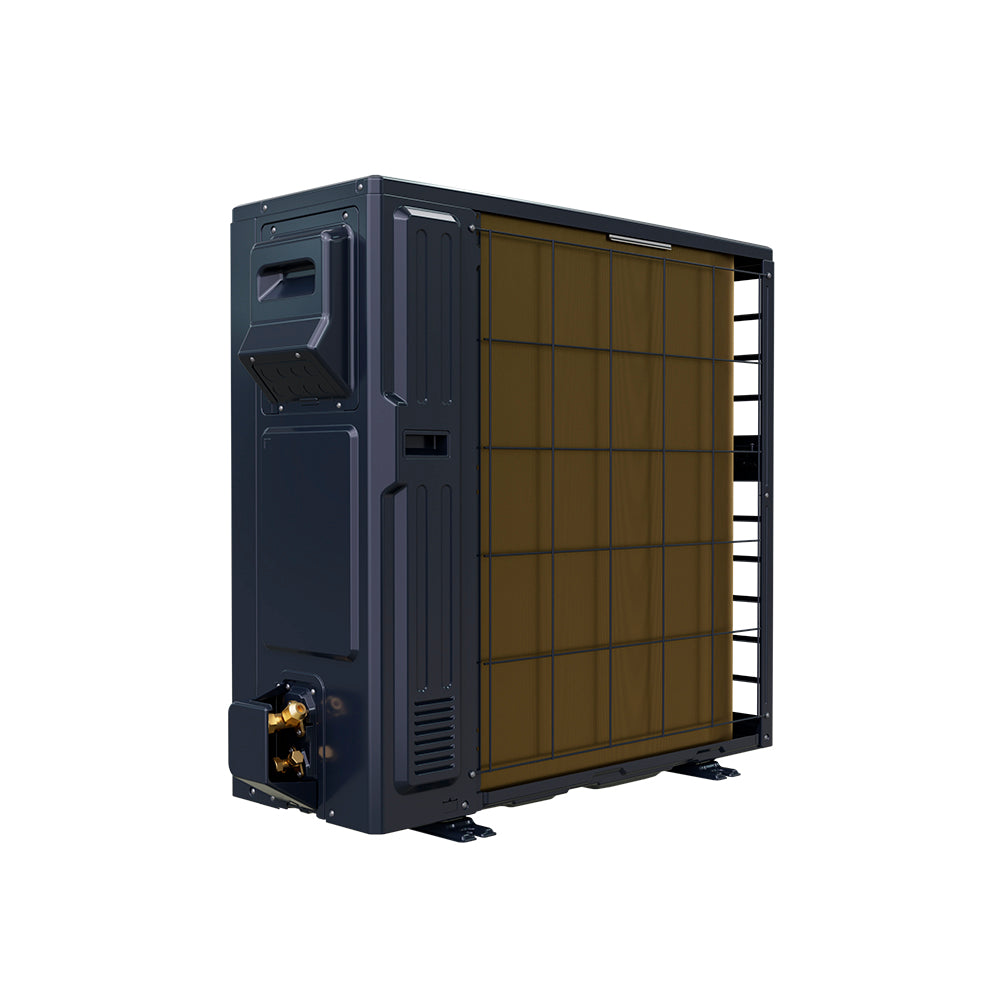

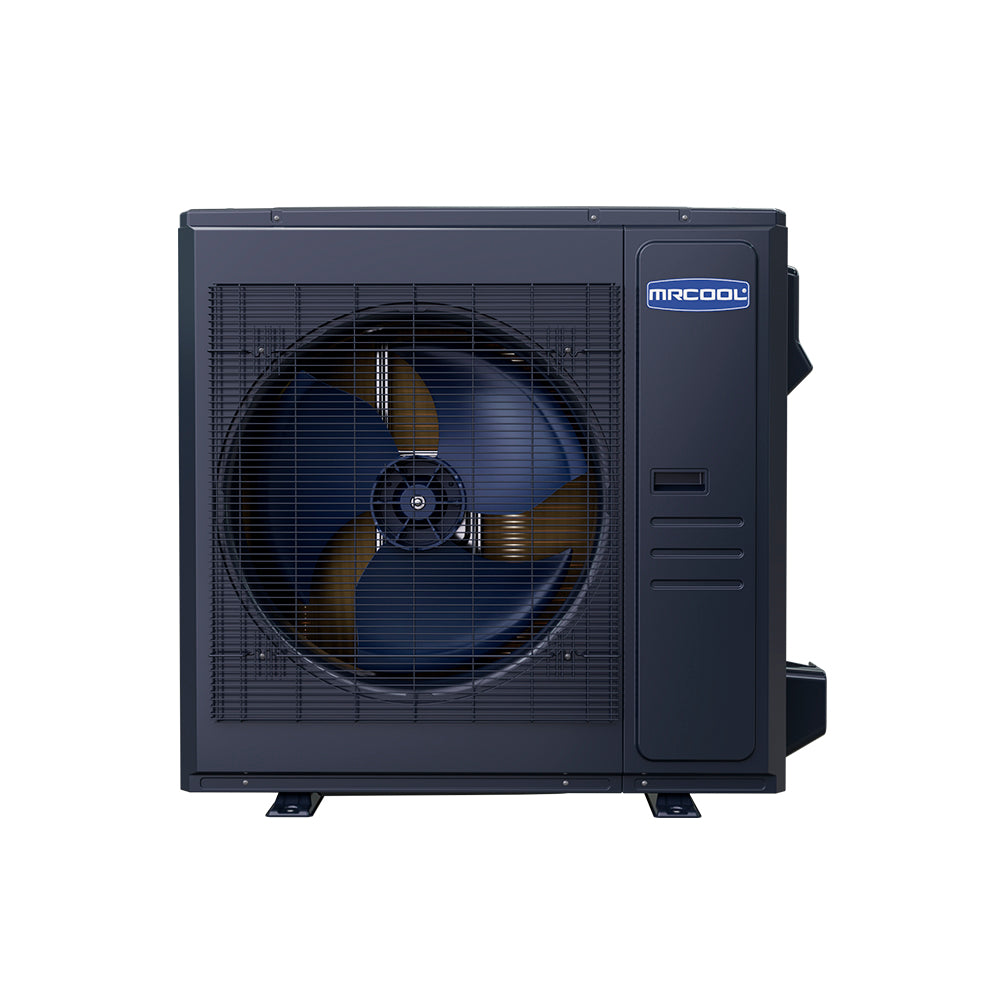

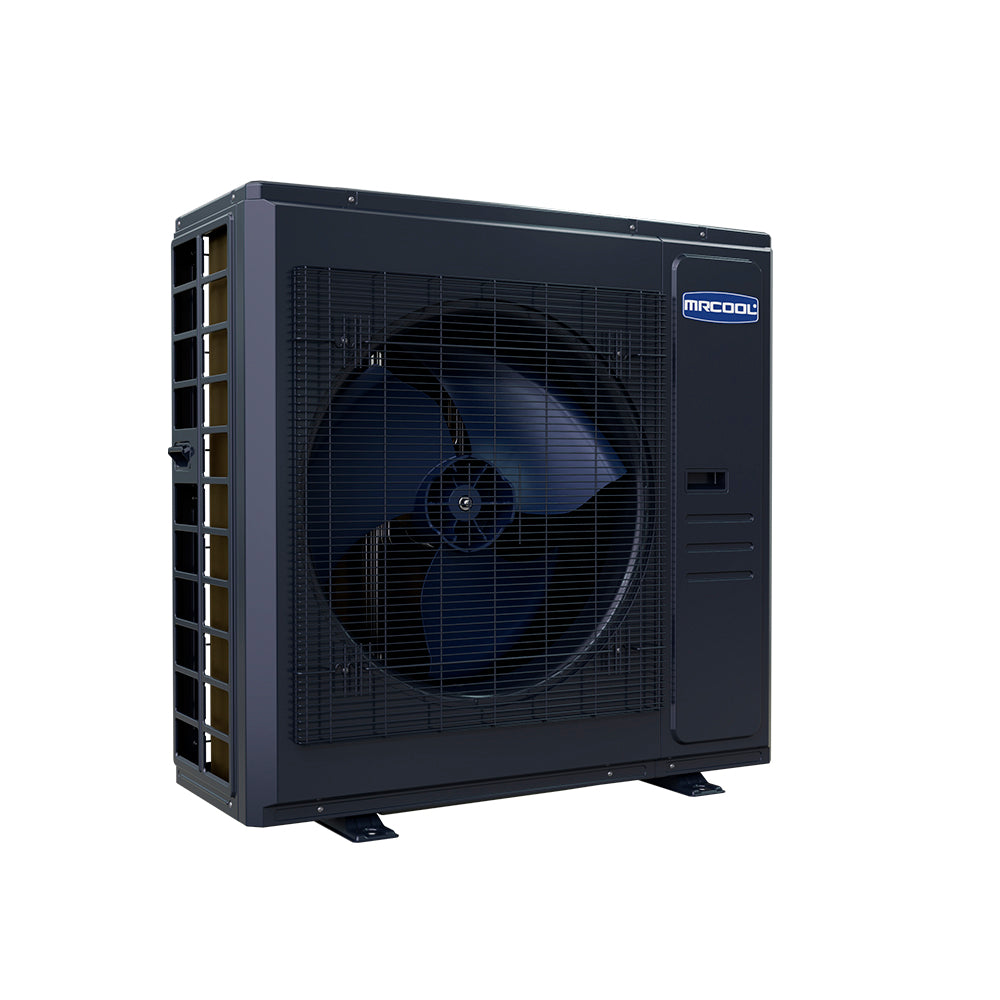

The MRCOOL® Universal® 36K DC Inverter Heat Pump Condenser provides strong, year-round comfort with up to 18 SEER2 efficiency. A compact, side-discharge design simplifies placement, while optional NO-VAC® Quick Connect® line sets speed up installation.
Up to 18 SEER2 efficiency. DC inverter variable speed. Low-GWP R-454B refrigerant. Optional NO-VAC® Quick Connect® line sets.
| Brand / Series | MRCOOL / Universal R-454B |
| Model | UHP18036-O |
| GTIN | 00840255587891 |
| UPC | 840255587891 |
| Unit Type | Universal Series Heat Pump |
| Equipment Type | Condenser |
| SEER2 / EER2 | Up to 18 / Up to 12 |
| HSPF2-4 / HSPF2-5 | 10 / 8.2 |
| Tonnage | 3 |
| Cooling / Heating Capacity (BTU) | 36,000 / 37,000 |
| Voltage / Phase / Cycle | 208/230V / 1 / 60 Hz |
| Max Fuse Breaker / Min Circuit Ampacity (A) | 30 / 29 |
| Color | Dark Grey |
| Refrigerant / Charge | R-454B / 126.99 oz |
| Sound Level | 63 dBA |
| Inverter | DC |
| Max Line Set Length | 246 ft |
| Liquid / Suction Line Sizes | 3/8" / 3/4" |
| Compressor Type | Twin-Rotary |
| Condenser Fan Motor RPM | 800 / 750 / 650 |
| Metering Device | EXV |
| Listings | UL, CSA, ETL |
| Energy Star | Yes |
| Base Warranty | 10-Year Parts / 10-Year Compressor / 2-Year Labor |
| Contains Electronics / Chemicals / Compressed Gas | Yes / Yes / Yes |
| Prop 65 Warning | Yes |
| Net Dimensions (W × D × H) | 38.58" × 16.34" × 38.39" |
| Net / Gross Weight | 204.15 lbs / 235.23 lbs |
| Gross Dimensions (W × D × H) | 45.08" × 19.68" × 42.52" |
| Outdoor Airflow (CFM) | 3001.9 |
| Cooling Output | Up to 100% at 110°F (see brochure) |
| Heating Output | Up to 100% at −13°F (see brochure) |
R-454B refrigerant plus inverter compression maximizes efficiency and comfort while reducing energy consumption.
Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
