MRCOOL DIY 5th Gen OuttaSight 9K BTU Ceiling Cassette | R-454B - DIYCASSETTE09HP-230D25-O

SKU DIYCASSETTE09HP-230D25-O Ceiling Cassette208-230V
$1,410.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K room setups:
  • Small bedrooms
  • Home offices
  • Nurseries
  • Small additions
9,000 BTU
Cooling
9,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.
MRCOOL — Wall Mount

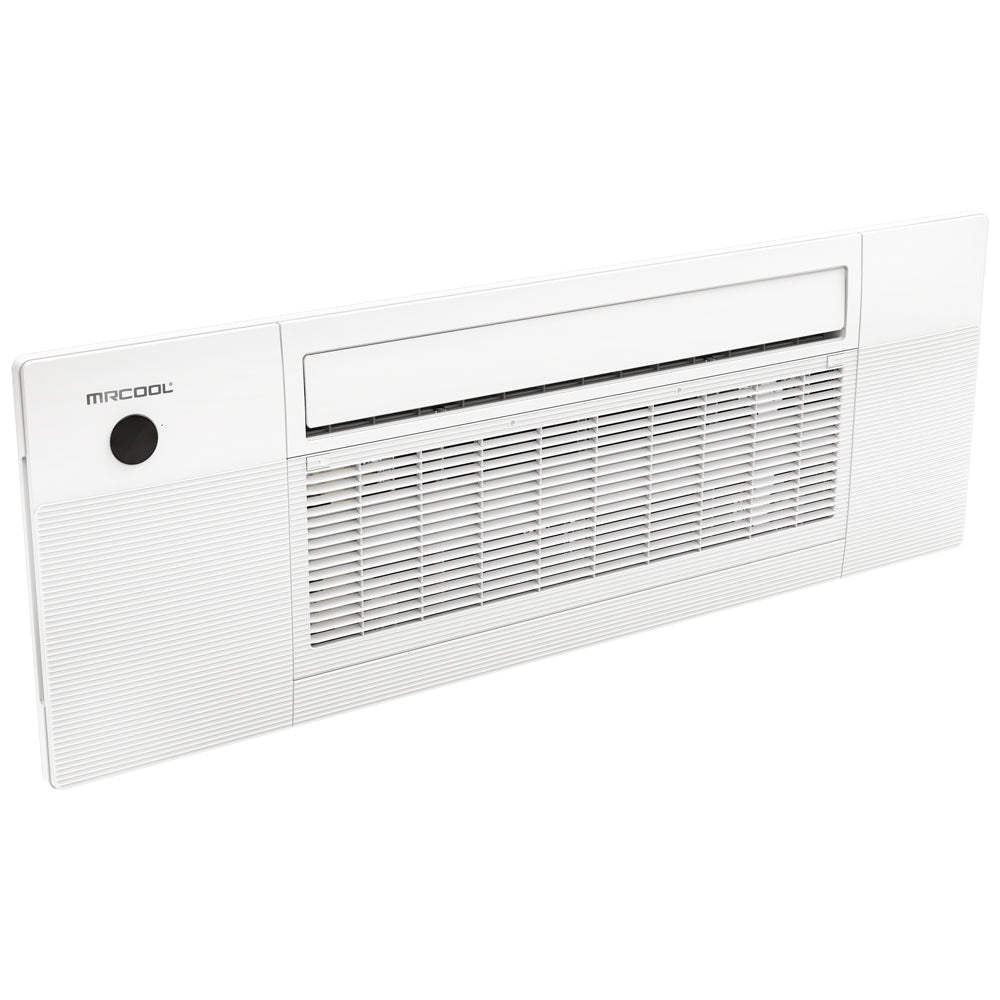

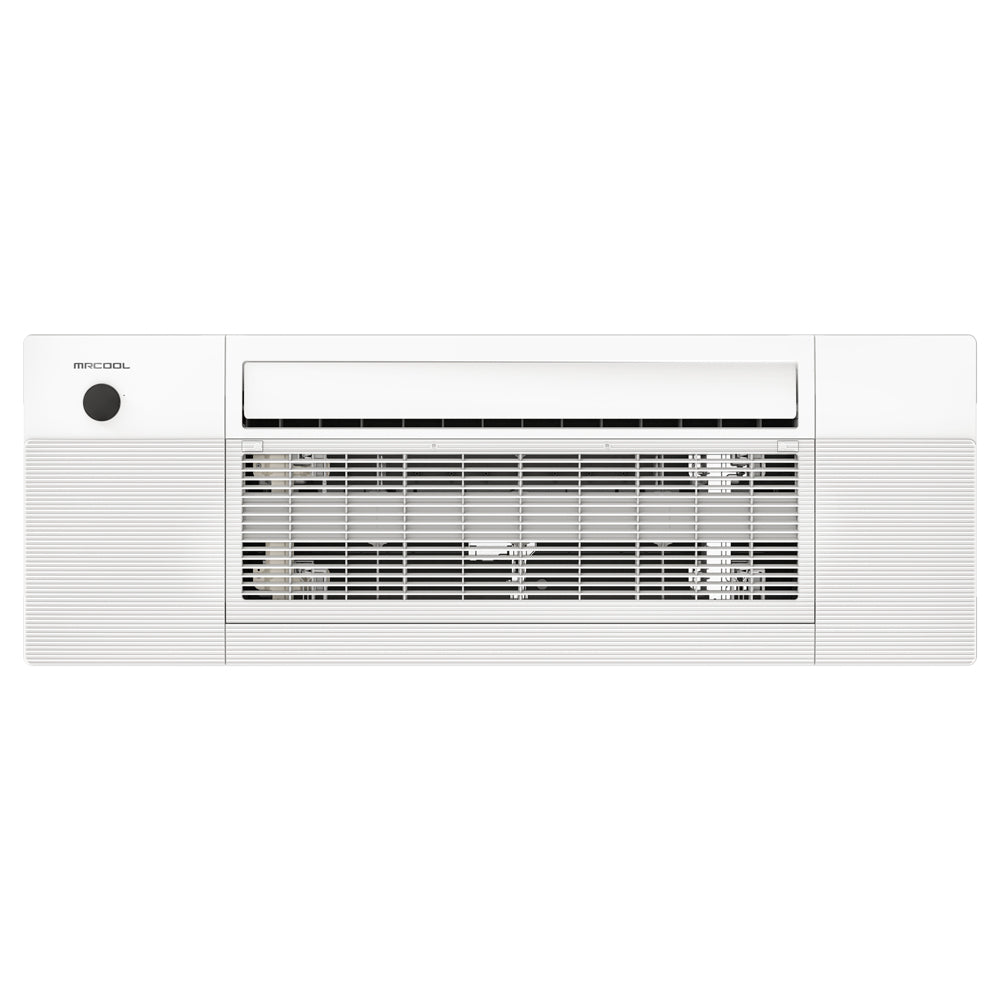

MRCOOL DIY 5th Gen OuttaSight 9K BTU Ceiling Cassette | R-454B - DIYCASSETTE09HP-230D25-O

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

MRCOOL DIY 5th Gen OuttaSight 9K BTU Ceiling Cassette | R-454B - DIYCASSETTE09HP-230D25-O

Summary

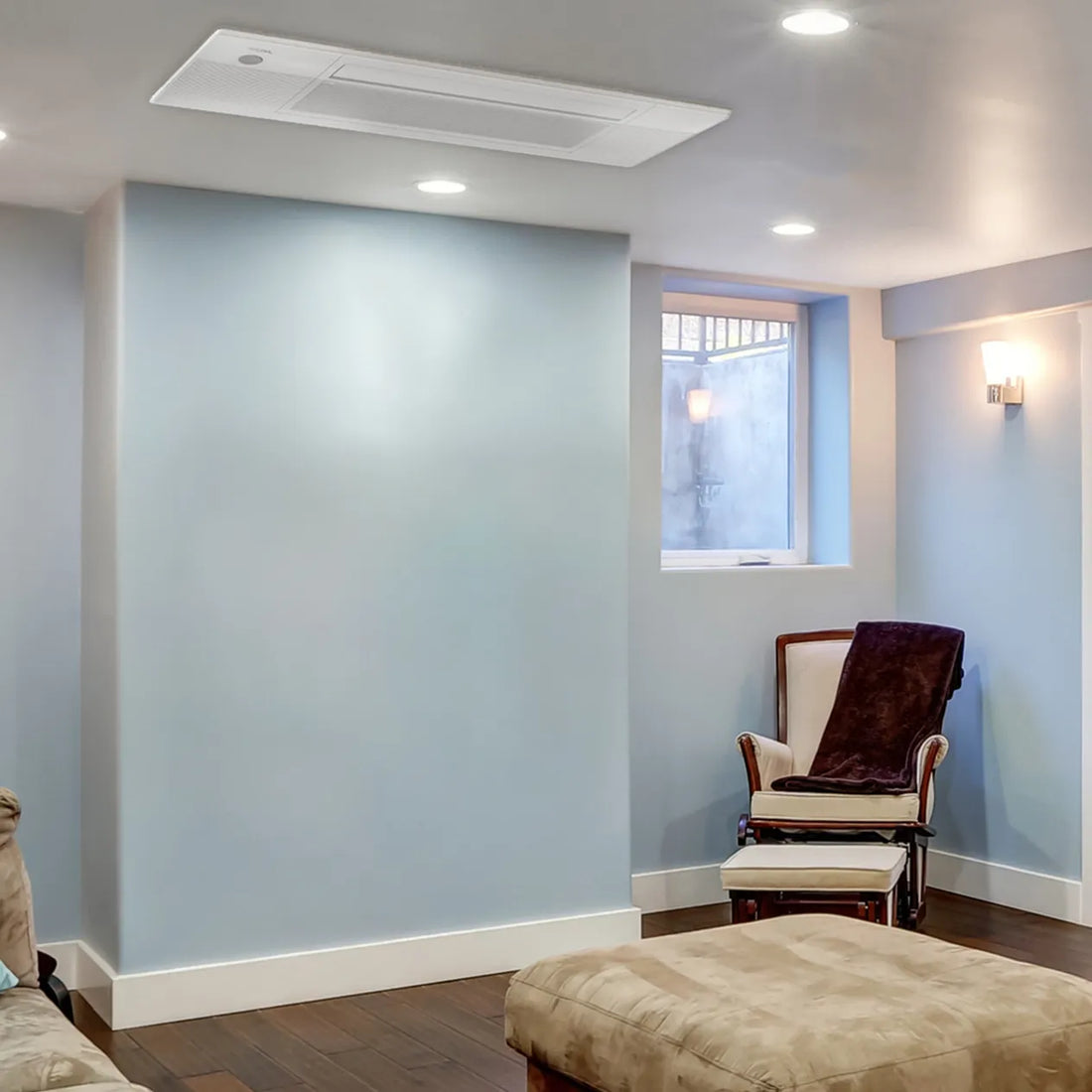

The 5th Generation MRCOOL® DIY® OuttaSight® 9K BTU Ceiling Cassette delivers discreet, powerful climate control for spaces up to 400 sq. ft. Designed for flush mounting between standard 16" ceiling joists, this ultra-quiet (24-38 dBA) cassette features R-454B refrigerant compatibility and requires no specialized tools for installation. With smart controls (including app, voice, and remote operation), advanced filtration, and industry-leading warranties (including Limited Compressor warranty with registration), this solution combines aesthetic discretion with premium performance.

Important

Professional installation NOT required - designed for DIY.Registration required for Limited Compressor warranty.Compatible with MRCOOL DIY 5th Gen systems.Quick Connect® line sets required (sold separately) - pre-charged with R-454B refrigerant.

What's Included

  • 9,000 BTU Ceiling Cassette Unit (Model DIYCASSETTE09HP-230D25-O)
  • Wireless Remote Control
  • Installation Manual
  • User's Manual
  • Warranty Information

Key Features

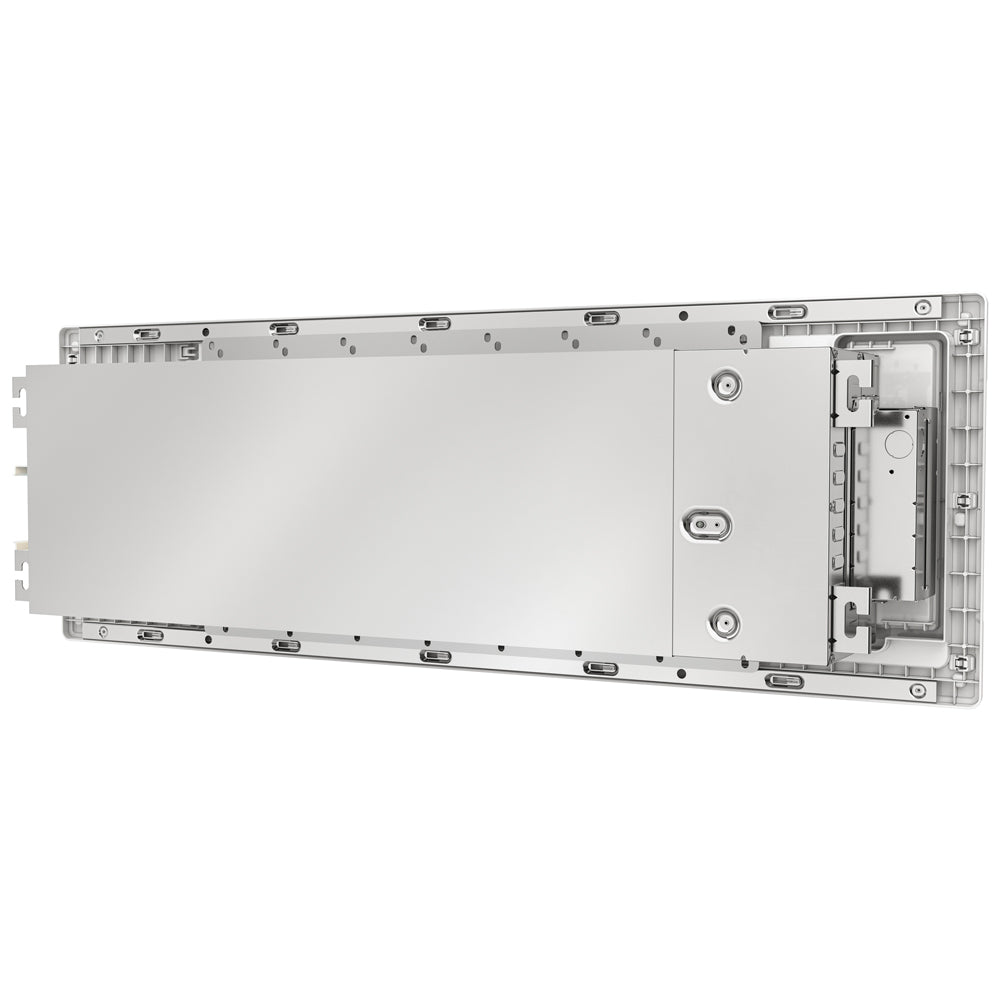

  • Low-Profile Design - Fits between standard 16" ceiling joists
  • True DIY Installation - No HVAC technician or specialized tools required
  • Ultra-Quiet Operation - As low as 24 dBA in quiet mode
  • Smart Controls - Works with Smart HVAC app, Amazon Alexa & Google Home
  • Advanced Filtration - Improves indoor air quality
  • Easy Maintenance - Elevation function lowers panel for filter access
  • R-454B Refrigerant - More efficient and eco-friendly formula
  • Multi-Directional Airflow - Optimized comfort distribution
  • Flexible Installation - Works with single or multi-zone systems

Complete Technical Specifications

SKU DIYCASSETTE09HP-230D25-O
UPC 840255587501
GTIN 00840255587501
Cooling Capacity 9,000 BTU
Coverage Area Up to 400 sq. ft.
Refrigerant R-454B
Electrical 208-230V 1 Phase 60 Hz
Electrical Details 3A Min Circuit Ampacity, 15A Max Fuse Breaker
Mount Type Ceiling (between 16" joists)
Air Flow Direction 1-Way
Noise Level 24-38 dBA

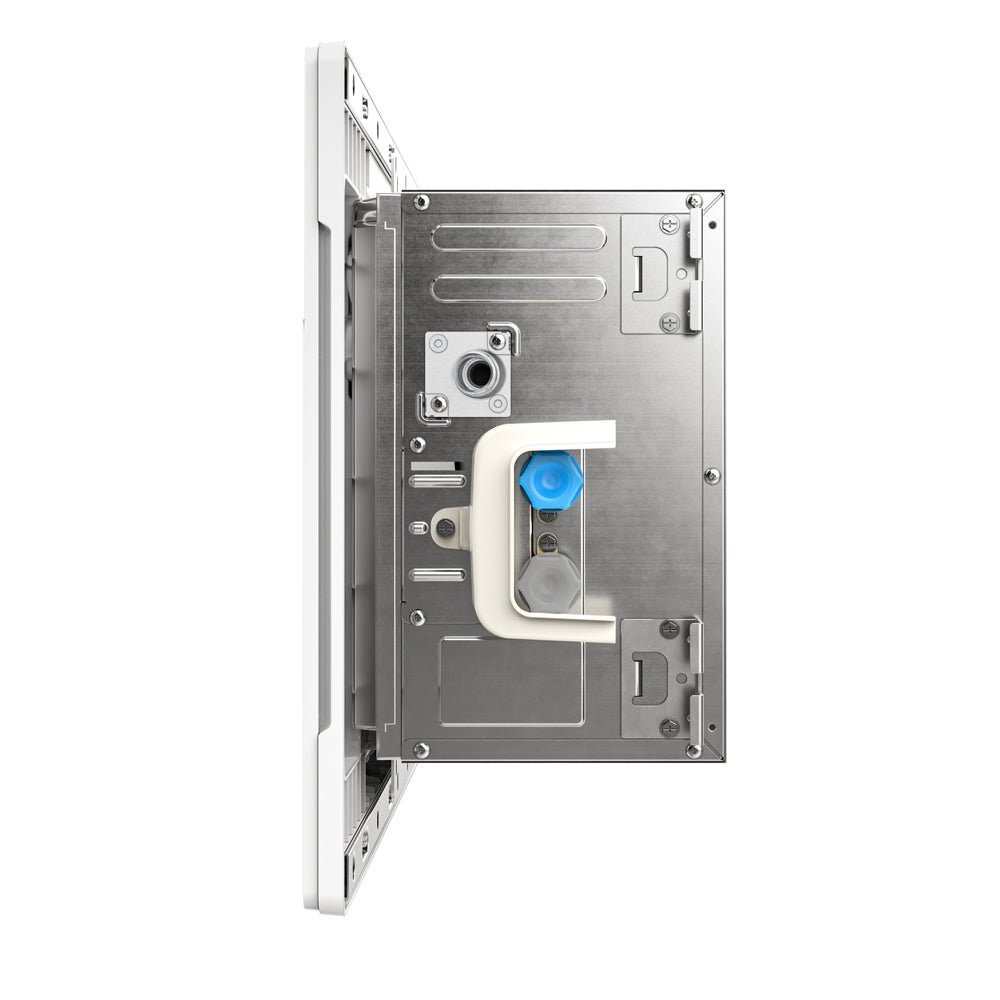

Line Set Connections 1/4" Liquid Line, 3/8" Suction Line
CFM Settings 341 / 294 / 259 / 235 / 235
Blower Motor RPM 1104/994/784
Filter Type Reusable
Net Dimensions (HxWxD) 8.98" x 50.31" x 13.19"
Net Weight 45 lbs
Shipping Dimensions 22.64" x 57.6" x 22.48"
Shipping Weight 88 lbs

Performance Features

Smart Controls Smart HVAC App, Alexa, Google Home, Wireless Remote
Operation Modes Cool, Heat, Fan, Dry, Auto
Special Features Quiet Mode, Sleep Mode, Auto Cool, Fan Only Option
Connectivity WiFi, iOS & Android Compatible
Construction Low-profile ceiling cassette design

Warranty Information

  • Limited Compressor Warranty- With enrollment in MRCOOL® Care Program
  • 7 Year Compressor Warranty(base)
  • 5 Year Parts Warranty
  • Registration required within 60 days of installation

Manuals & Documentation

Safety Information

PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Advanced Technology

The MRCOOL DIY® 5th Generation OuttaSight® Ceiling Cassette features a two-stage DC motor for ultra-quiet operation and energy efficiency. The innovative low-profile design fits seamlessly between standard 16" ceiling joists while maintaining powerful 9K BTU capacity. The R-454B refrigerant offers superior performance with lower environmental impact compared to previous refrigerants. With multiple airflow settings (341 to 235 CFM) and precise temperature control, this cassette delivers customized comfort without compromising aesthetics.

Smart Home Integration

Control your climate from anywhere with the Smart HVAC app for iOS and Android devices. Create custom schedules, monitor operation, and adjust settings remotely. Voice control integration with Amazon Alexa and Google Assistant allows hands-free operation. The included wireless remote features easy-to-use controls with multiple operation modes including Quiet Mode (24 dBA) for undisturbed comfort.

Installation Advantages

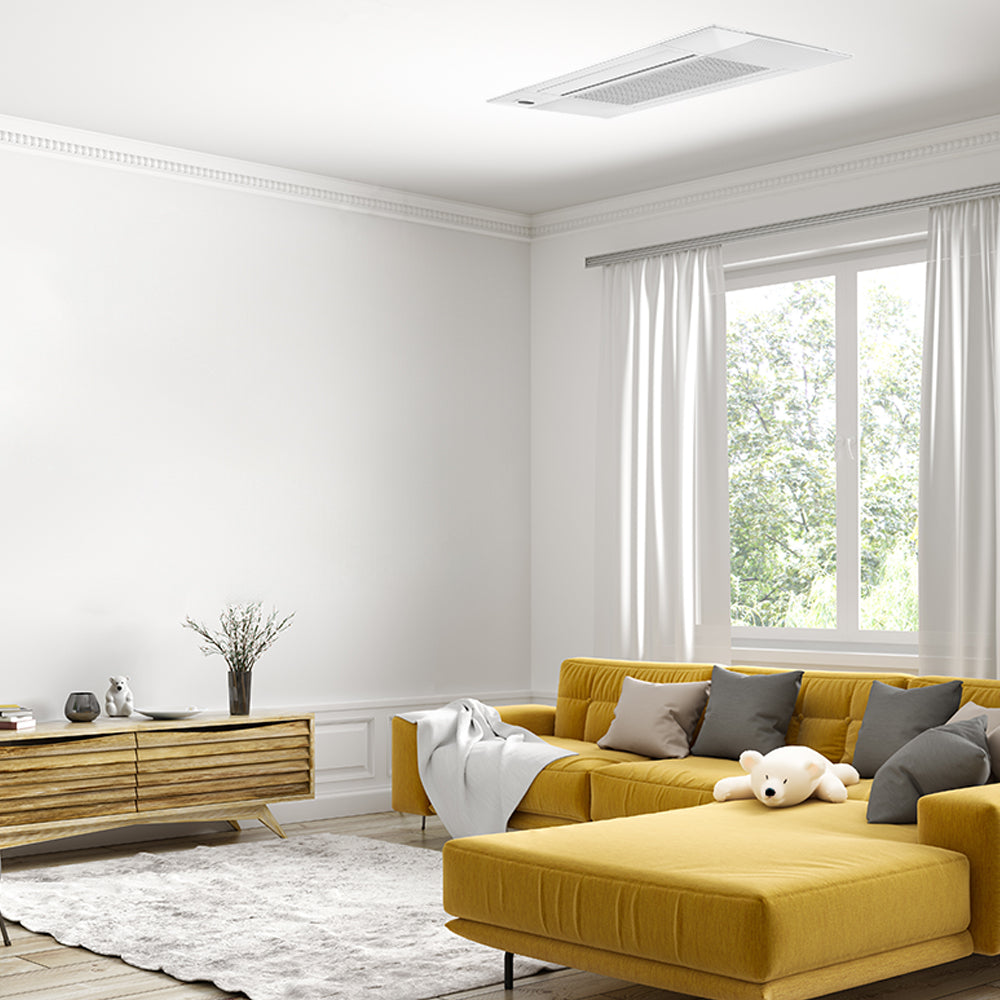

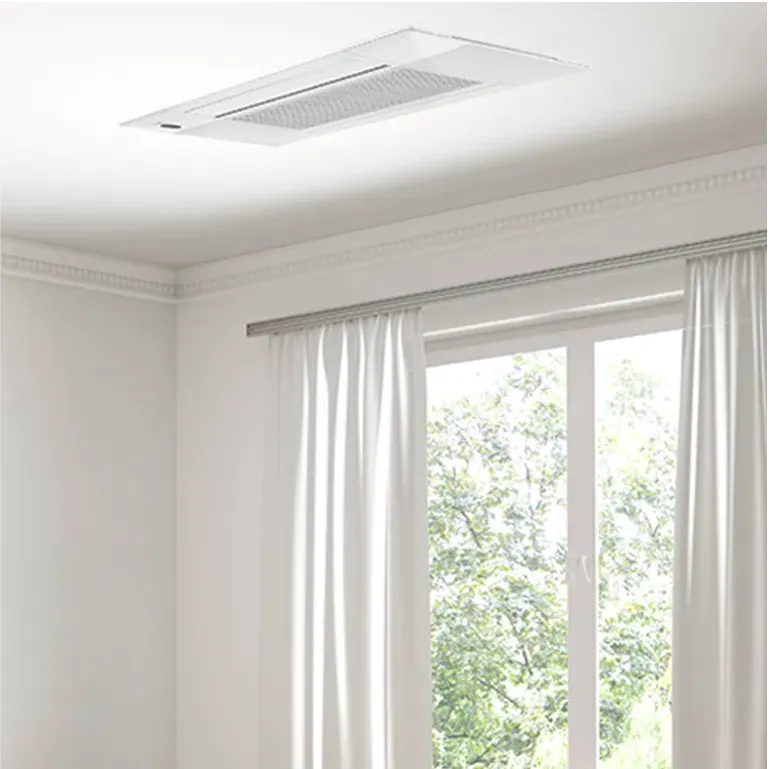

The revolutionary OuttaSight® design eliminates bulky ductwork and maintains ceiling aesthetics with its flush-mounted installation. The system works with pre-charged Quick Connect® line sets (sold separately) that require no vacuuming or special tools. The elevation function simplifies maintenance by lowering the front panel for easy filter access. Designed for both new construction and retrofit applications, this cassette provides a discreet yet powerful climate control solution.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
