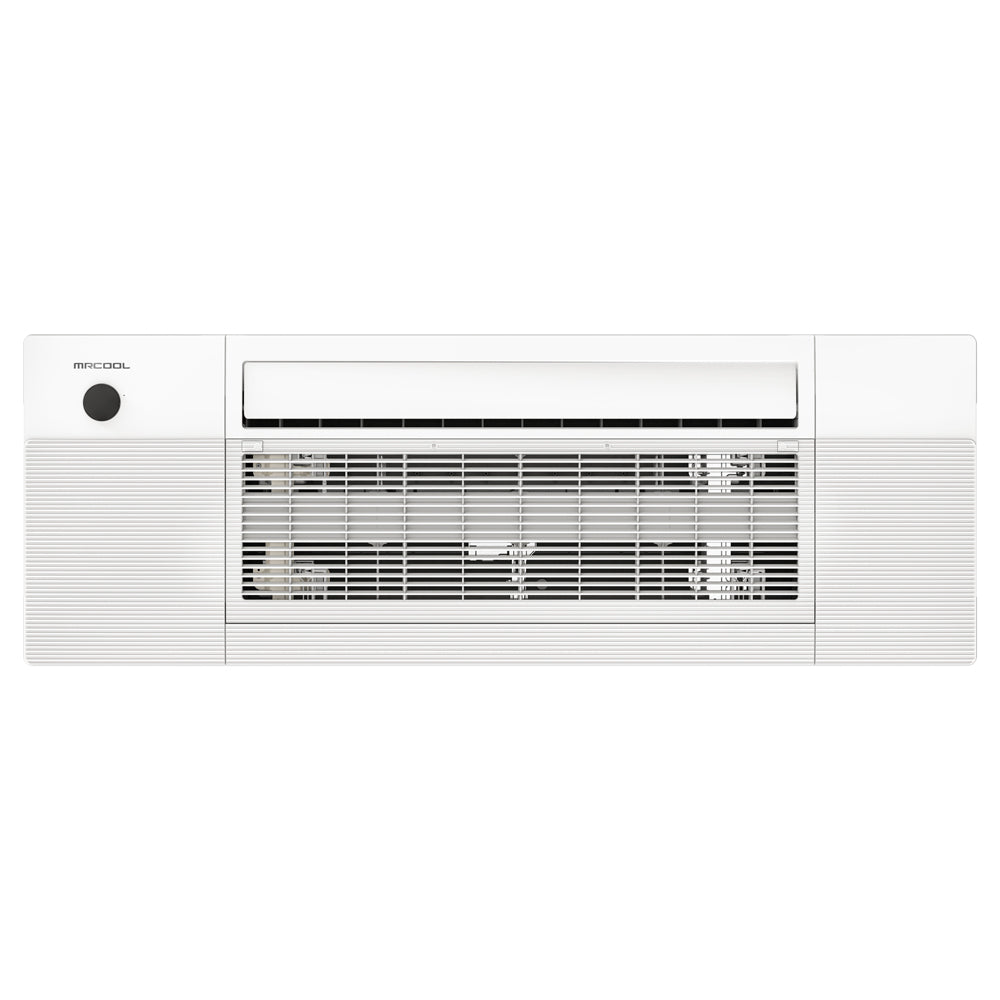

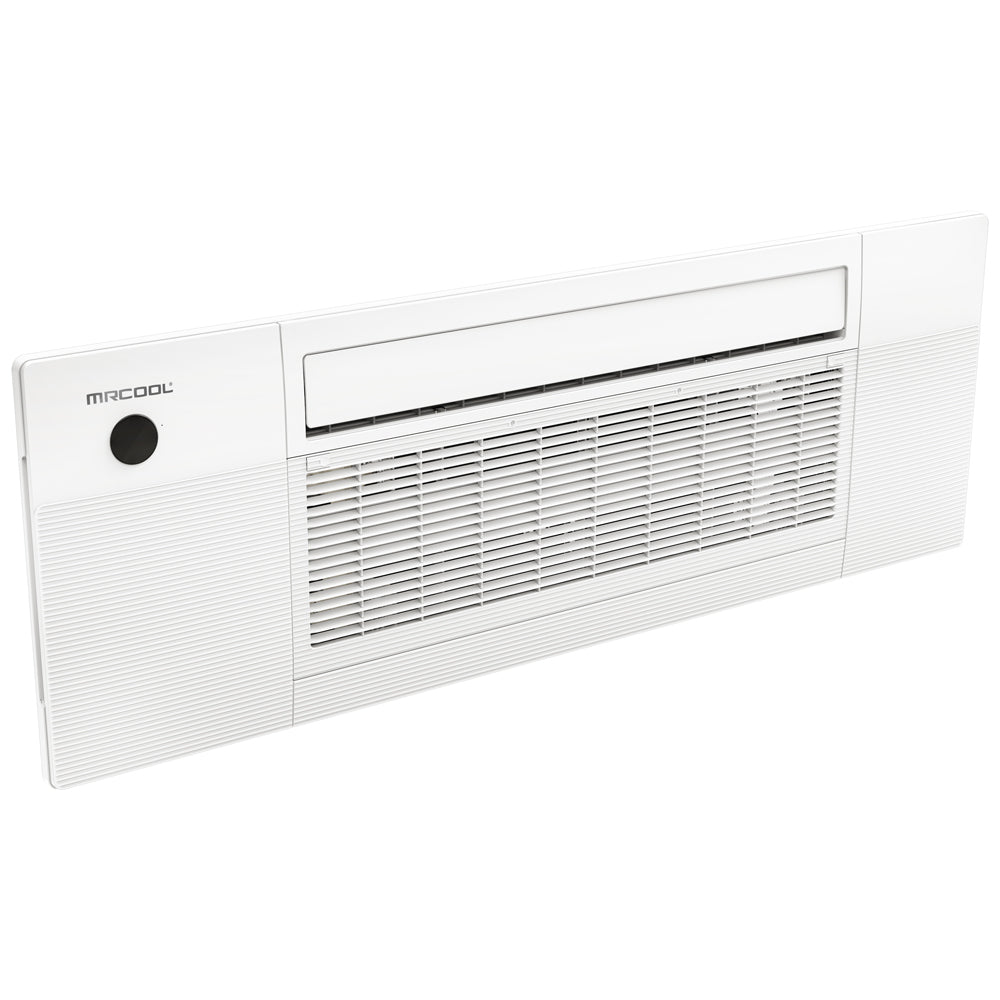

MRCOOL DIY® 5th Gen OuttaSight® 12K BTU Ceiling Cassette | R-454B - DIYCASSETTE12HP-230D25-O

SKU DIYCASSETTE12HP-230D25-O Ceiling Cassette208-230V
$1,421.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K-18K room setups:
  • Bedrooms
  • Home offices
  • Sunrooms
  • Small living rooms
12,000 BTU
Cooling
12,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.
MRCOOL — Wall Mount

MRCOOL DIY® 5th Gen OuttaSight® 12K BTU Ceiling Cassette | R-454B - DIYCASSETTE12HP-230D25-O

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

MRCOOL DIY® 5th Gen OuttaSight® 12K BTU Ceiling Cassette | R-454B - DIYCASSETTE12HP-230D25-O

Summary

The 5th Generation MRCOOL® DIY® OuttaSight® 12K BTU Ceiling Cassette delivers powerful, discreet climate control for spaces up to 550 sq. ft. Featuring the same innovative low-profile design (only 8.98" height) as its 6K counterpart but with increased capacity, this ultra-quiet (24-41 dBA) cassette features R-454B compatibility, advanced filtration, and smart controls via app or voice commands. With its flush-mount design for standard 16" joist spacing and simplified DIY installation (no vacuuming required), this ceiling cassette combines high performance with space-saving elegance.

Important

Designed for DIY installation between standard 16" ceiling joists.Requires compatible MRCOOL DIY condenser and Quick Connect® line set (sold separately).Registration required for Limited Compressor warranty.Not available in Guam, Puerto Rico, or Virgin Islands.

What's Included

  • 12K BTU Ceiling Cassette (Model DIYCASSETTE12HP-230D25-O)
  • Wireless Remote Control
  • Installation Hardware
  • Installation Manual
  • User's Manual
  • Warranty Information

Key Features

  • High-Capacity 12K BTU - Covers up to 550 sq. ft.
  • True DIY Installation - No specialized tools or HVAC technician required

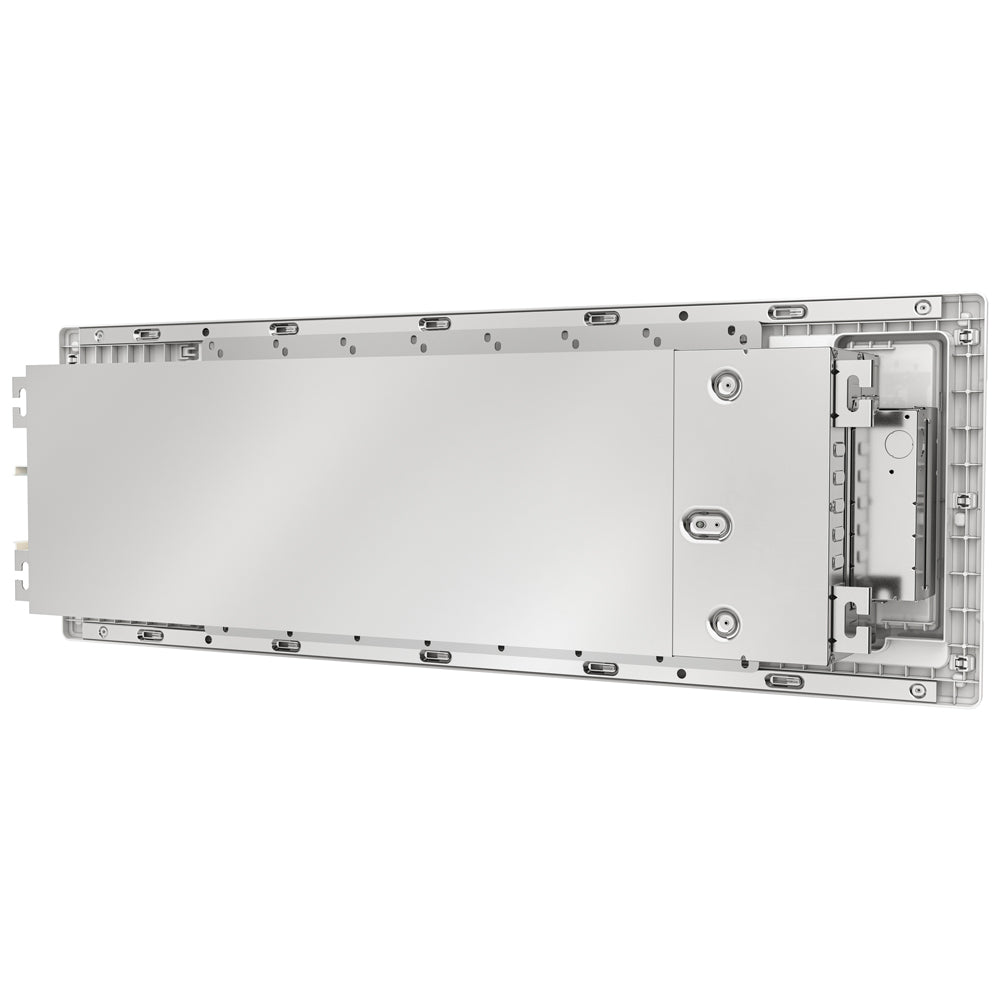

  • Low-Profile Design - Fits between 16" ceiling joists (only 8.98" height)
  • Ultra-Quiet Operation - 24-41 dBA range (37 dBA rated)
  • Smart Controls - Works with SmartHVAC app, Alexa & Google Assistant
  • Advanced Filtration - Improves indoor air quality
  • Elevation Function - Lowers panel for easy filter access
  • Two-Stage DC Motor - Variable-speed operation (797-1075 RPM)
  • R-454B Refrigerant Compatible - Eco-friendly and efficient
  • Five-Speed Airflow - 177 to 353 CFM

Complete Technical Specifications

SKU DIYCASSETTE12HP-230D25-O
UPC 840255587518
Cooling Capacity 12,000 BTU
Coverage Area Up to 550 sq. ft.
Refrigerant R-454B (compatible)
Electrical 208-230V 1 Phase 60 Hz
Electrical Details 3A Min Circuit Ampacity, 15A Max Fuse Breaker
Noise Level 24-41 dBA (37 dBA rated)
Airflow (CFM) 177 / 247 / 283 / 312 / 353 (5 speeds)
Blower Motor Two-Stage DC (797-1075 RPM)

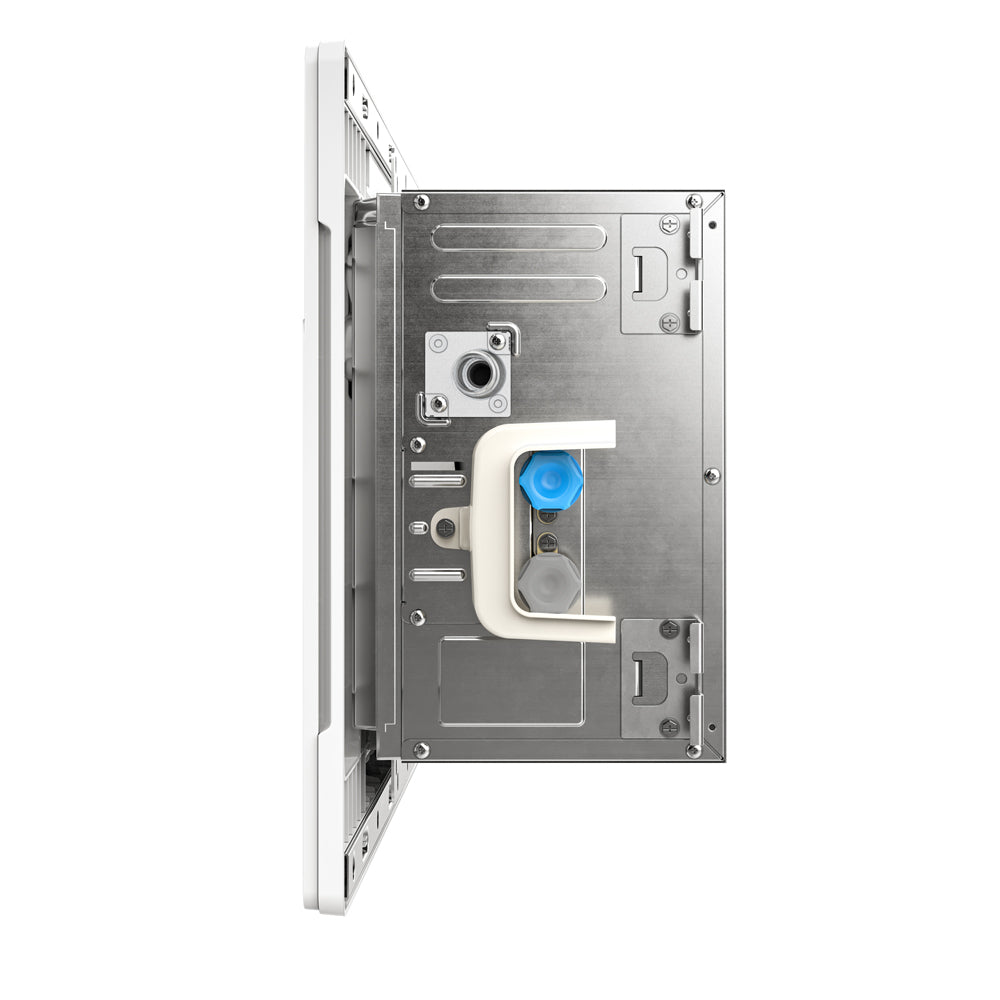

Line Connections 1/4" Liquid Line, 3/8" Suction Line
Net Dimensions (HxWxD) 8.98" x 50.31" x 13.19"
Net Weight 45 lbs
Shipping Dimensions 22.64" x 57.6" x 22.48"
Shipping Weight 88 lbs

Performance Features

Smart Controls SmartHVAC App, Alexa, Google Home, Wireless Remote
Operation Modes Cool, Heat, Fan, Dry, Auto
Special Features Quiet Mode, Sleep Mode, Auto Cool, Fan Only Option
Connectivity WiFi, iOS & Android Compatible
Installation Fits standard 16" joist spacing (including I-joists)

Warranty Information

  • Limited Compressor Warranty- With product registration
  • 7 Year Compressor Warranty- Base coverage
  • 5 Year Parts Warranty
  • Registration required within 60 days of installation

Manuals & Downloads

Safety Information

PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

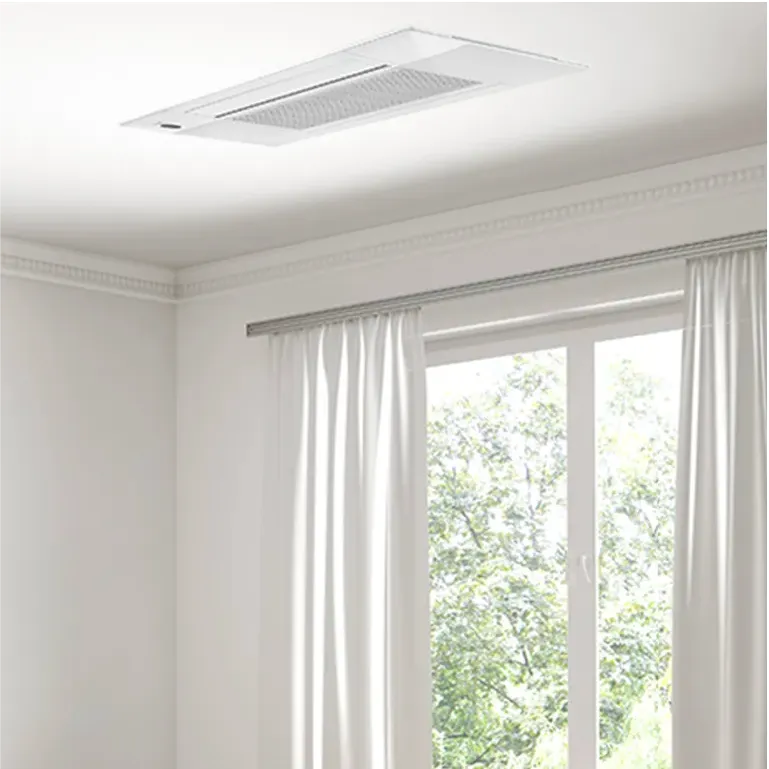

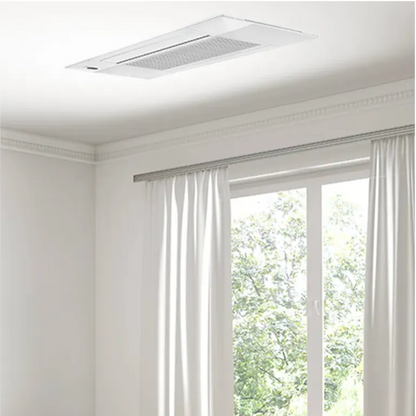

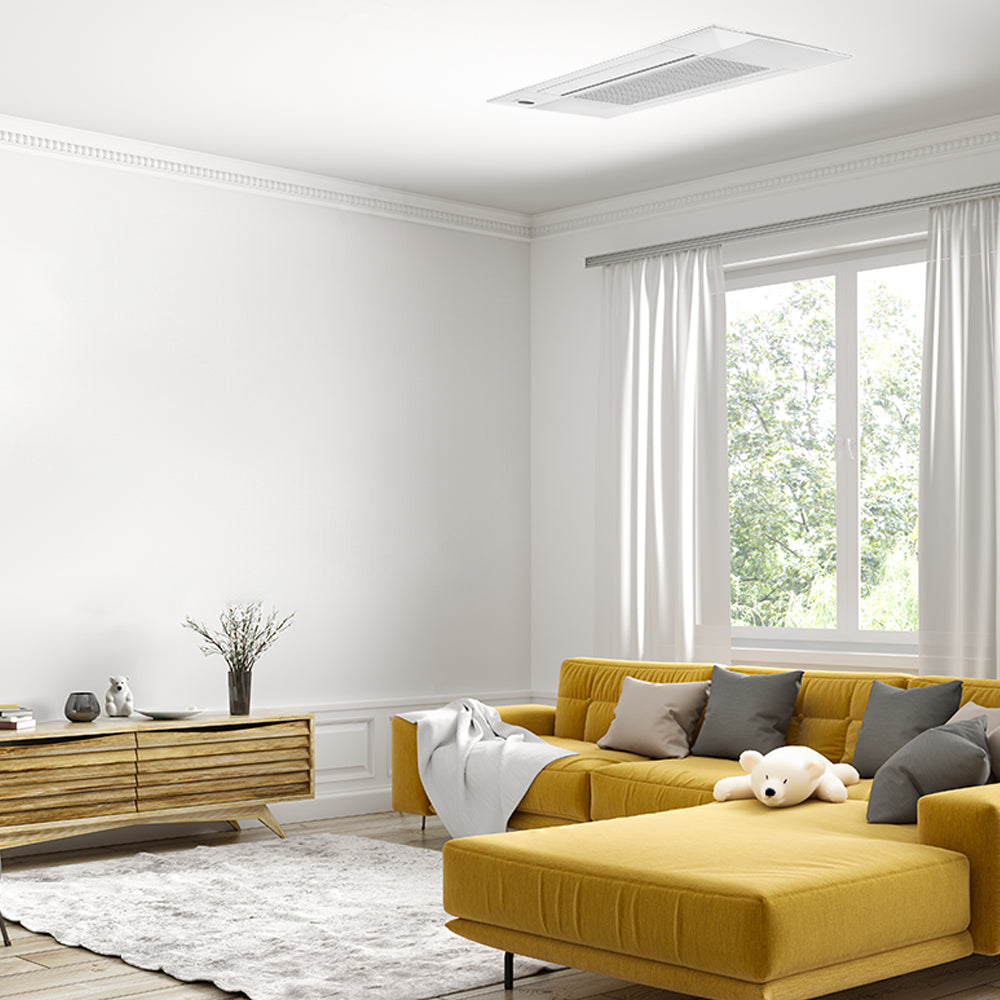

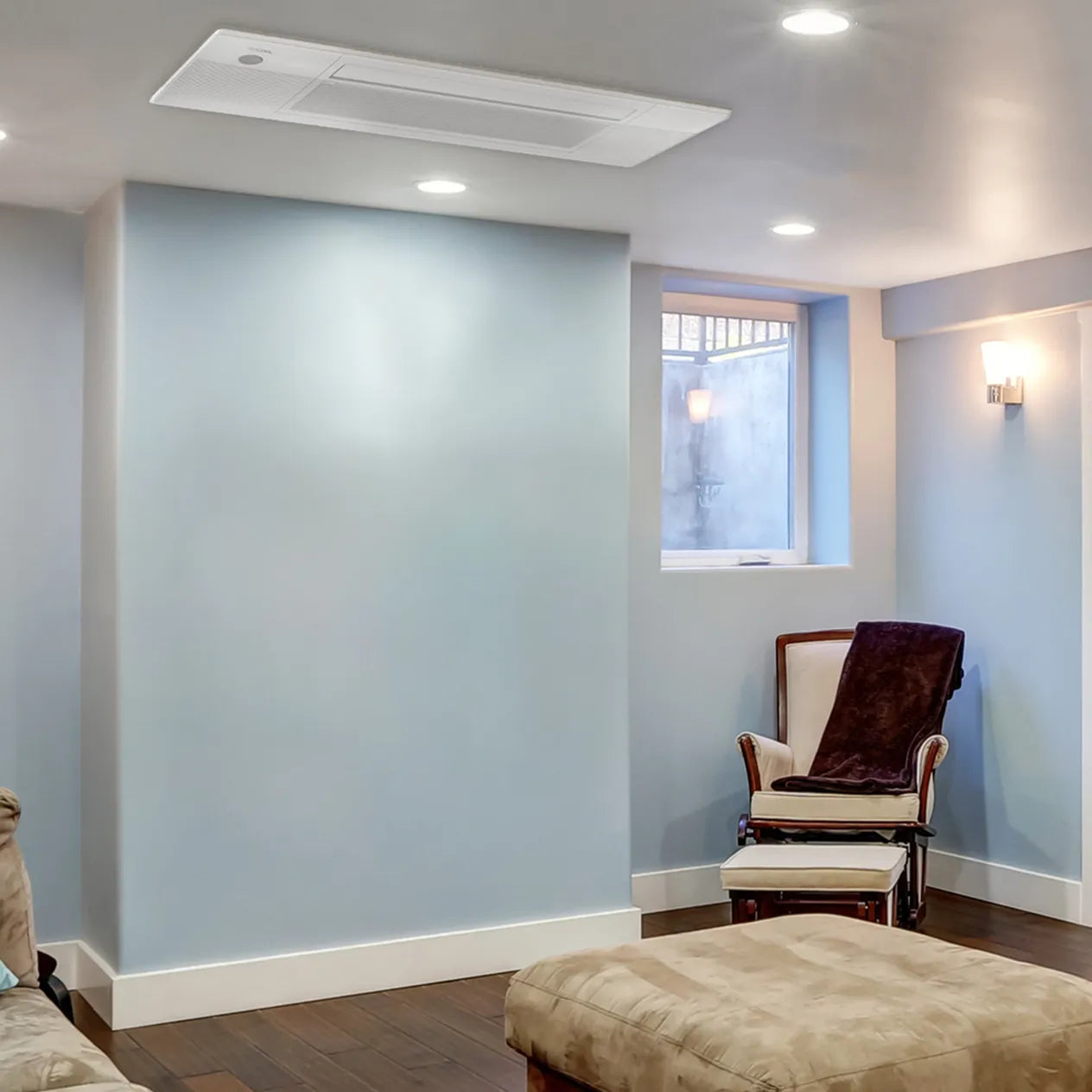

High-Capacity Ceiling Cassette Design

The OuttaSight® 12K BTU ceiling cassette maintains the same revolutionary 8.98" low profile as its 6K counterpart while delivering double the coverage capacity (550 sq. ft.). The unit's innovative design fits perfectly between standard 16" ceiling joists, including pre-manufactured I-joists, maintaining a clean, flush appearance while delivering powerful climate control. The Elevation function allows the front panel to lower for effortless filter access and maintenance. With five-speed airflow (177-353 CFM) and precise temperature control, this high-capacity cassette provides customized comfort without compromising ceiling aesthetics.

Smart Control & Ultra-Quiet Performance

Control your 12K BTU cassette through multiple options: the included wireless remote, SmartHVAC app for iOS/Android devices, or voice commands via Amazon Alexa/Google Assistant. The two-stage DC motor operates at whisper-quiet levels as low as 24 dBA - quieter than most conversation. Special modes include Sleep Mode for nighttime comfort, Quiet Mode for minimal sound output (24 dBA), and Auto Cool for automatic temperature maintenance. The advanced filtration system captures airborne particles while remaining easily accessible for cleaning via the lowering front panel.

Simplified DIY Installation

Designed specifically for homeowner installation, this 12K ceiling cassette works with MRCOOL's revolutionary Quick Connect® line sets (sold separately) that eliminate the need for vacuuming or refrigerant handling. The compact design fits in spaces where traditional cassettes cannot, including areas with pre-manufactured I-joists. Electrical connection is simplified with standard 208-230V wiring (3A min circuit ampacity). The complete DIY system can be installed without special tools or HVAC expertise, saving significant installation costs while delivering professional-grade performance at 12,000 BTU capacity.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
