Home 18,000 BTU Olympus 4th Generation E Star Series
Olympus 4th Generation E Star Series

MRCOOL 4th Gen Olympus E Star 18,000 BTU Single Zone Mini Split with Ceiling Air Handler and Heat Pump Condenser

SKU O-ES-18-HP-C-230C-O1 + CASSETTE18HP-230C-P-O Ceiling Cassette21.4 SEER2208-230V
Leave a Review
$2,000.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K-18K room setups:
  • Large bedrooms
  • Living rooms
  • Garages
  • Additions
18,000 BTU
Cooling
18,000 BTU
Heating
See specs
Quiet Inside
High
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.
MRCOOL — Olympus 4th Gen (Ceiling Cassette Single-Zone)

MRCOOL® Olympus 18,000 BTU (1.5 Ton) Ceiling Cassette Mini Split Heat Pump — O-ES-18-HP-C-230C-O1 + CASSETTE18HP-230C-P-O

Overview

18,000 BTU Cooling 18,000 BTU Heating Up to 21.4 SEER2 Up to 12.5 EER2 HSPF2-4 11 1.5 Ton R-454B Ceiling Cassette 5 Speeds (Variable) DC Inverter ENERGY STAR® AHRI Certified Remote Included Pro Install Required

The MRCOOL® Olympus 18K Ceiling Cassette is a ceiling-flush comfort solution for mid-sized spaces. It pairs a ceiling cassette (with panel) with an inverter-driven outdoor unit for efficient, reliable heating and cooling using R-454B refrigerant.

Highlights

  • Flush ceiling look: Cassette design blends into the ceiling for a sleek, modern finish.
  • Coverage: Designed for areas up to 800 sq ft.
  • Quiet comfort: Indoor sound levels down to 23.5 dB(A) with a high rating of 48 dB(A).
  • Downflow delivery: Downflow airflow with oscillation for better room mixing.
  • Installer-friendly hookups: Flare fittings with 1/4" liquid and 1/2" suction.
  • Efficient performance: High efficiency ratings with inverter-driven outdoor performance.
Coverage
Up to 800 sq ft*
Cooling / Heating
18,000 / 18,000 BTU
Efficiency
Up to 21.4 SEER2
Sound
Indoor 23.5–48 dB(A)

*Coverage varies by climate, insulation, layout, and load.

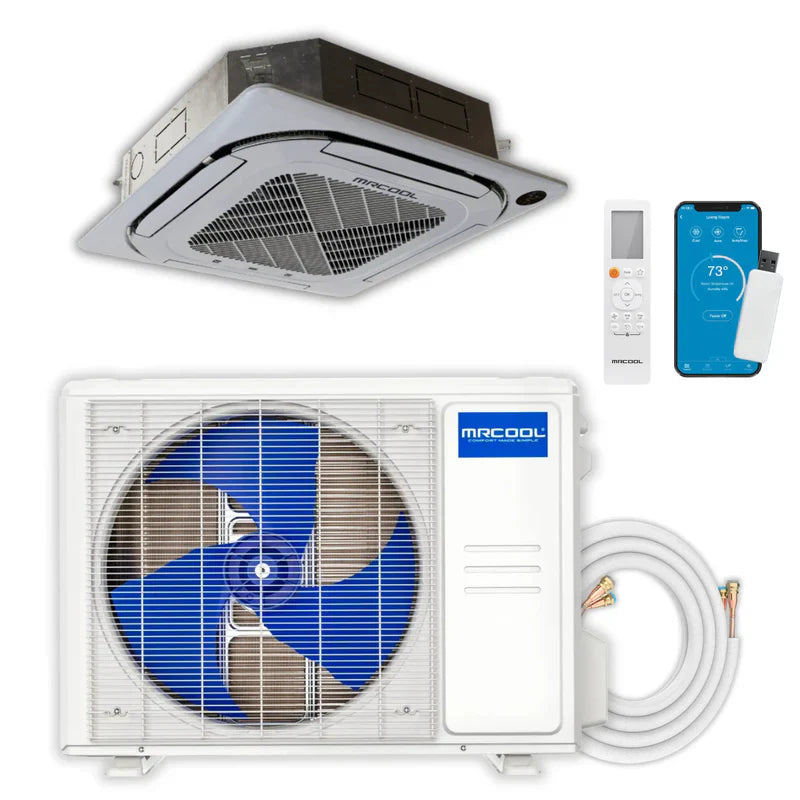

What’s Included

  • Outdoor Condenser: O-ES-18-HP-C-230C-O1
  • Ceiling Cassette (with Panel): CASSETTE18HP-230C-P-O
  • Remote Control
  • Installation / user documentation (see Documents & Downloads)

Indoor Specs

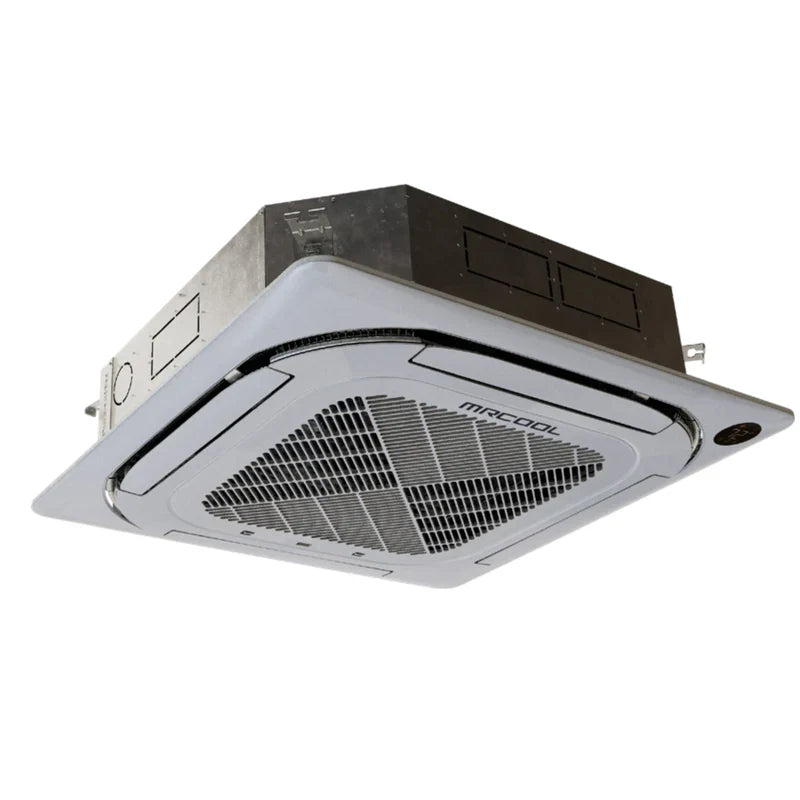

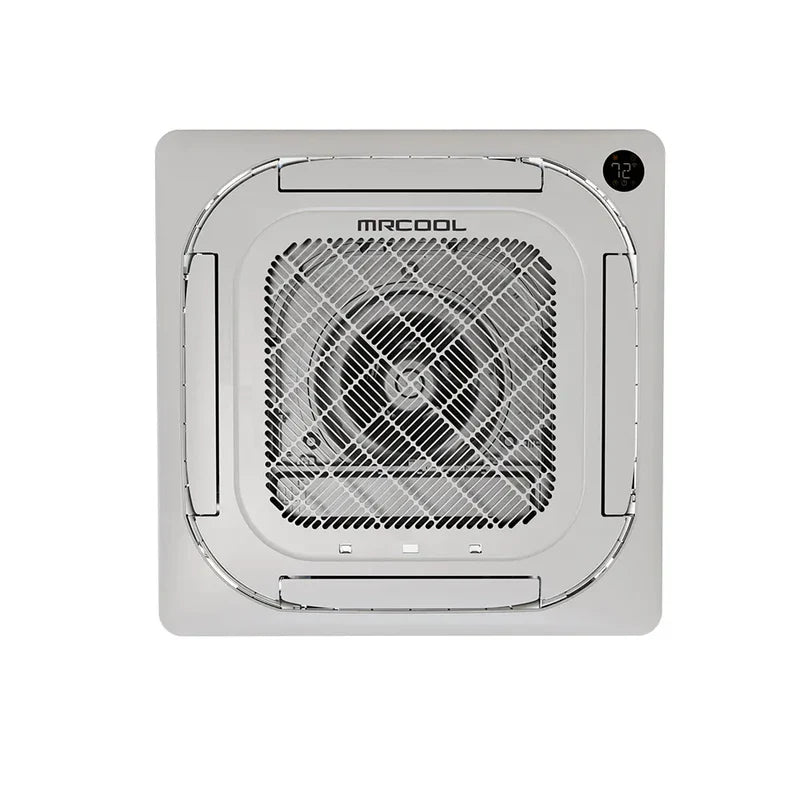

Model: CASSETTE18HP-230C-P-O (Ceiling Cassette with Panel)

System Type Single-Zone Ductless Mini Split (Ceiling Cassette)
Tonnage 1.5 Ton
Max Coverage Area Up to 800 sq ft
Airflow Direction Downflow
Indoor Noise (dB[A]) 48 / 44.5 / 41 / 27.5 / 23.5
Number of Speeds 5 (Variable)
Oscillation Yes
WiFi / App No / No
Remote Control Included Yes
Electrical 208/230V • 1-Phase • 60 Hz
Max Fuse / Breaker 15A
Min Circuit Ampacity 3A
Line Set Fitting Type Flare
Liquid / Suction Line 1/4" / 1/2"
Blower Motor Speeds 447.3 / 338.5 / 317.8 / 194.2 / 147.2
Blower Motor RPM 800 / 750 / 700
Filter Type Reusable
Fan Only / Sleep / Auto Cool Yes / Yes / Yes
Color / Mount Type White / Ceiling
Dimensions (W×D×H) 22.44" × 22.44" × 9.65"
Net Weight 35.27 lb
UPC / GTIN UPC 840255588003 • GTIN 00840255588003
Restricted States GU, PR, VI
Proposition 65 Warning Yes
Works With O-ES-18-HP-C-230C-O1 • MULTI4-27HP230C-O • MULTI5-36HP230C-O • MULTI6-48HP230C-O

Outdoor Specs

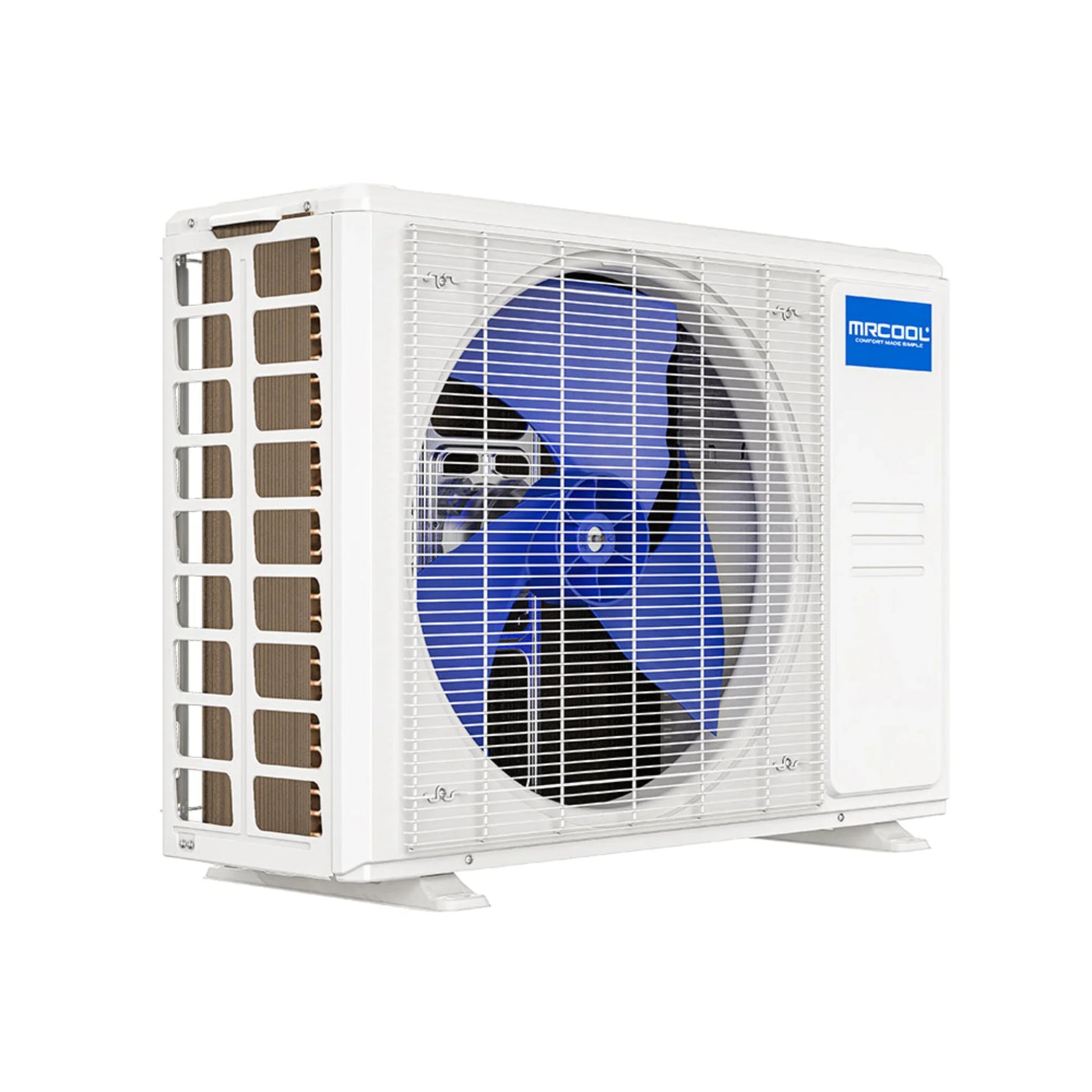

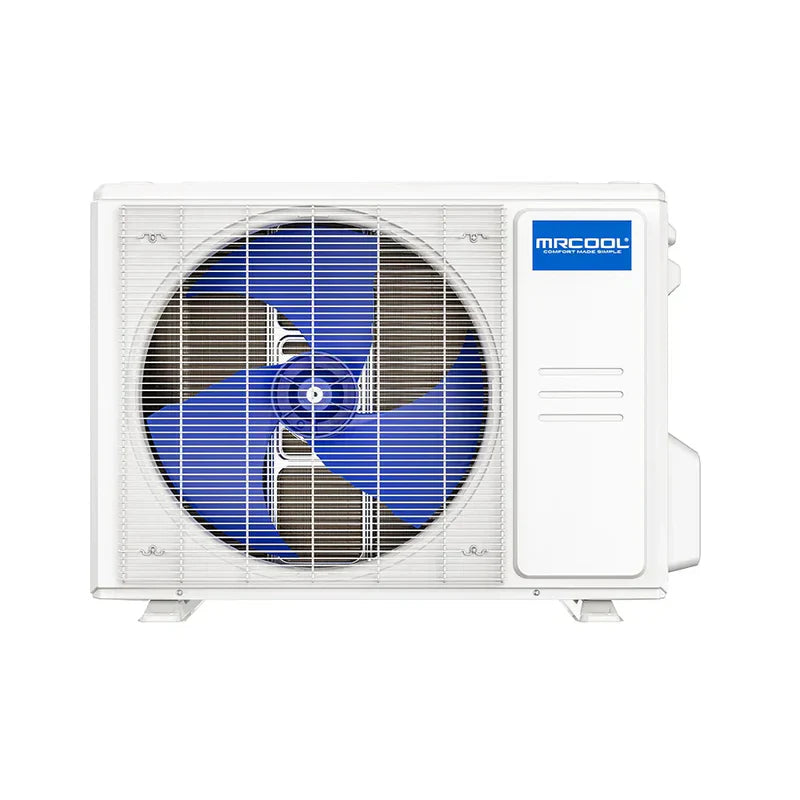

Model: O-ES-18-HP-C-230C-O1 (Single-Zone Condenser)

System Type Single-Zone Ductless Mini Split Heat Pump
Tonnage 1.5 Ton
Cooling / Heating Capacity 18,000 BTU / 18,000 BTU
Max Coverage Area Up to 800 sq ft
SEER2 / EER2 Up to 21.4 / Up to 12.5
HSPF2-4 / HSPF2-5 11 / 8.5
Outdoor Noise 59 dB(A)
Electrical 208/230V • 1-Phase • 60 Hz
MCA / Max Breaker 19A / 20A
Refrigerant R-454B • 55.38 oz factory charge
Inverter DC
Compressor Motor Type Rotary
Metering Device EXV + Throttle Valve
Condenser Fan Motor RPM 780 / 700 / 550
Line Set Flared fittings • Liquid 1/4" • Suction 1/2"
Max Line Set Length 98.4 ft
Dimensions (W×D×H) 35.04" × 13.46" × 26.5"
Net Weight 99.87 lb
Energy Star Certified Yes
AHRI Certified Yes
UPC / GTIN UPC 840255587648 • GTIN 00840255587648
Restricted States GU, PR, VI
Proposition 65 Warning Yes
Works With O-18-HP-WMAH-230C-O • DUCT-18HP-230B-O • CASSETTE18HP-230C-O

Important

  • Professional installation: Installation by a licensed HVAC professional required where applicable.
  • Electrical circuit: Size the circuit from the outdoor unit: 19A MCA with a 20A max breaker.
  • Refrigerant & line length: Factory charge supports standard runs; longer runs may require additional refrigerant.
  • Proposition 65: Warning applies (see product documentation).

FAQs

Does this cassette include WiFi / app control?

No. This cassette model is listed as no WiFi and no app compatibility. Remote control is included.


What line set sizes does it use?

Flare connections: 1/4" liquid and 1/2" suction.


What electrical circuit is required?

208/230V, 1-phase, 60 Hz. The outdoor unit specifies 19A MCA and a 20A max breaker.


What warranty comes with it?

Base warranty includes 5-year parts and 7-year compressor coverage (see the warranty document for full terms).

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
