MRCOOL® Olympus 12,000 BTU (1 Ton) Ceiling Cassette Mini Split Heat Pump — O-ES-12-HP-C-230C-O1 + CASSETTE12HP-230C-P-O
Overview
The MRCOOL® Olympus 12K Ceiling Cassette delivers reliable heating and cooling for smaller spaces while keeping a clean, flush ceiling appearance. It pairs a ceiling cassette (with panel) with an inverter-driven outdoor unit for efficient performance using R-454B refrigerant.
Highlights
- Flush ceiling look: Cassette design blends into the ceiling for a sleek, modern finish.
- Coverage: Designed for areas up to 550 sq ft.
- Quiet comfort: Indoor sound levels down to 26 dB(A) with a high rating of 46 dB(A).
- Downflow delivery: Downflow airflow with oscillation for better room mixing.
- Energy efficiency: High efficiency ratings with inverter-driven outdoor performance.
- Easy maintenance: Reusable filter design.
Up to 550 sq ft*
12,000 / 12,000 BTU
Up to 25.4 SEER2
Indoor 26–46 dB(A)
*Coverage varies by climate, insulation, layout, and load.

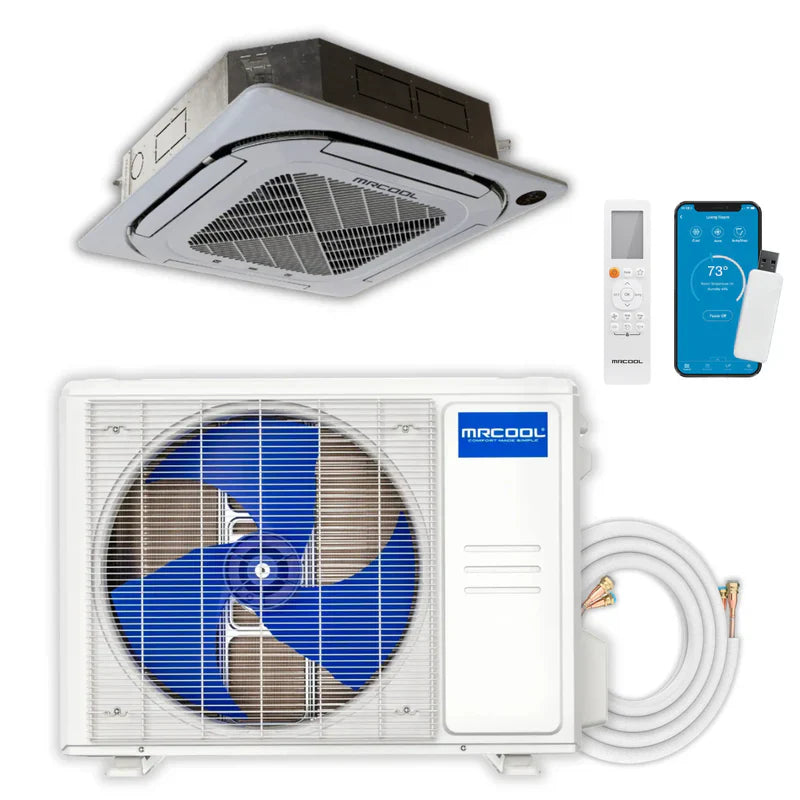

What’s Included
- Outdoor Condenser: O-ES-12-HP-C-230C-O1
- Ceiling Cassette (with Panel): CASSETTE12HP-230C-P-O
- Remote Control
- Installation / user documentation (see Documents & Downloads)
Indoor Specs

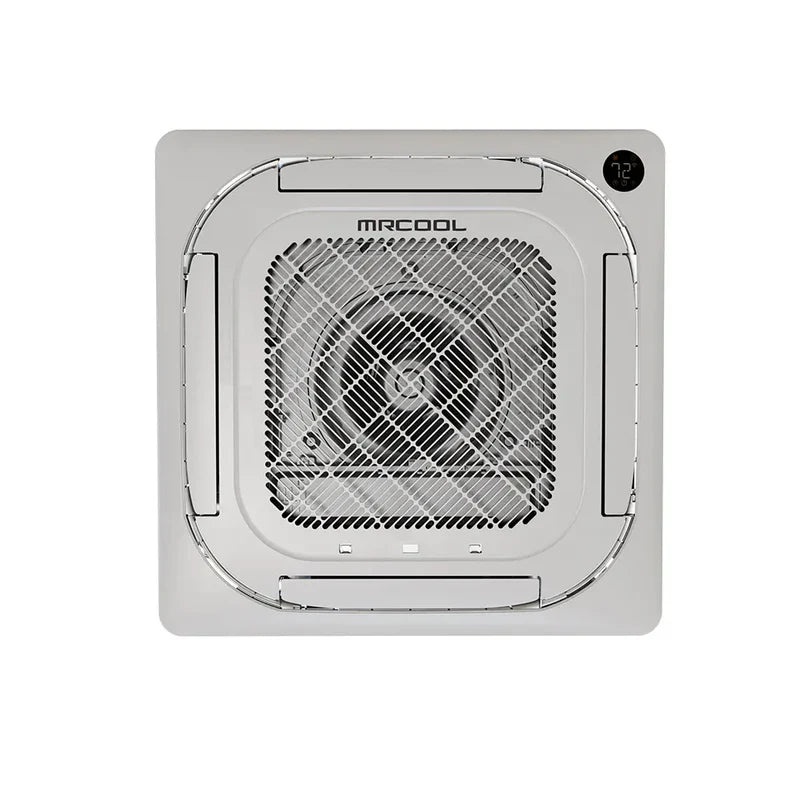

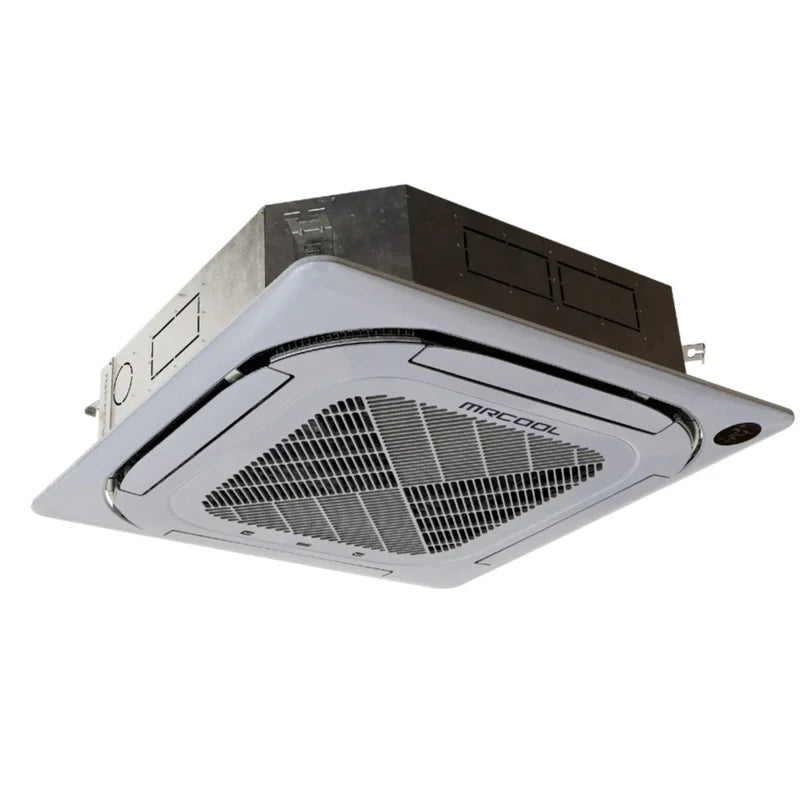

Model: CASSETTE12HP-230C-P-O (Ceiling Cassette with Panel)
| System Type | Single-Zone Ductless Mini Split (Ceiling Cassette) |
| Tonnage | 1 Ton |
| Max Coverage Area | Up to 550 sq ft |
| Airflow Direction | Downflow |
| Indoor Noise (dB[A]) | 46 / 43.5 / 40.5 / 27.5 / 26 |
| Number of Speeds | 5 (Variable) |
| Oscillation | Yes |
| WiFi / App | No / No |
| Remote Control Included | Yes |
| Electrical | 208/230V • 1-Phase • 60 Hz |
| Max Fuse / Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Line Set Fitting Type | Flare |
| Liquid / Suction Line | 1/4" / 3/8" |
| Blower Motor Speeds | 417.9 / 364.9 / 306.1 / 194.2 / 147.2 |
| Blower Motor RPM | 700 / 600 / 400 |
| Filter Type | Reusable |
| Fan Only / Sleep / Auto Cool | Yes / Yes / Yes |
| Color / Mount Type | White / Ceiling |
| Dimensions (W×D×H) | 22.44" × 24.44" × 9.65" |
| Net Weight | 35.27 lb |
| UPC / GTIN | UPC 840255587976 • GTIN 00840255587976 |
| Restricted States | GU, PR, VI |
| Proposition 65 Warning | Yes |
| Works With | O-ES-12-HP-C-230C-O1 • MULTI3-18HP230C-O • MULTI4-27HP230C-O • MULTI5-36HP230C-O • MULTI6-48HP230C-O |
Outdoor Specs

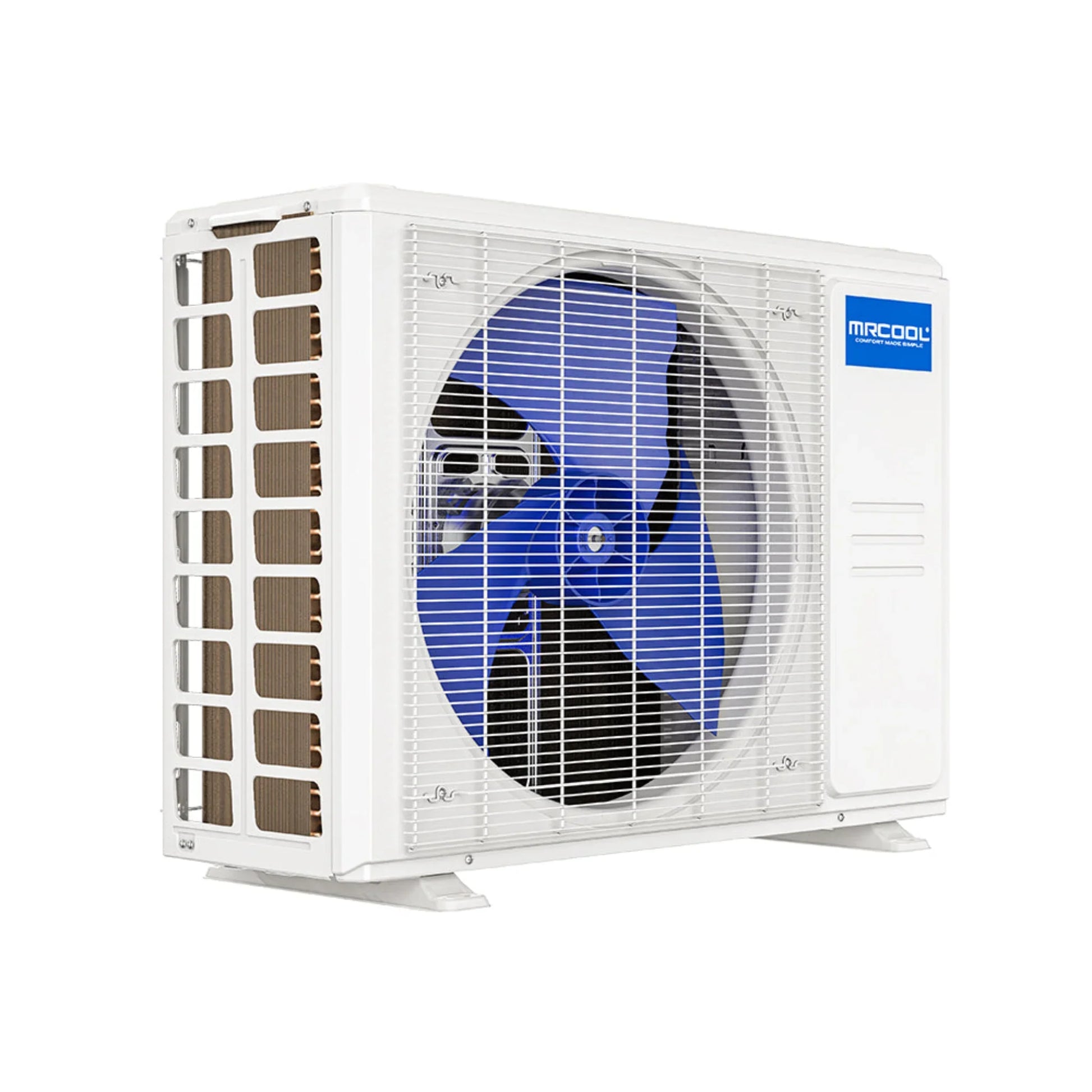

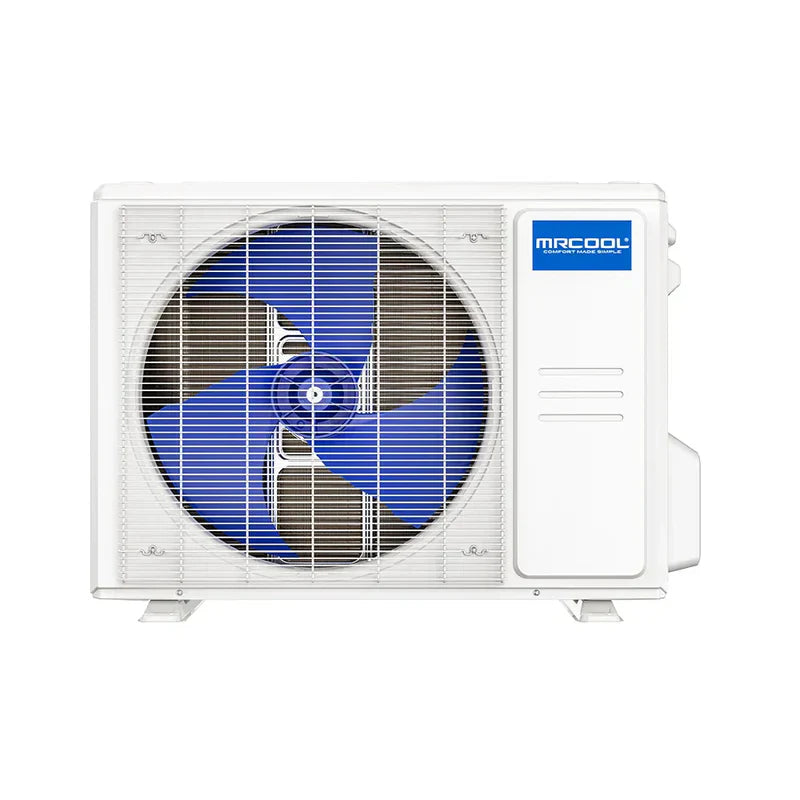

Model: O-ES-12-HP-C-230C-O1 (Single-Zone Condenser)
| System Type | Single-Zone Ductless Mini Split Heat Pump |
| Tonnage | 1 Ton |
| Cooling / Heating Capacity | 12,000 BTU / 12,000 BTU |
| Max Coverage Area | Up to 550 sq ft |
| SEER2 / EER2 | Up to 25.4 / Up to 13.4 |
| HSPF2-4 / HSPF2-5 | 10.5 / 8 |
| Outdoor Noise | 56 dB(A) |
| Electrical | 208/230V • 1-Phase • 60 Hz |
| MCA / Max Breaker | 15A / 15A |
| Refrigerant | R-454B • 35.27 oz factory charge |
| Inverter | DC |
| Compressor Motor Type | Rotary |
| Metering Device | EXV |
| Line Set | Flared fittings • Liquid 1/4" • Suction 3/8" |
| Max Line Set Length | 82 ft |
| Dimensions (W×D×H) | 31.69" × 12.99" × 21.81" |
| Net Weight | 72.75 lb |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| UPC / GTIN | UPC 840255587631 • GTIN 00840255587631 |
| Restricted States | GU, PR, VI |
| Proposition 65 Warning | Yes |
| Works With | O-12-HP-WMAH-230C-O • DUCT-12HP-230B-O • CASSETTE12HP-230C-O |
Documents & Downloads
- Olympus Multi-Zone 4th Gen Brochure (EN)
- Ceiling Cassette Installation & User Manual (EN)
- Ceiling Cassette Performance / Spec Sheet (EN)
- Ceiling Cassette Service Manual (EN)
- Warranty (EN)
- Olympus Single-Zone 4th Gen Brochure (EN)
- Single-Zone Installation & User Manual (EN)
- Single-Zone Service Manual (EN)
- AHRI Certificate (PDF)
- EnergyGuide (PDF)
Important
- Professional installation: Installation by a licensed HVAC professional required where applicable.
- Electrical circuit: Size the circuit from the outdoor unit: 15A MCA with a 15A max breaker.
- Refrigerant & line length: Factory charge supports standard runs; longer runs may require additional refrigerant.
- Proposition 65: Warning applies (see product documentation).
FAQs
Does this cassette include WiFi / app control?
No. This cassette model is listed as no WiFi and no app compatibility. Remote control is included.
What line set sizes does it use?
Flare connections: 1/4" liquid and 3/8" suction.
What electrical circuit is required?
208/230V, 1-phase, 60 Hz. The outdoor unit specifies 15A MCA and a 15A max breaker.
What warranty comes with it?
Base warranty includes 5-year parts and 7-year compressor coverage (see the warranty document for full terms).
