Cooper & Hunter MIA Series, 0.75 Ton, 12,000 BTU, 115V/60HZ Single Head, High Wall, Wall Mount Air Conditioner and Heat Pump, Ductless Mini Split Inverter System, 21.5 SEER Includes Wi-Fi and Choice of Optional Installation Kit CH-NY09MIA-115VI + CH-NY09MIA-115VO
Summary
Cooper & Hunter’s MIA NY Series offers a reliable, energy-efficient cooling and heating solution. Available in 6,000, 9,000, 12,000 18,000 and 24,000 BTU, this system is ideal for residential applications such as bedrooms and offices, with its quiet operation and compact design. It comes equipped with inverter technology, ensuring precise temperature control and increased energy savings, making it perfect for year-round comfort. The system operates effectively in temperatures as low as 5°F during heating.
This ductless mini split includes smart features such as Wi-Fi compatibility, quiet operation, and multiple fan speeds to provide you with a seamless and comfortable experience. It also comes with a sleek design and includes an optional installation kit for added convenience.
Important: With its high-efficiency SEER rating, the Cooper & Hunter MIA Series ensures year-round energy savings. This model includes a Toshiba-GMCC inverter compressor, protected by a 7-year warranty on the compressor and 5 years on parts. Warranty registration must be completed within 60 days of installation.

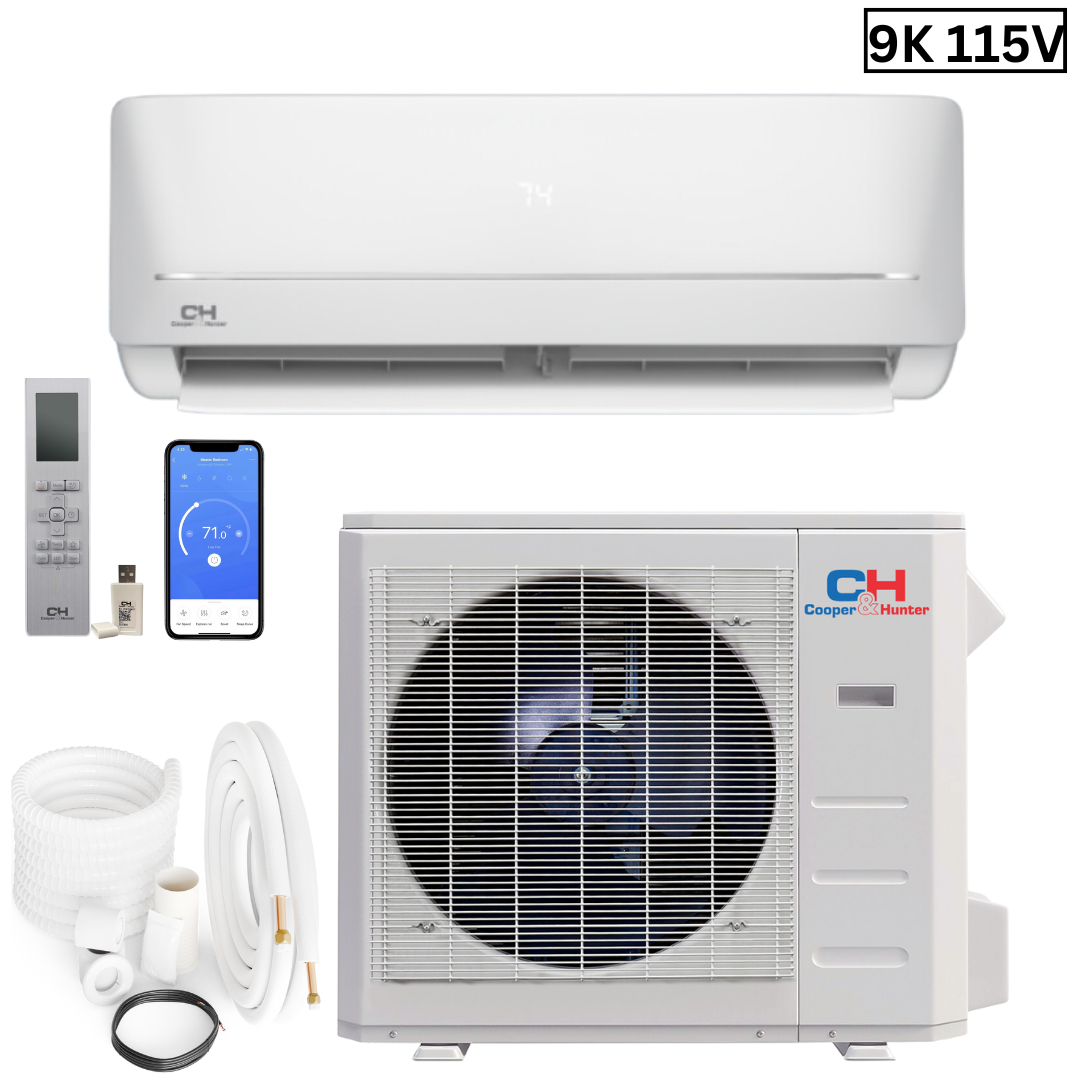

Included in Your Order:
Cooper & Hunter Single Zone Ductless Mini Split System (9,000 BTU Inverter with Heat Pump)
Outdoor Unit: 9,000 BTU (1pc) – Model: CH-NY09MIA115VO
Indoor Unit: 9,000 BTU (1pc with remote) – Model: CH-NY09MIA115VI
Wi-Fi Adapter
Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.
Key Features:
- 21.5 SEER efficiency for energy savings
- Toshiba-GMCC inverter compressor for reliable performance
- Quiet operation with low noise levels
- Wi-Fi adapter included for smart control
- Optional installation kit available
- 5°F low-temperature heating capability
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
Other Single Zone MIA Systems
Capacity | SKU |
6,000 BTU 115V | |
9,000 BTU 115V | |
9,000 BTU 230V | |
12,000 BTU 115V | |
12,000 BTU 230V | |
18,000 BTU 230V | |
24,000 BTU 230V |
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
Technical Information
Indoor Unit Specifications: CH-NY09MIA-115VI
Specification
|
Details |
System Type | Single-zone unit |
BTU Rated | 9,000 BTU |
Power Source |
115V, 1Ph, 60Hz
|
Dehumidification Value | 2.26 pints/day |
Refrigerant Type | R410A |
Voltage Range (V) | 103.5 - 126.5 |
Packing Dimensions (W x D x H in inches) |
31.10 x 10.63 x 14.76
|
Controller |
RG10K-exclusive remote
|
Refrigerant Piping (Liquid / Gas side in inches) | 1/4" / 3/8" |
EER2 | 12.5 |
SEER2 | 21.5 |
Unit Net/Gross Weight (lbs) | 16.98 / 22.27 |
Unit Dimensions (W x H x D in inches) |
28.43 x 7.36 x 11.42
|
Operation Range - Heating (°F) | 32 ~ 86 |
Operation Range - Cooling (°F) | 62 ~ 90 |
Minimum Circuit Ampacity (MCA) | 3A |
Max. Fuse | 15A |
Indoor Noise Level (H/M/L in dB) | 36.5 / 31.0 / 22 |
Indoor Air Flow (CFM - H/M/L/X) |
282.35 / 247.06 / 182.35 / 129.41
|
Drainage Water Pipe Diameter | 5/8" |
Outdoor Unit Specifications: CH-NY09MIA-115VO
Specification | Details |
System Type |
Single-zone unit
|
BTU Rated | 9,000 BTU |
Power Source |
115V, 1Ph, 60Hz
|
Dehumidification Value |
2.26 pints/day
|
Max. Pipe Length (ft) | 82.02 ft |
Refrigerant Type | R410A |
Voltage Range (V) |
103.5 - 126.5
|
Packing Dimensions (W x D x H in inches) |
34.92 x 13.27 x 24.02
|
Refrigerant Piping (Liquid / Gas side in inches) | 1/4" / 3/8" |
HSPF2-5 | 6.9 |
HSPF2-4 | 9 |
EER2 | 12.5 |
Cooling Capacity (Min/Max BTU/h) |
9,000 (2,650 ~ 10,300)
|
SEER2 | 21.5 |
Unit Net/Gross Weight (lbs) |
57.76 / 63.49
|
Unit Dimensions (W x H x D in inches) |
30.12 x 11.93 x 21.85
|
Refrigerant Precharge (ft) | 25 |
Outdoor Noise Level (dB) | 54 |
Outdoor Air Flow (CFM) | 1,294.12 |
Minimum Circuit Ampacity (MCA) | 20A |
Max. Fuse | 30A |
Max Height Difference Between Indoor and Outdoor | 32.81 ft |
Heating Capacity (Min/Max BTU/h) |
10,000 (2,700 ~ 10,500)
|
COP | 2.93 |
Ambient Temperature - Heating (°F) | 5 ~ 86 |
Ambient Temperature - Cooling (°F) | 5 ~ 122 |
Additional Refrigerant Charge (1/4" Liquid Line) | 0.16 lbs/ft |
Certifications
Performance Data/Features
- Sleek matte finish
- Turbo Function
- Silent Function
- LED Display
- Horizontal Auto Swing
- Timer
- Comfortable Sleep Mode
- Multiple Fan Speeds
- Self-Cleaning Function
- Follow Me Function
- Activated Carbon Filter
Manuals & Downloads
- Indoor Unit General Manufacturing Information
- Outdoor Unit General Manufacturing Information
- Leaflet
- Owners Manual
- Installation Manual
- Rebates
