A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

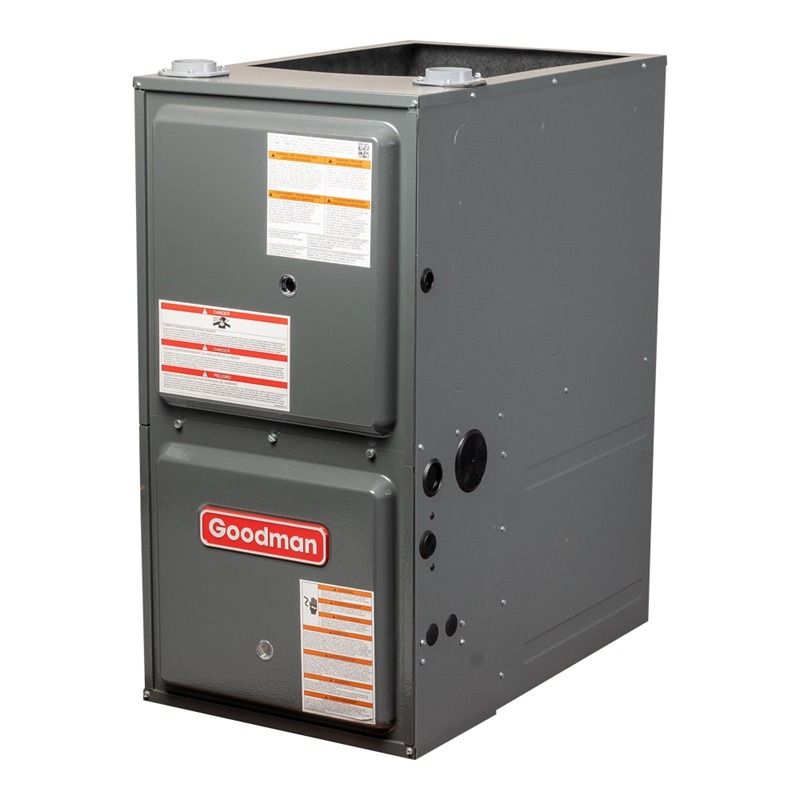

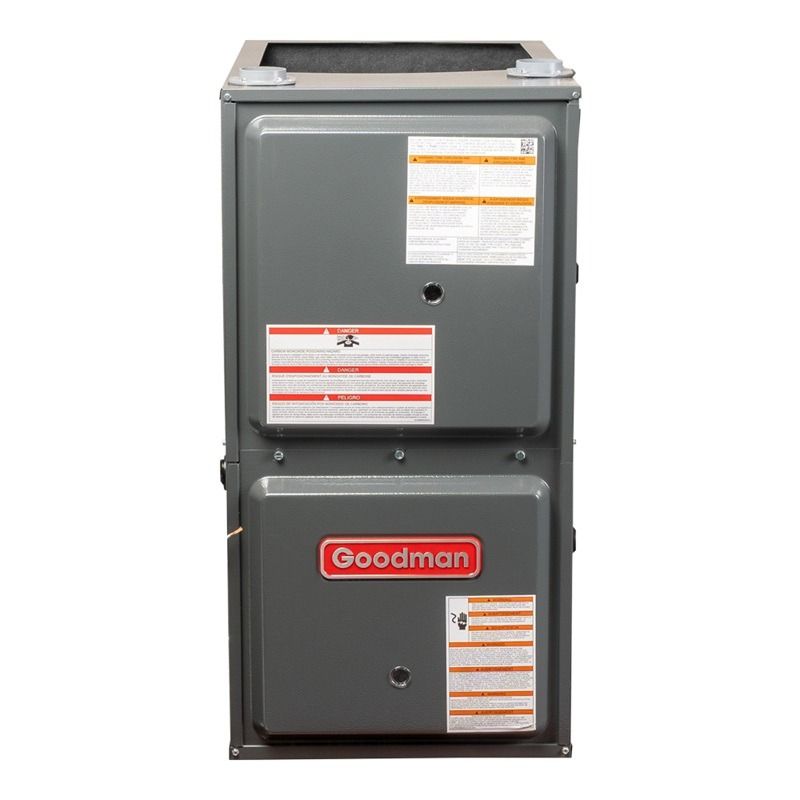

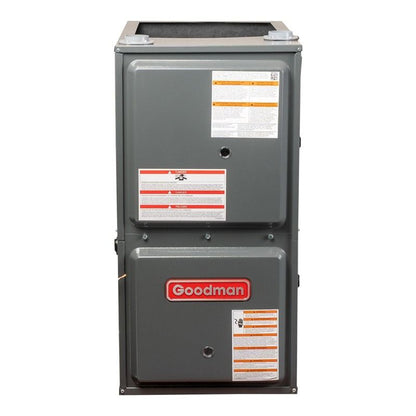

The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GD9T960803BN gas furnace is no exception to Goodman's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
Heating up to a medium-sized house in average environmental conditions, the GD9T960803BN Goodman furnace has an input of 80,000 BTU's and an output of 76,800 BTU's (input X efficiency rating = output).
The GD9T960803BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
With a two stage burner, the GD9T960803BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
With installation that follows your state and local codes, the GD9T960803BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through Goodman.
The outer casing on the GD9T960803BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GD9T960803BN Goodman furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GCEC960803BN comes with natural gas valves built in. However, increasing its installation potential, the GD9T960803BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
| sku | GD9T960803BN |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GD9T96 |
| series name | GD9T96 |
| short description | Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage |
| family description | Two Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE |
| product description | 96% eem cflow furnace |
| cooling btu | 36,000 |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 7.8 A |
| zone compatibility | Multi Zone |
| height | 34-1/2 in |
| width | 17-1/2 in |
| depth | 28-7/8 in |
| weight | 118 lb |
| warranty | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 0.96 |
| product class pim | Gas Furnace |
| model efficiency | 0.96 |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051688780 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 96 % |
| cooling capacity nominal | 36000 Btu/H |
| installation configuration | Downflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 40-70 °F |
| temperature rise range low fire | 30-60 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 7.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1277 ft³/min |
| air flow rate low heating | 1124 ft³/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 17-1/2 in |
| heat exchanger type | Gas |
| motor speed type | Multi Speed ECM |
| nox burner type | Low NOx |
| weight unit | 118 lb |
| blower motor horsepower | 0.5 metric hp |
| high fire input capacity | 80000 Btu |
| high fire output capacity | 76800 |
| low fire input capacity | 56000 |
| low fire output capacity | 53760 |
| gas valve type | Two Stage |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 18.5 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 21367.5 in³ |
| shipping volume unit | 21367.500 in³ |
| truck factor | 0.0000 |
| volume case | 21367.500 in³ |
| volume distribution shipping unit | 21367.5 in³ |
| weight case | 124.500 lb |
| weight distribution shipping unit | 124.5 lb |
| weight shipping unit | 124.500 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
Technical Data
Loading technical data…
Product FAQs
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
