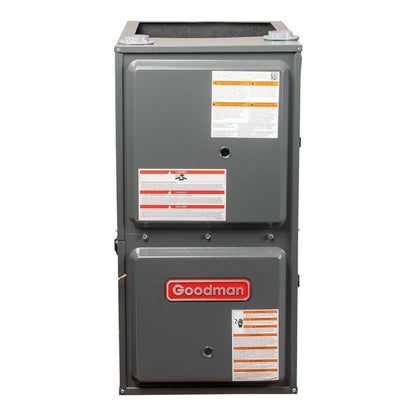

Product Overview
OVERVIEW
The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GD9T960403BN gas furnace is no exception to Goodman's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
QUICK FACTS
- This furnace is ideal to heat a smaller house (depending on climate)
- 40,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
40,000 BTU
Heating up to a smaller house in average environmental conditions, the GD9T960403BN Goodman furnace has an input of 40,000 BTU's and an output of 38,400 BTU's (input X efficiency rating = output).
96% AFUE
The GD9T960403BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the GD9T960403BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
Warranty
With installation that follows your state and local codes, the GD9T960403BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through Goodman.
Durability and Reliability
The outer casing on the GD9T960403BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
Installation and Maintenance
The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GD9T960403BN Goodman furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GD9T960403BN comes with natural gas valves built in. However, increasing its installation potential, the GD9T960403BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
Product Benefits
- "1. High reliability and quality2. Faster condensate water drainage and no unit water leakage3. Durable and long igniter life4. Provisions for electronic air cleaner and humidifier5. Energy Efficient and quiet circulation6. Lower NOx emission7. Self-diagnostic control board with constant memory8. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards9. Operates on two-stage or single-stage thermostats10. Easy Connection for EAC and Humidifier"
Product Features
- "1. Heavy-duty aluminized-steel tubular heat exchanger2. Stainless-steel sloped secondary heat exchanger3. Silicon Nitride igniter4. Color-coded low-voltage terminals 5. Multi-speed ECM blower motor with continuous fan speed6. All models comply with California 40 ng/J 7. Fault code LED Output8. AHRI Certified and ETL Listed9. Two-stage gas valve10. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers"
Technical Specifications - GD9T960403BN
| sku | GD9T960403BN |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GD9T96 |
| series name | GD9T96 |
| short description | Goodman 96% AFUE Gas Furnace Multi Speed ECM, Two Stage |
| family description | Two Stage, Multi-Speed ECM Gas Furnace Up to 96% AFUE |
| product description | 96% eem cflow furnace |
| cooling btu | 36,000 |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 7.8 A |
| zone compatibility | Multi Zone |
| height | 34-1/2 in |
| width | 17-1/2 in |
| depth | 28-7/8 in |
| weight | 112 lb |
| warranty | HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 0.96 |
| product class pim | Gas Furnace |
| model efficiency | 0.96 |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051686663 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 7322.90.0015 |
| canadian hts code | 7322.90.10.21 |
| afue | 96 % |
| cooling capacity nominal | 36000 Btu/H |
| installation configuration | Downflow/Horizontal |
| produced in us | Yes |
| temperature rise range high fire | 25-55 °F |
| temperature rise range low fire | 20-50 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 7.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 882 ft³/min |
| air flow rate low heating | 677 ft³/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| dimensions unit width | 17-1/2 in |
| heat exchanger type | Gas |
| motor speed type | Multi Speed ECM |
| nox burner type | Low NOx |
| weight unit | 112 lb |
| blower motor horsepower | 0.5 metric hp |
| high fire input capacity | 40000 Btu |
| high fire output capacity | 38800 |
| low fire input capacity | 28000 |
| low fire output capacity | 27160 |
| gas valve type | Two Stage |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 18.5 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 21367.5 in³ |
| shipping volume unit | 21367.500 in³ |
| truck factor | 0.0000 |
| volume case | 21367.500 in³ |
| volume distribution shipping unit | 21367.5 in³ |
| weight case | 160.000 lb |
| weight distribution shipping unit | 160 lb |
| weight shipping unit | 160.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| standard parts warranty residential | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
