Product Overview
OVERVIEW

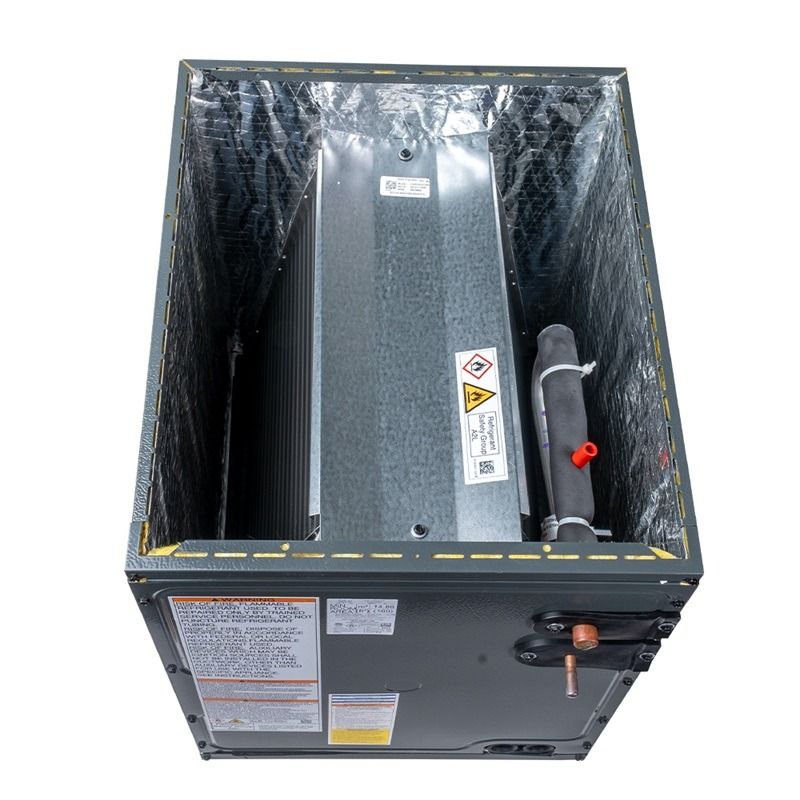

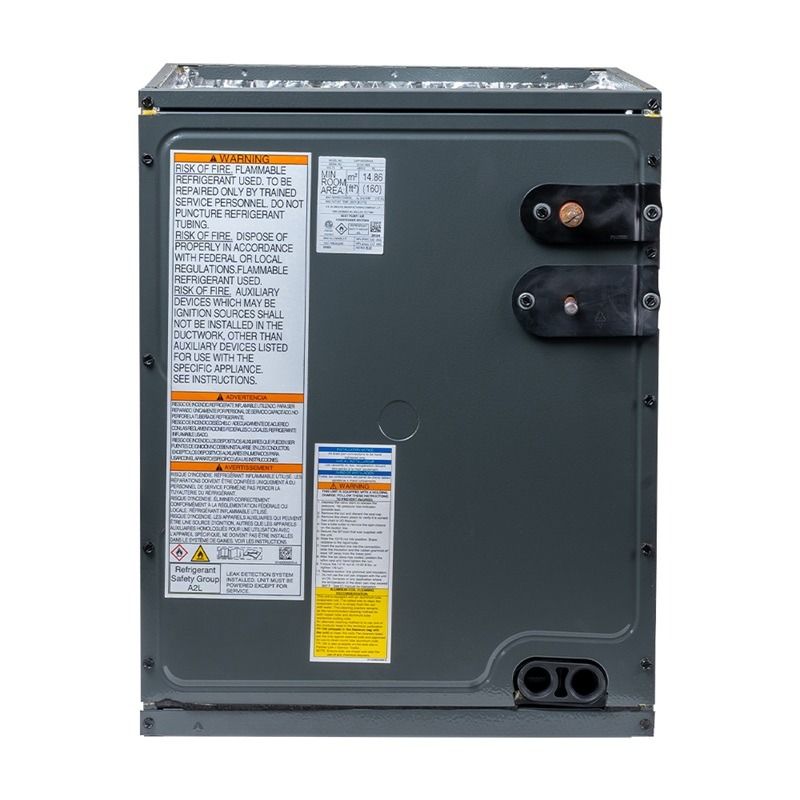

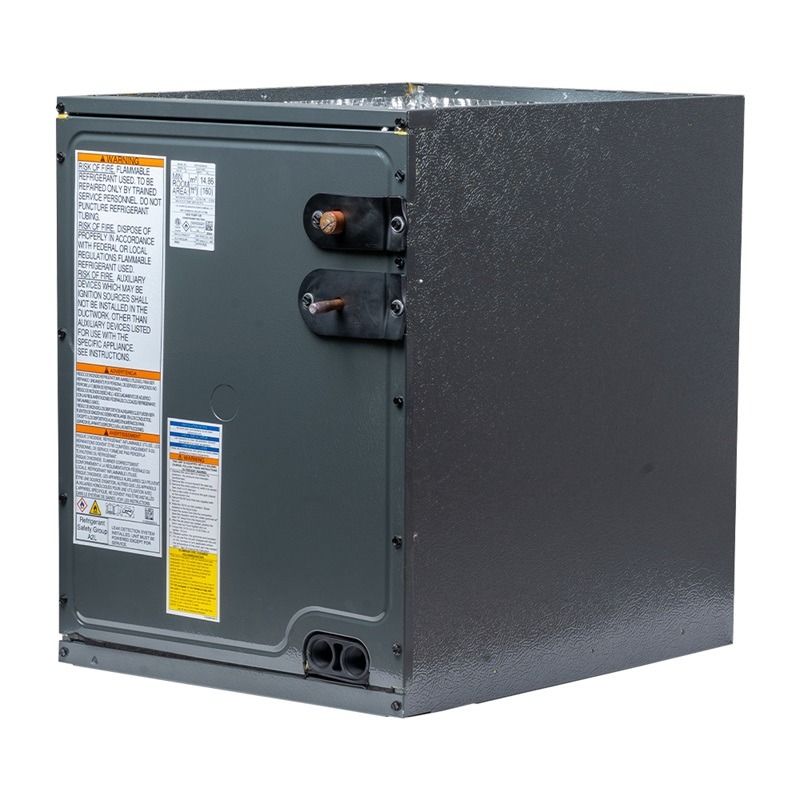

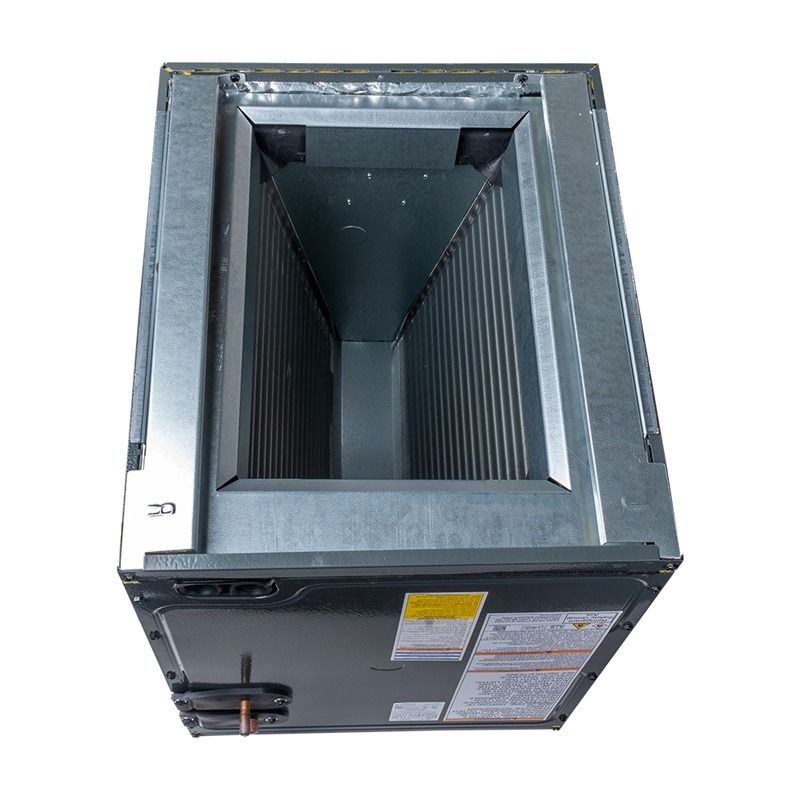

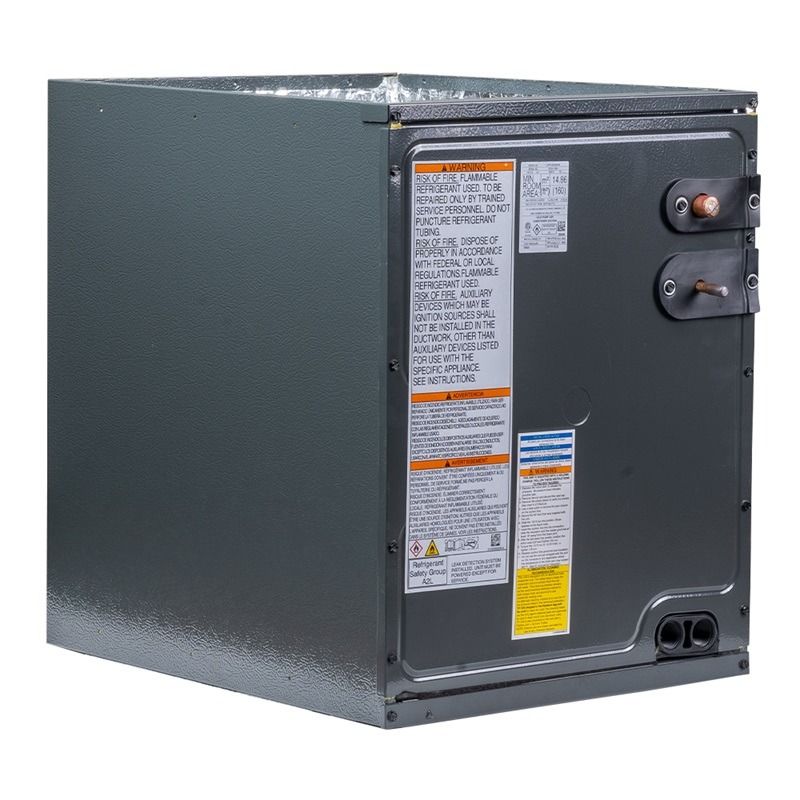

The Goodman CAPFA6030D3 Upflow/Downflow Cased Indoor Air Conditioner Evaporator Coil is made for use with split-system air conditioning and Evaporator systems. The Goodman Air Conditioning and Heating Company has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Rust-resistant, thermoplastic drain pans feature a low water-retention design
- Check flowrater expansion device for heat pump or cooling-only applications
- Rifled aluminum tubing and louvered aluminum fin coils on the CAPF, CAUF, and CHPF coils
- AHRI Certified; ETL Listed
- Foil-face insulation
- Galvanized-steel, leather-grain finish
- Architectural Gray paint finish on CAPF and CHPF cased coils
- Split-seam front for easy access
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed optimized metering device (piston)
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Vertical application
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Technical Specifications - CAPFA6030D3
| sku | CAPFA6030D3 |
|---|---|
| weight (in lbs) | 50.000000 |
| brand/manufacturer | Goodman |
| product features | New Refrigerant Compliant |
| configuration | Upflow / Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 5 Ton |
| style | A-Coil |
| height | 30" |
| width | 24.5" |
| depth | 21" |
| warranty | 10 Years with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
| product category | Unitary |
| product class pim | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAPFA_32 |
| series name | CAPFA AlumaFin7™ |
| family description | CAPFA AlumaFin7™ Evaporator Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051696341 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cabinet finish | Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 24.5 in |
| dimensions unit height | 21 in |
| dimensions unit width | 30 in |
| evap coil rows | 3 |
| evap fin density fins per inch | 17 |
| expansion device | Orifice |
| tonnage range | 4;5.0 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.75 in |
| dimensions case height | 32.25 in |
| dimensions case width | 26.00 in |
| dimensions distribution unit depth | 26.75 in |
| dimensions distribution unit height | 32.25 in |
| dimensions distribution unit width | 26 in |
| dimensions pallet depth | 55.00 in |
| dimensions pallet height | 69.00 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 26.75 in |
| dimensions shipping unit height | 32.25 in |
| dimensions shipping unit width | 26.00 in |
| distribution shipping volume unit | 22429.875 in³ |
| shipping volume unit | 22429.875 in³ |
| truck factor | 0.0000 |
| volume case | 22429.875 in³ |
| volume distribution shipping unit | 22429.875 in³ |
| weight case | 74.000 lb |
| weight distribution shipping unit | 74 lb |
| weight shipping unit | 74.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
