Home 18,000 BTU Goodman

Goodman 1.5 Ton 14" Width Vertical Evaporator Coil - Cased - R32

SKU CAPFA1818A3 Evaporator Coils
$657.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 9K-18K room setups:
  • Large bedrooms
  • Living rooms
  • Garages
  • Additions
18,000 BTU
Cooling
18,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman

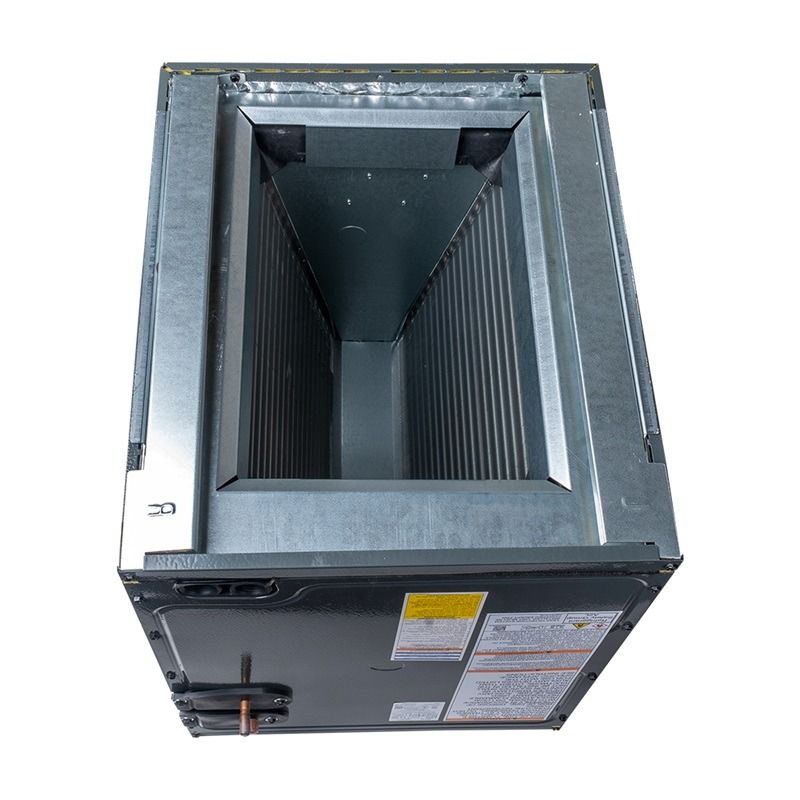

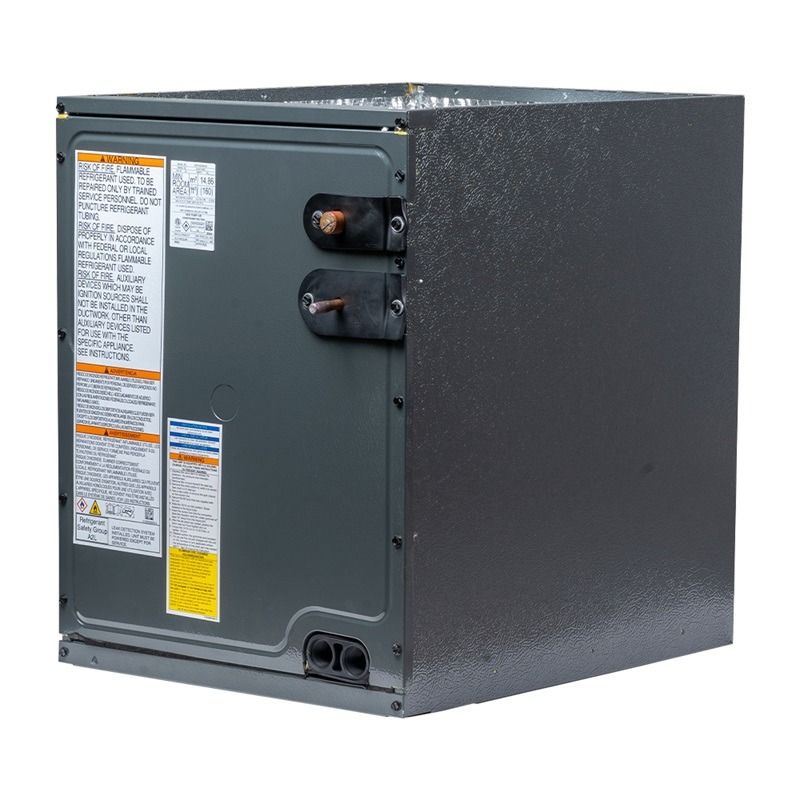

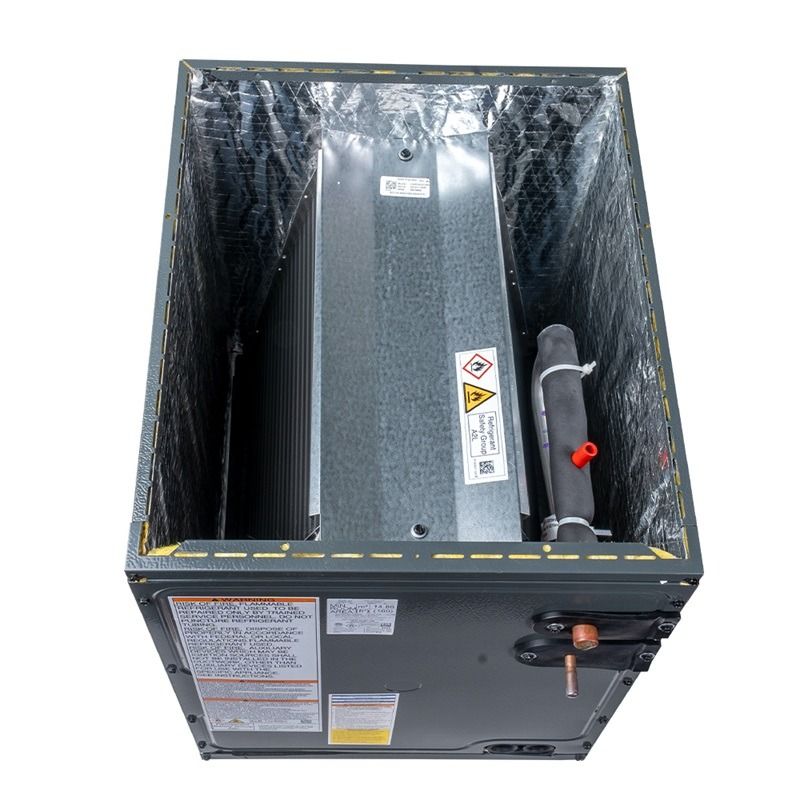

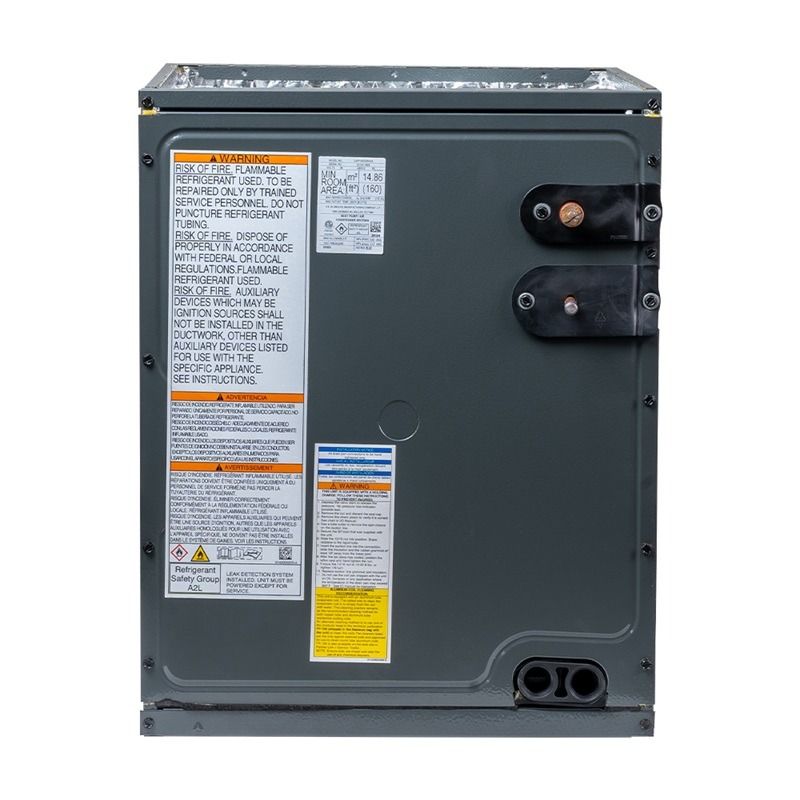

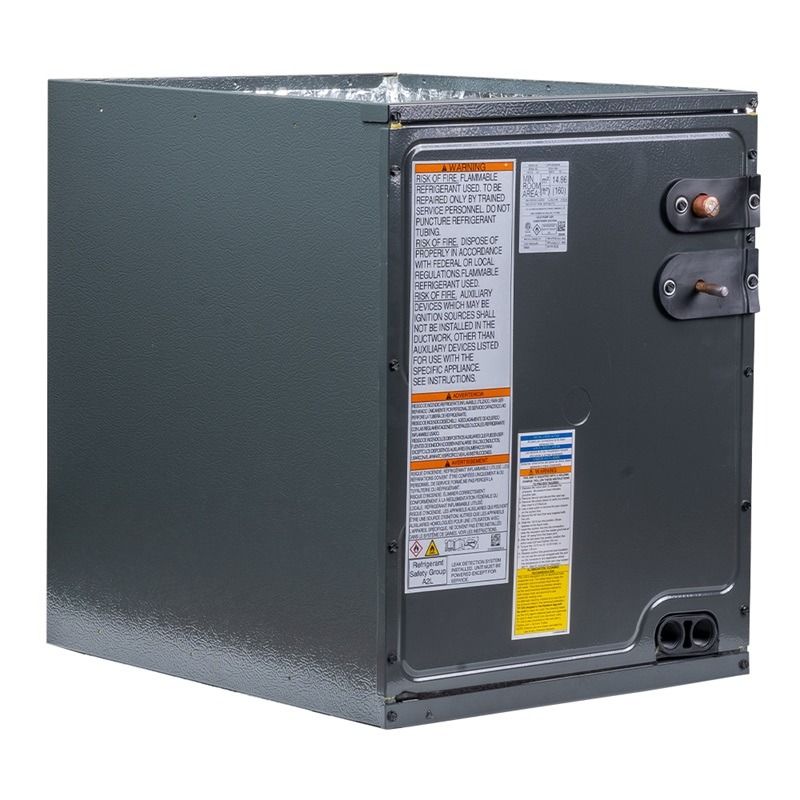

Goodman 1.5 Ton 14" Width Vertical Evaporator Coil - Cased - R32

Product Overview

OVERVIEW

With the CAPFA1818A3 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPFA1818A3 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 1.5 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application

1.5 Tons

The Goodman CAPFA1818A3 evaporator coil is rated for a 1.5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPFA1818A3 coil is covered under Goodman's standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPFA1818A3 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPFA1818A3 evaporator coil's foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit's run time. With compatible equipment, the CAPFA1818A3 evaporator coil lives up to Goodman's enhanced comfort and efficiency standards at a reasonable price.

Product Features

  • All-Aluminum evaporator coil
  • Optimized for use with R-32 refrigerant including circuits and manifolds
  • R-32 sensor designed for the life span of the coil
  • Factory-installed optimized metering device (piston)
  • Standardized copper suction tube stub length
  • 21" depth for easier attic access
  • Single front access panel
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Vertical application
  • Galvanized, leather grain-embossed finish
  • Rust resistant, thermoplastic drain pans featuring a low water-retention design
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
  • UV-resistant drain pan
  • AHRI certified
  • ETL listed

Technical Specifications - CAPFA1818A3

sku CAPFA1818A3
weight (in lbs) 33.000000
brand/manufacturer Goodman
product features New Refrigerant Compliant
configuration Upflow / Downflow
refrigerant R32
liquid line 3/8"
suction line 3/4"
tonnage 1.5 Ton
style A-Coil
height 18"
width 14"
depth 21"
warranty 10 Years with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
product category Unitary
product class pim Coil
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Indoor
market type Residential-Single Family
product family CAPFA_32
series name CAPFA AlumaFin7â„¢
family description CAPFA AlumaFin7â„¢ Evaporator Coil
installation type Ducted
communication feature No
export control classification number eccn EAR99
universal product code upc 663051696174
item stocking unit of measure uom EA
pallet qty 12
country of origin USA
us hts code 8415.90.8025
canadian hts code 8415.90.90.00
produced in us Yes
cabinet finish Painted
cased vs uncased Cased
dimensions unit depth 14 in
dimensions unit height 21 in
dimensions unit width 18 in
evap coil rows 3
evap fin density fins per inch 17
expansion device Orifice
tonnage range 1.5
condensate drain outlet 3/4 in
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 26.00 in
dimensions case height 20.50 in
dimensions case width 16.25 in
dimensions distribution unit depth 26 in
dimensions distribution unit height 20.5 in
dimensions distribution unit width 16.25 in
dimensions pallet depth 54.00 in
dimensions pallet height 45.50 in
dimensions pallet width 50.00 in
dimensions shipping unit depth 26.00 in
dimensions shipping unit height 20.50 in
dimensions shipping unit width 16.25 in
distribution shipping volume unit 8661.25 in³
shipping volume unit 8661.250 in³
truck factor 0.0000
volume case 8661.250 in³
volume distribution shipping unit 8661.25 in³
weight case 35.000 lb
weight distribution shipping unit 28.09 lb
weight shipping unit 35.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
registered unit replacement warranty multi family 10 YEARS UNIT REPLACEMENT
registered unit replacement warranty commercial 5 YEARS UNIT REPLACEMENT
registered unit replacement warranty residential 10 YEARS UNIT REPLACEMENT
