Product Overview
OVERVIEW
The Goodman AMVT42CP1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 3.5 ton air handler
- Electric heat compatible
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Variable speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
3.5 Tons
The Goodman AMVT42CP1300 air handler is rated for an output of 3.5 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AMVT42CP1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMVT42CP1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The Goodman AMVT42CP1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AMVT42CP1300 air handler lives up to Goodman's comfort expectations with its variable speed ECM motor, which provides a more precise and efficient temperature control.

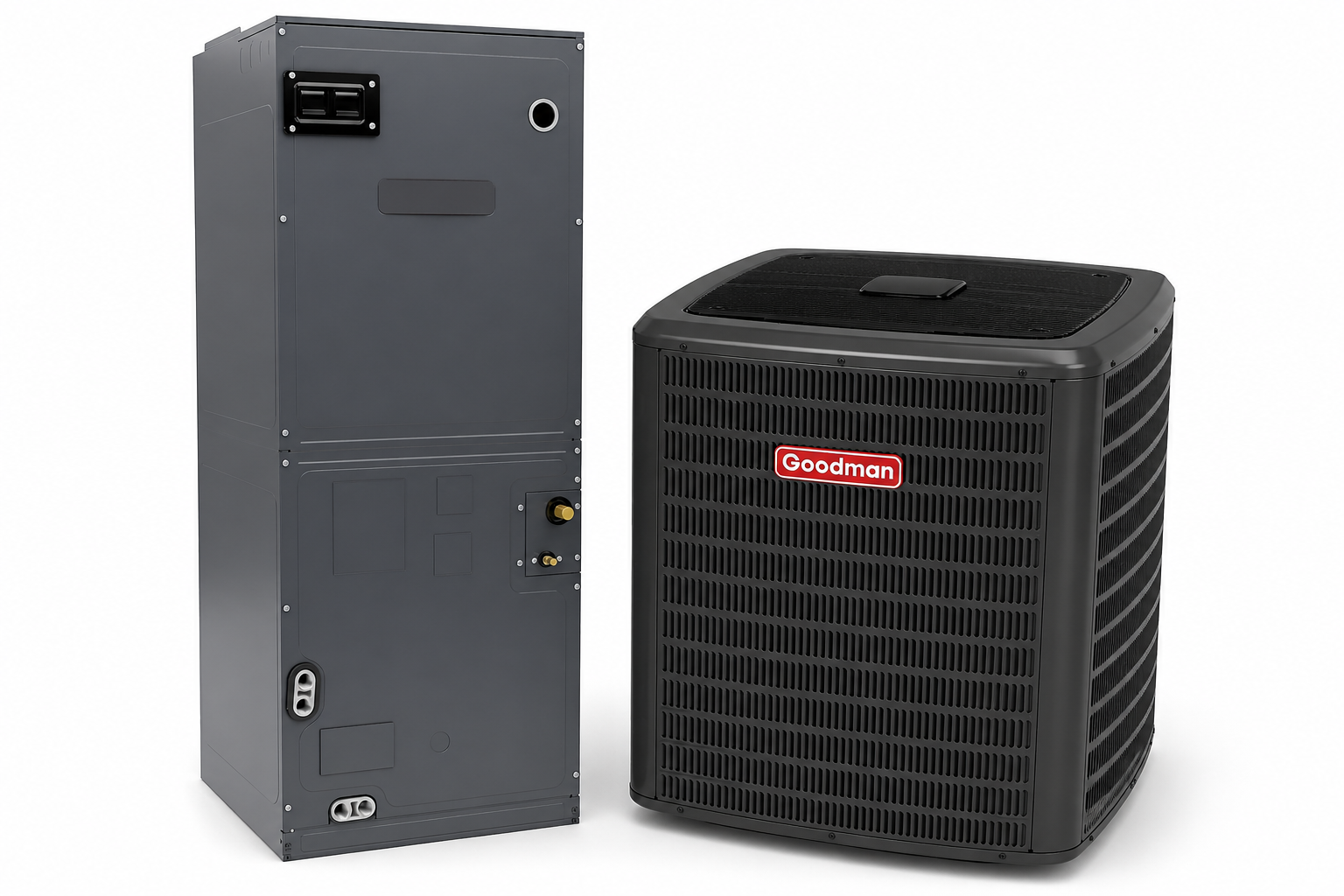

OVERVIEW
Built with a superior design, Goodman manufactured the GLXT7CA3610 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GLXT7CA3610 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.
QUICK FACTS
- Ideal size to cover a smaller house in ideal climates
- 3 Ton, 17.2 SEER2 AC-only condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Two Stage
- Lowest possible sound output
- Fully charged for up to 15' of line set
- Factory-installed filter drier
3 Ton
The Goodman GLXT7CA3610 air conditioning condenser is rated for 3 tons, which can cover up to a small house in an ideal climate. In order to maintain the unit's efficiency, this condenser may be paired with a higher-tonnage coil.
17.2 SEER2
The Goodman GSXC7 condenser series is designed to be the most efficient AC series in Goodman's lineup. Specifically, the GLXT7CA3610 is 17.2 SEER2, the highest efficiency rating offered by Goodman. This unit will save you the most money when it comes to your energy bills, at a whopping approximate of 25% more efficient than the 13.4 SEER2 industry standard minimum.
Superior Comfort with Two Stages
The GLXT7CA3610 condenser is designed to be one of the quietest and most stable temperature output condensers made by Goodman today. With its two stage Copeland UltraTech scroll compressor, temperature stability is at its peak, allowing the condenser to only use the highest output when needed, and using the lower output more often to prevent overshooting the desired temperature and lowering the amount of time that the fan is at its loudest. Further enhancing comfort, the two stage compressor also allows for a better dehumidification of your home. Moreover, the cabinet is insulated and the compressor has a built-in foam compressor sound blanket, further decreasing the unit's sound output.
Warranty
With Goodman's standard 10 year parts warranty, the GLXT7CA3610 provides a peace of mind in the rare occurrence that something goes wrong on your unit. On top of this, Goodman also offers an astounding lifetime warranty on the unit's compressor when it is paired with a new coil or air handler that is a Goodman-certified configuration. All of Goodman's warranties require a professional installation that follows your state and local codes and an online registration within 60 days of your installation through the manufacturer.
Durability and Reliability
With its durable galvanized-steel cabinet and its painted finish that is approved for 500 hours of salt spray, the GLXT7CA3610 condenser stands up to Goodman's high durability standards. The durable design of the cabinet also makes it 2010 Florida building code integrity requirements for hurricane-type winds compliant when it is properly anchored.
Installation and Maintenance
With its compact footprint and rust-resistant coated screws, the GLXT7CA3610 is designed to be suitable in almost any installation location. For easier installation, Goodman designed the gauge ports and service valves to be easily accessible and with sweat connections. The cabinet has a maintenance access panel on both the top and the side of the unit. All of this allows you to keep money in your pocket and have a lower resolution time if a rare system issue occurs, providing comfort with a peace of mind.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.
Product Benefits (AMVT42CP1300)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- All-aluminum evaporator coil
- AHRI certified; ETL listed
- Rigid SmartFrame™ cabinet
- Horizontal or vertical configuration capabilities
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Field Installed 3 kW – 25 kW electric heater kits available
Product Features (AMVT42CP1300)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features (AMVT42CP1300)
- Rigid SmartFrame™ cabinet
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities;5. 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish;10 .Glue-less cabinet insulation retention
Technical Specifications - AMVT42CP1300
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AMVT_32 |
| series name | R-32 AMVT |
| installation type | Ducted Multi-position |
| communication feature | No |
| communication feature type | ComfortBridge Technology compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736405 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 42000 Btu/H |
| produced in us | Yes |
| indoor blower fla | 5.2 A |
| max overcurrent protection | 50/60 A |
| max voltage | 253 V |
| min circuit amps | 6.5/6.5 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| dimensions blower diameter | 10 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 53-7/16 in |
| dimensions unit width | 21-1/8 in |
| expansion device | TXV |
| motor speed type | Variable Speed ECM |
| weight unit | 158 lb |
| blower motor horsepower | 3/4 metric hp |
| tonnage | 3.5 |
| tonnage range | 2.0;5.0 |
| factory std refrigerant charge | 0.5 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 57.50 in |
| dimensions case width | 22.50 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 57.5 in |
| dimensions distribution unit width | 22.5 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 57.50 in |
| dimensions pallet width | 45.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 57.50 in |
| dimensions shipping unit width | 22.50 in |
| distribution shipping volume unit | 31696.875 in³ |
| shipping volume unit | 31696.875 in³ |
| truck factor | 0.0000 |
| volume case | 31696.875 in³ |
| volume distribution shipping unit | 31696.875 in³ |
| weight case | 142.000 lb |
| weight distribution shipping unit | 142 lb |
| weight shipping unit | 142.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Features (GLXT7CA3610)
- Two-Stage Copeland Ultra-Tech scroll compressor
- Quiet two-speed ECM outdoor fan motor
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
- Copeland® ComfortAlert™ built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Color-coded terminal strip for non-communicating set-up
- Only two low-voltage wires required in communication mode
- Factory-installed filter drier
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Fully charged for 15’ of tubing length
- Ambient temperature sensors
- Ground lug connection
- AHRI Certified - ETL Listed
Cabinet Features (GLXT7CA3610)
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard with rust-resistant screws.
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
- Service valves with sweat connections and easy-access gauge ports
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds(Anchor bracket kits available.)
Technical Specifications - GLXT7CA3610
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXT7C |
| series name | GLXT7C |
| model efficiency | 17.2 SEER2 |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051743922 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 12.2 |
| energy star certified | No |
| seer 2 hsvtc | 15.2 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 14.5 A |
| max overcurrent protection | 35 A |
| min circuit amps | 20.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Two Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 39.5 in |
| dimensions unit width | 35-1/2 in |
| expansion device | TXV |
| sound pressure high cooling | 70 dBA |
| weight unit | 216 lb |
| cooling capacity rated | 36000 Btu/H |
| tonnage | 3 |
| factory std refrigerant charge | 92 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 42.00 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 57498 in³ |
| shipping volume unit | 57498.000 in³ |
| truck factor | 0.0000 |
| volume case | 57498.000 in³ |
| volume distribution shipping unit | 57498 in³ |
| weight case | 229.000 lb |
| weight distribution shipping unit | 229 lb |
| weight shipping unit | 229.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- Goodman Split Air Conditioner 17.2 SEER2, Two Stage
- Goodman Split Air Conditioner 17.2 SEER2, Two Stage
- Goodman Split Air Conditioner 17.2 SEER2, Two Stage
Leaflets & Manuals
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- Goodman Split Air Conditioner 17.2 SEER2, Two Stage
- Goodman Split Air Conditioner 17.2 SEER2, Two Stage
- Goodman Split Air Conditioner 17.2 SEER2, Two Stage
Loading accessories…
We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.
SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.
Shipping & Delivery
We will prepare your order within 24–48 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION
Please be informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery.
To AVOID delays, please make sure the phone number in your order details is accurate and one where you can be reached. You may also contact the carrier directly using your tracking number to schedule your delivery.
It is your responsibility to ensure a safe and secure delivery environment. We are not liable for any packages that are stolen or lost after delivery is confirmed.
Please verify your shipping address carefully. Changes to your shipping address after the freight has been shipped may result in additional fees of 15% or more, depending on freight weight and dimensions.
SMALLWARES INFORMATION
Smaller items such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves may be shipped via FedEx without a signature requirement if ordered individually.
It is your responsibility to ensure a safe delivery location. We are not liable for packages lost or stolen after delivery confirmation. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING
Please inspect your boxes carefully upon delivery. Shipments should arrive shrink-wrapped and on a pallet. If you notice any damage or signs of mishandling (such as a crushed box or forklift puncture), write comments on the delivery receipt before signing, even if the damage appears minor.
Contact us immediately if any issues arise so we can assist you promptly.
SMS Delivery Notifications
If you opted into SMS notifications, we may send you order updates or delivery reminders by text message. Message frequency may vary. Message and data rates may apply. Text STOP to opt out. Text HELP for assistance.
For more details, see our Privacy Policy.
Loading technical data…
