Home Goodman

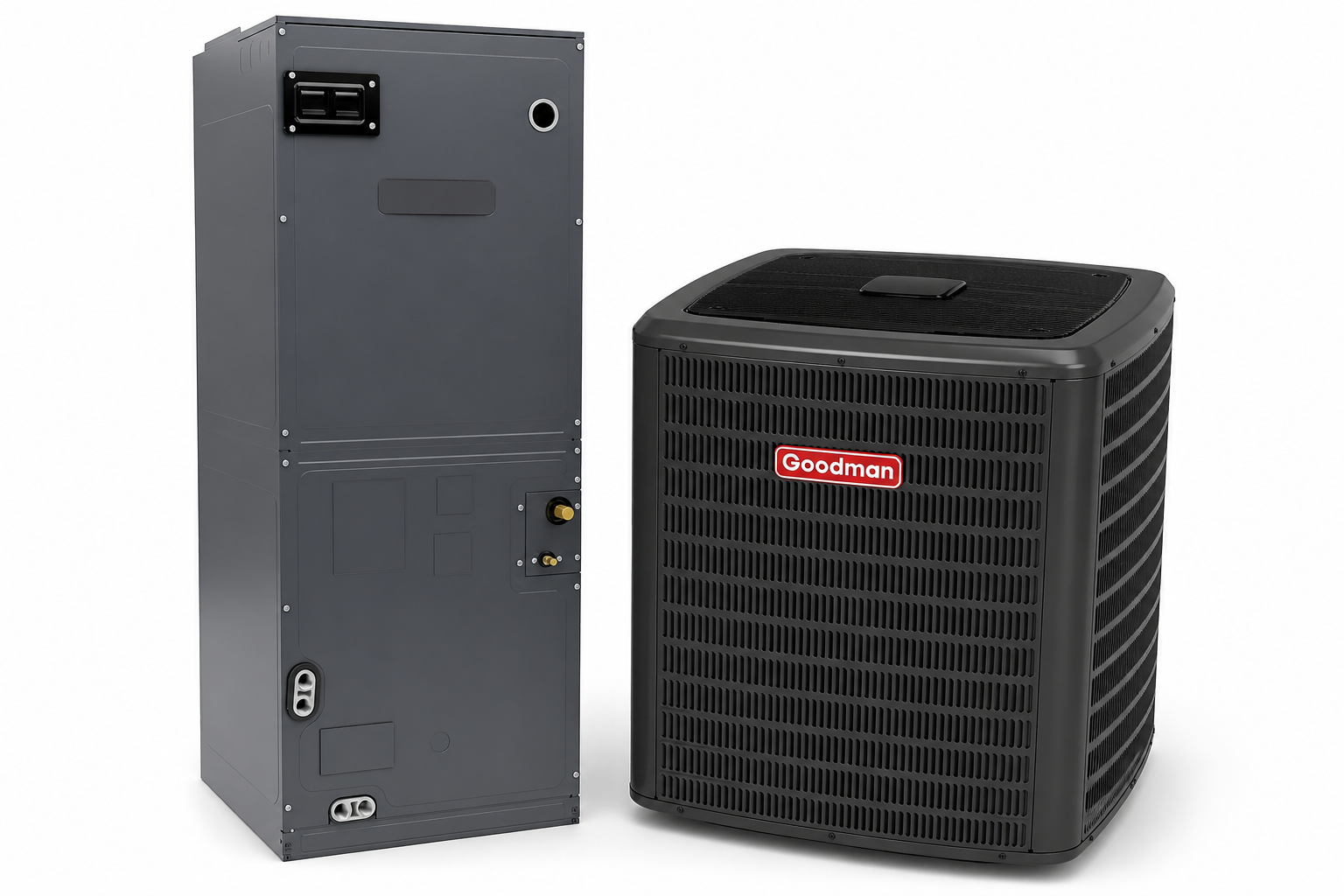

Goodman 3 Ton 17.0 SEER2 R32 Air Conditioner Split System - Multi-Positional

SKU AMVT36BP1300 + GLXT7CA3610 AC Air Handler Systems17.0 SEER2208-240V, 208-230V
$5,814.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Efficient
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 3 Ton 17.0 SEER2 R32 Air Conditioner Split System - Multi-Positional

Product Overview

OVERVIEW

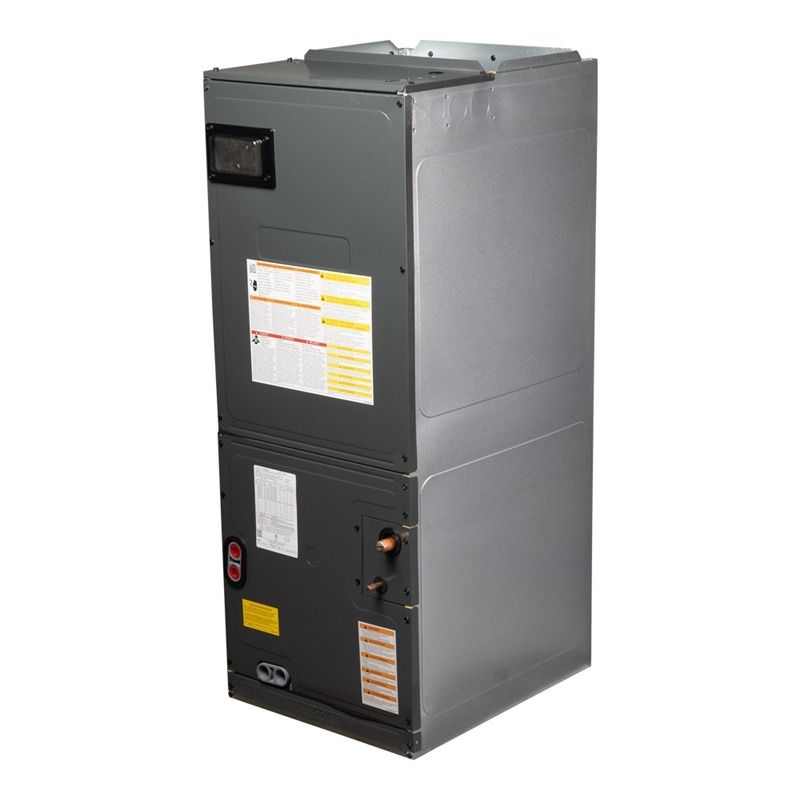

The Goodman AMVT36BP1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

QUICK FACTS

  • 3 ton air handler
  • Electric heat compatible
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Variable speed, direct drive ECM blower motor
  • Multi-positional (upflow, downflow, or horizontal)

3 Tons

The Goodman AMVT36BP1300 air handler is rated for an output of 3 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.

Warranty

The AMVT36BP1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.

Durability and Reliability

With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMVT36BP1300 air handler is durable in design, making it a reliable solution for your home.

Installation and Maintenance

The Goodman AMVT36BP1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.

Enhanced Comfort

The AMVT36BP1300 air handler lives up to Goodman's comfort expectations with its variable speed ECM motor, which provides a more precise and efficient temperature control.

OVERVIEW

Built with a superior design, Goodman manufactured the GLXT7CA3610 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GLXT7CA3610 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.

QUICK FACTS

  • Ideal size to cover a smaller house in ideal climates
  • 3 Ton, 17.2 SEER2 AC-only condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Two Stage
  • Lowest possible sound output
  • Fully charged for up to 15' of line set
  • Factory-installed filter drier

3 Ton

The Goodman GLXT7CA3610 air conditioning condenser is rated for 3 tons, which can cover up to a small house in an ideal climate. In order to maintain the unit's efficiency, this condenser may be paired with a higher-tonnage coil.

17.2 SEER2

The Goodman GSXC7 condenser series is designed to be the most efficient AC series in Goodman's lineup. Specifically, the GLXT7CA3610 is 17.2 SEER2, the highest efficiency rating offered by Goodman. This unit will save you the most money when it comes to your energy bills, at a whopping approximate of 25% more efficient than the 13.4 SEER2 industry standard minimum.

Superior Comfort with Two Stages

The GLXT7CA3610 condenser is designed to be one of the quietest and most stable temperature output condensers made by Goodman today. With its two stage Copeland UltraTech scroll compressor, temperature stability is at its peak, allowing the condenser to only use the highest output when needed, and using the lower output more often to prevent overshooting the desired temperature and lowering the amount of time that the fan is at its loudest. Further enhancing comfort, the two stage compressor also allows for a better dehumidification of your home. Moreover, the cabinet is insulated and the compressor has a built-in foam compressor sound blanket, further decreasing the unit's sound output.

Warranty

With Goodman's standard 10 year parts warranty, the GLXT7CA3610 provides a peace of mind in the rare occurrence that something goes wrong on your unit. On top of this, Goodman also offers an astounding lifetime warranty on the unit's compressor when it is paired with a new coil or air handler that is a Goodman-certified configuration. All of Goodman's warranties require a professional installation that follows your state and local codes and an online registration within 60 days of your installation through the manufacturer.

Durability and Reliability

With its durable galvanized-steel cabinet and its painted finish that is approved for 500 hours of salt spray, the GLXT7CA3610 condenser stands up to Goodman's high durability standards. The durable design of the cabinet also makes it 2010 Florida building code integrity requirements for hurricane-type winds compliant when it is properly anchored.

Installation and Maintenance

With its compact footprint and rust-resistant coated screws, the GLXT7CA3610 is designed to be suitable in almost any installation location. For easier installation, Goodman designed the gauge ports and service valves to be easily accessible and with sweat connections. The cabinet has a maintenance access panel on both the top and the side of the unit. All of this allows you to keep money in your pocket and have a lower resolution time if a rare system issue occurs, providing comfort with a peace of mind.

Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

Product Benefits (AMVT36BP1300)

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridgeâ„¢ Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • All-aluminum evaporator coil
  • AHRI certified; ETL listed
  • Rigid SmartFrameâ„¢ cabinet
  • Horizontal or vertical configuration capabilities
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Field Installed 3 kW – 25 kW electric heater kits available

Product Features (AMVT36BP1300)

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • Integrated communicating ComfortBridge Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.

Cabinet Features (AMVT36BP1300)

  • Rigid SmartFrameâ„¢ cabinet
  • Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
  • Horizontal or vertical configuration capabilities;5. 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish;10 .Glue-less cabinet insulation retention

Technical Specifications - AMVT36BP1300

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AMVT_32
series name R-32 AMVT
installation type Ducted Multi-position
communication feature No
communication feature type ComfortBridge Technology compatible
export control classification number eccn EAR99
universal product code upc 663051736382
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
produced in us Yes
expansion device TXV
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 24.50 in
dimensions case height 57.50 in
dimensions case width 18.50 in
dimensions distribution unit depth 24.5 in
dimensions distribution unit height 57.5 in
dimensions distribution unit width 18.5 in
dimensions pallet depth 49.00 in
dimensions pallet height 57.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 24.50 in
dimensions shipping unit height 57.50 in
dimensions shipping unit width 18.50 in
distribution shipping volume unit 26061.875 in³
shipping volume unit 26061.875 in³
truck factor 0.0000
volume case 26061.875 in³
volume distribution shipping unit 26061.875 in³
weight case 130.000 lb
weight distribution shipping unit 132.09 lb
weight shipping unit 130.000 lb
registered parts warranty commercial ALL PARTS - 10 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 10 YEARS PARTS
standard parts warranty multi family ALL PARTS - 10 YEARS PARTS
standard parts warranty residential ALL PARTS - 10 YEARS PARTS

Product Features (GLXT7CA3610)

  • Two-Stage Copeland Ultra-Tech scroll compressor
  • Quiet two-speed ECM outdoor fan motor
  • Integrated communicating ComfortBridgeâ„¢ Technology
  • Commissioning and diagnostics via Bluetooth indoor board via CoolCloudâ„¢ App
  • Copeland® ComfortAlertâ„¢ built in diagnostics
  • Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
  • Color-coded terminal strip for non-communicating set-up
  • Only two low-voltage wires required in communication mode
  • Factory-installed filter drier
  • Factory-installed transformer
  • Factory-installed high and low-pressure switches
  • High-density foam compressor sound blanket
  • Fully charged for 15’ of tubing length
  • Ambient temperature sensors
  • Ground lug connection
  • AHRI Certified - ETL Listed

Cabinet Features (GLXT7CA3610)

  • Removable grille-style top design compliant with UL 60335-2-40
  • Venturi for increased velocity of airflow
  • Heavy-gauge galvanized steel cabinet
  • Baked-on powder-paint finish with 500-hour salt-spray approval
  • Steel louver coil guard with rust-resistant screws.
  • Top and side maintenance access
  • Single-panel access to controls with space for field-installed accessories
  • Service valves with sweat connections and easy-access gauge ports
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds(Anchor bracket kits available.)

Technical Specifications - GLXT7CA3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLXT7C
series name GLXT7C
model efficiency 17.2 SEER2
export control classification number eccn EAR99
universal product code upc 663051743922
item stocking unit of measure uom EA
pallet qty 1
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 12.2
energy star certified No
seer 2 hsvtc 15.2
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 14.5 A
max overcurrent protection 35 A
min circuit amps 20.8 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Two Stage
compressor type Scroll
dimensions unit depth 35.5 in
dimensions unit height 39.5 in
dimensions unit width 35-1/2 in
expansion device TXV
sound pressure high cooling 70 dBA
weight unit 216 lb
cooling capacity rated 36000 Btu/H
tonnage 3
factory std refrigerant charge 92 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 3/4 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 37.00 in
dimensions case height 42.00 in
dimensions case width 37.00 in
dimensions distribution unit depth 37 in
dimensions distribution unit height 42 in
dimensions distribution unit width 37 in
dimensions pallet depth 37.00 in
dimensions pallet height 42.00 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 37.00 in
dimensions shipping unit height 42.00 in
dimensions shipping unit width 37.00 in
distribution shipping volume unit 57498 in³
shipping volume unit 57498.000 in³
truck factor 0.0000
volume case 57498.000 in³
volume distribution shipping unit 57498 in³
weight case 229.000 lb
weight distribution shipping unit 229 lb
weight shipping unit 229.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.

Customer Reviews Reviews & ratings Open verified customer feedback for this product.
