A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

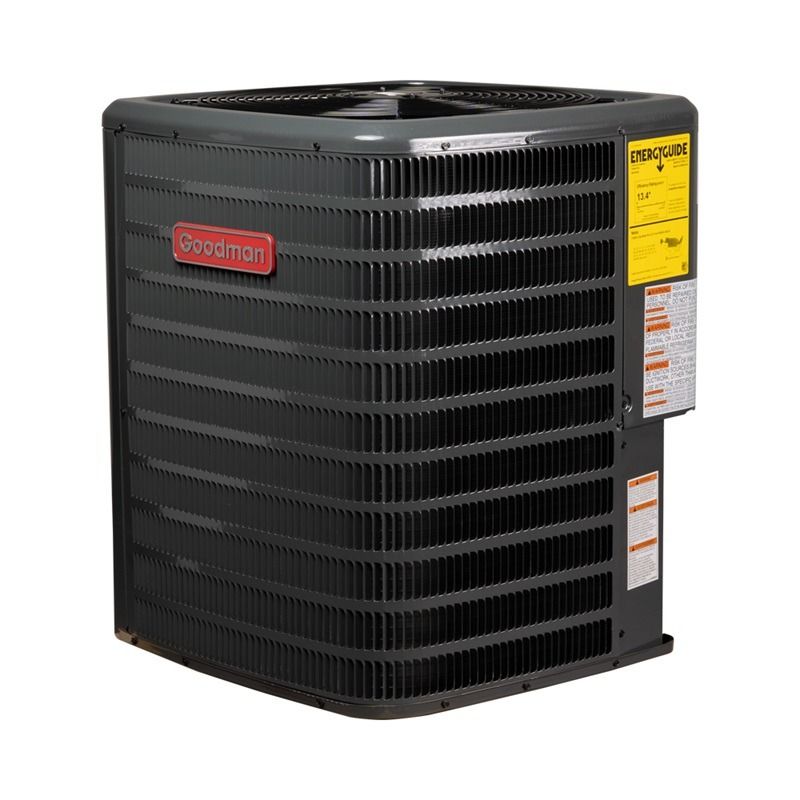

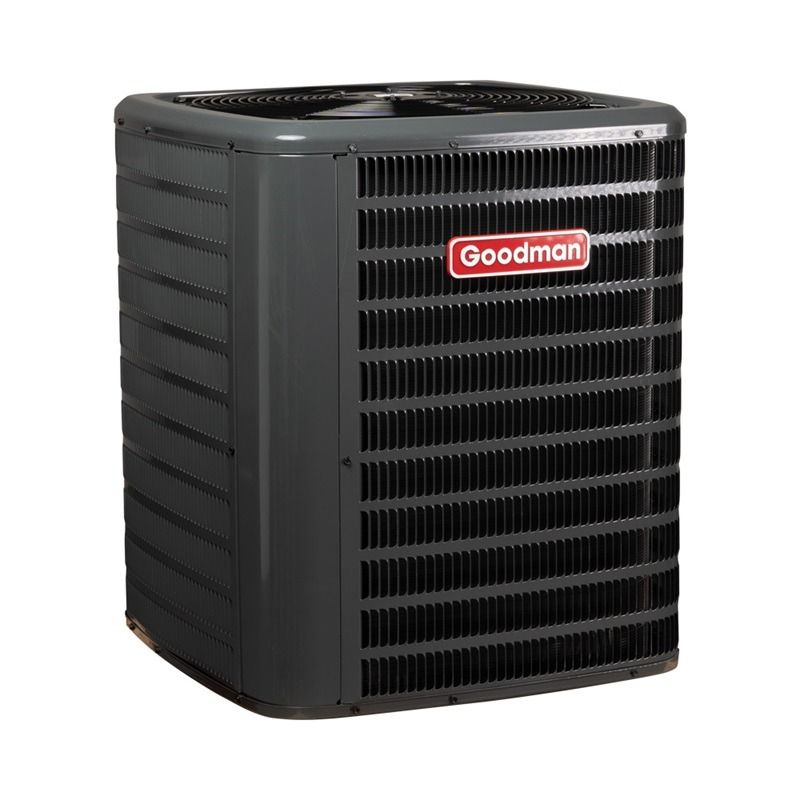

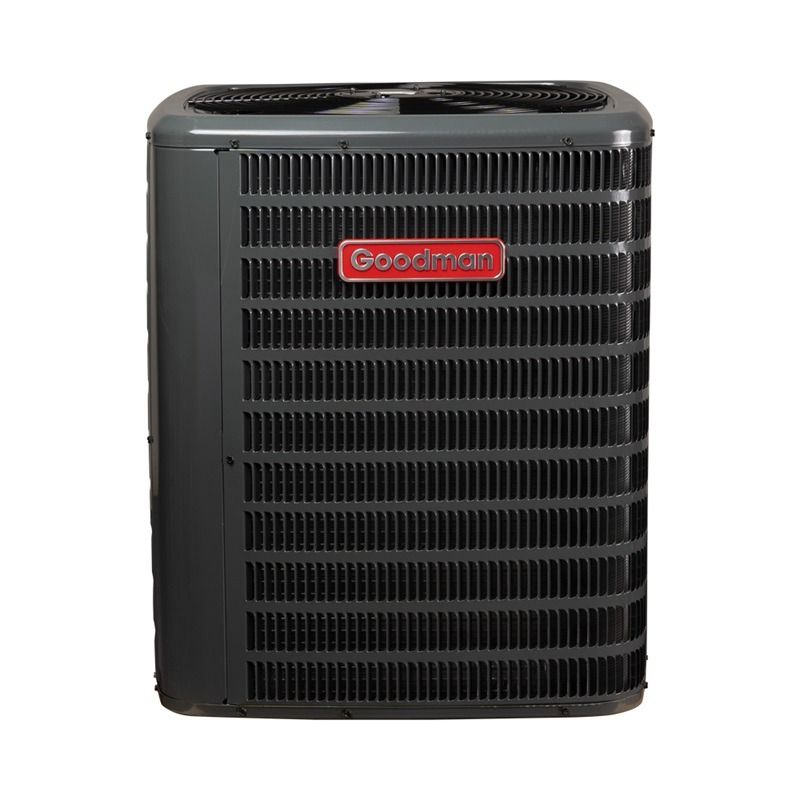

Built with a superior design, Goodman manufactured the GLXT7CA3610 to be whisper-quiet, to be extremely efficient, and to provide the best comfort possible. The GLXT7CA3610 is considered from the best of the best series of AC condenser that Goodman has to offer, making it a top-quality unit to suit the all of your cooling needs.
The Goodman GLXT7CA3610 air conditioning condenser is rated for 3 tons, which can cover up to a small house in an ideal climate. In order to maintain the unit's efficiency, this condenser may be paired with a higher-tonnage coil.
The Goodman GSXC7 condenser series is designed to be the most efficient AC series in Goodman's lineup. Specifically, the GLXT7CA3610 is 17.2 SEER2, the highest efficiency rating offered by Goodman. This unit will save you the most money when it comes to your energy bills, at a whopping approximate of 25% more efficient than the 13.4 SEER2 industry standard minimum.
The GLXT7CA3610 condenser is designed to be one of the quietest and most stable temperature output condensers made by Goodman today. With its two stage Copeland UltraTech scroll compressor, temperature stability is at its peak, allowing the condenser to only use the highest output when needed, and using the lower output more often to prevent overshooting the desired temperature and lowering the amount of time that the fan is at its loudest. Further enhancing comfort, the two stage compressor also allows for a better dehumidification of your home. Moreover, the cabinet is insulated and the compressor has a built-in foam compressor sound blanket, further decreasing the unit's sound output.
With Goodman's standard 10 year parts warranty, the GLXT7CA3610 provides a peace of mind in the rare occurrence that something goes wrong on your unit. On top of this, Goodman also offers an astounding lifetime warranty on the unit's compressor when it is paired with a new coil or air handler that is a Goodman-certified configuration. All of Goodman's warranties require a professional installation that follows your state and local codes and an online registration within 60 days of your installation through the manufacturer.
With its durable galvanized-steel cabinet and its painted finish that is approved for 500 hours of salt spray, the GLXT7CA3610 condenser stands up to Goodman's high durability standards. The durable design of the cabinet also makes it 2010 Florida building code integrity requirements for hurricane-type winds compliant when it is properly anchored.
With its compact footprint and rust-resistant coated screws, the GLXT7CA3610 is designed to be suitable in almost any installation location. For easier installation, Goodman designed the gauge ports and service valves to be easily accessible and with sweat connections. The cabinet has a maintenance access panel on both the top and the side of the unit. All of this allows you to keep money in your pocket and have a lower resolution time if a rare system issue occurs, providing comfort with a peace of mind.
Disclaimer: This condenser contains R-32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R-32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
| sku | GLXT7CA3610 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLXT7C |
| series name | GLXT7C |
| short description | Goodman Split Air Conditioner 17.2 SEER2, Two Stage |
| product description | 17.2 seer2 ac, 2stg 3.0t |
| cooling btu | 36,000 |
| seer2 | 17.2 |
| decibel level (dba) | 70 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| electrical | 208/230 V | 60 Hz | 1 Ph |
| max breaker size | 35 A |
| min. breaker size | 20.8 A |
| tonnage | 3 |
| btu/tonnage | 36,000 BTU/3 Ton |
| min/max outdoor temp for cooling | 55 °F to 125 °F |
| height | 39.5 in |
| width | 35-1/2 in |
| depth | 35.5 in |
| weight | 216 lb |
| warranty | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Split Air Conditioner |
| model efficiency | 17.2 SEER2 |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051743922 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 12.2 |
| energy star certified | No |
| seer 2 hsvtc | 15.2 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| fan compressor drive input | 14.5 A |
| max overcurrent protection | 35 A |
| min circuit amps | 20.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Two Stage |
| dimensions unit depth | 35.5 in |
| dimensions unit height | 39.5 in |
| dimensions unit width | 35-1/2 in |
| expansion device | TXV |
| sound pressure high cooling | 70 dBA |
| weight unit | 216 lb |
| cooling capacity rated | 36000 Btu/H |
| factory std refrigerant charge | 92 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 42.00 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 57498 in³ |
| shipping volume unit | 57498.000 in³ |
| truck factor | 0.0000 |
| volume case | 57498.000 in³ |
| volume distribution shipping unit | 57498 in³ |
| weight case | 229.000 lb |
| weight distribution shipping unit | 229 lb |
| weight shipping unit | 229.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Technical Data
Loading technical data…
Product FAQs
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
