Home 36,000 BTU Goodman

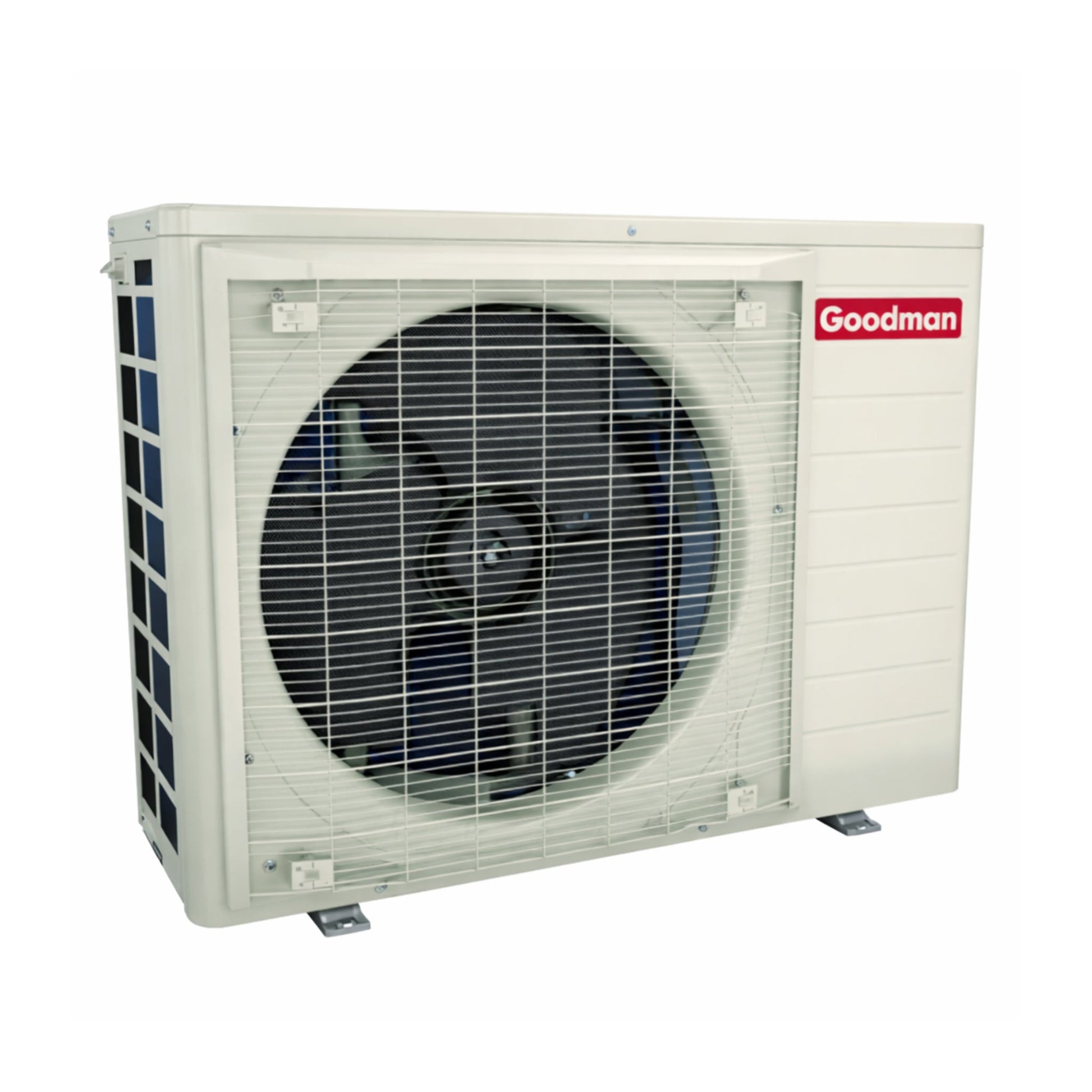

Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32

SKU GXV6SS3610 Air Conditioner Condenser Units16.2 SEER2208-230V
$2,704.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for 36K room setups:
  • Open floor plans
  • Large garages
  • Light commercial
  • Multi-room areas
36,000 BTU
Cooling
36,000 BTU
Heating
See specs
Quiet Inside
Efficient
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32

Product Overview


Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS3610

This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.

Standard Features

  • Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
  • Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
  • High-density compressor sound blanket for enhanced sound reduction
  • Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
  • Proprietary control algorithmic logic for optimized system performance and reliability
  • Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
  • Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
  • Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
  • Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
  • Field-selectable boost mode increases compressor speed during unusually high cooling loads
  • Field-installed bi-flow filter drier for enhanced refrigerant system protection
  • Integrated coil and ambient temperature sensors for accurate system monitoring
  • Suction pressure transducer for improved compressor protection and performance tracking
  • Sweat connection service valves with easy access to gauge ports for streamlined maintenance
  • AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance

Cabinet & Durability Features

  • Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
  • Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
  • High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
  • 500-hour salt spray tested to ensure superior corrosion protection
  • Wire fan discharge grille for added safety and structural integrity
  • Top and side maintenance access panels for easier installation and serviceability
  • When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
  • Optional anchor bracket kits available for high-wind and severe weather installations

Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS3610

Warranty Type Parts Compressor
Manufacturer Warranty 10 Years Limited Lifetime

Product Features

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostat and other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two low- voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segmentLED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
  • Feild-selectable boost mode increases compressor speed during unusually high loads
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves with easy access to gauge ports
  • AHRI Certified
  • ETL Listed

Cabinet Features

  • Heavy-gauge galvanized steel cabinet with grille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV6SS3610

sku GXV6SS3610
manufacturer Goodman
product category Unitary
product class Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV6SS
series name GXV6SS
short description Goodman Split Air Conditioner 16.2 SEER2, Variable
product description g sd 16.2 s2 r32 inv-3t ac
cooling btu 34,200
seer2 16.2
decibel level (dba) 68 dBA
refrigerant R-32
compressor type Inverter
liquid line 3/8 in
suction line 7/8 in
electrical 208/230 V | 60 Hz | 1 Ph
max breaker size 25 A
min. breaker size 22.4 A
tonnage 3
btu/tonnage 34,200 BTU/3 Ton
min/max outdoor temp for cooling 0 °F to 115 °F
height 27.375 in
width 36-5/8 in
depth 13.75 in
weight 133 lb
warranty COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
safety information Proposition 65 Label: Yes
product class pim Split Air Conditioner
model efficiency 16.2 SEER2
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051747012
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 9
energy star certified No
seer 2 hsvtc 16.6
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 17.6 A
max overcurrent protection 25 A
min circuit amps 22.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
dimensions unit depth 13.75 in
dimensions unit height 27.375 in
dimensions unit width 36-5/8 in
expansion device EEV
sound pressure high cooling 68 dBA
weight unit 133 lb
cooling capacity rated 34200 Btu/H
factory std refrigerant charge 83 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.50 in
dimensions case height 30.00 in
dimensions case width 39.00 in
dimensions distribution unit depth 17.5 in
dimensions distribution unit height 30 in
dimensions distribution unit width 39 in
dimensions pallet depth 35.50 in
dimensions pallet height 64.50 in
dimensions pallet width 39.00 in
dimensions shipping unit depth 17.50 in
dimensions shipping unit height 30.00 in
dimensions shipping unit width 39.00 in
distribution shipping volume unit 20475 in³
shipping volume unit 20475.000 in³
truck factor 0.0000
volume case 20475.000 in³
volume distribution shipping unit 20475 in³
weight case 136.090 lb
weight distribution shipping unit 136.09 lb
weight shipping unit 136.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
