Product Overview

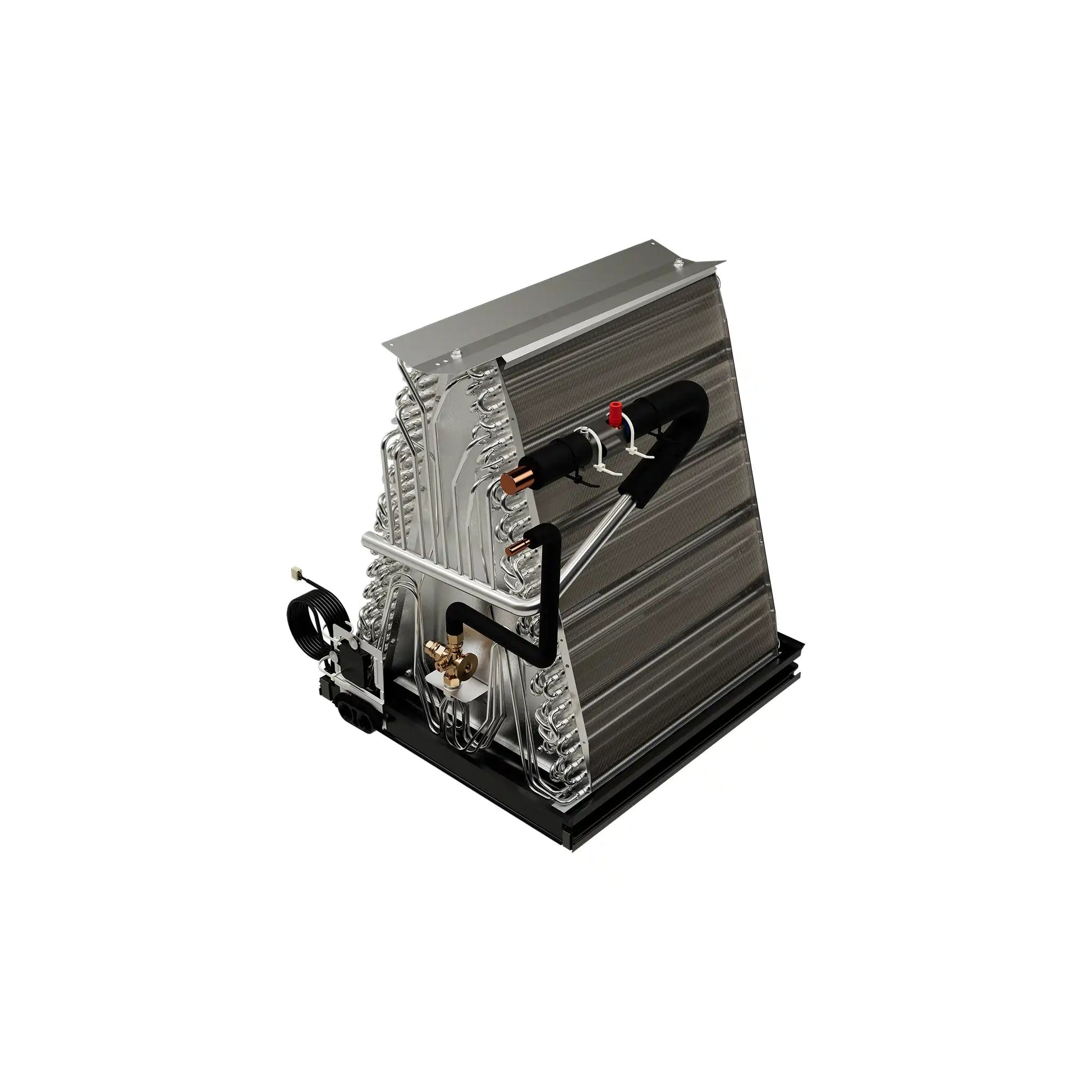

Goodman 1.5 Ton Evaporator Coil Uncased TXV 13" Cabinet Upflow/Downflow CAUTA1818A3
The Goodman 1.5 Ton Uncased Evaporator Coil is engineered for exceptional performance with R-32 refrigerant systems. Constructed with an all-aluminum coil design, it provides excellent heat transfer and corrosion resistance. Designed for upflow and downflow applications, it includes a factory-installed thermal expansion valve and foil-faced insulation to minimize condensation. Its thermoplastic drain pan is rust-resistant and features a low-retention design with secondary drain connections for added protection and durability. With a compact 15-inch height and a lightweight build, installation and maintenance are simplified. Ideal for residential mini-split systems and heat pump applications requiring high efficiency and compact coil solutions.
Key Features
- All-aluminum evaporator coil enhances durability and corrosion resistance
- Optimized for R-32 refrigerant with dedicated circuits and manifolds
- Integrated R-32 sensor designed to last the full life of the coil
- Factory-installed thermal expansion valve for enhanced cooling performance
- Standardized copper suction tube stub for consistent installations
- Foil-faced internal insulation reduces cabinet condensation buildup
- Rust-resistant, UV-stabilized thermoplastic drain pan with low water retention
- Secondary drain connections included for added system protection
- Drain pan rails enable easy coil repositioning without compromising structure
- ETL listed and AHRI certified for quality assurance
This evaporator coil is ideal for compact residential HVAC systems using mini-split air conditioners and heat pumps, particularly where space-saving vertical or horizontal installations are required.
Goodman 1.5 Ton Evaporator Coil Uncased TXV 13" Cabinet Upflow/Downflow CAUTA1818A3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valve for cooling applications
- Standardized copper suction tube stub length
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Technical Specifications - CAUTA1818A3
| sku | CAUTA1818A3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAUTA_32 |
| series name | CAUTA |
| short description | CAUTA Evaporator Coil, Upflow/Downflow, 1.5 Ton, R-32 |
| family description | CAUTA Uncased Coil |
| product description | 1.5T Uncased R-32 Coil with TXV |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| tonnage | 1.5 |
| height | 15 in |
| width | 13 in |
| depth | 21.3 in |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051729285 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cabinet finish | Unpainted |
| cased vs uncased | Uncased |
| dimensions unit depth | 21.3 in |
| dimensions unit height | 15 in |
| dimensions unit width | 13 in |
| expansion device | TXV |
| tonnage range | 1.5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 20.50 in |
| dimensions case width | 16.25 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 20.5 in |
| dimensions distribution unit width | 16.25 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 45.50 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 20.50 in |
| dimensions shipping unit width | 16.25 in |
| distribution shipping volume unit | 8661.25 in³ |
| shipping volume unit | 8661.250 in³ |
| truck factor | 0.0000 |
| volume case | 8661.250 in³ |
| volume distribution shipping unit | 8661.25 in³ |
| weight case | 22.000 lb |
| weight distribution shipping unit | 22 lb |
| weight shipping unit | 22.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
