Product Overview

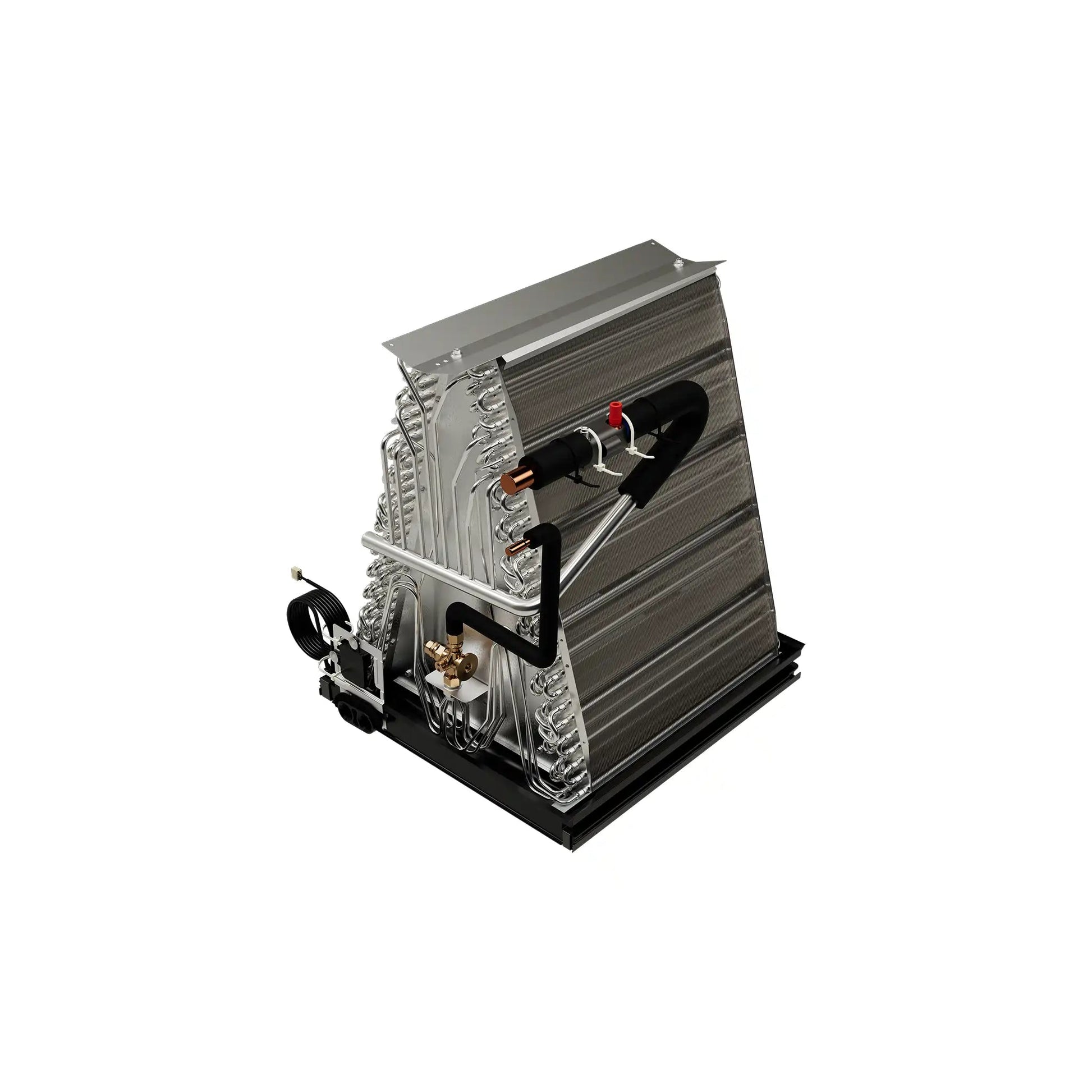

Goodman 2 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow CAUTA2422A3
The Goodman CAUTA2422A3 Evaporator Coil is designed to deliver reliable, energy-efficient performance in residential HVAC systems utilizing R-32 refrigerant. Built with an all-aluminum coil, this unit offers superior corrosion resistance and heat transfer capability. It features a factory-installed thermal expansion valve to optimize cooling, and its compact uncased design allows for flexible installation in upflow and downflow applications. With a foil-faced insulated cabinet to reduce condensation and a rust-resistant drain pan with low water retention, this coil is engineered for longevity and ease of service. Ideal for applications requiring compact yet powerful cooling coil components.
Key Features
- All-aluminum coil construction for long-lasting corrosion resistance
- Compatible with R-32 refrigerant systems, including optimized circuits
- Integrated R-32 sensor designed for the life of the unit
- Factory-installed TXV enhances cooling performance and efficiency
- Standard copper suction line for installation uniformity
- Foil-faced internal insulation helps minimize cabinet condensation
- Durable thermoplastic drain pan with low water-retention design
- DecaBDE-free drain pan includes secondary drain connections
- Drain pan rails for easy removal and repositioning of coil
- UV-resistant drain pan material for extended durability
- AHRI certified and ETL listed for compliance and performance
This coil is ideal for homeowners and contractors looking for an environmentally friendly, efficient solution for upflow or downflow applications with mini-split systems and air conditioners using R-32 refrigerant.
Goodman 2 Ton Evaporator Coil Uncased TXV 16.5" Cabinet Upflow/Downflow CAUTA2422A3
| Warranty Type | Parts |
| Standard Warranty | 5 Years |
| Registered Warranty | 10 Years |
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valve for cooling applications
- Standardized copper suction tube stub length
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease withoutcompromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
Technical Specifications - CAUTA2422A3
| sku | CAUTA2422A3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CAUTA_32 |
| series name | CAUTA |
| short description | CAUTA Evaporator Coil, Upflow/Downflow, 2.0 Ton, R-32 |
| family description | CAUTA Uncased Coil |
| product description | 2T Uncased R-32 Coil with TXV |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| tonnage | 2 |
| height | 18.3 in |
| width | 16-1/2 in |
| depth | 21.3 in |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051729308 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| cabinet finish | Unpainted |
| cased vs uncased | Uncased |
| dimensions unit depth | 21.3 in |
| dimensions unit height | 18.3 in |
| dimensions unit width | 16-1/2 in |
| expansion device | TXV |
| tonnage range | 2.0 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 24.75 in |
| dimensions case width | 16.25 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 24.75 in |
| dimensions distribution unit width | 16.25 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 54.00 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 24.75 in |
| dimensions shipping unit width | 16.25 in |
| distribution shipping volume unit | 10456.875 in³ |
| shipping volume unit | 10456.875 in³ |
| truck factor | 0.0000 |
| volume case | 10456.875 in³ |
| volume distribution shipping unit | 10456.875 in³ |
| weight case | 25.000 lb |
| weight distribution shipping unit | 25 lb |
| weight shipping unit | 25.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
